Great Cabinet Design
High Quality Material
High Quality PCB

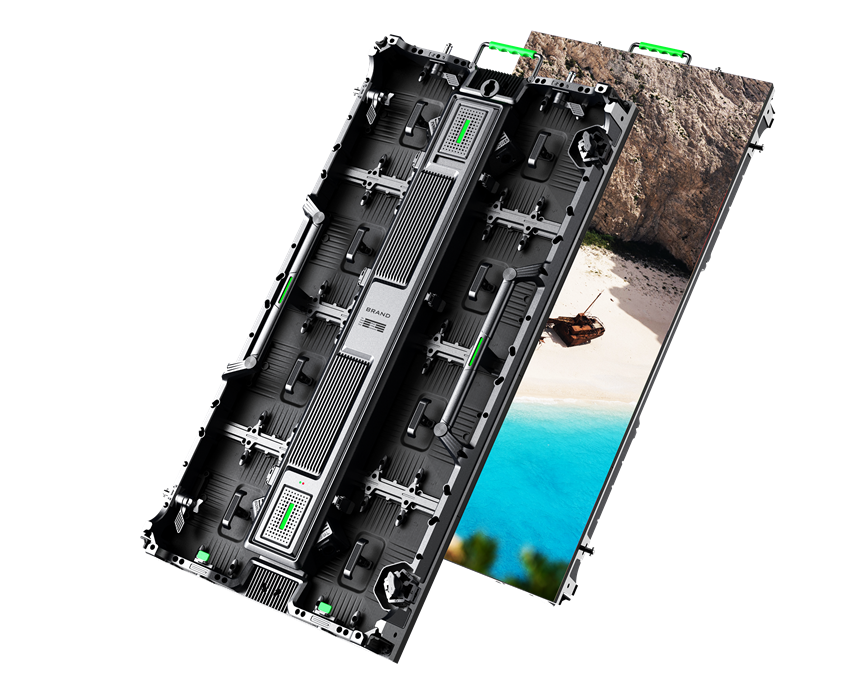

Outdoor rental LED screen aims at different kinds of outdoor events. The pixel pitches are P3.9, P4.8, and P5.9. Multiple ways of protection effectively protect the LED module from damage. Fast locks for tighter assemble with no gap. Anti-collision pin corners of the cabinet protect the module and led lamps. Aluminum makes the cabinet waterproof for outdoor applications.
The cabinet material is aluminum, which is stronger than regular steel material. Meanwhile, the cabinet is lighter than the steel cabinet, so installation and transportation are easier. Moreover, we have utilized the high quality PCB in the LED modules. Therefore, the LED screen works more stably than similar outdoor rental products from other factories. There are two choices for the cabinet: 500 x 500mm and 500 x 1,000mm.
To meet the requirements of customers in different application scenarios, 2 cabinet sizes are available. The weight of the cabinet is 7.5kgs for 500mm x 500mm cabinet and 12.5kgs for 500mm x 1,000mm cabinet, which makes installation flexible during the event.
The LED screen can be any shape, for example, round shape, flat shape, which enables more possibilities of your stage design.
The brightness of the outdoor display is 4,500nits ~ 6,000nits, which enables the screen to have very good clarity in direct sunlight. Meanwhile, the cabinet also has very good heat dissipation, so the performance of the LED video display is very reliable.
LED big screen adopts the automatic glue filling machine process, so it will effectively protect it from water and dust. High IP Rating (IP65) ensures great outputs in every condition.
With high quality material and great design, the screen looks extraordinary. Meanwhile, black outdoor LED technology is optional, and the outdoor rental LED screen stands out with peerless visual performance.
To fit every different scene, the outdoor full color LED display is made up of superior quality materials with the concise and strong cabinet. This product is usually used in:
Cinemas; Stages; Advertisements.
|Module Resolution||64dots × 64dots||52dots × 52dots||42dots × 42dots|
|Module Size||250mm × 250mm||250mm × 250mm||250mm × 250mm|
|Cabinet Size||500mm × 500mm or 500mm × 1,000mm||500mm × 500mm or 500mm × 1,000mm||500mm × 500mm or 500mm × 1,000mm|
|Cabinet Resolution||128dots × 128dots or 128dots × 256dots||104dots × 104dots or 104dots × 208dots||84dots × 84dots or 84dots × 168dots|
|Minimum Viewing Distance||≥3.9 m||≥4.8 m||≥5.9m|
|Viewing Angle||H:160° / V:160°||H:160° / V:160°||H:160° / V:160°|
|Maximum Power Consumption||800W/㎡||800W/㎡||800W/㎡|
|Average Power Consumption||230W/㎡||230W/㎡||230W/㎡|
|Input Voltage||AC220V～AC110V @ 50Hz / 60Hz||AC220V～AC110V @ 50Hz / 60Hz||AC220V～AC110V @ 50Hz / 60Hz|
|Cabinet Weight||7.5kg/panel or 12.5kg/panel||7.5kg/panel or 12.5kg/panel||7.5kg/panel or 12.5kg/panel|
|Operating System||Windows (Win7,Win8,etc.)||Windows (Win7,Win8,etc.)||Windows (Win7,Win8,etc.)|
|Signal Source Compatibility||DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.||DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.||DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.|
