Outdoor Fixed Screen(SMD)

Taurus T Series一T2.5

High Definition
5000nits
Alta estabilidad

High Stability 、 High Definition 、 High Refresh

Maintaining stability is of top priority

High Stability and reliability, excellently response to all kinds of harsh environment

Applied over 10 years in the market , High Stability and reliability with various testing such as waterproof testing , salt spray testing , aging testing and seismic testing and etc.

T2.5 Product Specifications

Various pixel pitch for different application

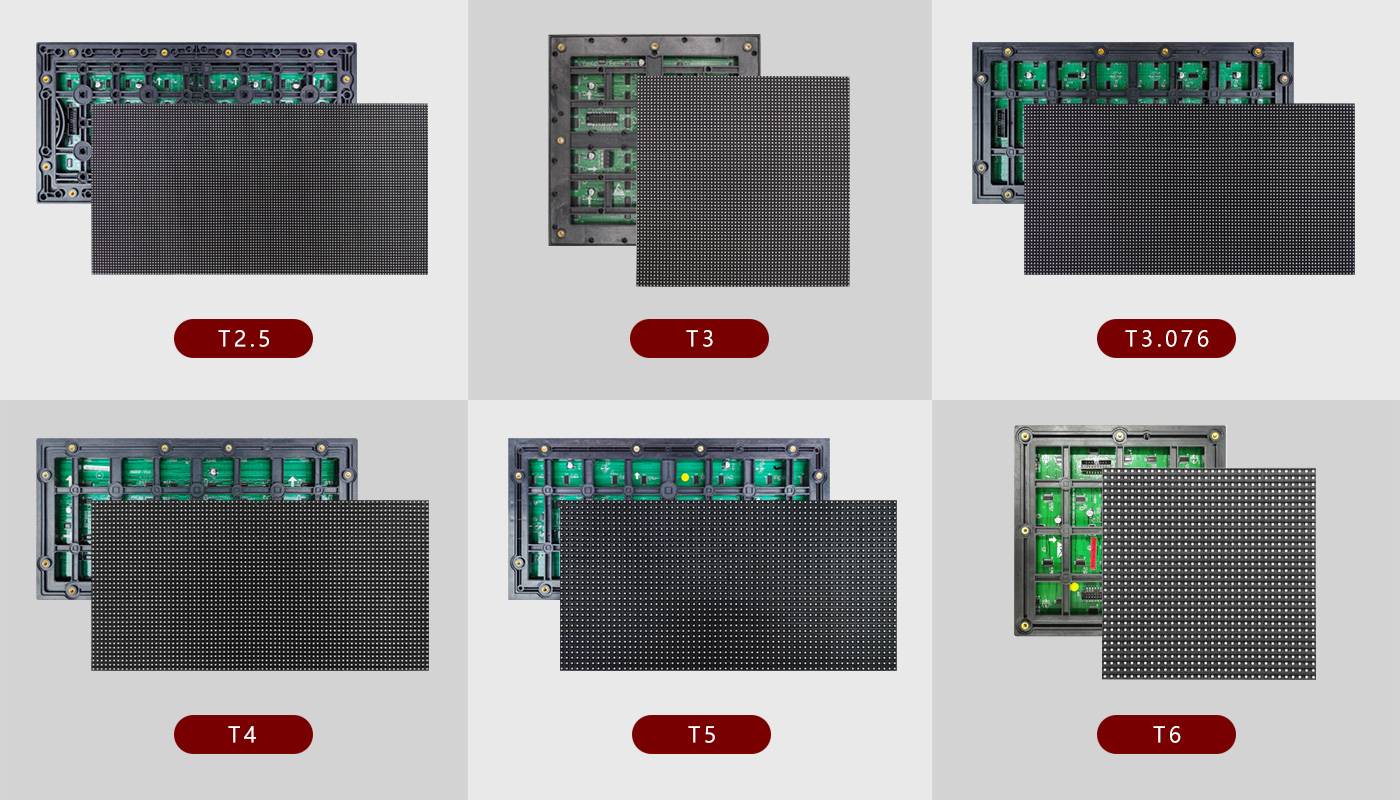

T2.5 T3 T3.076 T4 T5 T6,the 6 different pixel pitch to meet the needs of different viewing distances

The picture is clear and delicate

Adopting outdoor SMD lamp beads, the picture is clear and delicate

Aplicaciones

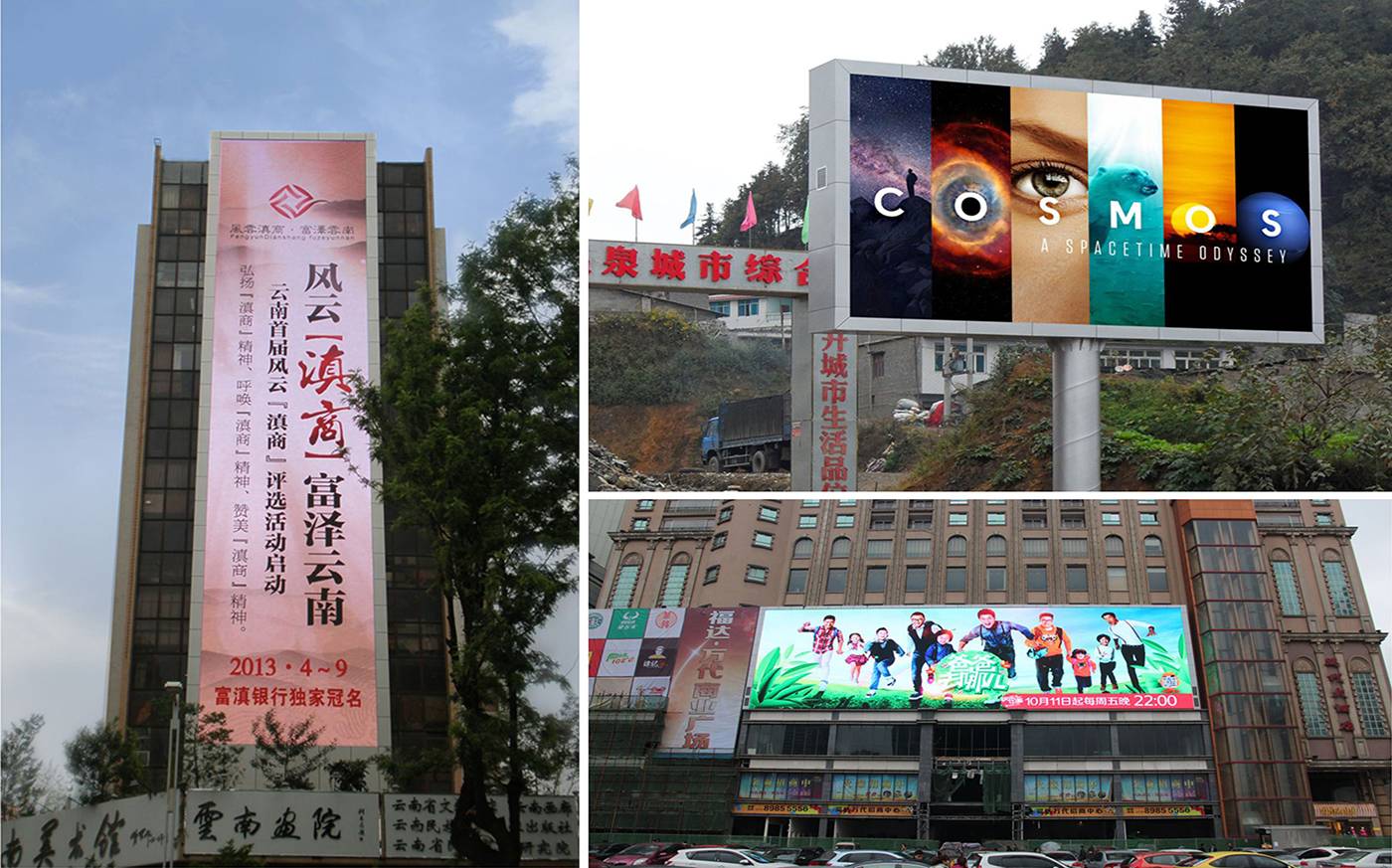

T series apply to Sports venue, commercial square, railway station square, airport, pedestrian street, station, subway, leisure dock, exhibition hall, etc

Alta protección

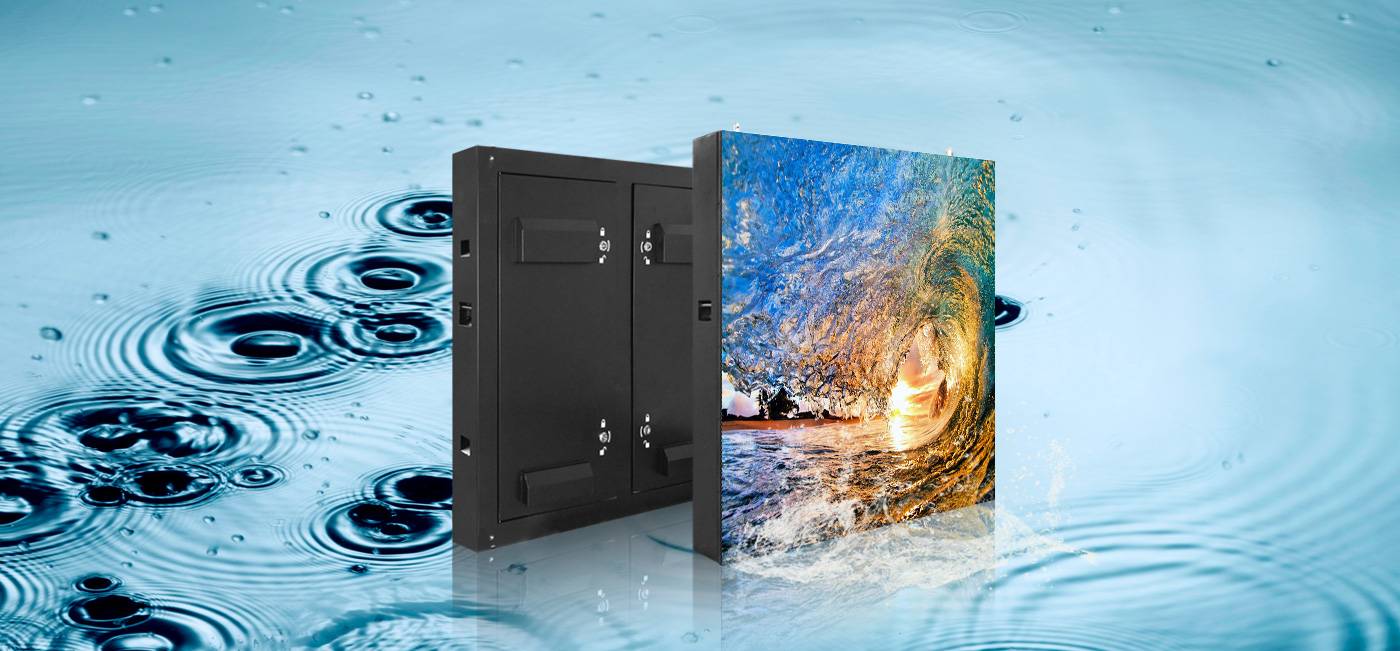

Comprehensive waterproof design, easy to deal with all kinds of harsh environment.

Más modelos para sus necesidades, elija su favorito...

nombre del producto	T2.5	T3	T3.076	T4	T5	T6
Configuración de píxeles	SMD1415	SMD1415	SMD1415	SMD1921	SMD1921	SMD2727
Paso de píxeles (mm)	2.5	3	3.076	4	5	6
Matriz de píxeles por panel	384×384	320×320	312×312	240×240	192×192	160×160
Dimensiones del gabinete (mm)	960x960x147	960x960x147	960x960x147	960x960x147	960x960x147	960x960x147

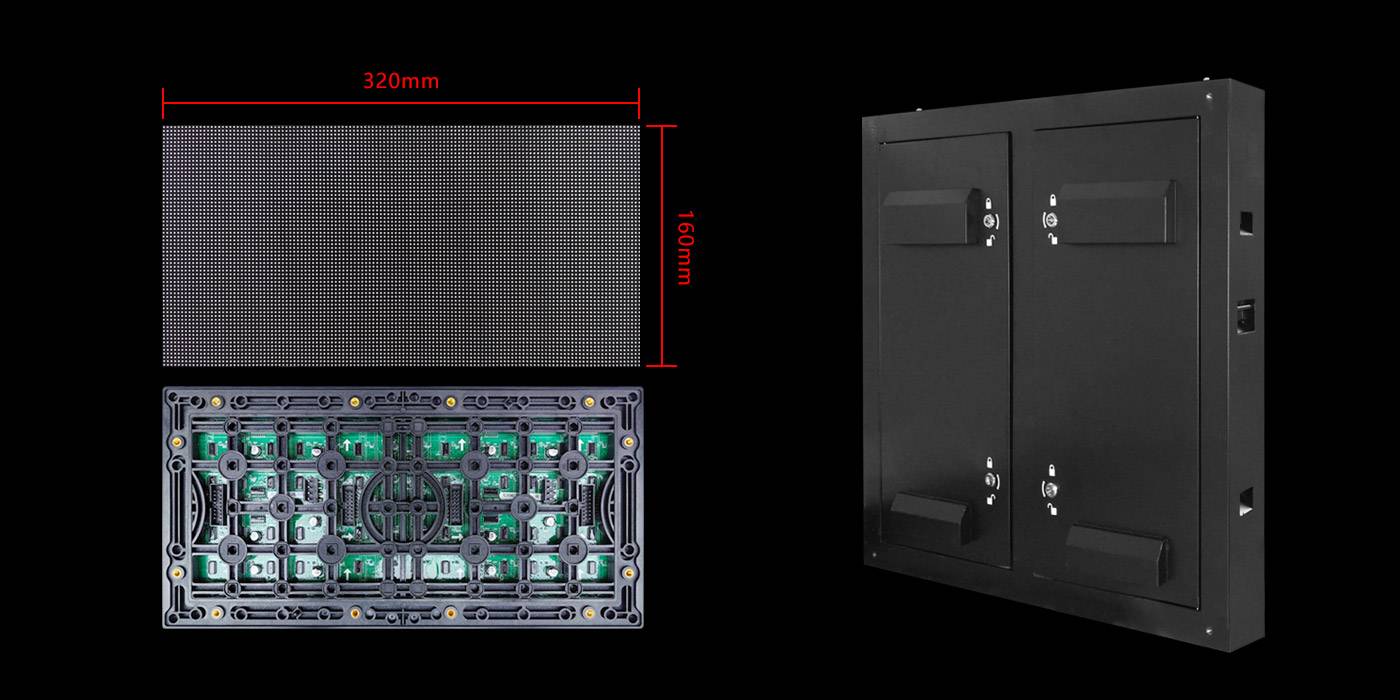

Module Dimensions(mm)	320x160	192x192	320x160	320x160	320x160	192x192
Frecuencia de actualización (Hz)	3840	3840	3840	3840	3840	3840
Modo conductor	1/16	1/16	1/13	1/10	1/8	1/8
Brillo (liendres)	5000	5000	5000	5000	5000	5000
Ángulo de visión horizontal/vertical	170/120	170/120	170/120	170/120	170/120	170/120
Potencia de entrada de CA máxima/promedio	＜1000/240	＜800/250	＜800/260	＜1000/300	800/250	＜1000/350
