Outdoor Fixed Screen

Aurora Beam Bpro Series一B1515 Pro

에너지 절약
High Brightness
Lightweight
High Stability

Simple and Beautiful

8000nits, even under the strong sunlight, the image still vivid and realistic.

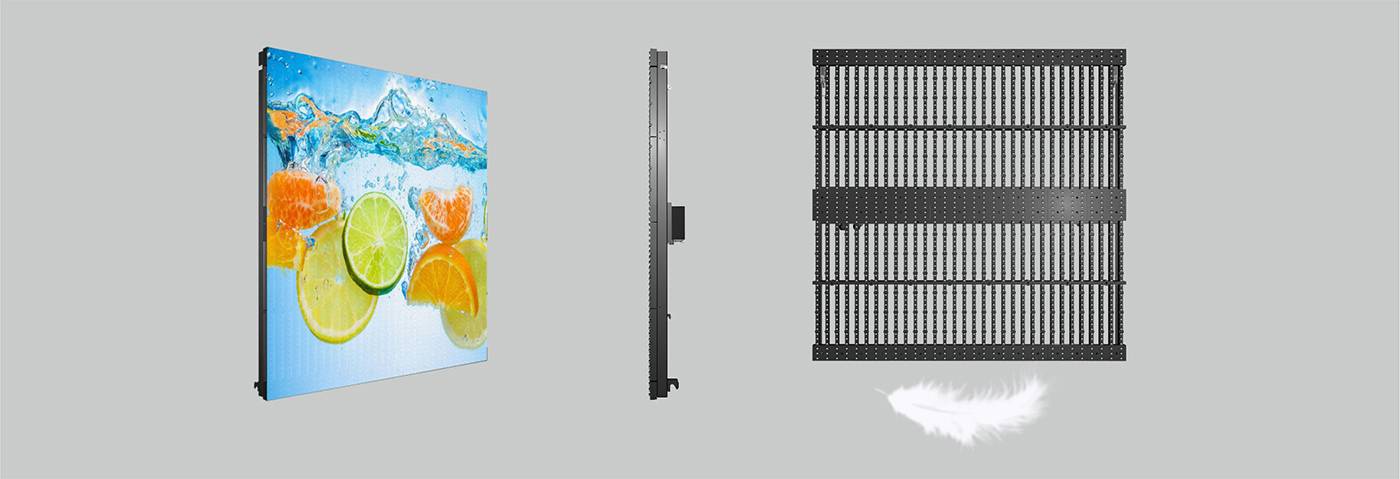

Ultra Light and Thin

Aluminum frame, only 17kg/ ㎡ ,85mm thickness, greatly reduce the load-bearing. Requirements on buildings and steel structures, make the building more simple and beautiful.

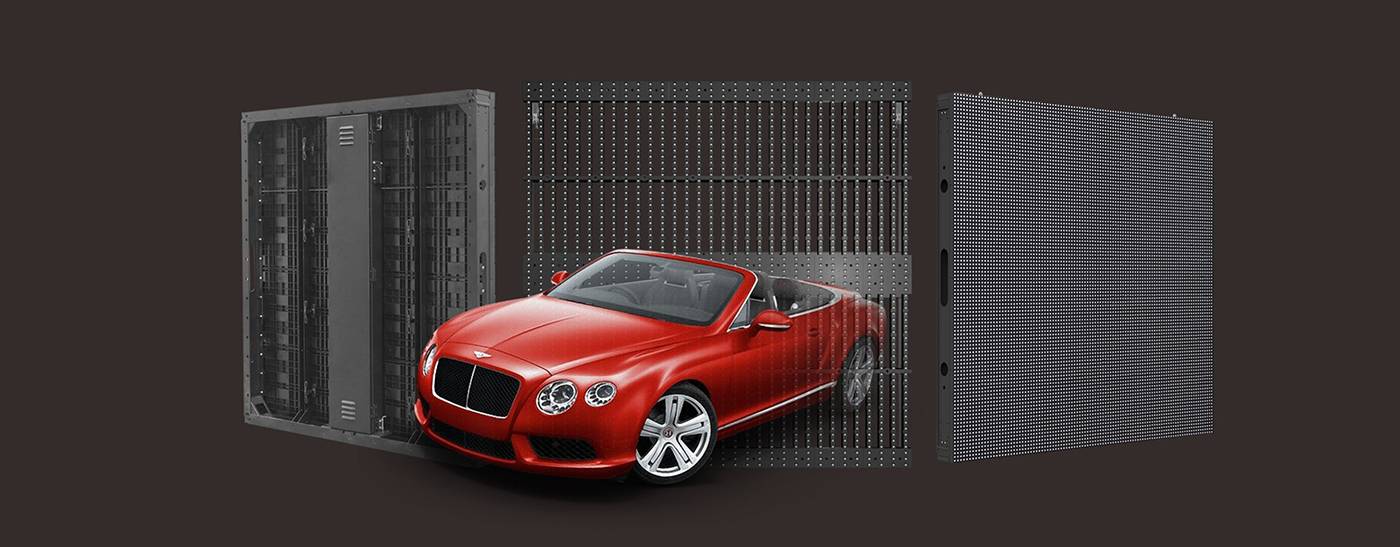

Solid or Transparent

Transparency rate: 66.7%. There are solid screen and transparent screen for different applications. Use air convection to dissipate heat without air conditioning.

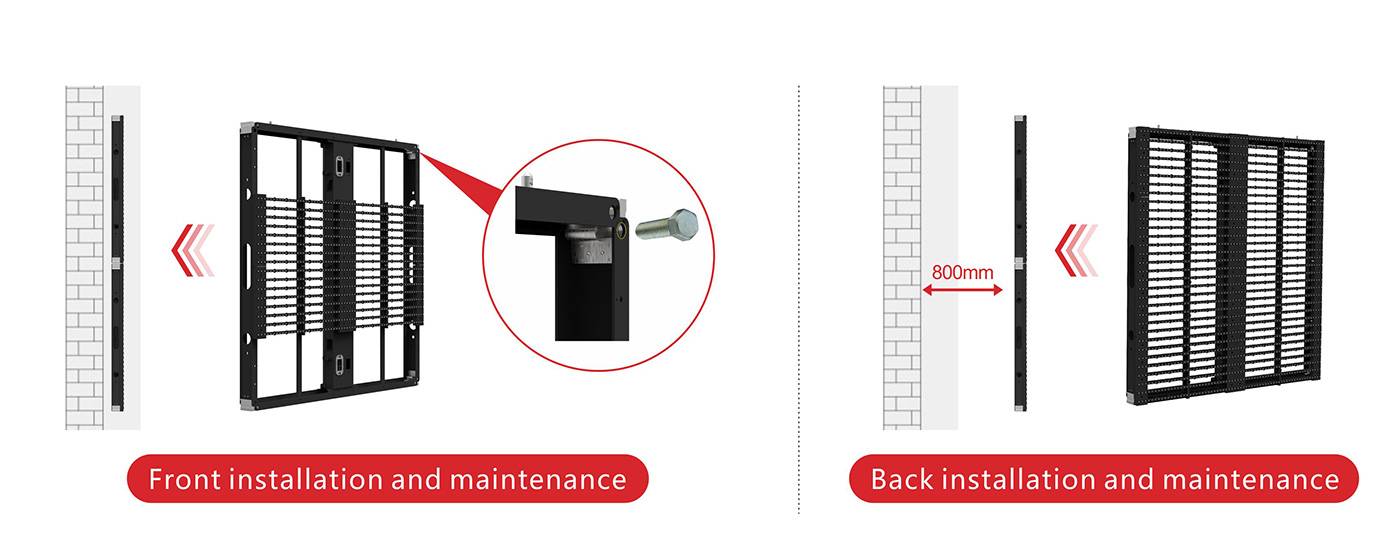

Front or Rear Access

Freely chose front or rear access , make it more flexible and quicker.

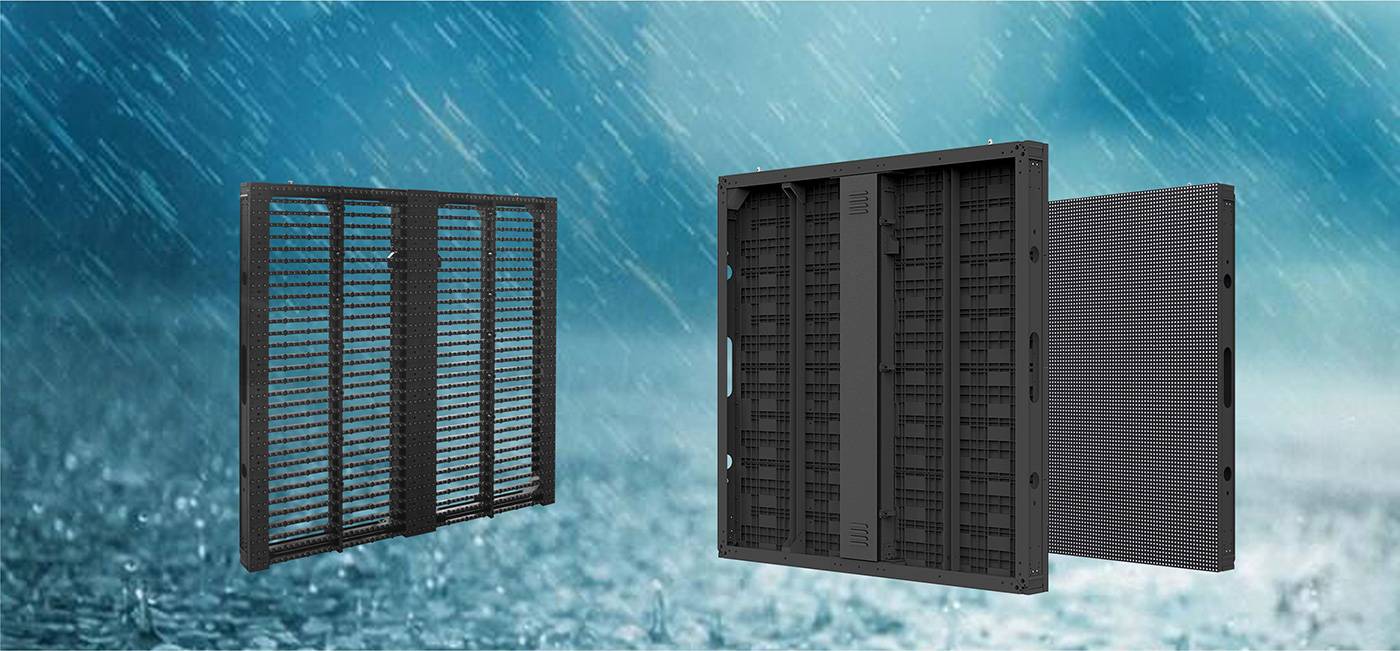

High Protection

Front and rear are IP65 Comprehensive water-proof design, easy to deal with all kinds of harsh environment.

More models for your more needs, please choose your favorite one…

상품명	B1515 PRO	B1531 PRO	B0808 PRO	B1010 PRO
픽셀 구성	DIP570	DIP570	DIP570	DIP570
픽셀 피치(mm)	15.6x15.6	15.6×31.2	8.33×8.33	10.4×10.4
Pixel matrix per panel	64×64	64×32	120×120	96×96
Cabinet Dimensions(mm)	1000x1000x85	1000x1000x108.5	1000x1000x85	1000x1000x85
Transparency Rate	40%	66.7%	\	\
재생률(Hz)	3840	3840	3840	3840
Drive Mode	static	static	1/3	1/3
밝기(니트)	8000	8000	8000	8000
Horizontal / Vertical Viewing Angle	110/55	110/55	110/55	110/55
AC Input Power Maximum/Average	410/137	460/153	430/129	412/136
