Fine Pitch LED Display P1.25 P1.56 P1.667 P1.875 P1.923 P2 P2.5 P3

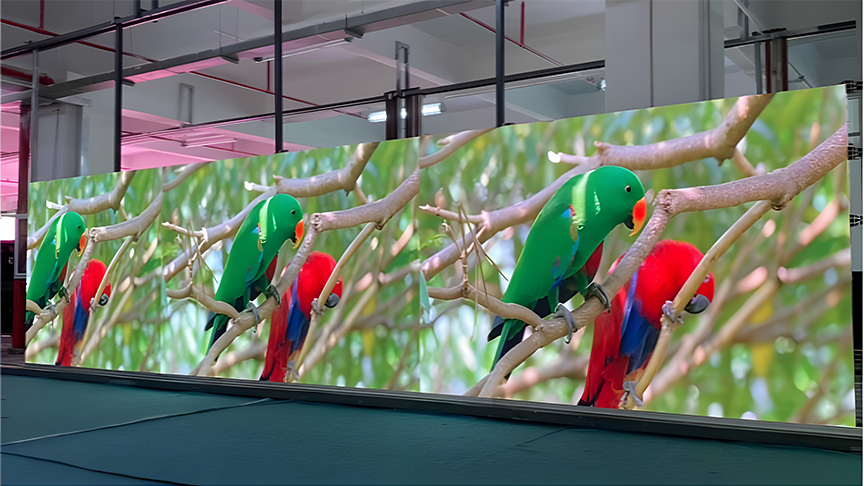

The high refresh rate ensures the smoothness of every frame of the images, thus the LED display won’t appear flicking on the highspeed camera.

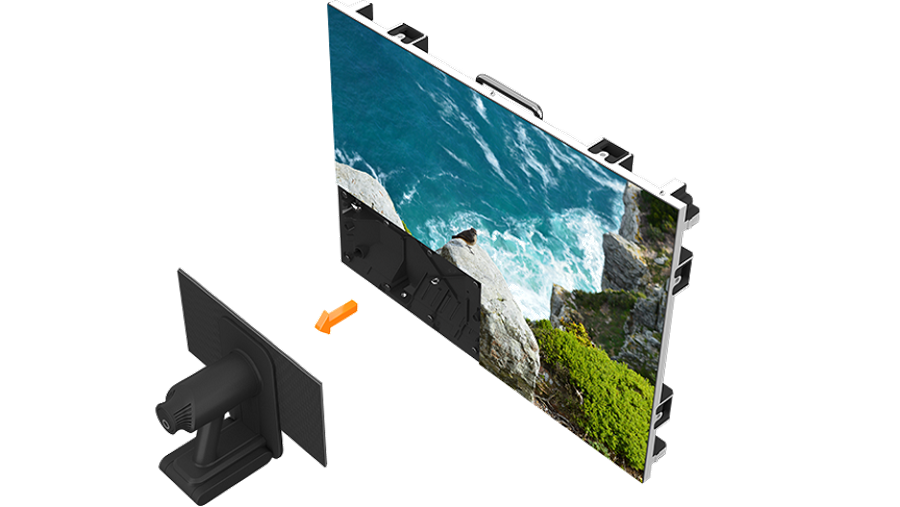

The cabinet, module, power supply and other components are with fully front access service, therefore super easy disassembly of the fine pitch LED screen is allowed.The cabinet can be accessed from front side for maintenance and installation.

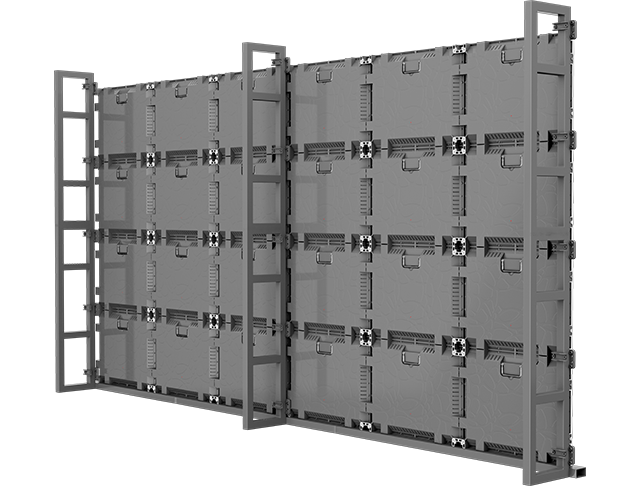

High precision CNC fabrication and the cabinet precision within 0.05mm bring seamless assembly. Besides,signal cables and power cables are inside of the cabinets and the LED screen without external cables brings more stability.

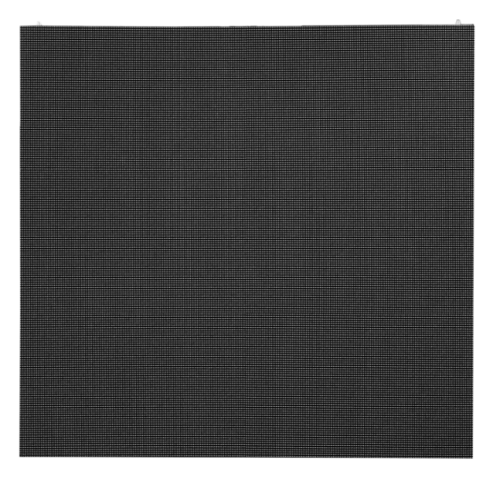

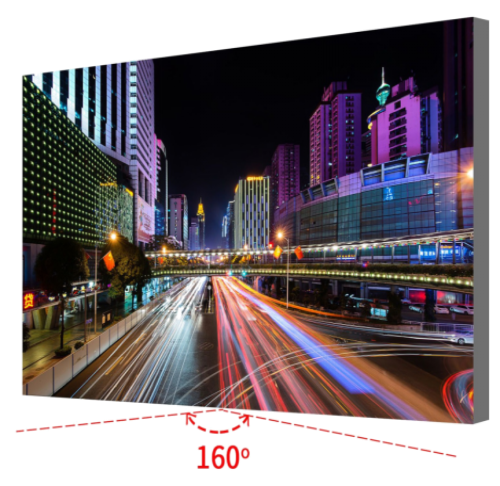

The surface of the small LED screen looks very flat and neat.160° wide horizontal and vertical viewing support maximum audience engagement in short viewing distance.

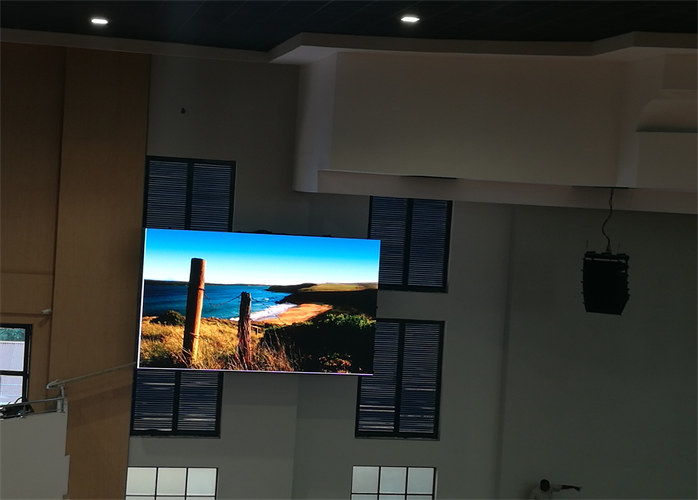

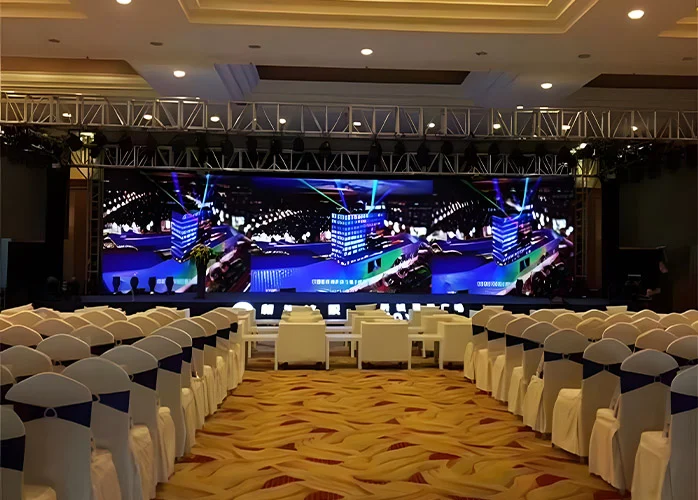

Small pitch screen can be used for both fixed and rental indoor installation. The feedback from the clients for this item is 5 stars because of its reliable performance and high quality images.

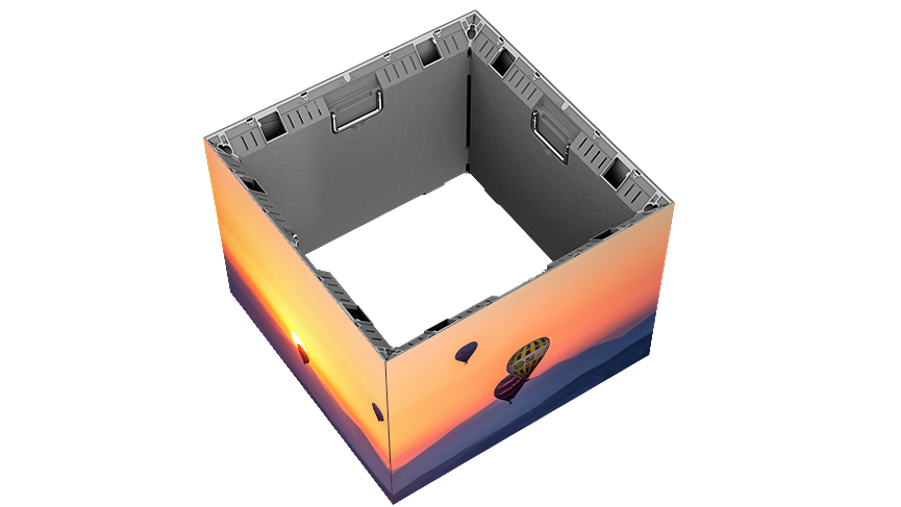

Indoor LED panel with the slim and unique design and the pixel pitches are P1.2, P1.5, P1.8, P2.0, P2.5 and P3. Meanwhile, our SP2 series LED screens were sold a lot each year, it’s favourable and cost effective.

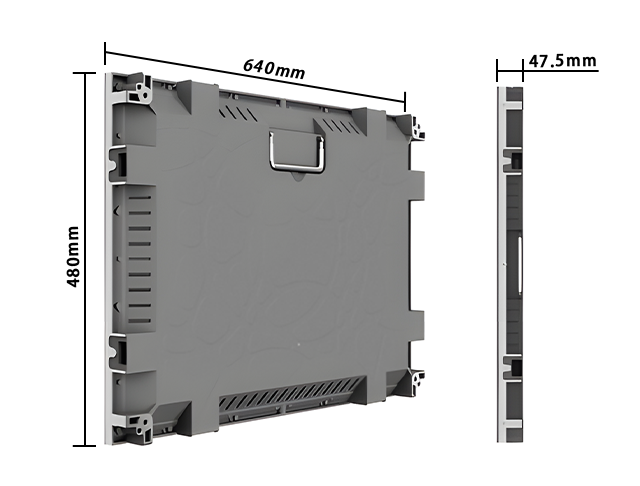

Die-casting aluminum design is used in the cabinet , so each panel weighs only 7.7 kgs, which brings much more convenience when we do the installation and transportation. More importantly, it can reduce the pressure of architecture and the risk of collapse.

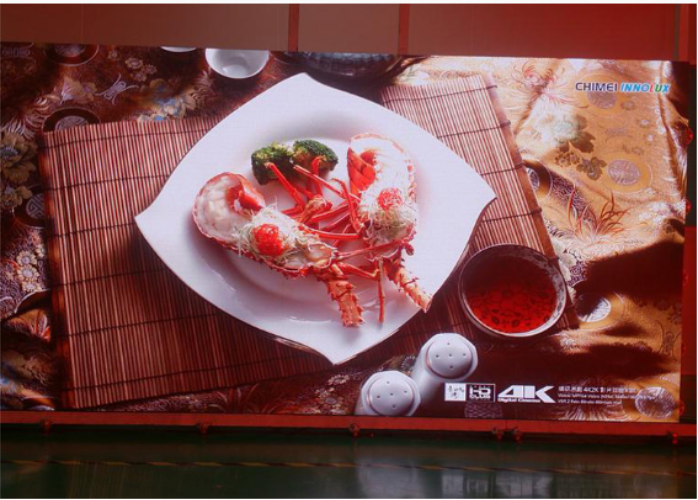

The images and video visual effects are amazing. Our SP2 series has an excellent visual performance because we adopt high-quality black LED. The color contrast ratio is even better than 5000:1. Armed with HDR technology and color enhancement technology, the white balance of the screen reaches a 100% sRGB and stunning visual performance. Even in high light environments the screen also looks very clear, and the visual effect looks perfect.

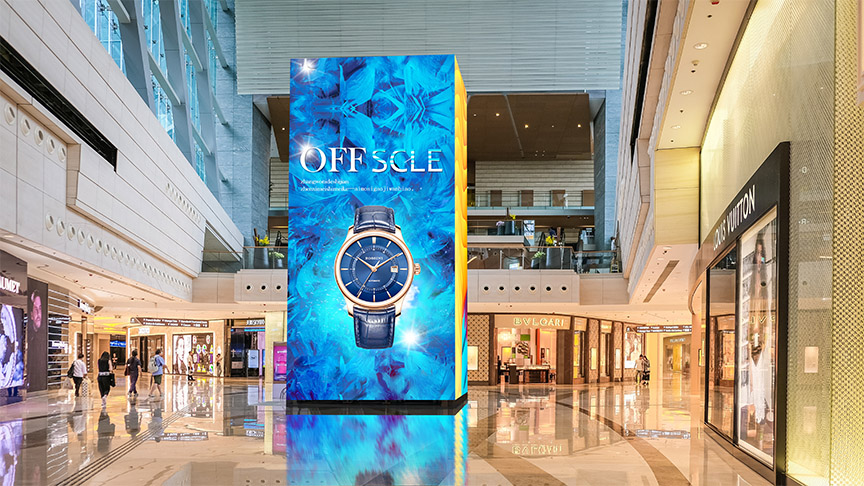

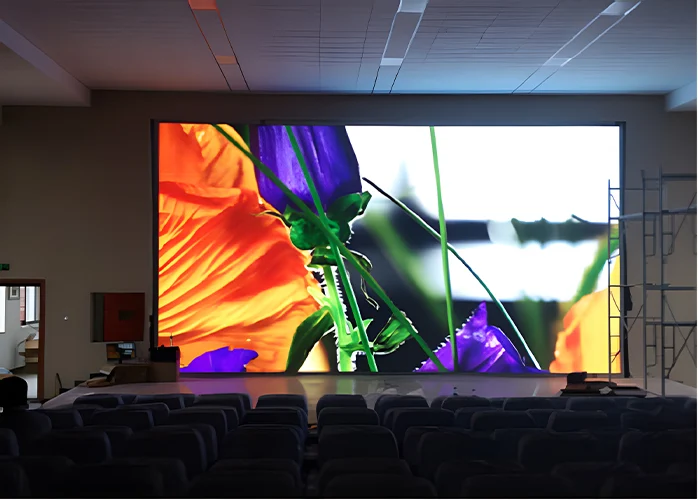

Meeting Room; TV Studio; Exhibition Center; Shopping Mall; Airport.
| Artículo | P1.2 | P1.5 | P1.8 |
|---|---|---|---|
| Tamaño de píxel | P1.25mm | P1.538mm | 1.86mm |
| Nación Estrella LED | SMD1010 | SMD1010 | SMD1515 |
| Resolución del módulo | 256dotsx 128dots | 208dotsx 164dots | 172dots x 86dots |
| Modo de conducción | 1/64scan | 1/52scan | 1/43scan |
| Píxeles del módulo | 32,768dots | 34,112dots | 14,792dots |
| Tamaño del módulo | 320mm x 160mm | 320mm x 160mm | 320mm x 160mm |
| Tamaño del gabinete | 640mm x 480mm | 640mm x 480mm | 640mm x 480mm |
| Resolución de Gabinete | 512dots x 384dots | 416dots x 312dots | 344dots x 258dots |
| Densidad de pixeles | 640,000dots/㎡ | 422,500dots/㎡ | 288,906 dots/㎡ |
| Distancia mínima de visualización | ≥2.0m | ≥1.5 m | ≥1.8 m |
| Brillo | 800nits~1,500nits | 800nits~1,500nits | 800nits~1,500nits |
| Grado IP | IP43 | IP43 | IP43 |
| Frecuencia de actualización | 3,840Hz~7,680Hz | 3,840Hz~7,680Hz | 3,840Hz~7,680Hz |
| escala de grises | 16bits~24bits | 16bits~24bits | 16bits~24bits |
| Ángulo de visión | H:160° / V:140° | H:160° / V:140° | H:160° / V:140° |
| Consumo máximo de energía | 450W/㎡ | 4500W/㎡ | 4500W/㎡ |
| Consumo medio de energía | 150W/㎡ | 150W/㎡ | 150W/㎡ |
| Voltaje de entrada | CA 110 V ~ CA 220 V @ 50 Hz / 60 Hz | CA 110 V ~ CA 220 V @ 50 Hz / 60 Hz | CA 110 V ~ CA 220 V @ 50 Hz / 60 Hz |
| Temperatura de funcionamiento | ﹣20℃～60℃ | ﹣20℃～60℃ | ﹣20℃～60℃ |
| Humedad de funcionamiento | 10%～90% | 10%～90% | 10%～90% |
| Material del gabinete | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Peso del gabinete | 7.7kg/panel | 7.7kg/panel | 7.7kg/panel |
| Sistema operativo | Windows (Win10, Win12, etc.) | Windows (Win10, Win12, etc.) | Windows (Win10, Win12, etc.) |
| Compatibilidad de fuente de señal | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
