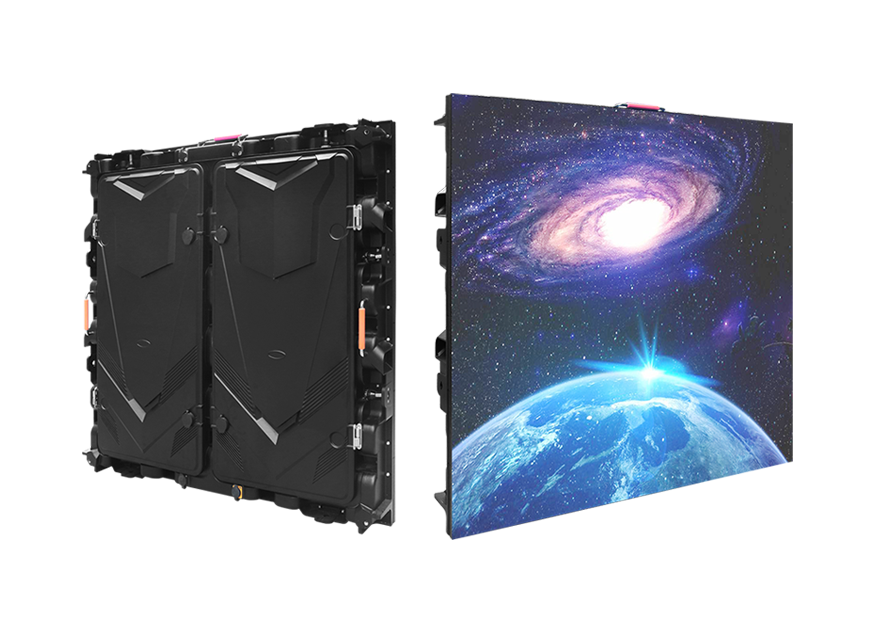

Outdoor Fixed Screen

Taurus T Series一T6.6

Energy saving
6500nits
High Stability

High Stability 、 High Brightness 、 Energy Saving

Maintaining stability is of top priority

High Stability and reliability, excellently response to all kinds of harsh environment

Applied over 10 years in the market , High Stability and reliability with various testing such as waterproof testing , salt spray testing , aging testing and seismic testing and etc.

Various pixel pitch for different application

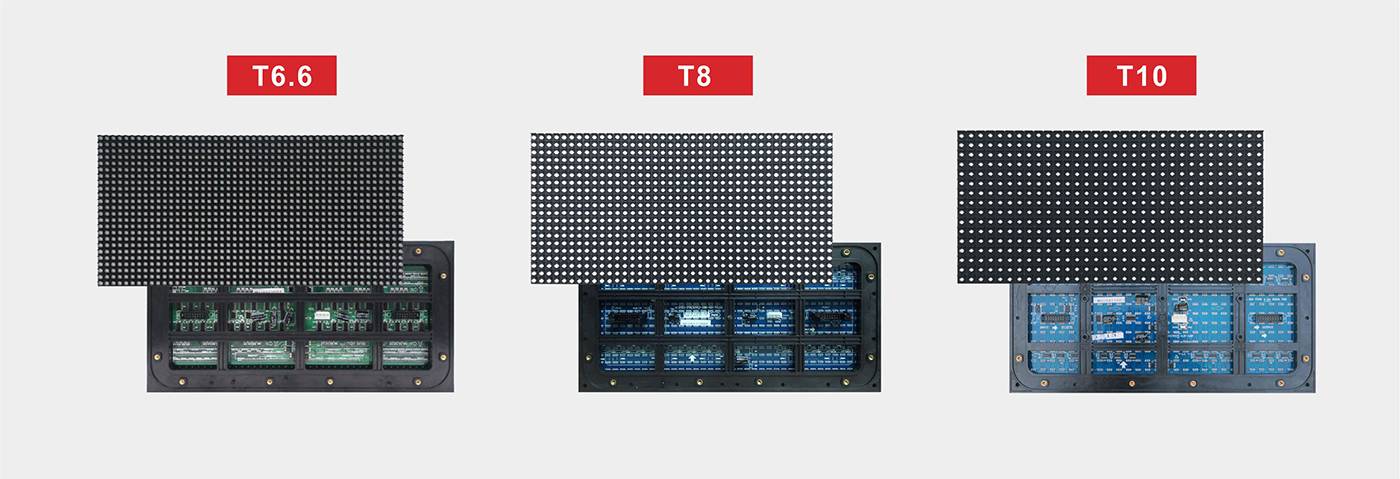

P6.6 P8 P10,the 3 different pixel pitch to meet the needs of different viewing distances

Applications

T series apply to Sports venue, commercial square, railway station square, airport, pedestrian street, station, subway, leisure dock, exhibition hall, etc

High protection

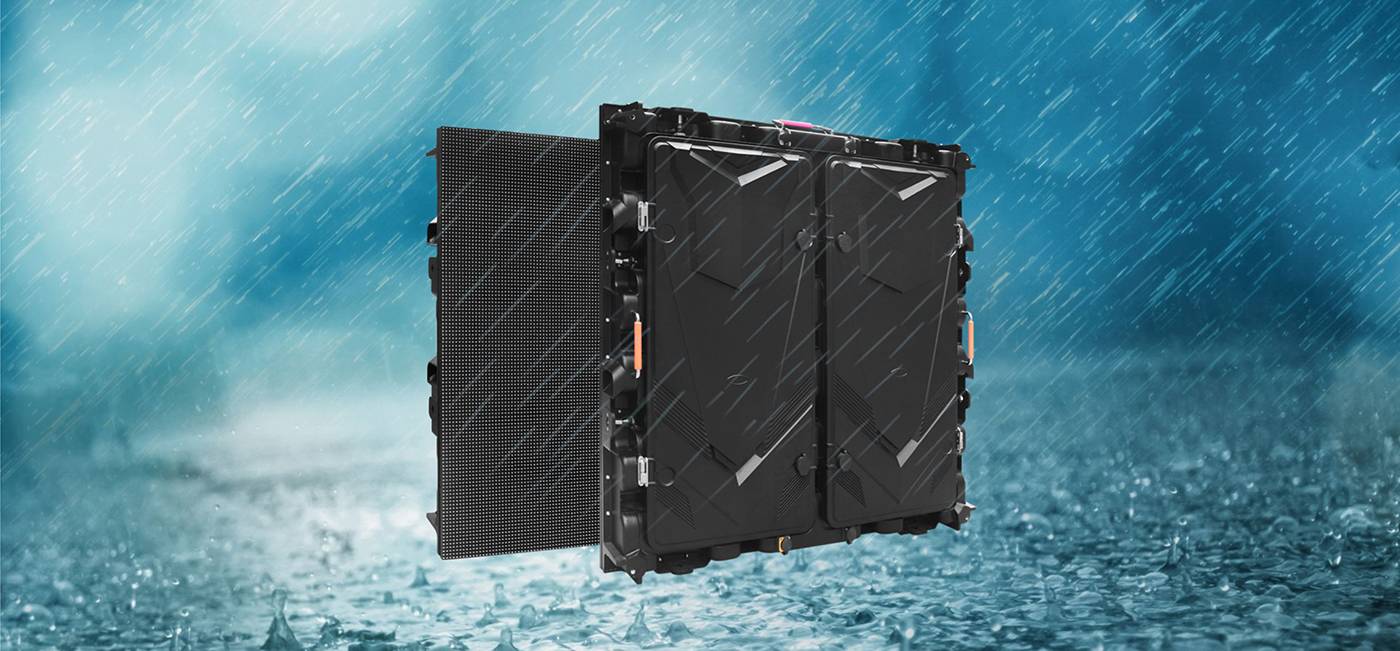

Comprehensive waterproof design, easy to deal with all kinds of harsh environment.

More models for your more needs, please choose your favorite one…

Product Name	T6.6	T8	T10
Конфигурация пикселей	DIP570	DIP570	DIP570
Pixel Pitch(mm)	6.6	8	10
Pixel matrix per panel	144×144	120×120	96×96
Cabinet Dimensions(mm)	960x960x117.5	960x960x113.5	960x960x113.5
Transparency Rate	/	/	/
Частота обновления (Гц)	1920	1920	1920
Drive Mode	1/6	1/5	1/4
Яркость (нит)	8000	8000	8000
Horizontal / Vertical Viewing Angle	110/55	110/55	110/55
AC Input Power Maximum/Average	580/200	580/200	580/200
