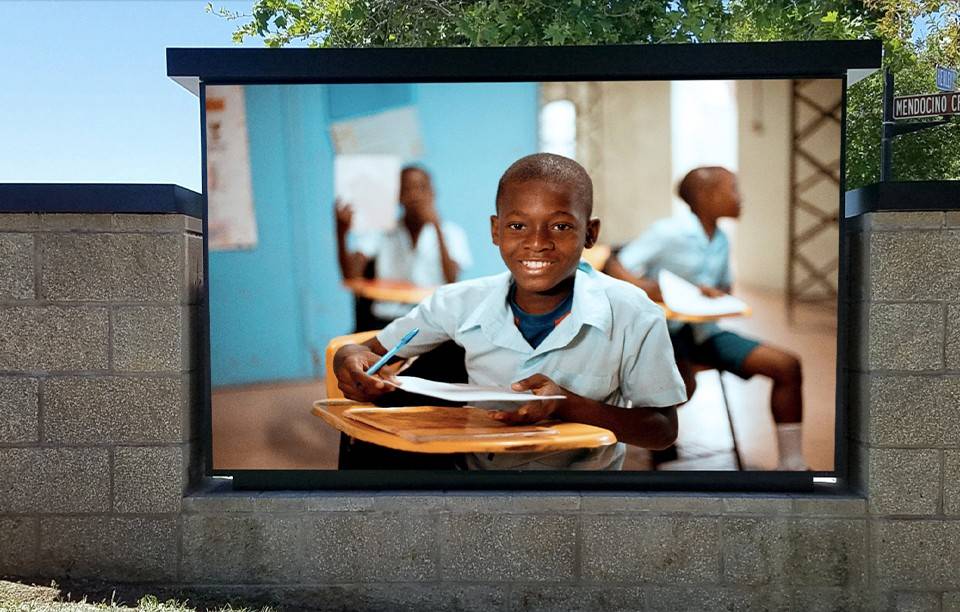

Front Access LED Screen Outdoor Front Service LED Display Front Access Single Side LED Sign

Single Side Front & Rear Access LED Screen Front Maintenance LED Display

Product introduction |

Front Open LED Screen is widely used for advertising boards. It has a good waterproof rate IP65 and 5 years of factory warranty. It is easy to maintain by open the front side of cabinet.


Cabinet Material:Cast Iron & Single Side Design

Application:It can be used for indoor and outdoor LED video wall. This is the traditional design of full front service LED display, and it is very cost-effective comparing to modern tool front service modules.


Support Multiple Pixels

This type of front open LED screen can adopt pixel from 2.5mm to 16mm depending on project requirements. It can be controlled by 4G and WIFI wireless methods. New energy-saving branch-feeding technology is utilised in this front access LED now. It can save a great money for you.


Reliable Quality LED Display

The cabinet is made by cast iron and it has a good level of waterproof protection. The LED lamp is National-star SMD2525, and the driver IC is MBI5124GP-B. It is equiped by Meanwell LRS-350-5 power supplies.

Front Access 1.jpg

Highly Customisable

It offers customisation service including cabinet colour, maintenance, shape, size and the way of control. You are welcome to customise your LED signage that works the best for your architecture or buildings.

Front Access 2.jpg

Front Access and Quick Service

The cabinet offers flexible way to access your display, module, control system, power or any other components. It can be accessed from front side. It facilitates your maintenance and help to make the best use of installation space.

Front Access 3.jpg

Auto Brightness Control

With the brightness sensor built inside the display, this LED signage can automatically adjust brightness as environment changes. It is more energy-efficient than non-brightness controlled screens. And, it can remain working in extremely bad weather. It is suitable for diverse outdoor environments and weather conditions.

Outdoor Front Access LED Screen Front Service LED Display Product Parameters

Pitch 2.5mm 3mm 4mm 5mm 6mm
Module Size 320*160mm 192*192mm 256*128mm 320*160mm 192*192mm
Module Resolution 128*64 64*64 64*32 64*32 32*32
LED Type SMD1415 SMD1921 SMD1921 SMD2727 SMD3535
Brightness 5000 Nits 5500 Nits 5500 Nits 6000 Nits 7000 Nits
Pixel Density/m2 160000 111111 62500 40000 27777
Driving Method 1/16 Scan 1/16 Scan 1/8 Scan 1/8 Scan 1/4 Scan
Optimal View Distance 2-8m 3-10m 4-13m 5-16m 6-20m
Avg. Power 430W/m2 460W/m2 500W/m2 310W/m2 350W/m2
Max. Power 950W/m2 980W/m2 1100W/m2 700W/m2 780W/m2
IC MBI5124 / ICN2153
Refresh Rate 1920-3840Hz
Brightness Control 256 Grade/Each Color
View Angle 140/120
Ingress Protection IP65
Input Voltage AC110/220V, 50/60Hz
Operating Temp. -30℃~60℃
Gross Weight 50Kg/m2
Life Span 100000 Hours
