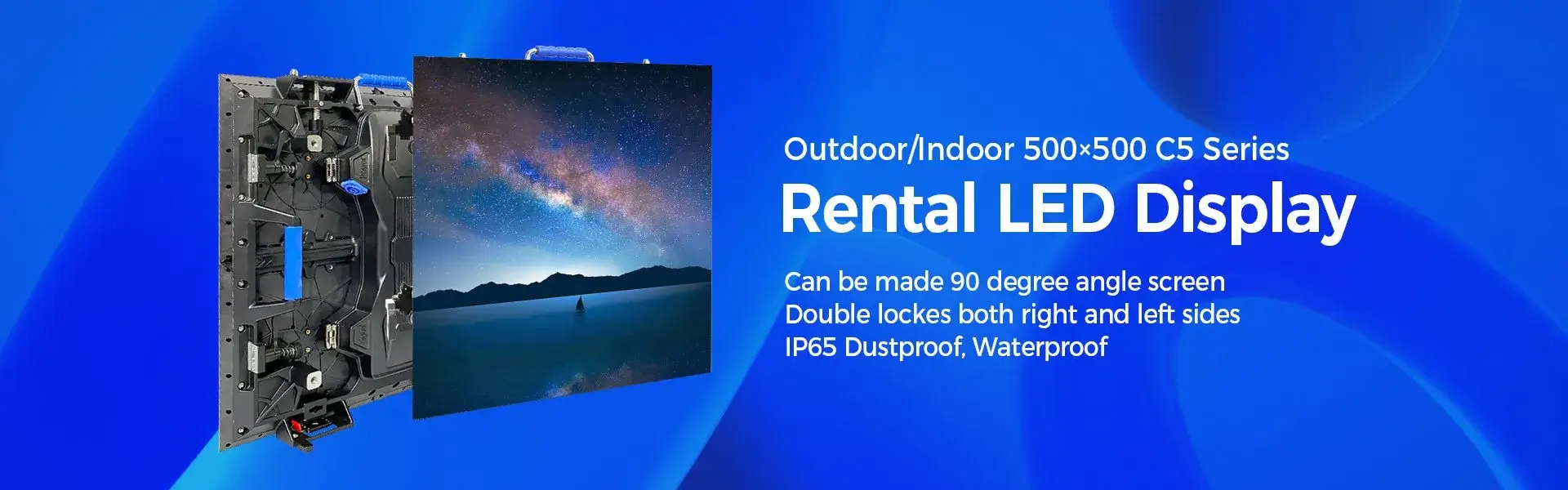

Curved 90 Degree Right Angle LED Display Module 500x500mm 500C5 Series P1.5 P1.9 P2.6 P2.9 P3.9 P4.8
1180-3

Rental LED Screen 500×500 Professional Audio Visual Equipment Rental For Stage Lighting & LED Display

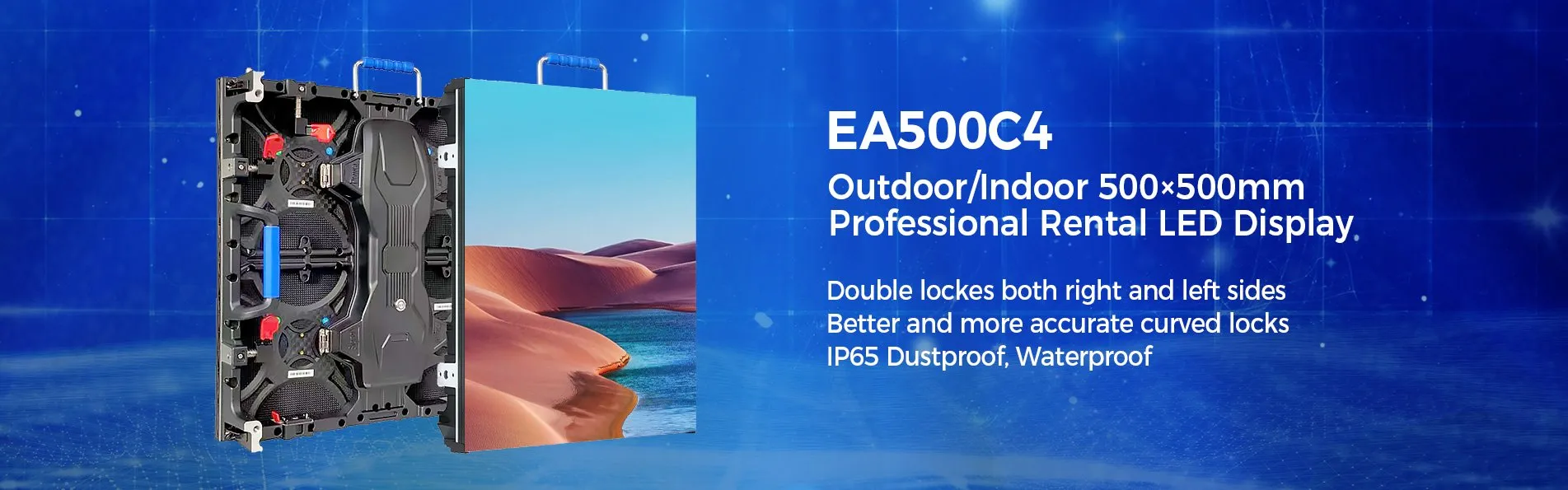

LM500C4 Series  has two quick lock devices on the left and right sides, which can ensure faster assembly speed and better screen flatness.
It also has anti-collision feet at the bottom of the cabinet to protect the edge of the NationStar Gold Wire LED module.
LM500C4 and LM1000C4 Can be installed together up and down , left and right.

500C4-1-1

Quick Install

LM500C4 series 500×500 LED screen Rental Two Fast Locks on Left and Right Side, Ensure faster assembly and better screen flatness.

500C4-2

High Precision Curve Lock

High Precision Curve Lock design is adopted to solve the problem that the old curved lock is difficult to use before.
Rotational control, more accurate, easy to use and quickly adjust curve degree.

EA500C4-3

Curved Installation Support

LM500C4 series Rental LED Screen 500×500 Display can be installed in inner arc or outer arc.

EA500C4-4

Free Splicing

LM500C4 series and LM1000C4 series can be installed together up and down, left and right.

EA500C4-5

Corner Protector for LED

LM500C4 series Outdoor Rental LED Screen 500×500 has four corner protectors in each corner to prevent LED to be damaged,
more security for transport, installation, operation, assemble & disassemble foldable design, and easy to use.

56556-1

Lightweight and Thin

LM500C4 series LED display cabinet 500X500 weighs 7KG/pc, easy to operate: one person to install, disassemble and maintain.

500C4-7-1

IP65 Dustproof And Waterproof

The LM500C4 series outdoor LED display Screen supports IP65 dustproof and waterproof,
it can resists severe weather conditions during outdoor activities. And die-cast aluminum is corrosion resistant.

500C4-8

Suitable For 250x250mm Standard Size Modules

500x500mm LED display Module with standard size panel: 250x250mm. Standard led screens are quick to assemble and maintain.
Changing the pixel spacing is also very convenient, just change the modules because they have the same module size and structure.

EA500C4-9

Wide Viewing Angle

Viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle.
Ultra-wide viewing angle give you the largest screen viewing area.

500C4-10Professional Audio Visual Equipment Rental

Outdoor Waterproof 500x500mm Rental LED Display Module Series Parameter

Pixel Pitch (mm)P2.6P2.97P3.91P4.81
ModelLM500C4-P2.6LM500C4-P2.97LM500C4-P3.91LM500C4-P4.81
Pixel ConfigurationSMD1415SMD1415SMD1921SMD1921
Density (Pixels/㎡) 147,928112,89665,53643,264
Module Resolution (Pixel)96x9684x8464x6452x52
Module Size (mm)250x250250x250250x250250x250
Driving Mode (Duty)1/16 1/211/16 1/13
Cabinet Size (mm)500x500500x500500x500500x500
Cabinet Weight (KG)7777
Brightness (CD/㎡)≥5,000≥5,000≥6,000≥6,000
Viewing Angle (°)140140140140
Gray Grade (Bits)14141414
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)720720720560
Avg. Power Consumption (W/㎡)240240240190
Frame Frequency (Hz)≥60≥60≥60≥60
Refresh Frequency (Hz) ≥3,840≥3,840≥3,840≥3,840
Working Temperature (ºC) -20~+60-20~+60-20~+60-20~+60
Lifetime (Hours) 100,000100,000100,000100,000
Protection GradeIP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)

Indoor Curved 500x500mm Rental LED Display Screen Series Parameter

Pixel Pitch (mm)P1.95P2.5P2.6P2.97P3.91P4.81
ModelLM500C4-P1.95LM500C4-P2.5LM500C4-P2.6LM500C4-P2.97LM500C4-P3.91LM500C4-P4.81
Pixel ConfigurationSMD1515SMD1515SMD1515SMD2121SMD2020SMD2121
Density (Pixels/㎡)262,144160,000147,928112,89665,53643,264
Module Resolution (Pixel)128x128100x10096x9684x8464x6452x52
Module Size (mm)250x250250x250250x250250x250250x250250x250
Driving Mode (Duty) 1/32 1/25 1/32 1/281/161/13
Cabinet Size (mm)500x500500x500500x500500x500500x500500x500
Cabinet Weight (KG)6.56.56.56.56.56.5
Brightness (CD/㎡)≥1000≥1000≥1200≥1,000≥1,200≥1,000
Viewing Angle (°)140140140140140140
Gray Grade (Bits)141414141414
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)480480480480576560
Avg. Power Consumption (W/㎡)160160160160192190
Frame Frequency (Hz) ≥60 ≥60 ≥60≥60≥60≥60
Refresh Frequency (Hz) ≥3,840 ≥3,840 ≥3,840≥3,840≥3,840≥3,840
Working Temperature (ºC)-20~+60-20~+60-20~+60-20~+60-20~+60-20~+60
Lifetime (Hours)100,000100,000100,000100,000100,000100,000
Protection GradeIP31IP31IP31IP31IP31IP31
