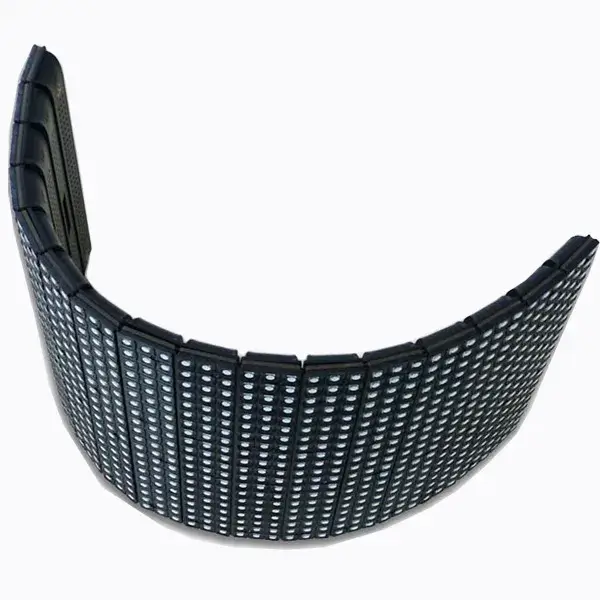

Soft Flexible LED display Screen, Soft LED module frontal service maintenacne design, any shapes LED display can be desighed. Magnet Connection, easy to install and disassemble

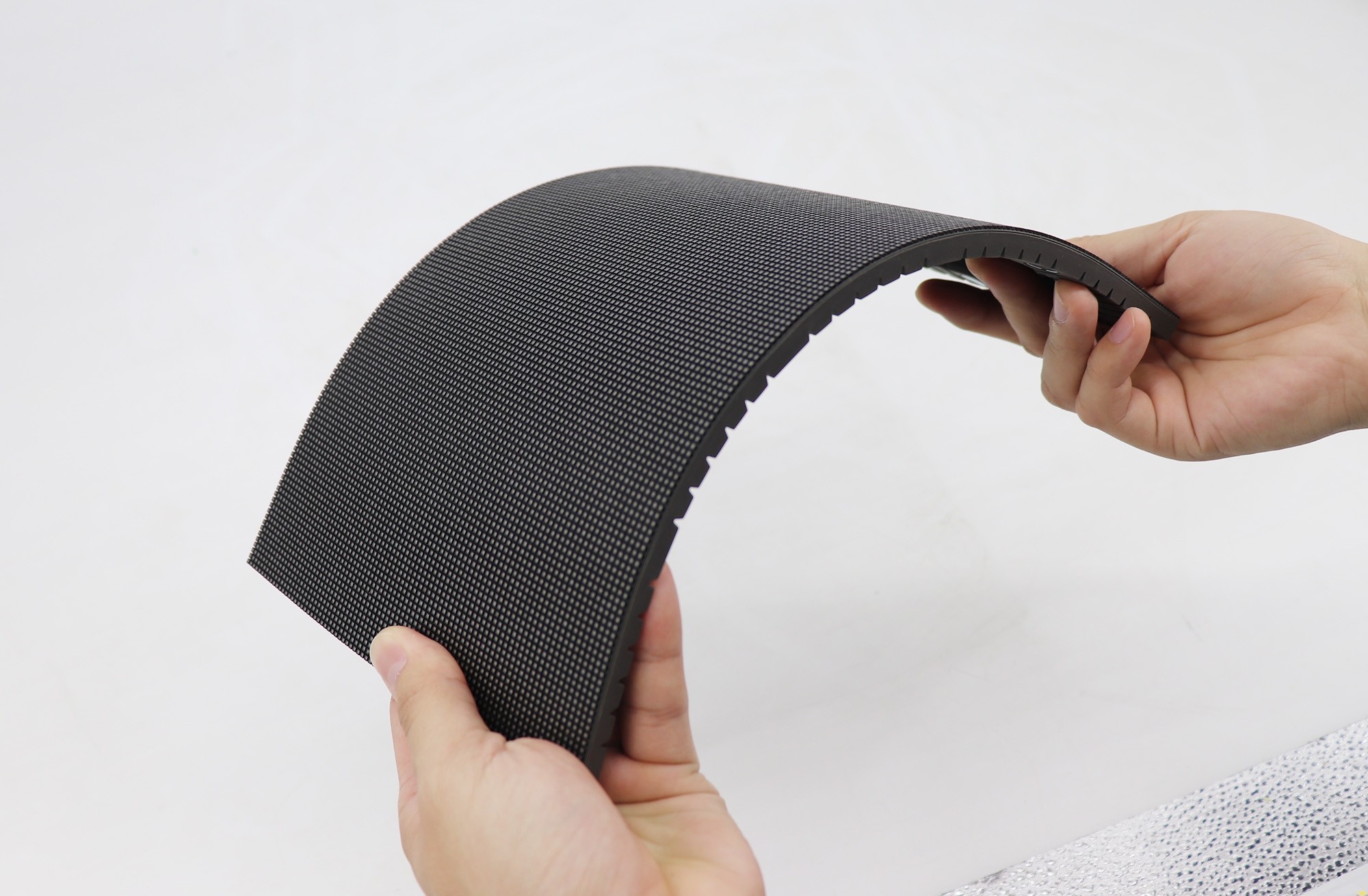

The LEEMAN Unique technology. LED module of soft flexible LED display screen is ultra soft, Ultra thin, Ultra Light Weight
with any shapes any angles can be designed. can make LED display any shape.
Magnet Connection, Easy assemble and disasssemble with soft LED display panel directly.
Soft LED module frontal service maintenacne design. Easy operation. Saving time and labor cost.
High stability and high performance using high quality LED material and driving IC MBI5153 ICN2153 ICN2038S to
ensure high refrensh rate and performacne
Seamless connection with no obvious gaps between the cabinets. Non-deformability function
keep the screen in a good shape and smoothly.
With flexible feature. any shapes LED display can be desighed in any types, arc in any angles.

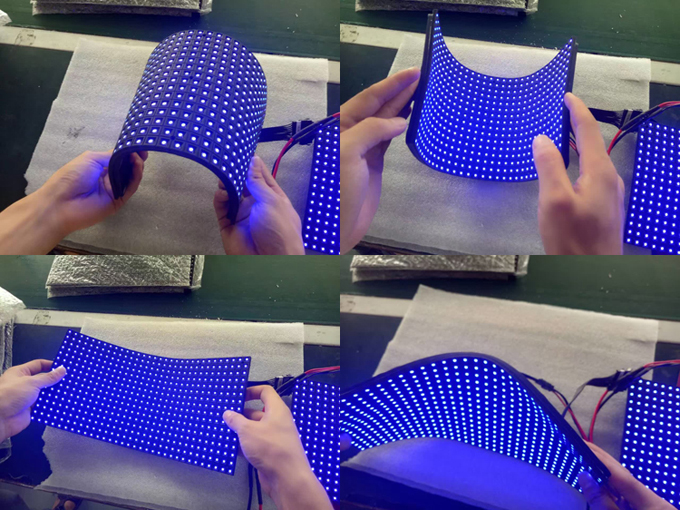

With repeating curving, it won’t break LEDs as well design of mask covers.

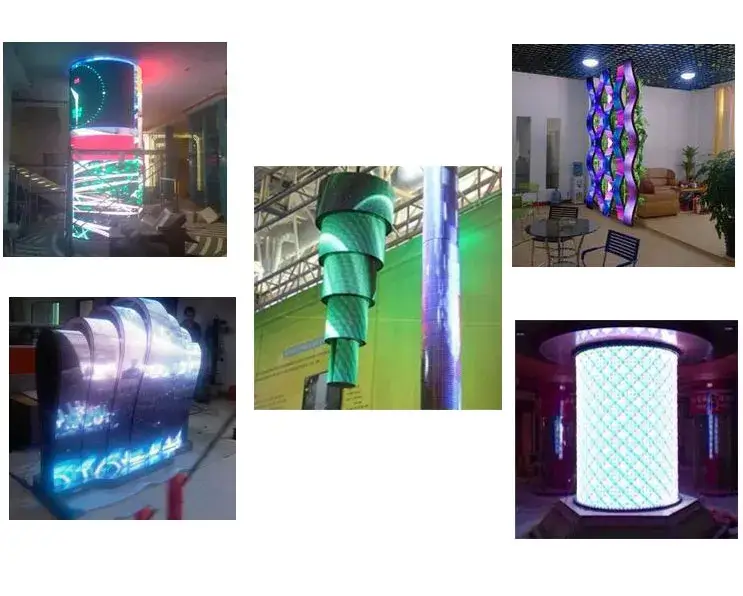

Widely applied in shaped stage background/exhibition/shopping mall etc.
LEEMAN Soft Flexible LED display is endowed with superior consistency under low brightness status.
High consistency coupled with Low Brightness and High Grayscale
Type | Pixel Pitch (mm) | NationStar LED | Module Pixel | Module Size | Driver Way | Brightness (Nits) |
---|---|---|---|---|---|---|
240*120 Series | 1.875mm | SMD1515 | 128*64 | 240*120mm | 1/32Scan | 800-1200 |
2mm | SMD1515 | 120*60 | 240*120mm | 1/30Scan | 800-1200 | |
2.5mm | SMD1515 | 96*48 | 240*120mm | 1/24Scan | 800-1200 | |
3mm | SMD1515 | 80*40 | 240*120mm | 1/20Scan | 800-1200 | |
4mm | SMD1515 | 60*30 | 240*120mm | 1/15Scan | 800-1200 | |
320*160 Series | 1.86mm | SMD1212 | 172*86 | 320*160mm | 1/43Scan | 800-1000 |
2mm | SMD1212 | 160*80 | 320*160mm | 1/40Scan | 800-1000 | |
2.5mm | SMD1212 | 128*64 | 320*160mm | 1/32Scan | 800-1000 | |
3.076mm | SMD1212 | 104*52 | 320*160mm | 1/26Scan | 800-1000 | |
5mm | SMD1212 | 64*32 | 320*160mm | 1/16Scan | 800-1000 | |
256*128 Series | 2mm | SMD1515 | 128*64 | 256*128mm | 1/32Scan | 1000-1500 |
4mm | SMD1212 | 64*32 | 256*128mm | 1/16Scan | 1000-1500 | |
120*60 dots/module
240*120mm Panel
160*80 dots/module
320*160mm Panel
64*32 dots/module
256*128mm Panel
80*40 dots/module
240*120mm Panel
