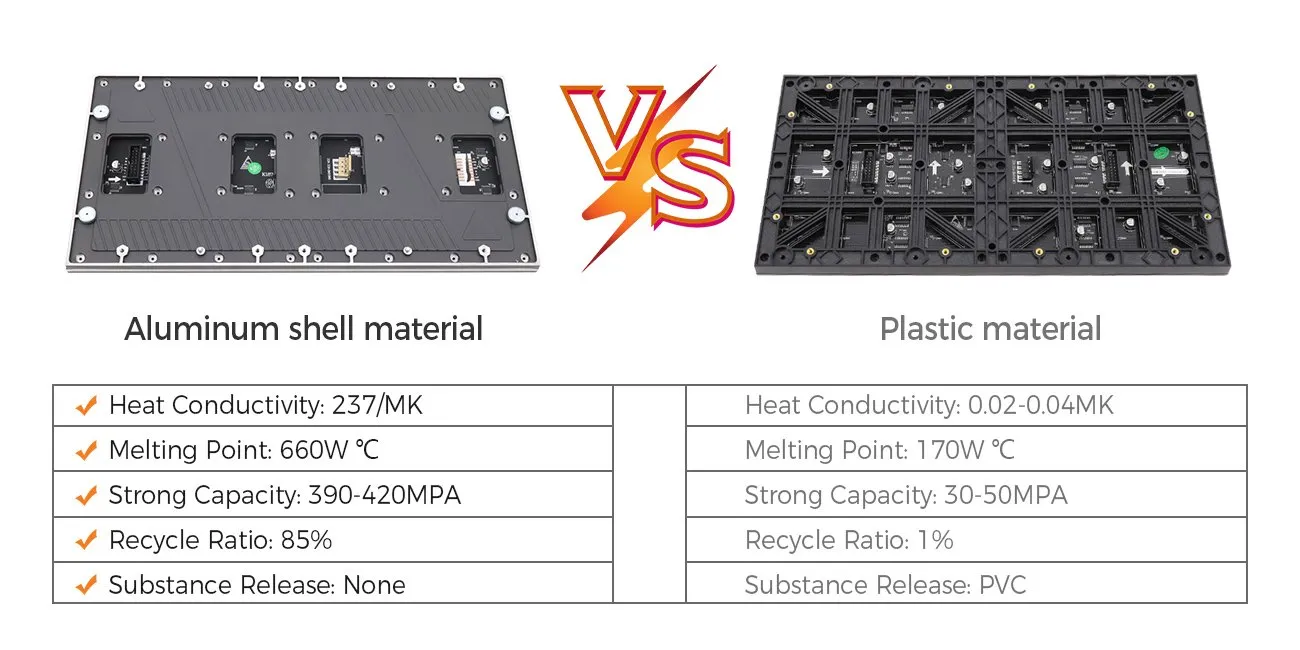

The aluminum shell GOB LED Display Screen Module has the characteristics of high precision, high conduction,
high convenience, high flatness, etc., ultra-thin, ultra-hard and fast heat dissipation.

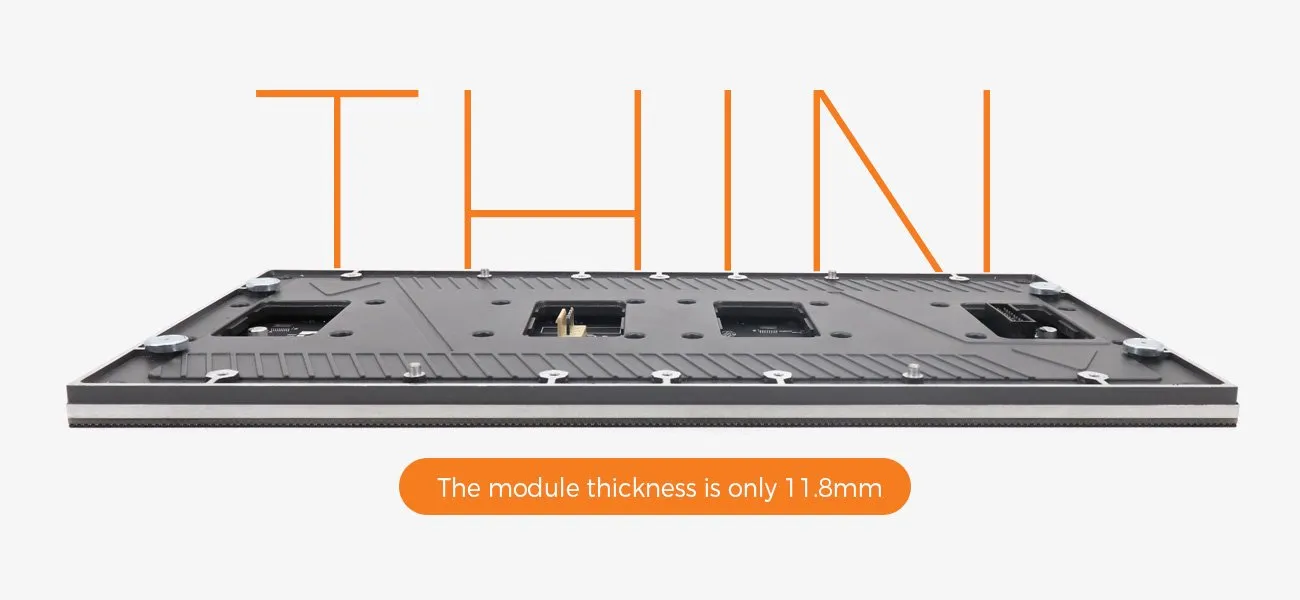

The ultra-thin design of the aluminum shell COB LED Display Panel, the overall thickness is only 11.8mm
Indoor HD LED Screen Die-cast aluminum material COB LED Screen panel, high hardness, high flatness after installation,
not afraid of extrusion, not afraid of high temperature, not easy to deform.
| Pixel Pitch | NationStar LED | Module Size（MM） | Module Resolution | Driving Mode | Refresh Rate(Hz) | Brightness(Nits) |
|---|---|---|---|---|---|---|
| P1.25mm | SMD1010 | 320*160 | 256*128 | 1/34Scan | 3840 | ≥1000 |
| P1.53mm | SMD1010 | 320*160 | 208*104 | 1/26Scan | 3840 | ≥1000 |
| P1.66mm | SMD1010 | 320*160 | 192*96 | 1/32Scan | 3840 | ≥1000 |
| P1.86mm | SMD1515 | 320*160 | 172*86 | 1/43Scan | 3840 | ≥1200 |
| P2mm | SMD1515 | 320*160 | 160*80 | 1/40Scan | 1920 / 3840 | ≥1200 |
| P2.5mm | SMD1515 | 320*160 | 128*64 | 1/32Scan | 1920 / 3840 | ≥1200 |
