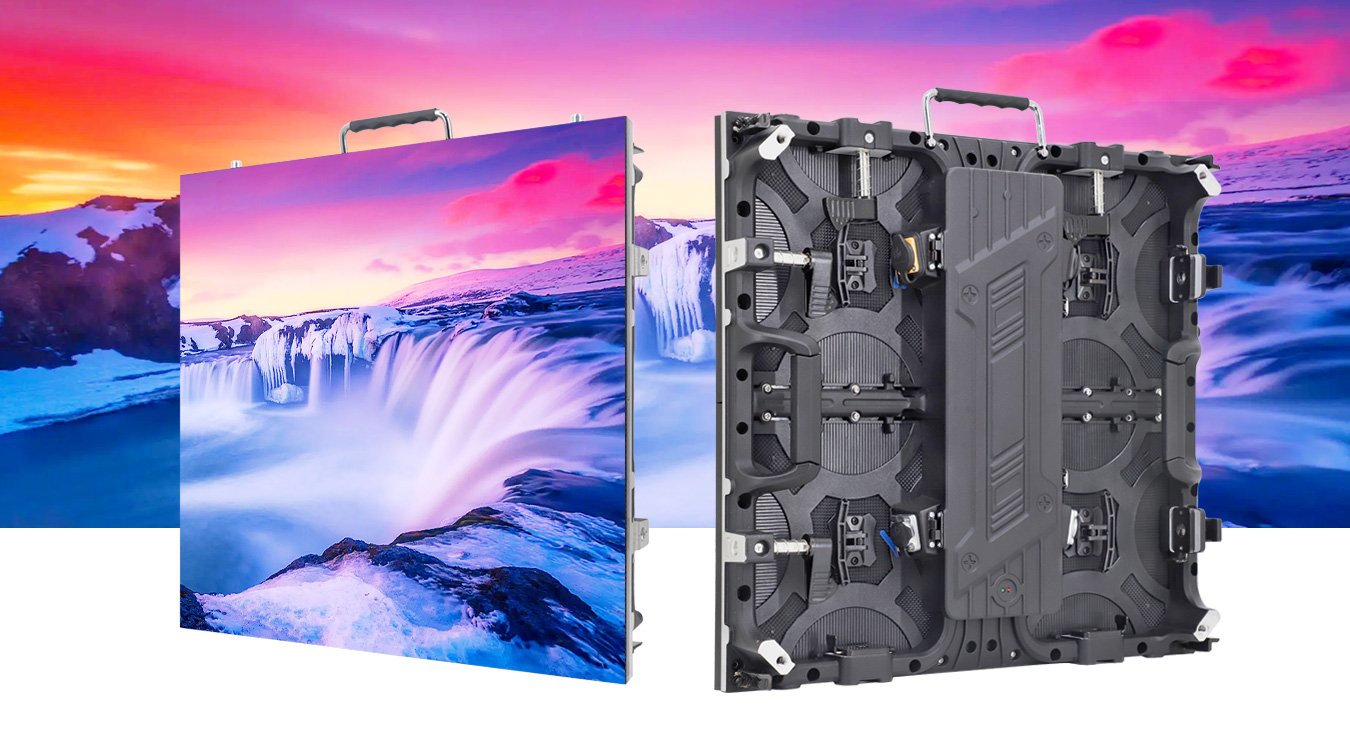

The LM500C3 Series is made of sturdy and beautiful materials,
and there are two quick locking devices on the left and right sides, which can ensure faster assembly speed and better screen flatness.
It also has bumper feet on the bottom of the cabinet to protect the edges of the LED modules.
LM500C3 Series Rental LED screen Two Fast Locks on Left and Right Side,Ensure faster assembly and better screen flatness.

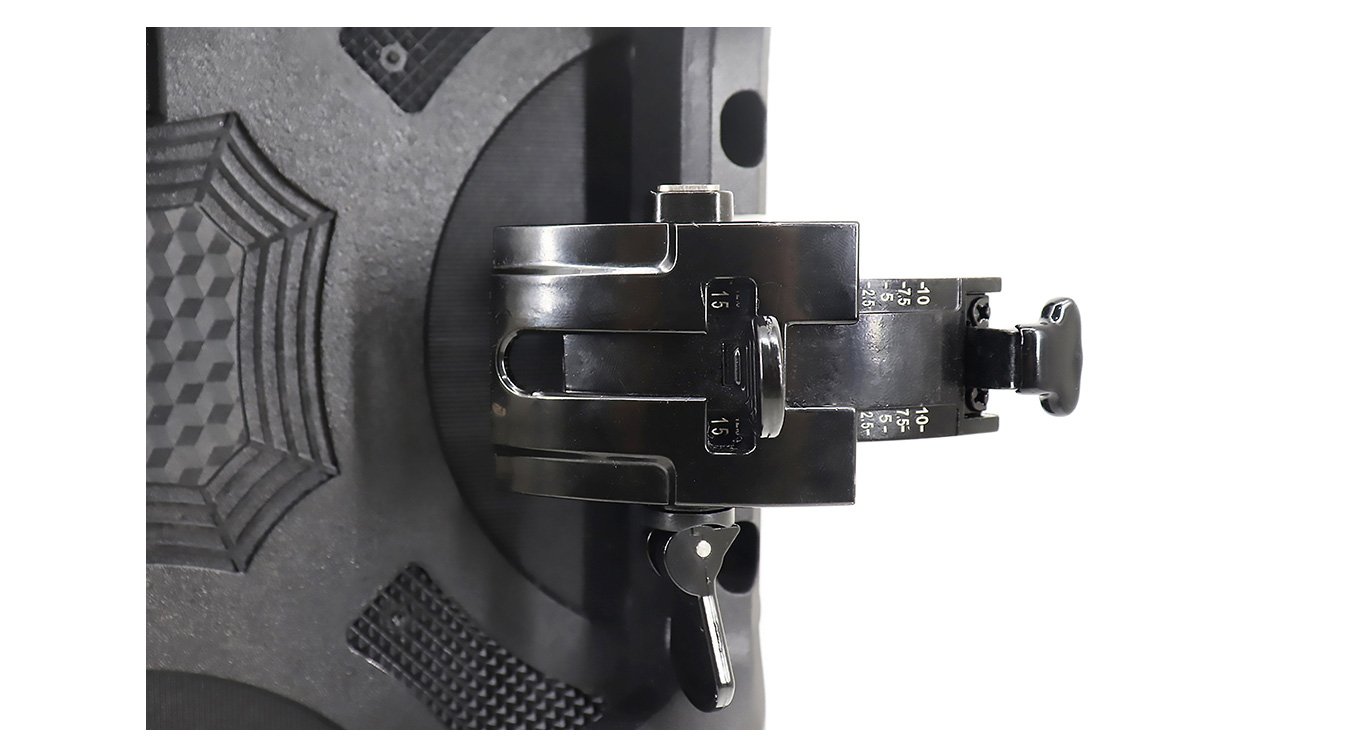

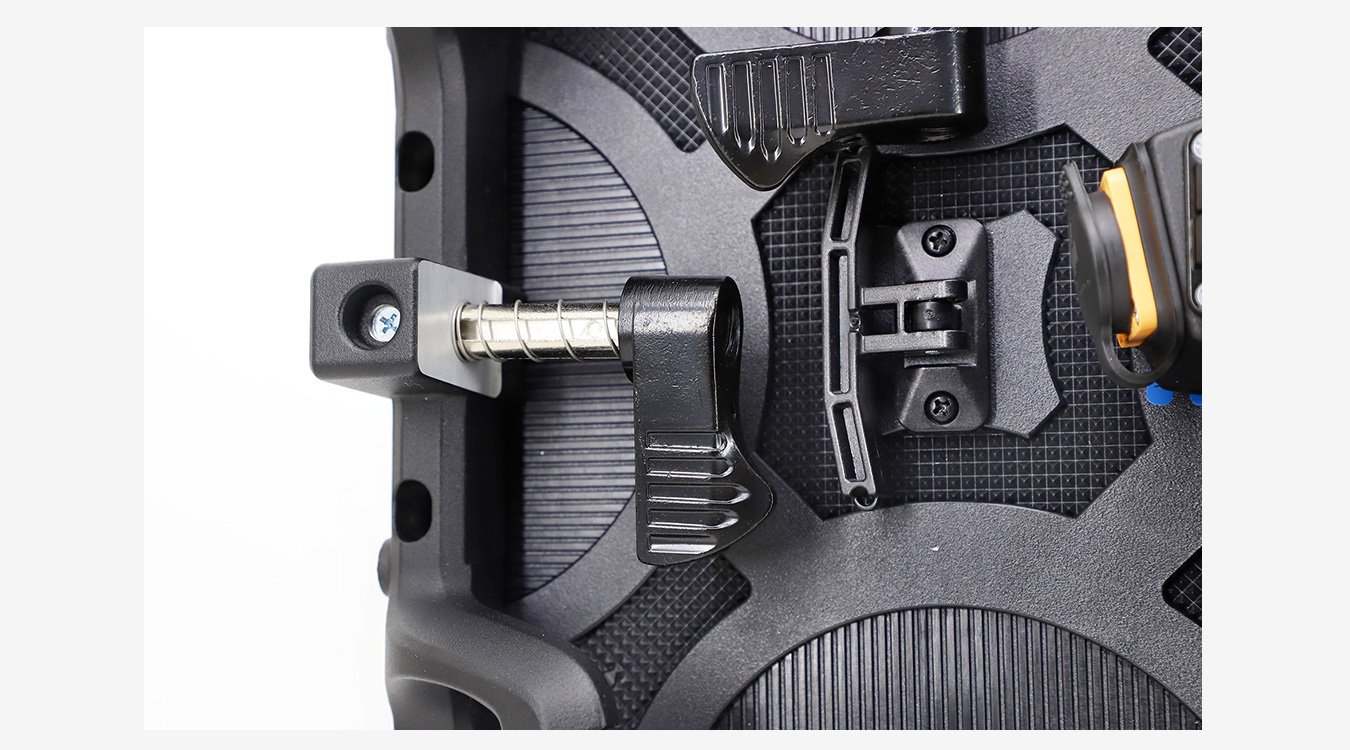

High Precision Curve Lock design is adopted to solve the problem that the old curved lock is difficult to use before. Rotational control, more accurate, easy to use and quickly adjust curve degree.

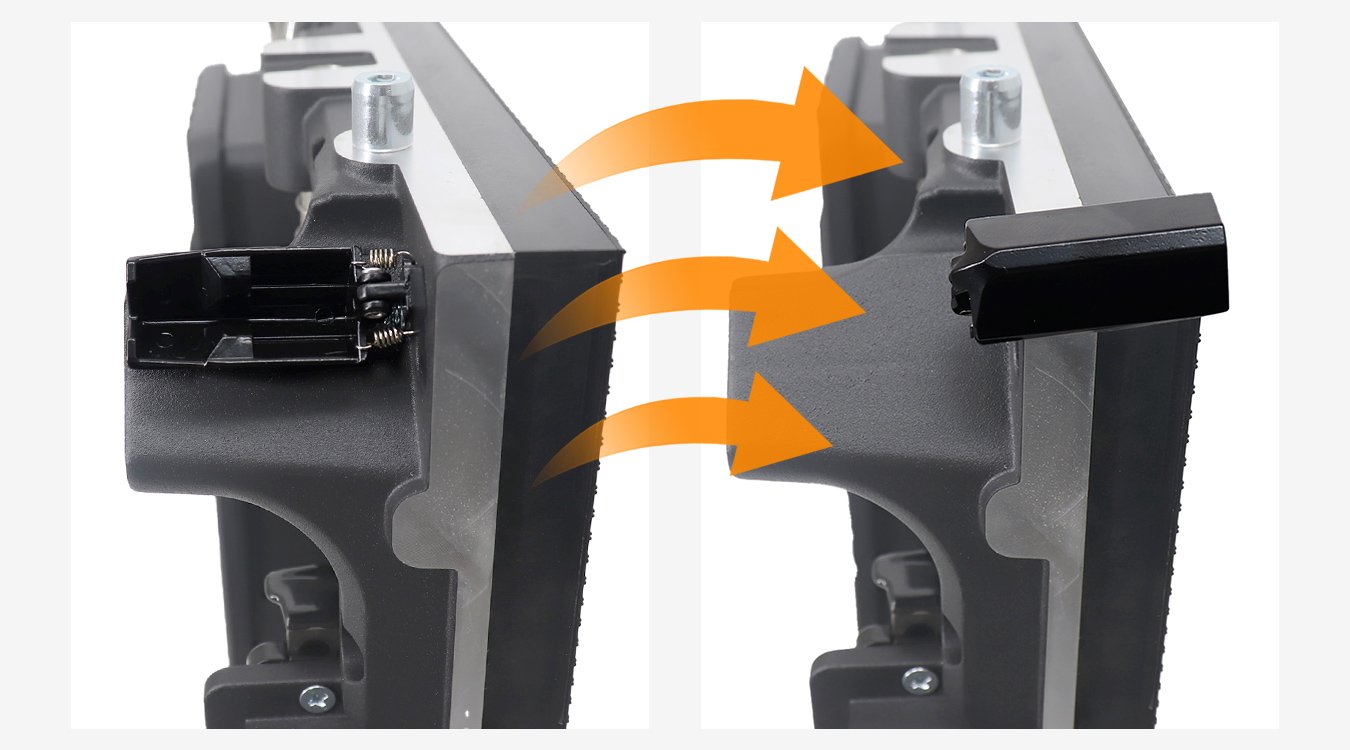

LM500C3 Series Rental LED Display 500×500 has four corner protectors in each corner to prevent LED to be damaged, more security for transport, installation, operation, assemble & disassemble foldable design, and easy to use.
We launched this cost-effective LM500C3 series, with a special heat dissipation structure,
the heat dissipation is excellent. Fanless design, absolutely silent operation.

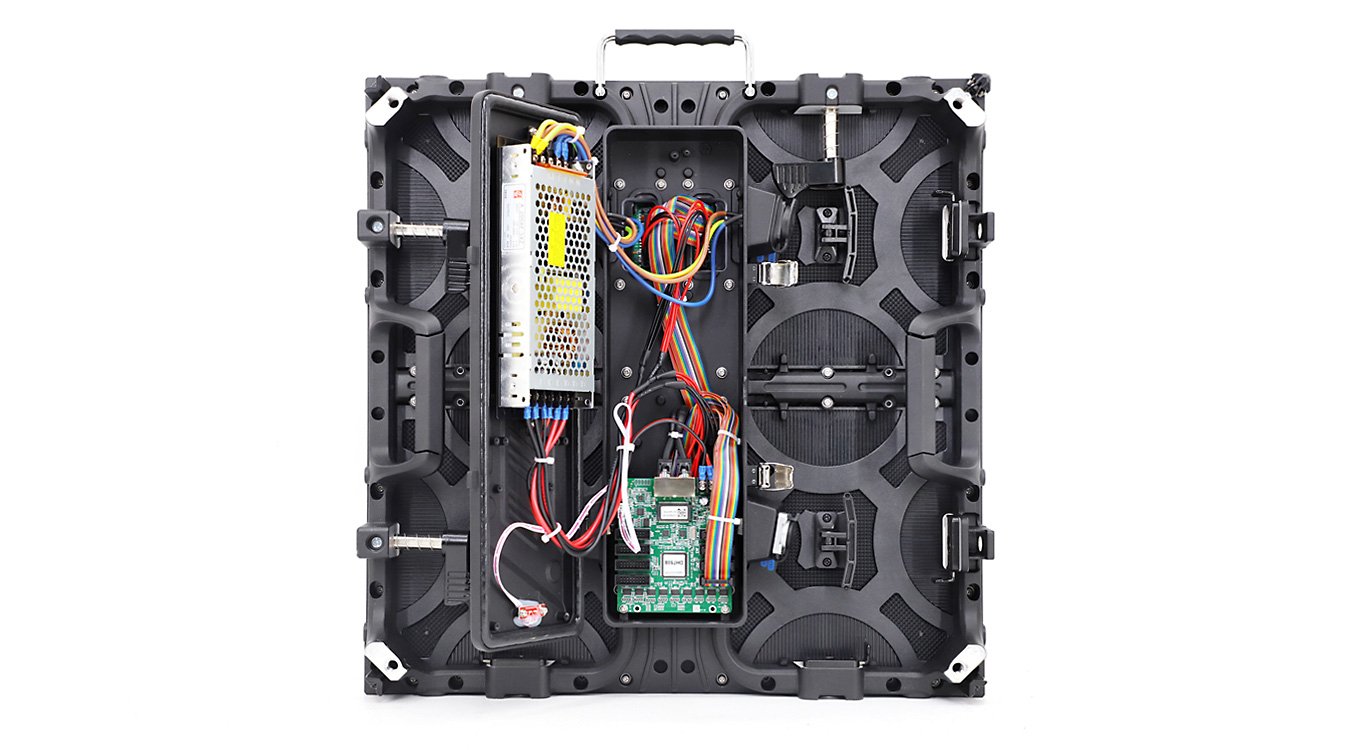

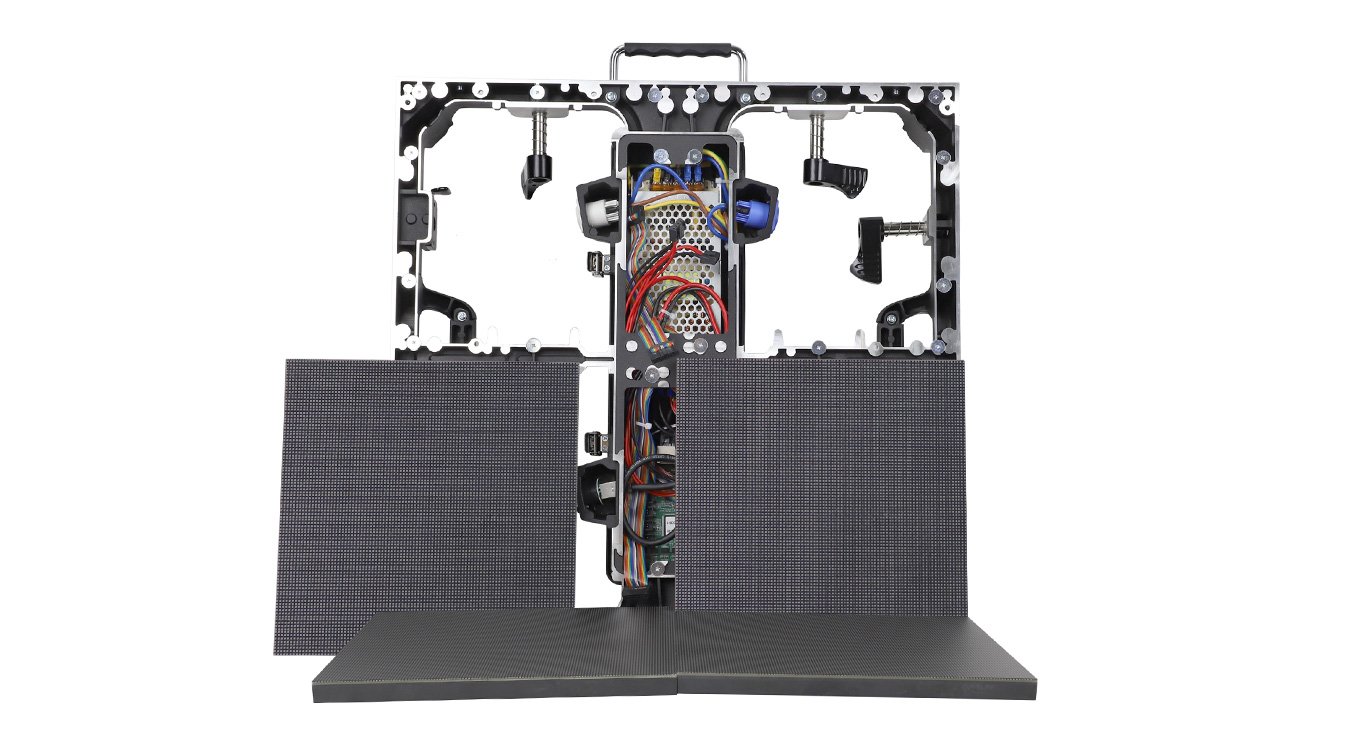

LM500C3 series supports design of LED display 500×500 with front side service. The magnet LED module can be disassembled and maintained by front-end tools, which is simple and convenient, saving your cost and labor.
LM500C3 front service series, with special heat dissipation structure,
Cooling is very good. Fanless design, absolutely silent operation.

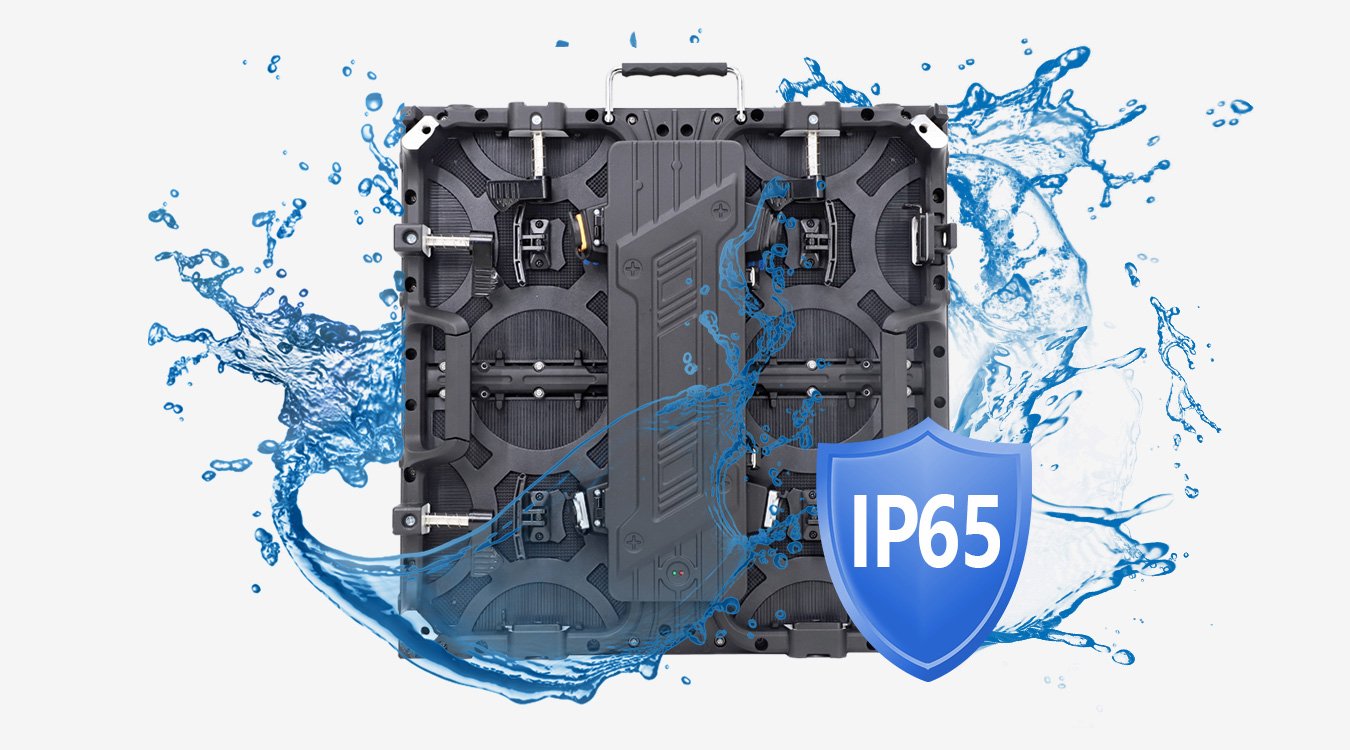

The LM500C3 series outdoor LED display Screen supports IP65 dustproof and waterproof, it can resists severe weather conditions during outdoor activities. And die-cast aluminum is corrosion resistant.

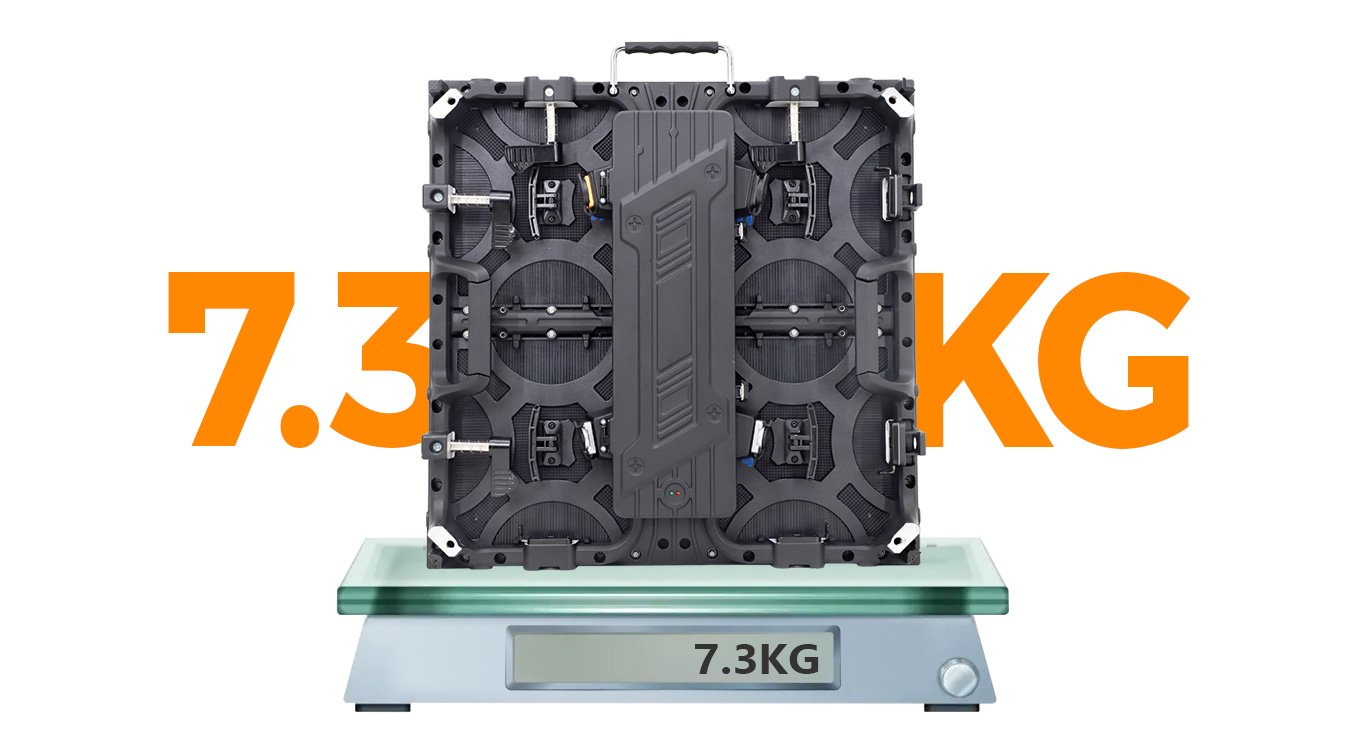

LM500C3 series LED display cabinet weighs 7.3KG/pc, easy to operate: one person to install, disassemble and maintain.

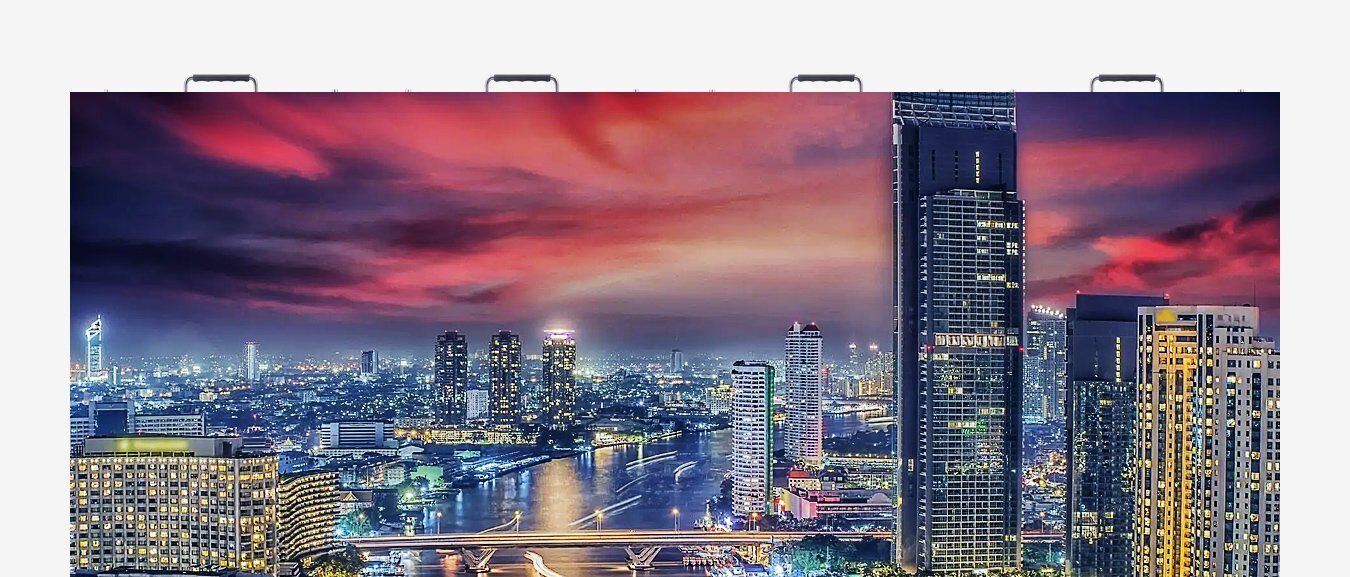

High precision LED display make seamless splicing image and video display, offering you the perfect visual experience you desire. The picture quality confronts viewers with an entirely new sensory experience.

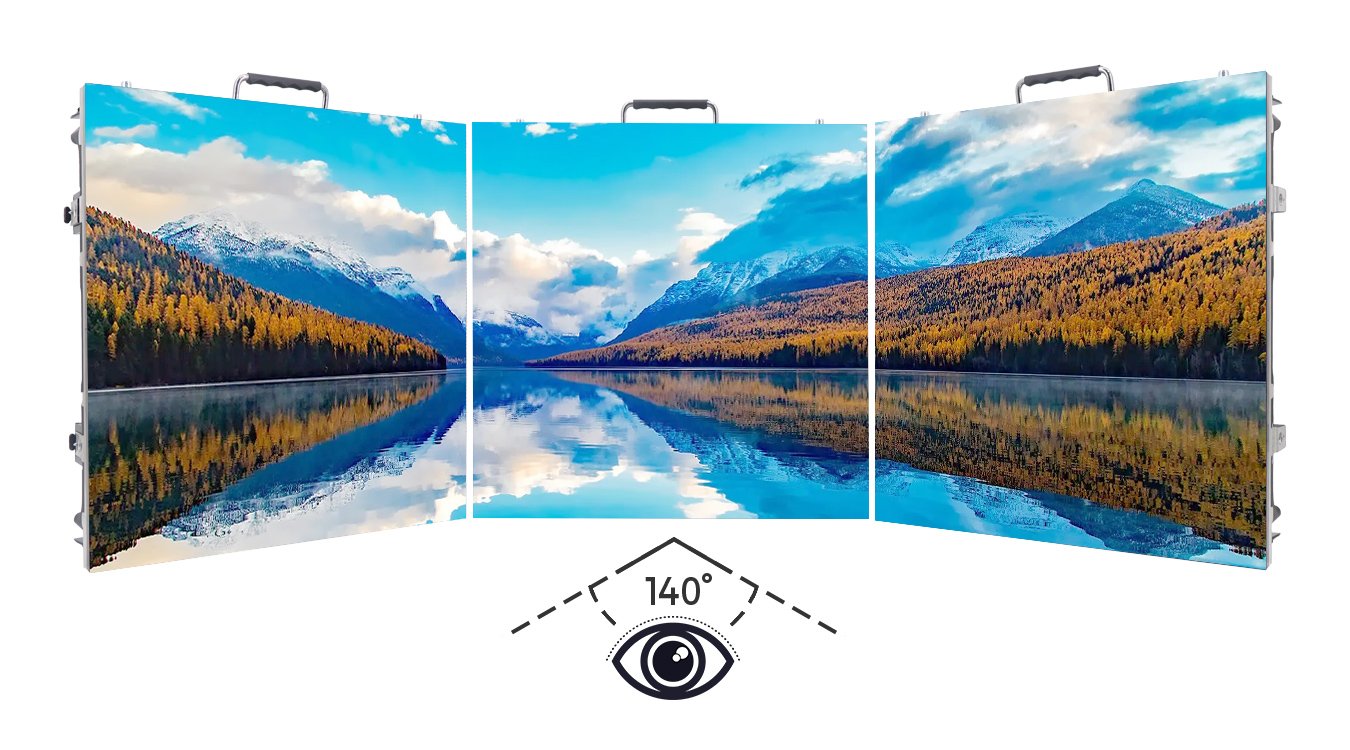

Viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle.
Ultra-wide viewing angle give you the largest screen viewing area.
Pixel Pitch (mm) | P2.6 | P2.97 | P3.91 | P4.81 |
---|---|---|---|---|
Model | LM500C3-P2.6 | LM500C3-P2.97 | LM500C3-P3.91 | LM500C3-P4.81 |
Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
Density (Pixels/㎡) | 147,928 | 112,896 | 65,536 | 43,264 |
Module Resolution (Pixel) | 96x96 | 84x84 | 64x64 | 52x52 |
Module Size (mm) | 250x250 | 250x250 | 250x250 | 250x250 |
Driving Mode (Duty) | 1/16 | 1/21 | 1/16 | 1/13 |
Cabinet Size (mm) | 500x500 | 500x500 | 500x500 | 500x500 |
Cabinet Weight (KG) | 7.3 | 7.3 | 7.3 | 7.3 |
Brightness (CD/㎡) | ≥5,000 | ≥5,000 | ≥6,000 | ≥6,000 |
Viewing Angle (°) | 140 | 140 | 140 | 140 |
Gray Grade (Bits) | 14 | 14 | 14 | 14 |
Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
Max. Power Consumption (W/㎡) | 720 | 720 | 720 | 560 |
Avg. Power Consumption (W/㎡) | 240 | 240 | 240 | 190 |
Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
Working Temperature (ºC) | -20~+60 | -20~+60 | -20~+60 | -20~+60 |
Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 |
Protection Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
Model | LM500C3-P1.95 | LM500C3-P2.5 | LM500C3-P2.6 | LM500C3-P2.97 | LM500C3-P3.91 | LM500C3-P4.81 |
Pixel Configuration | SMD1515 | SMD1515 | SMD1515 | SMD2121 | SMD2020 | SMD2121 |
Density (Pixels/㎡) | 262,144 | 160,000 | 147,928 | 112,896 | 65,536 | 43,264 |
Module Resolution (Pixel) | 128x128 | 100x100 | 96x96 | 84x84 | 64x64 | 52x52 |
Module Size (mm) | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 |
Driving Mode (Duty) | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 | 1/13 |
Cabinet Size (mm) | 500x500 | 500x500 | 500x500 | 500x500 | 500x500 | 500x500 |
Cabinet Weight (KG) | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
Brightness (CD/㎡) | ≥1000 | ≥1000 | ≥1200 | ≥1,000 | ≥1,200 | ≥1,000 |
Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 |
Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 | 14 |
Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
Max. Power Consumption (W/㎡) | 480 | 480 | 480 | 480 | 576 | 560 |
Avg. Power Consumption (W/㎡) | 160 | 160 | 160 | 160 | 192 | 190 |
Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
Working Temperature (ºC) | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 |
Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
