Outdoor Rental LED Display For Events Price P1.9, P2.6, P2.9, P3.9, P4.8, P5.9
Anti-Collision
Easy to Repair
Seamless Connection
Curve Capabilities
High Quality PCB
Light Weight
Multiple Installation
Multiple Options
We choose reliable materials, including integrated circuits, LEDs, wires, and power supplies. So the performance in all aspects is better and lifespan is longer than similar rental screen products in the market.

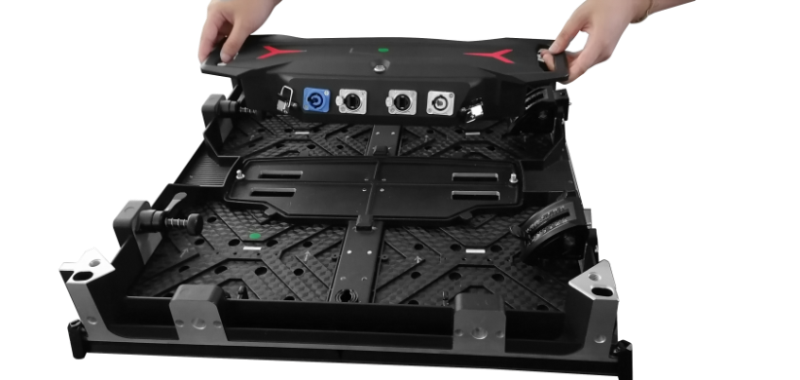

The receiving card, power supply, and hub card are built in a control box in the back of the cabinet. If there is any problem with the LED panel, you can replace the whole control box in a few seconds. That greatly reduces the “downtime” during the event.

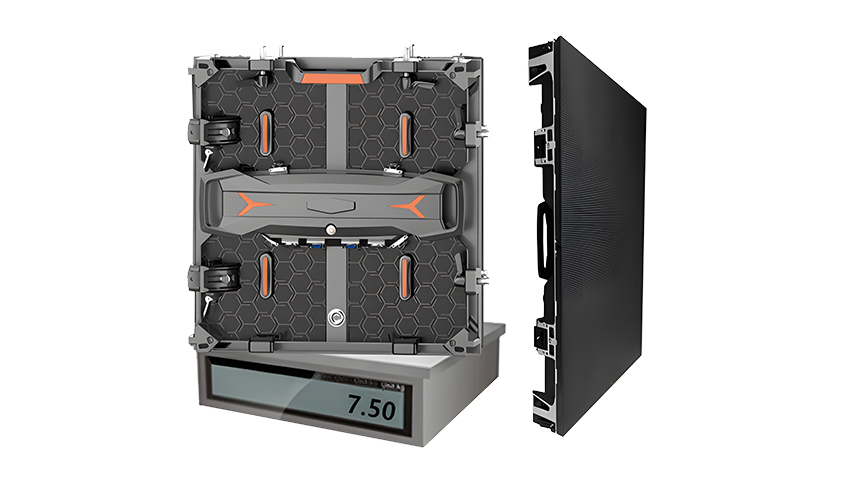

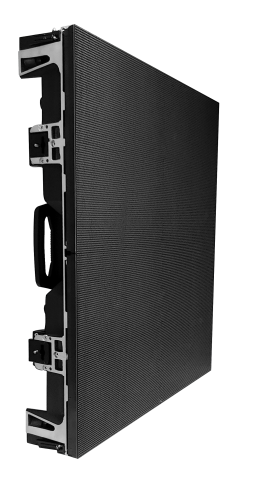

The die-casting panel is light and strong. The weight of the panel is only 7.5kg, and the thickness of the panel is only 90mm, ensuring the high quality of the LED video wall and easy operation.
The cabinet is die-casted by high precision CNC machine, plus dual locks are armed on each side of the cabinet, which makes the installation more secure and gapless.

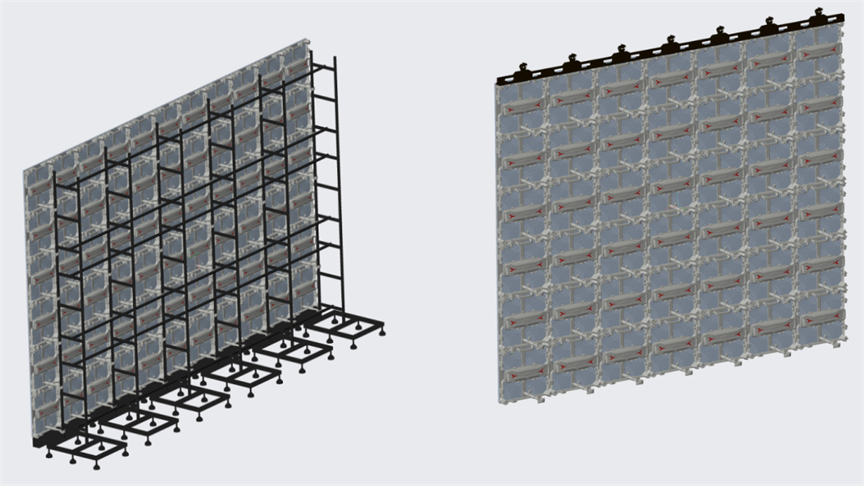

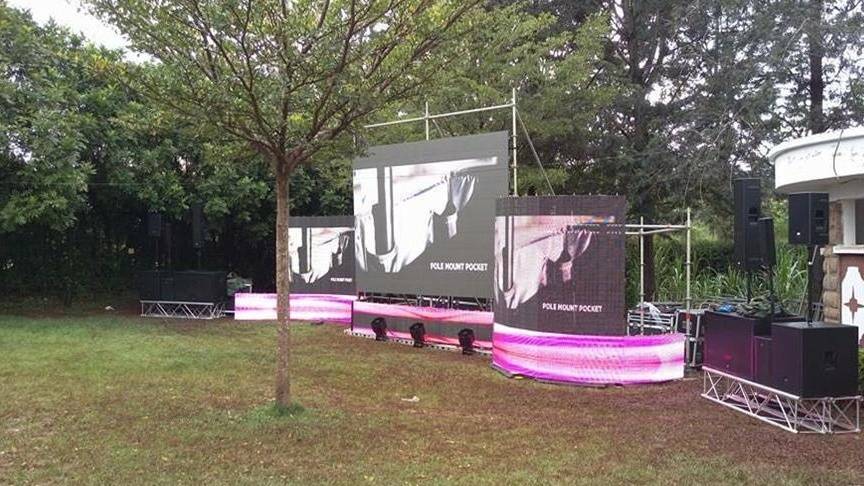

Stacking installation: Ground stacking makes your installation easier and faster during the events.

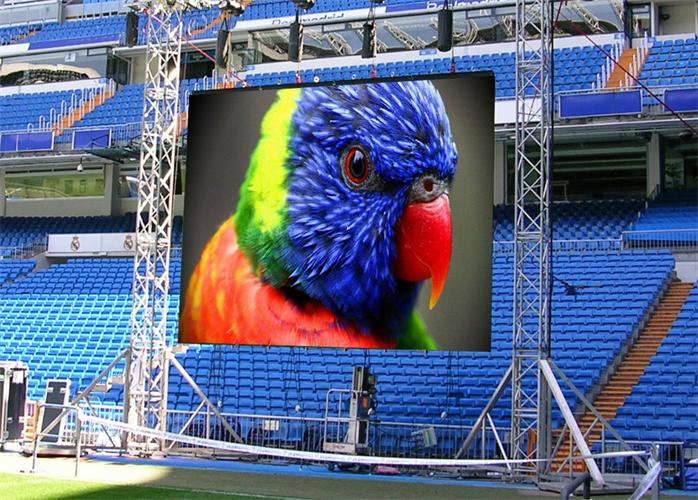

Lifting installation: The hanging bar can hang the cabinets from truss. The light weight of the cabinet will reduce the physical pressure of the frame.

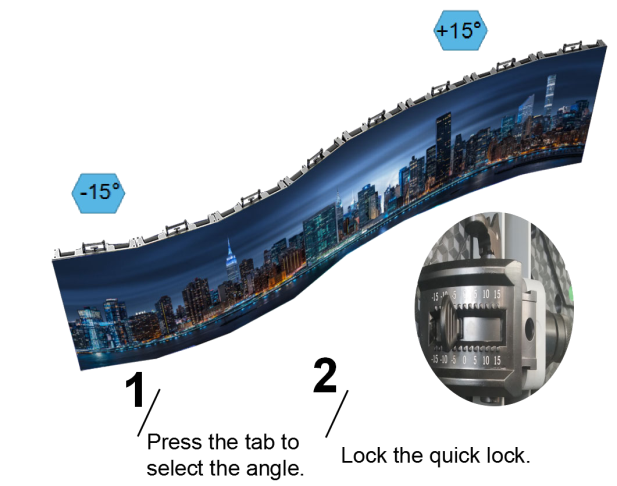

Curve connection locks are available to support the curve from -15° to +15°, which allows users to choose the flexible shape of the advertising LED screen. Flat, concave, and convex screen create a strong visual impact.

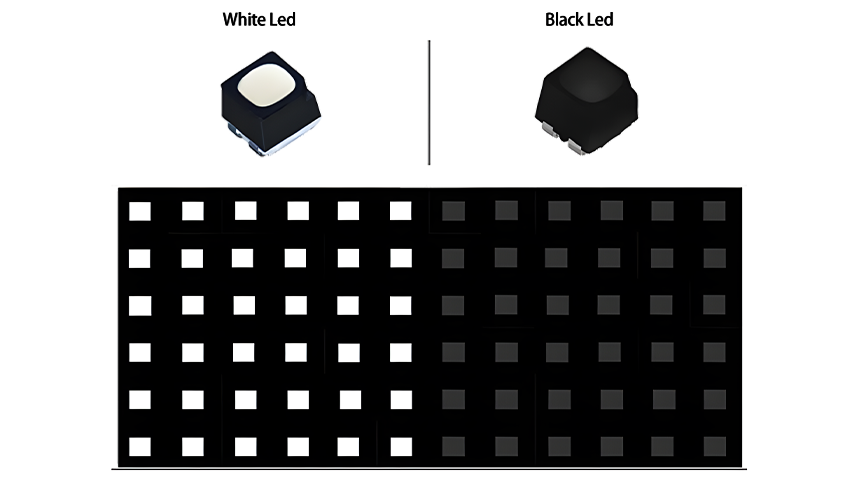

We offer most advanced white LED and black LED for your choice. White LED is now the most popular led in the outdoor rental market because of its stability, good performance and economic price. Meanwhile, black LED shows higher contrast, richer display colors and lower power consumption, which has enormous rental market potential.

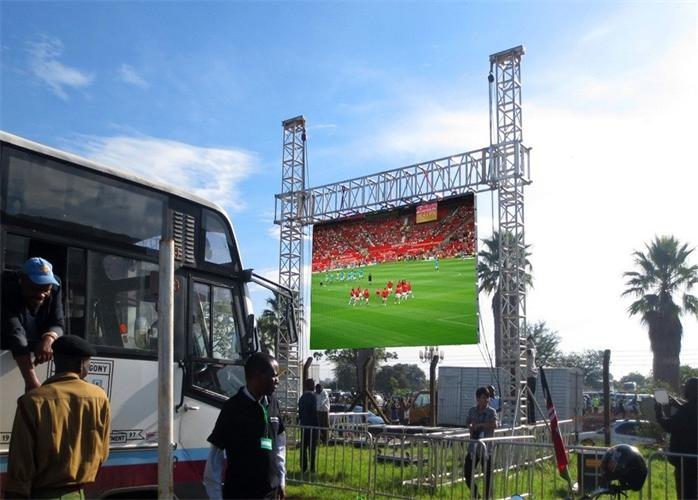

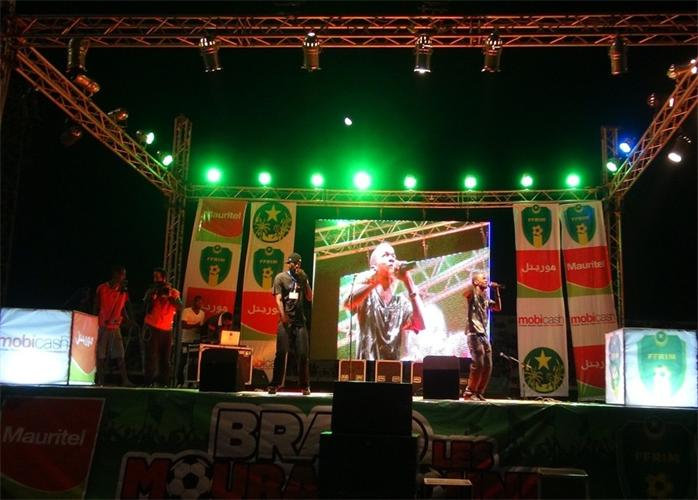

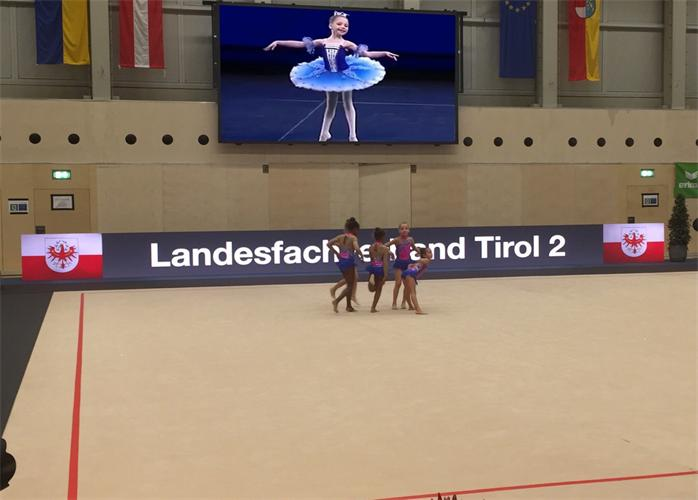

To fit every different scene, the giant LED screen is made up of superior quality materials with a concise and strong structure. This product is usually used in:
Cinemas; Stages; Advertisements.
Item | P1.9 | P2.6 | P2.9 |
---|---|---|---|
Pixel Pitch | 1.953mm | 2.604mm | 2.976mm |
LED Type | SMD1212 | SMD1415 | SMD1415 |
Module Resolution | 128dots × 128dots | 96dots × 96dots | 84dots × 84dots |
Driving Mode | 1/32scan | 1/16scan or 1/32scan | 1/14scan or 1/ 21scan |
Module Pixels | 16,384dots | 9,216dots | 7,056dots |
Module Size | 250mm × 250mm | 250mm × 250mm | 250mm × 250mm |
Cabinet Size | 500mm × 500mm | 500mm × 500mm | 500mm × 500mm |
Cabinet Resolution | 256dots × 256dots | 192dots × 192dots | 168dots × 168dots |
Pixel Density | 262,144dots/㎡ | 147,456dots/㎡ | 112,896dots/㎡ |
Minimum Viewing Distance | ≥1.9m | ≥2.6m | ≥2.9 m |
Brightness | 4,000nits (Black) | 4,000nits (Black) / 4,500nits(White) | 4,000nits (Black) / 4,500nits (White) |
IP Grade | IP65 | IP65 | IP65 |
Refresh Rate | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz |
Gray Scale | 13bits~24bits | 13bits~24bits | 14bits~24bits |
Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:110° / V:110° |
Maximum Power Consumption | 800W/㎡ | 800W/㎡ | 1000W/㎡ |
Average Power Consumption | 230W/㎡ | 230W/㎡ | 330W/㎡ |
Input Voltage | AC110V~AC220V @ 50Hz / 60Hz | AC110V~AC220V @ 50Hz / 60Hz | AC110V~AC220V @ 50Hz / 60Hz |
Operating Temperature | ﹣20℃~65℃ | ﹣20℃~65℃ | ﹣20℃~50℃ |
Operating Humidity | 10%~90% | 10%~90% | 10%~90% |
Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
Cabinet Weight | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel |
Operating System | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) | Windows (Win7, Win10, etc.) |
Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
