960x960 Football Stadium Perimeter LED Screen Display for world cup
960x960 Football Stadium Perimeter LED Screen Display for world cup

Football Perimeter LED Screen for Stadium P4 P5 P6.67 P8 P10

Soft Plastic Mask


High Quality SMD LED


Big Viewing Angle



6,000nits ~ 10,000nits


World Cup LED Sports Stadium Screen Football Stadium Advertising Reliable Protection and Flexible Adjustment

The main difference between perimeter led screen and the other series is LeemanLED series has soft plastic mask to protect the players from injury when they hit the screen in the stadium by accident. It has a back supporting stand for adjusting the screen to different viewing angle.

960x960mm perimeter LED display screen for football stadium video advertising World Cup HD Performance

Since we use high-quality SMD LED and excellent PCB design, the screen can bring you the HD picture performance indoors or outdoors. The pixel pitches are P6.6, P8 and P10.

Football LED Video Display And Scoreboard For World Cup Sport Stadium High Protective Grade IP65

SS1 series adopts high quality conformal coating, so the component is effectively moisture-proof and dust-proof. Therefore, the screen can be used in severe indoor and outdoor environment.

960×960 Football Stadium Perimeter LED Screen billboards For World Cup Multifunction For Sports Events

Perimeter led screen can be also used as a scoreboard in the stadium. You can clearly see what is on the screen at various angles.

Outdoor Advertising P8 Football Stadium Perimeter LED Display For World Cup Seamless Connection

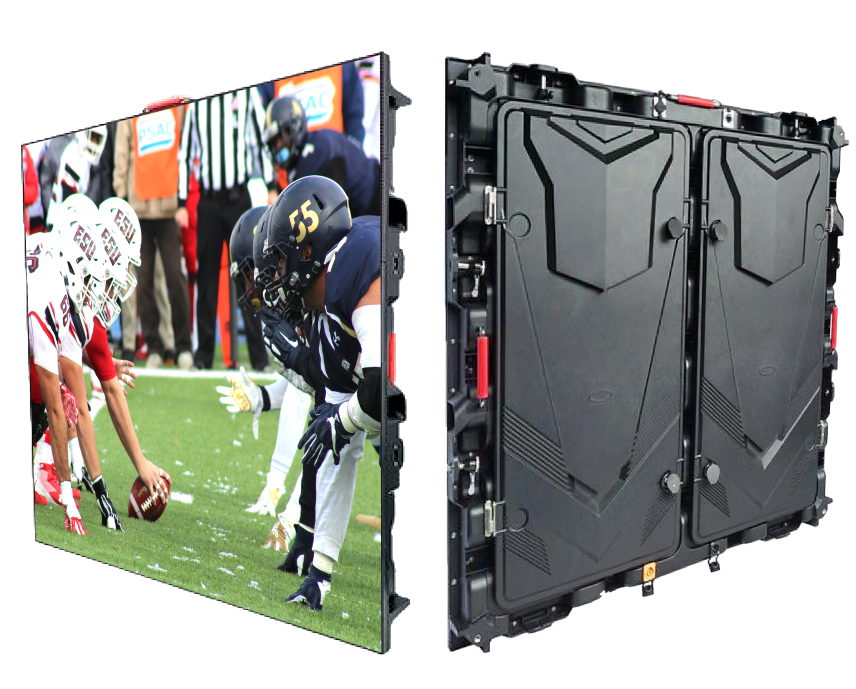

The high-precision die-casting aluminum cabinet is adopted. Compared with the traditional one, perimeter led screen’s cabinet is quicker, and it has better splicing effect.

World Cup P6.6 P8 P10 P16 Perimeter LED Display / Stadium LED Screen / Football LED Billboard Advertising Redundant Signal Data and Power Supply

In order to avoid black-out screen during the events, we can provide signal back solution. When one of the signal cables breaks down, the screen is still able to display the live-feed or advertising content. Meanwhile, backup power supply is also feasible. When the power supply gets failed, the screen won’t appear black.

Outdoor P6 Football Stadium Perimeter LED Screen For World Cup Complete Image Solution

Normally the width of the perimeter display is very long and the horizontal resolution is way over the limit of the monitor 3840dots, so the screen will be displayed in several separate windows. We have solution to make the screen to display a complete image even if the pixels more than 30k or even more.

On the basis of its superior performance, unique design, the perimeter led screen can be used indoors and outdoors. It is always used in the stadium as:

Perimeter Banner Screen; Score Board; Live Feed Video Screen.


Pixel Pitch6.67mm8mm10mm
LED TypeSMD2727SMD3535SMD3535
Module Resolution32dots × 32dots32dots × 16dots / 40dots × 20dots32dots × 16dots
Driving Mode1/6scan1/4scan / 1/5scan1/2scan
Module Pixels1,024dots512dots / 800dots512dots
Module Size192mm × 192mm256mm × 128mm / 320mm × 160mm320mm × 160mm
Cabinet Size1,152mm × 768mm1024mm × 768mm / 960mm × 960mm960mm × 960mm
Cabinet Resolution192dots × 128dots128dots × 96dots / 120dots × 120dots96dots × 96dots
Pixel Density27,777dots/㎡15,625dots/㎡10,000dots/㎡
Minimum Viewing Distance≥6m≥8m≥10m
IP GradeIP67IP67IP67
Refresh Rate1,920Hz~3,840Hz1,920Hz~3,840Hz1,920Hz~3,840Hz
Gray Scale14bits~24bits14bits~24bits14bits~24bits
Viewing AngleH:110° / V:110°H:110° / V:110°H:110° / V:110°
Maximum Power Consumption800W/㎡800W/㎡800W/㎡
Average Power Consumption265W/㎡265W/㎡265W/㎡
Input VoltageAC220V~AC110V @ 50Hz / 60HzAC220V~AC110V @ 50Hz / 60HzAC220V~AC110V @ 50Hz / 60Hz
Operating Temperature﹣20℃~65℃﹣20℃~65℃﹣20℃~65℃
Operating Humidity10%~90%10%~90%10%~90%
Cabinet MaterialAluminum profileAluminum profileAluminum profile
Cabinet Weight30kg/panel30kg/panel30kg/panel
Operating SystemWindows (Win7, Win10, etc.)Windows (Win7, Win10, etc.)Windows (Win7, Win10, etc.)
Signal Source CompatibilityDVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
960x960 Football Stadium Perimeter LED Screen Display for world cup
960×960 Football Stadium Perimeter LED Screen Display for world cup
