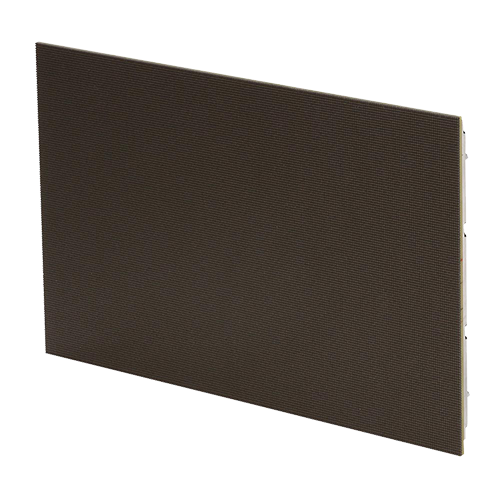

COB P0.9 LED Screen Module 600×337.5mm Indoor Full Color P0.9 LED Module
Product introduction |
This is traditional design of indoor LED display module. It has consistently bright and uniform picture quality, and it is reliable indoor LED signage with ongoing performance. This is dramatically cost-efficient design with convenient installation and maintenance.
Cabinet Material：Die-casting Al-cabinet & Single Side Design
Application：The traditional indoor LED screen is a state-of-the-art LED signage that complements any business with vibrant content presentation, along with an enhanced, indoor-friendly design that saves cost and time during installation and operation. It is the ideal display to deliver captivating and meaningful content in any indoor environment.
Durable, Reliable Indoor Alternative
It is subject to environmental tests including exposure to any temperatures, a weather-enacting salt corrosion chamber and package vibration and drop testing. The display also has corrosion-proof painting and anti-UV, deformation-proof housing that extends its shelf life.
Environmental Stable Design
It undergoes strict testing to ensure ongoing performance when exposed to water, dust and indoor elements. Ingress Protection (IP) validation confirms defense for the front IP65 and back (IP67) of the display, ensuring continuous operation regardless of the environment.
Durable, Reliable Indoor Alternative
It is subject to environmental tests including exposure to any temperatures, a weather-enacting salt corrosion chamber and package vibration and drop testing. The display also has corrosion-proof painting and anti-UV, deformation-proof housing that extends its shelf life.
Environmental Stable Design
It undergoes strict testing to ensure ongoing performance when exposed to water, dust and indoor elements. Ingress Protection (IP) validation confirms defense for the front IP65 and back (IP67) of the display, ensuring continuous operation regardless of the environment.
COB P0.9 LED Screen Module 600×337.5mm Product Parameters
| Item | Parameters |
|---|---|
| Pixel pitch | 0.9375mm |
| LED Type | MiniLED 4R4G4B |
| LED Module Size | 300×168.75mm |
| LED Module Resolution | 320x180dots |
| Density per SQ.M | 1,137,777 dots/SQ.M |
| Signal Processing | 12 – 16 bit |
| Grey Level | 4096 – 65536 |
| Refresh Rate | > 3840Hz |
| Scan Mode | 1/64 |
| Brightness | > 600 nits |
| Viewing Distance | > 0.9m |
| Contrast Ratio | 5000:1 |
| Viewing Angle | 120 degree |
| Input Voltage | 100-240V/50-60Hz |
| Max Consumption | < 400 W/SQ.M |
| Ave Consumption | 100 – 240W/SQ.M |
| Working Temperature | -20 degree to 45 degree |
| Storage Temperature | -40 degree to 60 degree |
| Input Voltage | DC5V |
| IP Rate | IP35 |
| Working Humidity | 10% – 60% |
| Storage Humidity | 10% – 90% |
| Lifespan | > 100,000 hours |
| MTBF | > 10,000 hours |
| Service Type | Front Service |
| LED Lamp | Nationalstar |
| IC | ICN2153 |
| Control Card | NovaStar / Colorlight / LINSN / Huidu |
