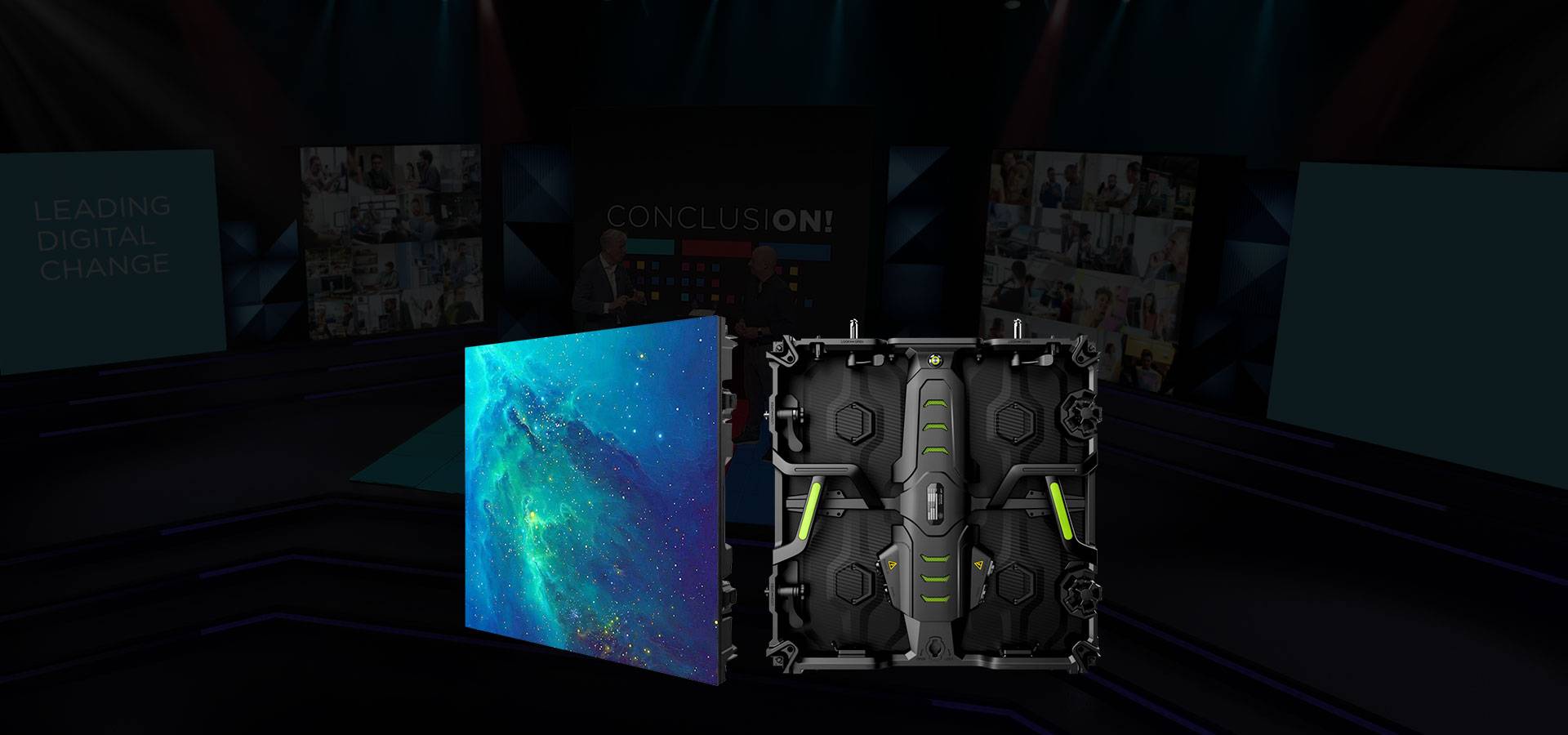

Curved Indoor Outdoor Stage LED Screen 500×500 SERIES

P1.5625 P1.953 P2.604 P2.976 P3.91 Indoor Stage LED Screen

VIDEO

Installation Protection

Protect the LEDs near the edge of the cabinet, effectively reducing damage caused during installation Ensure that the LEDs are free from contact with the ground when the cabinet is placed on the ground

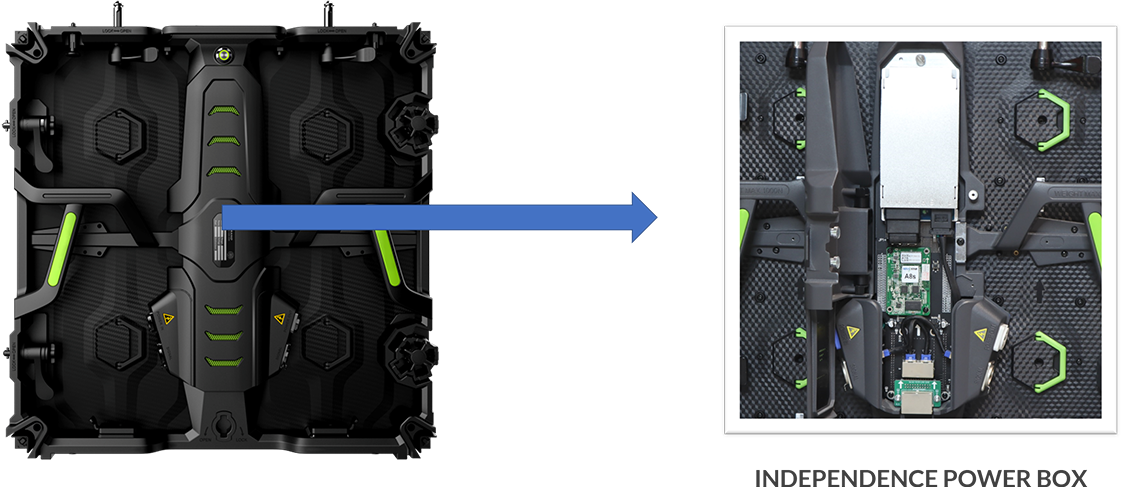

One-Person Maintenance

Independent power box, the integration of power box, receiving card, and Hub Card, easy to change the power box enables fast and easy replacement

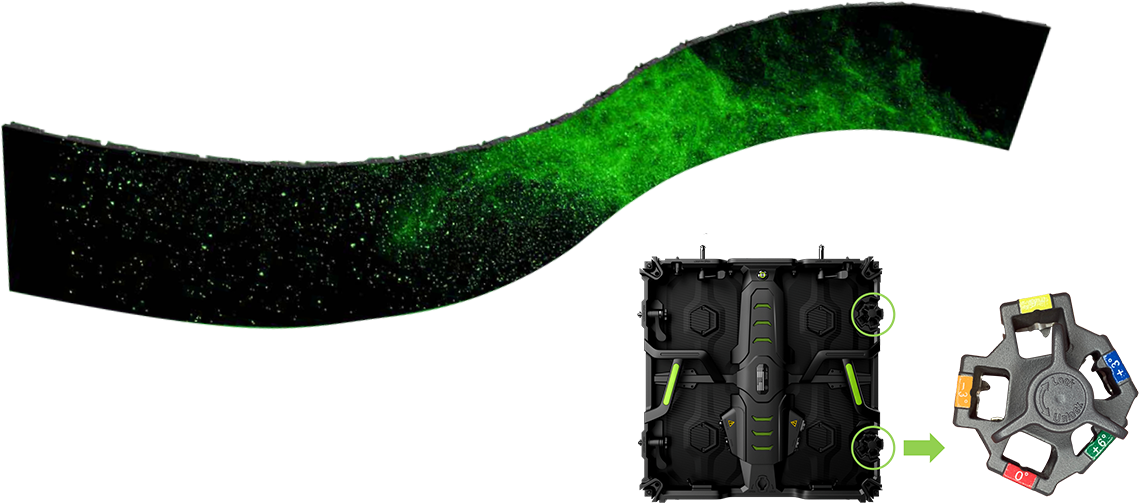

Curved Indoor Outdoor Stage LED Screen 500×500 Concave & Convex curves installations

High precision curving blocks support customized 5 different angles, creative screen shapes and sizes

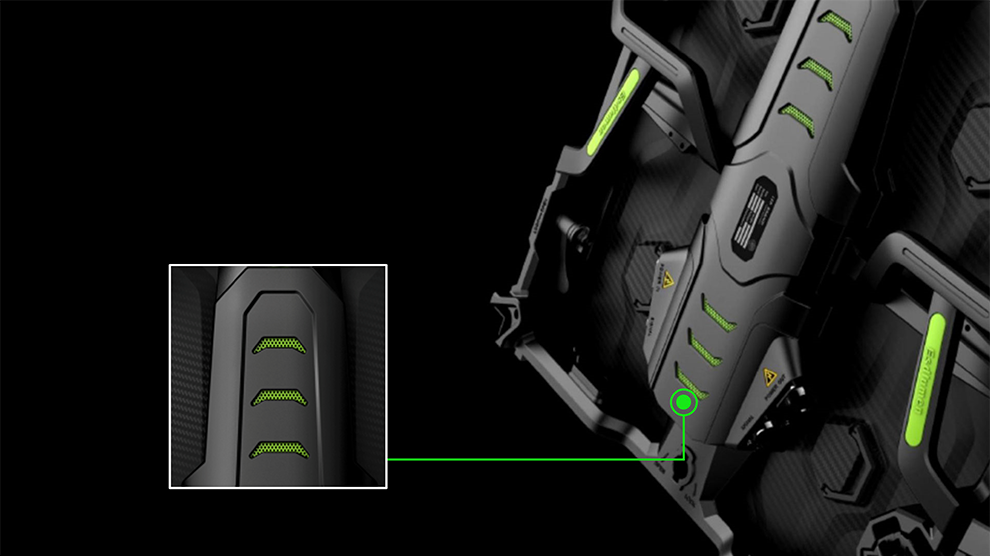

Efficient heat dissipation

Automatically cooling system can save 20% in consumption and prolong 35% in power lifetime

P1.5 P1.9 P2.6 P2.9 P3.9 P4.8 Curved LED Screen 500x500One-Person installation

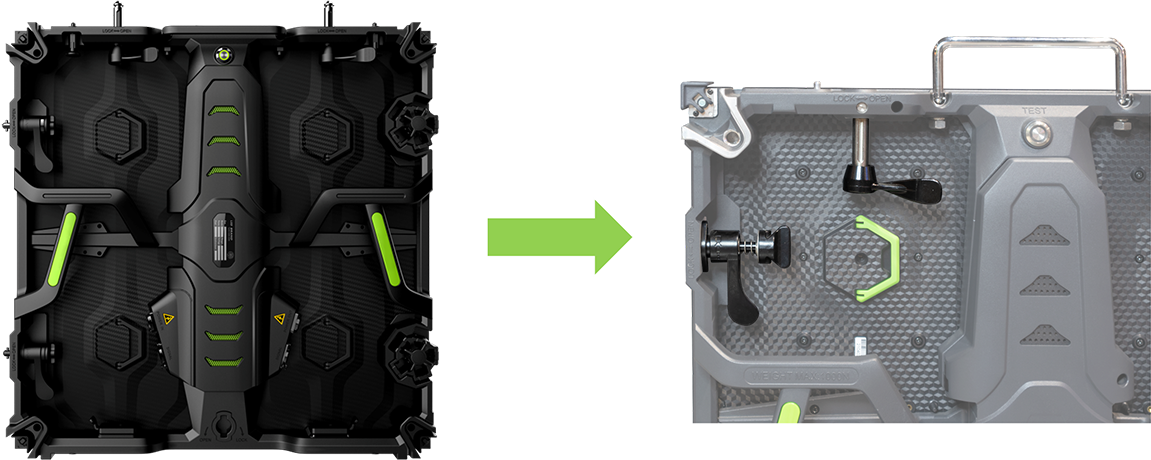

Innovation lock system for installation within 5s by one-person installation without tool

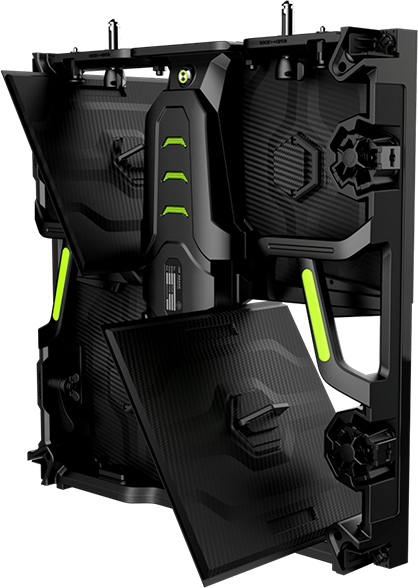

One-Person Installation And Disassembly

Handle design and specialized magnets enables simply one person to assemble and disassemble

SPECIFICATIONS

Model	LM1953	LM2604	LM2976	LM391
Pixel Pitch (mm)	1.9mm	2.6mm	2.91mm	3.91mm
Brightness（nits）	4000~4500	4500~5000	5000~5500	≥5500 / 8000nits(optional)
Refresh Rate（hz）	≥3840	≥3840	≥3840	≥3840
Cabinet Size(mm)	50050071
Cabinet weight(kg)	8.2
Cabinet Material	Die Casting Aluminum
Power Consumption(Max/Aver.)w/㎡	220/560	160/410	160/410	160/410
Cabinet Resolution Pixels	256×256 pixels	192×192 pixels	168×168 pixels	128×128 pixels
Pixel Density Pixels(㎡)	262,144	147,456	112,896	65,536
Maintenance Type	Front & Rear	Front & Rear	Front & Rear	Front & Rear
Note: For more product materials, please contact us directly.
