N169 Fine Pixel COB LED Display Board 600mmX337.5mm

4 : 3 Cabinet Size Design with 400*300mm dimension, high flatness, easy to install and disassemble, High difinition quality in an HD LED display

N169 Fine Pixel COB LED Display Board 600mmX337.5mm
MAGIC500 Front Service Outdoor Rental LED Display 500mmx500mm
MAGIC500 Front Service Outdoor Rental LED Display 500mmx500mm
MAGIC500 Front Service Outdoor Rental LED Display 500mmx500mm
MAGIC500 Front Service Outdoor Rental LED Display 500mmx500mm
MAGIC500 Front Service Outdoor Rental LED Display 500mmx500mm
MAGIC500 Front Service Outdoor Rental LED Display 500mmx500mm
MAGIC500 Front Service Outdoor Rental LED Display 500mmx500mm
N169 Fine Pixel COB LED Display Board 600mmX337.5mm

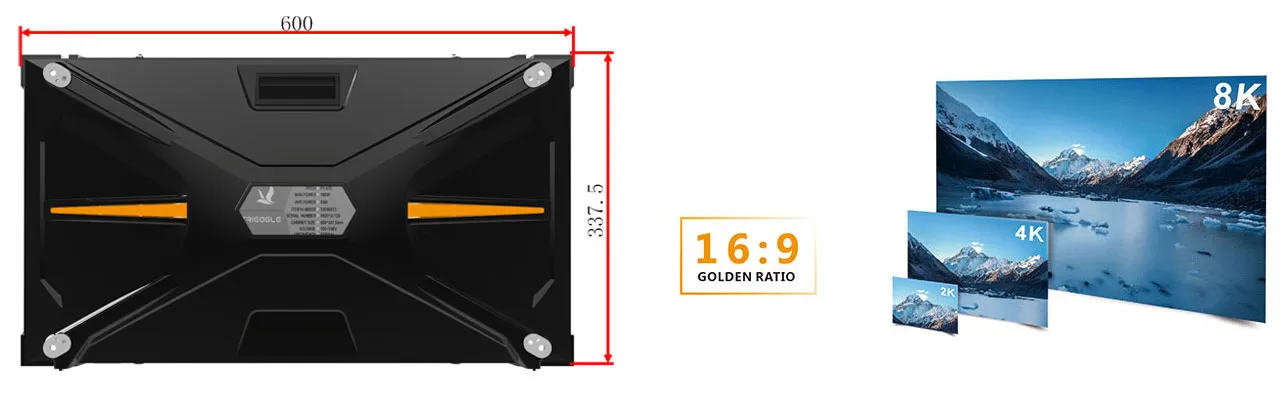

16:9 Cabinet Design

Leeman HD LED Video Wall Display 16:9 LED display with Cabinet’s 16:9 resolution, is specialized for command center. Perfect replacement for LCD display. Die cast aluminum cabinet, guarantee you a flat and seamless screen. Good uniformity. Dot-to-dot correction technology provide you pure image with great gradation.

N169 Fine Pixel COB LED Display Board 600mmX337.5mm

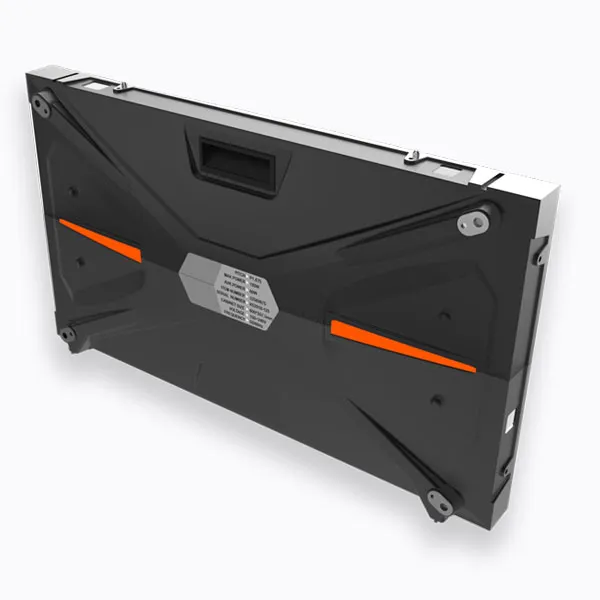

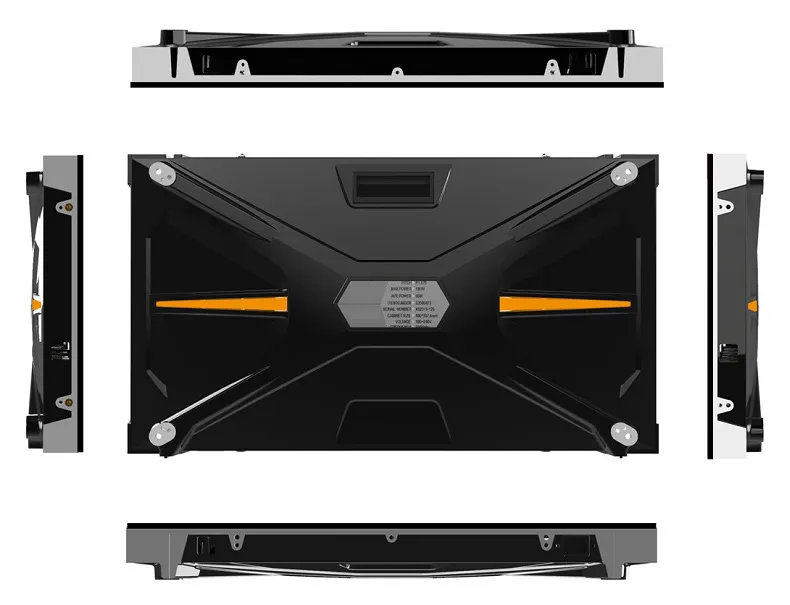

Perfect Cabinet Structure

Unique Cabinet Design with elegant appearance and human layout, easy installation and maintenance,
pleasing to the eye with great visual experience.

N169 Fine Pixel COB LED Display Board 600mmX337.5mm

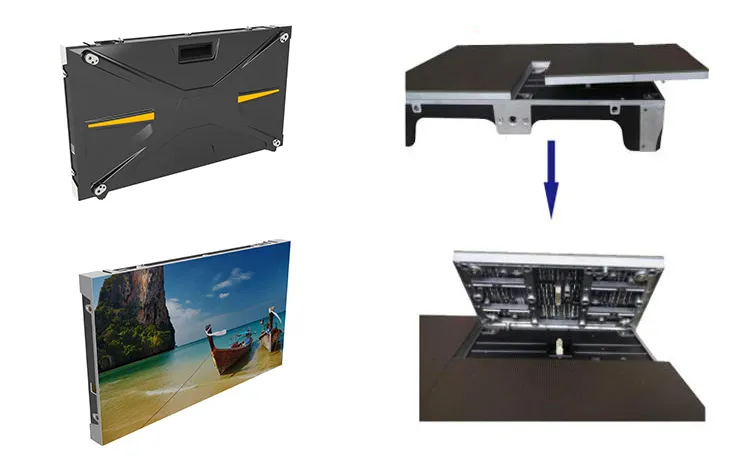

Frontal Service

The front servicealbe Ultra HD LED screen cabinet has fully described the strength of its light weight,
met the needs of small space or where the needs of the cabinet thickness is needed,
enhanced the vision of the space as well as its visionary effect. It allows for easy maintenance, saving time and labor on site.

N169 Fine Pixel COB LED Display Board 600mmX337.5mm
High Definition, Bringing perfect visual experience

HD LED Video Wall Display 16:9 SERIES 600mmX337.5mm With a cabinet ratio 16 : 9, the LED display is bespoke in size, flexible in installation and compatible with all the prevailing video formats,
making it easier to create FHD, 2K, 4K and 8K video wall.

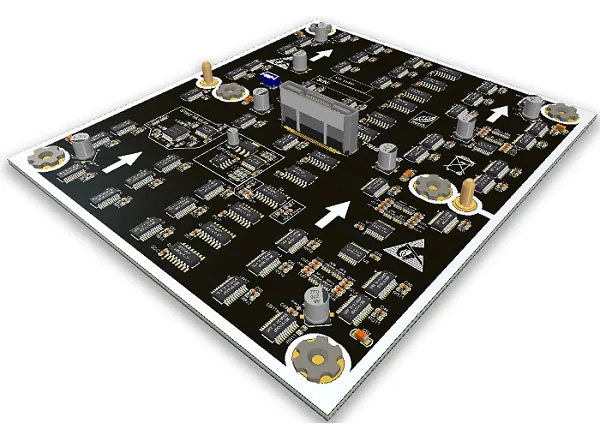

High quality LED Panel

LEEMAN 16:9 ratio LED screen adapts high quality LED panel. Support smart modules, support correcting data storage, Support module temperature detection, Support voltage detection, Support dot to dot correction.

N169 Fine Pixel COB LED Display Board 600mmX337.5mm
N169 Fine Pixel COB LED Display Board 600mmX337.5mm

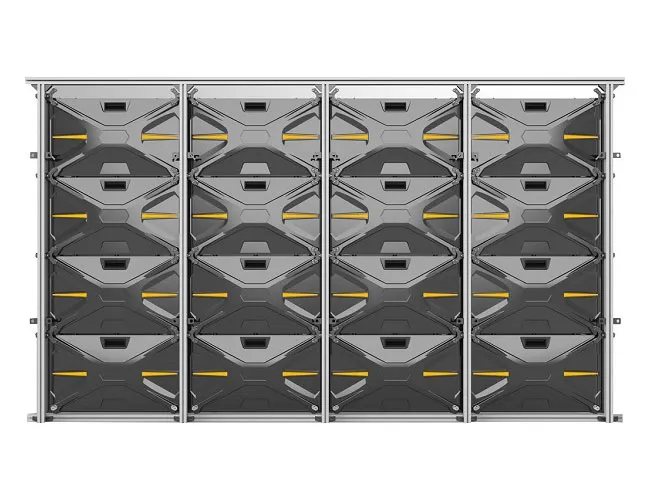

Seamless Splicing

Seamless splicing design with better cabinet connectors, top / down fast locks, and left/ right fast locks, offering the audience excellent visual experience without any gaps and the LED disply with ultra high flatness.

N169 HD LED Display

ITEMUNIT1.251.56251.8752.5
NationStar LEDN/A SMD1010 SMD1010 SMD1515 SMD1515
Pixel Pitchmm1.251.56251.8752.5
Ingress ProtectionIPIP54
Viewing Distancemeter1.251.51.82.5
Scan WayN/A1/301/321/301/30
Module Dimensionmm200*168.75
Module PixelPixel160×135128×106160×9080×68
Cabinet Dimensionmm600*337.5*60
Cabinet ResolutionPixel480*270384*216320*180240*135
Module MaintenanceN/AFront
Cabinet MaterialN/ADie-Casting Aluminum
Cabinet WeightKG5.4
BrightnessNits1000~1500
Refresh rateHz3,840/7,680
Digital ProcessingBit16/24
Gray ScaleLevel16384
ColorsMillion687
Color TemperatureDeg.K4,500-8,500 Adjustable
Brightness ControlN/A255
Contrast RatioN/A4000:01:00
Viewing Angle HDeg.140
Viewing Angle VDeg.140
AC SperationVAC90~264
Power Consumption(Max/Avg)W/m2800/250 ( Estimate )
Storage Tem.F/C-4 ~ 140F/-20C ~ +60C
Storage HumidityRH10% ~ 85%
Operating Tem.F/C-4F ~ 140F/-20C ~ +60
Operating HumidityRH10% ~ 85%
Lift time(50% brightness)Hour100,000
Control ModeN/AVideo Sync
Products
N169 Fine Pixel COB LED Display Board 600mmX337.5mm

P1.25

160×135 dots/module
480*270 dots/cabinet
600*337.5*60mm Cabinet

N169 Fine Pixel COB LED Display Board 600mmX337.5mm

P1.5625

128×106 dots/module
384*216 dots/cabinet
600*337.5*60mm Cabinet

N169 Fine Pixel COB LED Display Board 600mmX337.5mm

P1.25

160×90 dots/module
320*180 dots/cabinet
600*337.5*60mm Cabinet

N169 Fine Pixel COB LED Display Board 600mmX337.5mm

P2.5

80×68 dots/module
240*135 dots/cabinet
600*337.5*60mm Cabinet

N169 Fine Pixel COB LED Display Board 600mmX337.5mm
Fine Pixel COB LED Display Board 600mmX337.5mm
