Flexible LED Display P1.25, P1.56, P1.86, P1.875, P2, P2.5, P3, P3.07, P4, P5
Multiple Curves
Great Flatness
Slim Shape
High Reliability
High Resolution
3840HZ-7680HZ

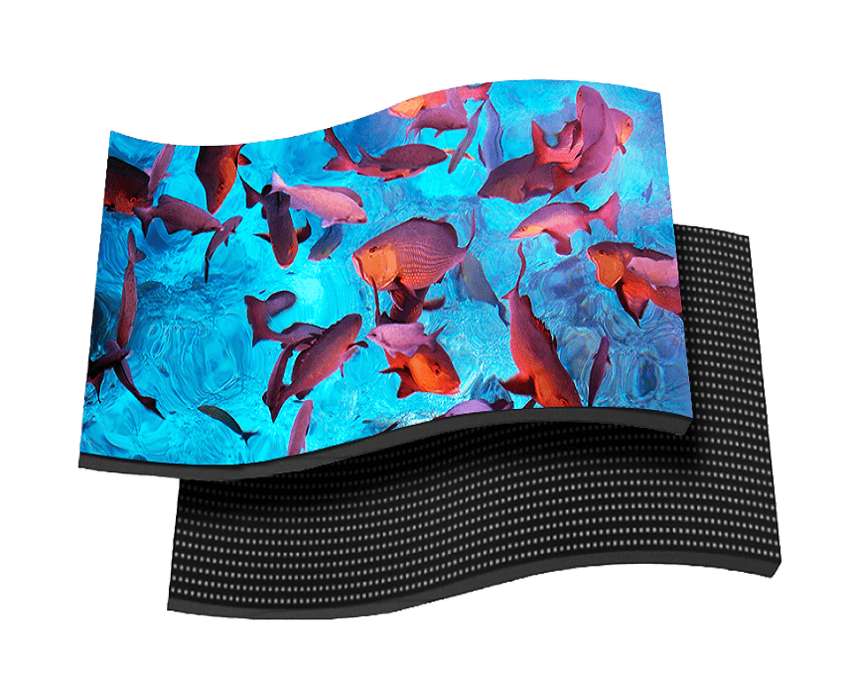

The flexible LED panel module uses soft type material，which makes it possible to be folded into multiple curves or angles.
The thickness of the module is only 7.6mm. There are various kinds of shapes to fit projects.
Even when the LED module is shaped into an irregular display configuration, the components on the PCB remain stable.
The smooth surface of the Flexible Series modules allows for: Flat, Concave, Convex, S Shape screen construction.
The Leeman Soft Curved Series P1.8 and P2.5 are industry setting, superior display resolutions.
In order to fit each different scene, the flexible LED display is made up of superior quality materials with the concise and strong cabinet. This product is usually used in:
Luxury stores; Museum; Art Exhibition; High-end salon
| Item | P1.5 | P1.86 | P1.875 | P2 |
|---|---|---|---|---|
| Pixel Pitch | 1.56mm | 1.86mm | 1.875mm | 2mm |
| LED Type | NationStar SMD1212 | NationStar SMD1515 | NationStar SMD1515 | NationStar SMD1515 |
| Module Resolution | 160dots × 160dots | 160dots × 160dots | 160dots × 160dots | 160dots × 160dots |
| Driving Mode | 1/48scan or 1/52scan | 1/43scan | 1/32scan | 1/32scan |
| Module Pixels | 25,600dots | 25,600dots | 25,600dots | 25,600dots |
| Module Size | 200mm × 150mm or 320mm × 160mm | 320mm × 160mm | 240mm ×120mm | 256mm × 128mm |
| Cabinet Size | Customized | Customized | Customized | Customized |
| Cabinet Resolution | Customized | Customized | Customized | Customized |
| Pixel Density | 275,556.1dots/㎡ | 275,556.1dots/㎡ | 275,556.1dots/㎡ | 275,556.1dots/㎡ |
| Minimum Viewing Distance | ≥1.5m | ≥1.86m | ≥1.875m | ≥2m |
| Brightness | 800nits～1,000nits | 800nits～1,000nits | 800nits～1,000nits | 800nits～1,000nits |
| IP Grade | IP43 | IP43 | IP43 | IP43 |
| Refresh Rate | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz |
| Gray Scale | 16bits～24bits | 16bits～24bits | 16bits～24bits | 16bits～24bits |
| Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° |
| Maximum Power Consumption | 500W/㎡ | 500W/㎡ | 500W/㎡ | 500W/㎡ |
| Average Power Consumption | 180W/㎡ | 180W/㎡ | 180W/㎡ | 180W/㎡ |
| Input Voltage | AC110V～AC220V @ 50Hz / 60Hz | AC110V～AC220V @ 50Hz / 60Hz | AC110V～AC220V @ 50Hz / 60Hz | AC110V～AC220V @ 50Hz / 60Hz |
| Operating Temperature | ﹣30℃～50℃ | ﹣30℃～50℃ | ﹣30℃～50℃ | ﹣30℃～50℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Material | Iron | Iron | Iron | Iron |
| Cabinet Weight | 20kg/m² | 20kg/m² | 20kg/m² | 20kg/m² |
| Operating System | Windows Android IOS (Win12,Win11,etc.) | Windows Android IOS (Win11,Win10,etc.) | Windows Android IOS (Win11,Win10,etc.) | Windows Android IOS (Win14,Win15,etc.) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
