Flip Chip COB LED Screen

Innovative 4K COB LED Display


High Resolution


16:9 Aspect Ratio


Seamless Connection




Large Viewing Angle


Strong Module


Front  Access


Easy Maintenance

Product Description

Excellent Color Contract Ratio 600*337.5mm

The regular black SMD LED has the color contrast ratio of 5000:1. However, our high-tech COB LED reaches a much higher color contract ratio up to 10000:1. The color of our COB LED screen looks amazing.


Seamless Connection & 16:9 Aspect Ratio

The screen is gapless. Meanwhile, when we build a LED screen with 4K, 8K, 16K, or some other resolutions, we can still have a 16:9 screen aspect ratio.


Extraordinary Visual Effects – Samsung Flip Chip Technology

We adopt great PCB design and high quality LED material. With the high refresh rate(up to 7680Hz) and gray scale(up to 16bits to 24bits) , the LED display can bring us amazing visual effects.   The light from our COB LED looks softer to our eyes. Meanwhile, when the COB LED screen is playing videos or images, the visual impact is more exquisite.


Strong Module for More Secure Installation & Maintenance

When the dust, or other dirt on the LED modules, you can clean it with duster easily. Meanwhile, the LED won’t  get damaged by slight collsion during the installtion and transportation.


Larger Viewing Angle and Lower Power Consumption

More than 160 degrees of ultra-wide viewing angle delivers head-turning visual effects. And the power consumption is lower than regular LED display products.


Higher Pixel Pitch Flip Chip COB LED Screen

With the innovation technology and years of experience, now we could produce the world’s finest pixel pitch: P0.9.


Longer Lifespan – Advanced LED Display With Chip On Board

Thanks to the flip chip technology wireless packaging technology, the heat dissipation for the LED is better, thus the LED works more secure. With the unique feature of the COB LED ( great reliability and high level surface protection) , the LED display ensures the perfect performance for more than 8 years.

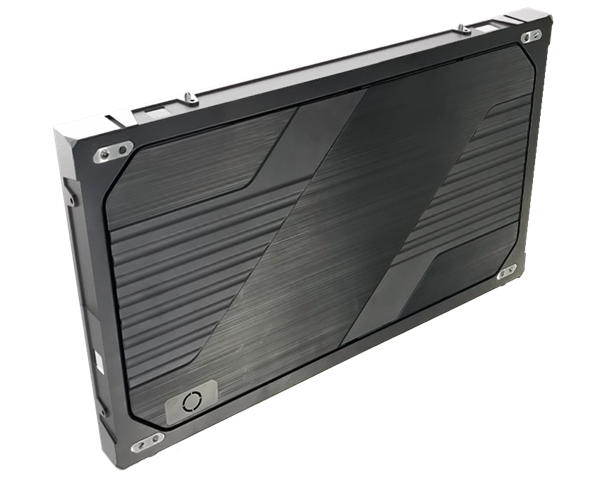

Great Cabinet Design

We adopted the precise die-casting aluminum design, so it is very light weight, which would bring great convenience when we do the installation or transportation. Meanwhile, all components including LED module, power box, receiving card and other accessories can be removed in the front, so it is fully front service design.


Application Fields

Meeting Room; TV Studio; Exhibition Center; Shopping Mall; Airport; Cinema. Certification: UL, ROHS, CE, ETL, EMC, ISO, FCC, CCC



Item P0.9 P1.2 P1.5
Pixel Pitch  0.93mm  1.26mm  1.58mm
Module Resolution  160dots x 180dots 120dots x135dots 96dots x 108dots
Driving Mode  1/54sacn 1/60scan 1/54scan
Module Pixels  28,800dots 16,200dots 10,368dots
Module Size  150mm × 168.75mm 150mm × 168.75mm 150mm × 168.75mm
Cabinet Size  600mm × 337.5mm × 39.5mm 600mm × 337.5mm × 39.5mm 600mm × 337.5mm × 39.5mm
Cabinet Resolution  600dots x 360dots 480dots x 270dots 384dots x 216dots
Pixel Density  1,137,777dots/㎡ 640,000dots/㎡ 409,600dots/㎡
Minimum Viewing Distance  ≥0.93m ≥1.26m ≥1.58m
Brightness  600nits 600nits 600nits
IP Grade (Front/Rear) IP54 IP54 IP54
Refresh Rate  3840~7680Hz 3840~7680Hz 3840~7680Hz
Gray Scale  16bits 16bits 16bits
Viewing Angle  H:170° / V:160° H:170° / V:160° H:170° / V:160°
Maximum Power Consumption   370W/m² 370W/m² 370W/m²
Average Power Consumption 222W/m² 222W/m² 222W/m²
Input Voltage  AC240V~AC100V @ 50Hz / 60Hz AC240V~AC100V @ 50Hz / 60Hz AC240V~AC100V @ 50Hz / 60Hz
Operating Temperature  ﹣20℃~60℃  ﹣20℃~60℃  ﹣20℃~60℃
Operating Humidity 10%~90% 10%~90% 10%~90%
Cabinet Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Cabinet Weight  4kg 4kg 4kg
Operating System  Windows (Win11, Win12, etc.) Windows (Win11, Win12, etc.) Windows (Win11, Win12, etc.)
Signal Source Compatibility  DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
