Stadium LED Screen FIFA World Cup

High Quality Sport Football Perimeter LED Display


Soft Plastic Mask




High Quality SMD LED




Big Viewing Angle






6,000nits ~ 10,000nits

Product Description

UEFA/FIFA Standard – Soccer Sports Stadium Football LED Screen

1000mmx1000mm cabinet size. Our Sports sries perimeter LED screen meets the UEFA standard, and we have sold many perimeter screens to different European stadiums.


Aluminum Cabinet and Reliable Protection – LED Stadium Advertising Boards

This product uses Aluminum Alloy, private mold processing soft mask with special crafsmanship. It performs excellent anti-collision capability.

Coupled with top soft pillow to protect the players from injury when they hit the screen in the stadium by accident.

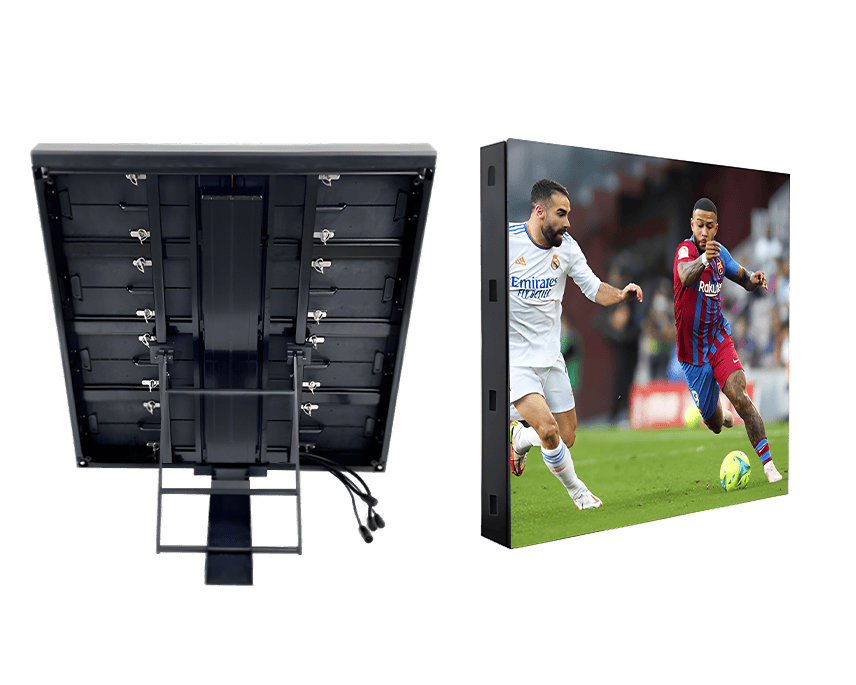

Fast front and rear access – Stadium Football LED Advertising Billboard

Front access design is more convenient for installation. The concise structure and light weight are designed to reduce the pressure of construction and transportation. The modules, power supply, receiving card, and other components can be disassembled from the front, which is convenient for the maintainer to maintain the LED screen. At the same time, traditional rear maintenance is also supported. You could choose anyone according to the actual situation.

At the same time, traditional rear maintenance is also supported. You could choose anyone according to the actual situation.


Protective Method: IP68 Football Stadium LED Advertising Display

The LED screen in outdoor scenes will face more challenges than the indoor ones such as the damage of dust and water. To make the LED screen function safely and stably in outdoor scenes, we adopt advanced protective methods to withstand heavy rain and strong winds. The IP68 design can isolate electronic parts from humidity and dust, so the screen is more reliable.


High Brightness LED Advertising Boards Football

Our perimeter LED screen’s brightness is up to 6500nits even higher.The Product Passed All Certifications Our products have been certified by CE (including EMC & LVD), RoHS, ETL, FCC, CB, IECE, KC, PSE, etc. And in order to avoid black-out screen during the events, we can provide signal back solution. When one of the signal cables breaks down, the screen is still able to display the live-feed or advertising content. Meanwhile, backup power supply is also feasible. When the power supply gets failed, the screen won’t appear black.


Multifunction For Sports Events – Football Stadium LED Screen Manufacturer In China

Perimeter led screen can be also used as a scoreboard in the stadium. You can clearly see what is on the screen at various angles.


Application Fields – Certification: UL, CUL, ETL, FCC, CE, ENEC, ROHS, LVD, EMC, VDE, E/e, Mark SAA, EK, PSE, CSA, ISO, cTUVuS, CB, KC, CCC, RHS, REACH

On the basis of its superior performance, unique design, the perimeter led screen can be used indoors and outdoors. It is always used in the stadium as:

Perimeter Banner Screen; Score Board; Live Feed Video Screen.



Item P3.9 P4.8 P6.2
Pixel Pitch  3.90625mm 4.8076mm 6.25mm
LED Type  NationStar Gold Wire SMD1921 NationStar Gold Wire SMD1921 NationStar Gold Wire SMD2727
Module Resolution  128dots × 64dots    104dots × 52dots    80dots x 40dots
Driving Mode  1/16scan or 1/8scan 1/13scan or 1/7scan 1/5scan
Module Pixels  8192dots 5408dots 3200dots
Module Size  500mm x 250mm 500mm x 250mm 500mm x 250mm
Cabinet Size  1000mm x 1000mm 1000mm x 1000mm 1000mm x 1000mm
Cabinet Resolution  256dots x 256dots 208dots x 208dots 160dots x 160dots
Pixel Density  65,410dots/m² 43,222dots/m² 25,600dots/m²
Minimum Viewing Distance  ≥3.9 m ≥4.8 m ≥6.2 m
Brightness  6,500nits~10,000nits 6,500nits~10,000nits 6,500nits~10,000nits
IP Grade  IP68 IP68 IP68
Refresh Rate  3,840Hz~7,680Hz 3,840Hz~7,680Hz 3,840Hz~7,680Hz
Gray Scale  16bits~24bits 16bits~24bits 16bits~24bits
Viewing Angle  H:160° / V:160° H:160° / V:160° H:160° / V:160°
Maximum Power Consumption   550W/m² 550W/m² 550W/m²
Average Power Consumption 150W/m² 150W/m² 150W/m²
Input Voltage  AC110V – AC220V @ 50Hz/60Hz AC110V – AC220V @ 50Hz/60Hz AC110V – AC220V @ 50Hz/60Hz
Operating Temperature  ﹣20℃~60℃ ﹣20℃~60℃ ﹣20℃~60℃
Operating Humidity 10%~90% 10%~90% 10%~90%
Cabinet Material Aluminum Aluminum Aluminum
Cabinet Weight  34kg/sqm 34kg/sqm 34kg/sqm
Operating System  Windows (Win12, Win11, etc.) Windows (Win12, Win10, etc.) Windows (Win12, Win11, etc.)
Signal Source Compatibility  DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
