P4 P5 P6 P8 P10 Outdoor Sport Football Stadium Perimeter LED Screen Display 960×960

Football Stadium LED Display 960×960 Outdoor Football LED Screens Perimeter Advertising Billboard

The stadium perimeter LED display is IP65 waterproof, with rear service module, adjustable rear bracket,
soft pillow and quick lock.All these features ensure that the Sports & Stadium LED screen can adapt to various stadium environments.

Football LED Display Board Delicated Cabinet Design

LM960SP series Football LED display Product is Less weight led display with quick locks, delicate structure for easy installation without Gaps.
Humanization handlebar design make you more easy to move the cabinet.

Independent Support Structure

With an independent support structure, it can stand even if it is impacted by a strong external force.
The installation angle of the cabinet can be flexibly changed according to the actual situation on site.

Soft Pillow Design

Because of the special environment of the stadium, the top of the cabinet is equipped with soft pillows.
This special part acts to protect the player and the football stadium perimeter LED screen display.

High Refresh Rate

The refresh rate of up to 3840Hz, real-time switching without flicker,
ensures a fine high-definition display screen.

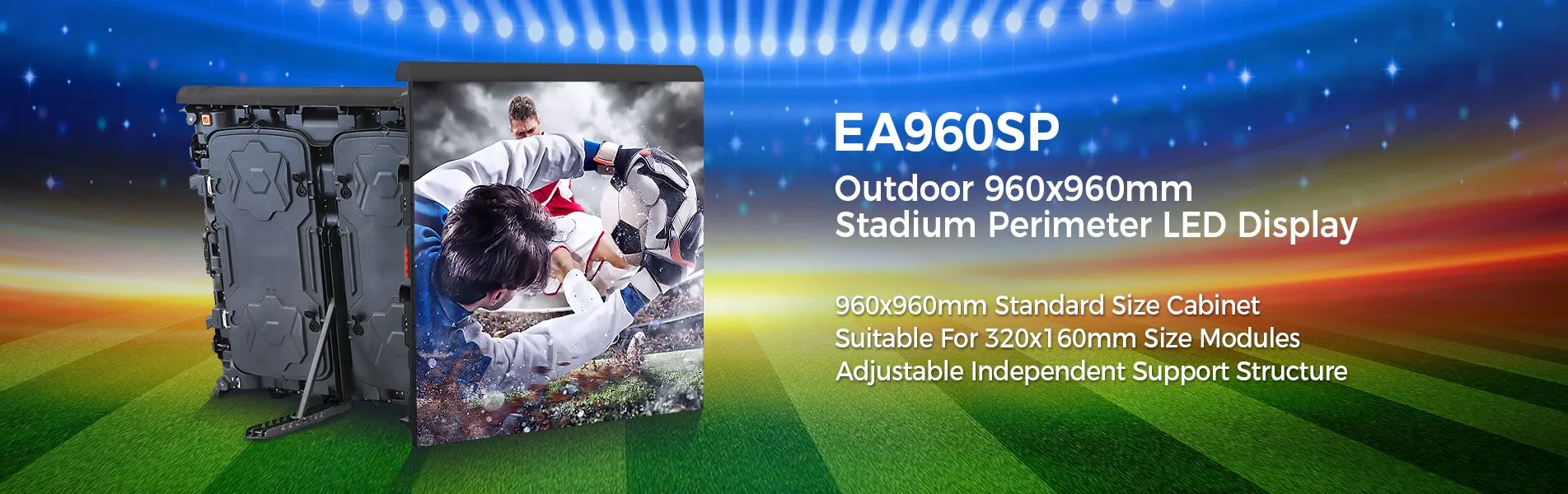

Sports Stadium LED Display Solutions 960mmX960mm Standard LED Cabinet

LM960SP Series LED display with 960mmx960mm standard size cabinet design.
Unify the Standard LED Display Cabinet Screw Holes for all Kinds of standard led module (320*160mm).

320mmX160mm LED Display Module

LM960SP Series LED display with standard size panel: 320x160mm. Standard led screens are quick to assemble and maintain.
Changing the pixel spacing is also very convenient, just change the modules because they have the same module size and structure.

IP65 Waterproof

The ingress protection of cabinet rating up to IP65, the fully sealed cabinet is weatherproof, dustproof, damp-proof,
bringing the ingress protection of led display up to a new level.

Wide Viewing Angle

Viewing angle is up to 160° vertical and horizontal, providing a wide viewing angle. Ultra-wide viewing angle give you the largest screen viewing area.
It offers you clear and natural images in all directions.

Outdoor Football Stadium Perimeter LED Display Board Parameter

Pixel PitchP6.67P8P10 (2S)P10 (4S)
Pixel ConfigurationSMD3535SMD3535SMD3535SMD3535
Density (Pixels/㎡)22,47815,62510,00010,000
Module Resolution (Pixel)48x2440x2032x1632x16
Module Size (mm)320x160320x160320x160320x160
Driving Mode (Duty)1/61/51/21/4
Cabinet Size (mm)960x960960x960960x960960x960
Cabinet Weight (KG)28.528.528.528.5
Brightness (CD/㎡)≥6,500≥6,500≥7,500≥6,000
Viewing Angle (°)140140140140
Gray Grade (Bits)14141414
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)892600850540
Avg. Power Consumption (W/㎡)298200285180
Frame Frequency (Hz)≥60≥60≥60≥60
Refresh Frequency (Hz)≥3,840≥3,840≥3,840≥3,840
Working Temperature (ºC)-20~+60-20~+60-20~+60-20~+60
Lifetime (Hours)100,000100,000100,000100,000
Protecting GradeIP65(front),IP54(rear)IP65(front),IP54(rear)IP65IP65(front),IP54(rear)IP65(front),IP54(rear)
