Leeman Outdoor Curved Front Service LED Screen Rental Video Display 500×500 Ultra thin Design with Detachable back cover, High Precision Curve Lock for Curved Installation,Corner Protector for LED, Magnetic Module, High Waterproof
- HIGH REFRESH RATE
- NATIONSTAR LED
- 5 YEARS WARRANTY
Outdoor Frontal Service Rental LED display
LEEMAN MAGIC500 Rental LED display is outdoor Frontal service LED screen.
Frontal and Rear maintance is available for LED Panels and Power Box.
Perfect Design with new techology and elegant appearance,
Ultra lighweight, Slim design
500*500mm standard cabinet size, Ultra-Light die-casting aluminum. ultra-thin thickness with 80mm. For easy transport and Portable;

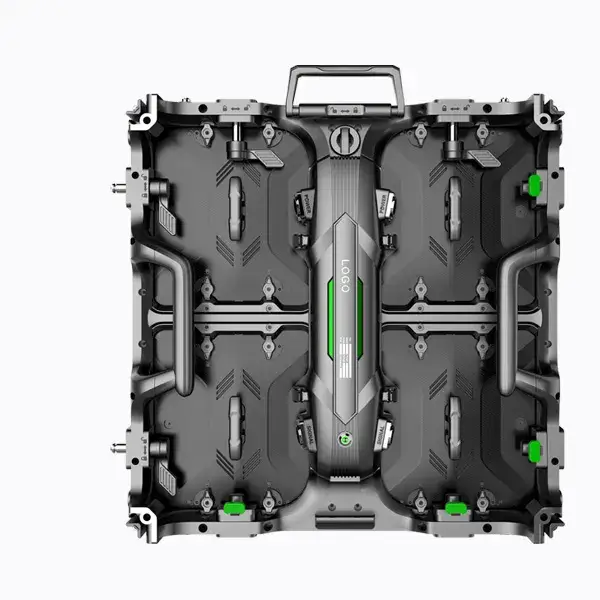

Perfect Cabinet Design With Each Part
LEEMAN Front Service LED Screen Rental Video Curved LED Display 500×500 is designed with aesthetics and industrial idea. Excellent product came in all details from cabinet handle.
cabinet fxied slot, fast lock, magnet adsorption module, module installation knob,
Power& signal connector, detachable power boxing, and more
cabinet fxied slot, fast lock, magnet adsorption module, module installation knob,
Power& signal connector, detachable power boxing, and more
Detachable Back Cover, High Waterproof
Ard Connection Design with detachable Power box and HUB Poard, High IP65 Waterproof with Double Sealing Rubber Ring,
Quick Mounting of Buckles for assamble and disassamble of back cover.
Quick Mounting of Buckles for assamble and disassamble of back cover.
Dual Service Design
LEEMAN MAGIC500 Rental LED Screen adopts Magnet Adsorption LED Panel to make the cabinet is accessed with frontal & rear design. easy installation for LED panels.

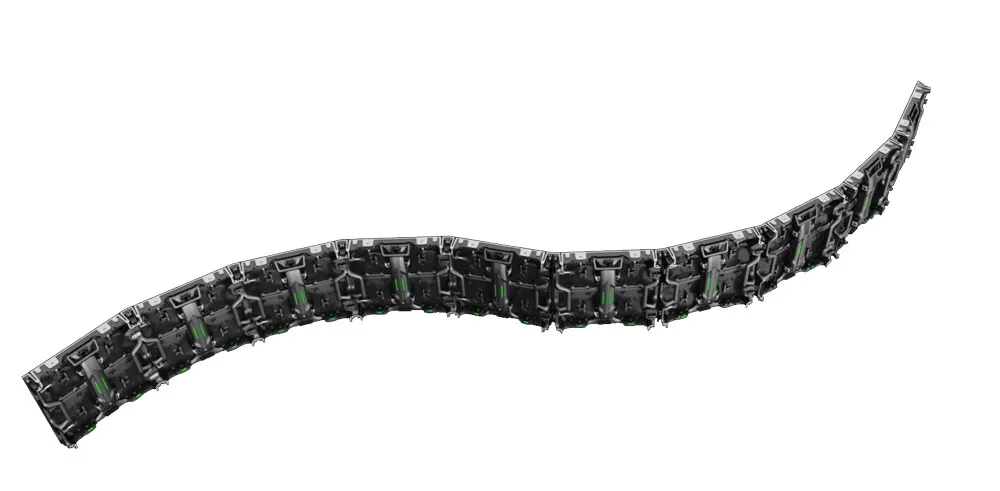

High Precision Curve Lock
High Precision Curve Lock design (-10° to +10°) is adopted to solve the problem that the old curved lock is difficult to use before.
Rotational control, more accurate, easy to use and quickly adjust curve degree.
Rotational control, more accurate, easy to use and quickly adjust curve degree.
Corner Protector for LED
LEEMAN MAGIC500 Front Service Indoor Outdoor LED Video Wall Panel has four corner protectors in each corner to prevent LED to be damaged,
more security for transport, installation, operation, assemble & disassemble foldable design, and easy to use.
more security for transport, installation, operation, assemble & disassemble foldable design, and easy to use.
Specification
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
|---|---|---|---|---|
| Brightness | ≥7000 nits(Outdoor) / ≥1000 nits(Indoor) | |||
| Max Power consumption | 580 W/m² | 540 W/m² | 520 W/m² | 500 W/m² |
| Operational temperature | -40°C to +60°C / 14°F to 104°F | |||
| Warranty | 5 years standard product warranty time | |||
| Pixels per cabinet | 192×192 (HxV) | 168×168 (HxV) | 128×128 (HxV) | 104×104 (HxV) |
| LED lifetime | 100,000h (video – 50% brightness) | |||
| Module size | 250*250mm | |||
| Module resolution | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Refresh rate | 3840Hz | |||
| Hor. viewing angle | 160° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 160° +/-5° (@50% brightness) | |||
| Brightness uniformity | >98% | |||
| Dimming | 0-100% | |||
| Grey Level | 16 bits | |||
| Avg Power consumption | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² |
| Operation power voltage | 100-240V / 50-60Hz | |||
| Operational humidity | 10-80% | |||
| IP rating | IP54 for Indoor, IP65 for Outdoor | |||
| Dimensions | 500 x 500 x 80 mm (WxHxD)/ 19.6 x 19.6 x 3.5 inch (WxHxD) | |||
| Weight / Tile | 7.5 kg / 16.53 lbs | |||
| Serviceability | Front and back service | |||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH, EMC |
Products
P2.604
96*96 dots/module
250*250mm Panel
500*500mm
Indoor & Outdoor Display
P2.976
84*84 dots/module
250*250mm Panel
500*500mm
Indoor & Outdoor Display
P3.91
64*64 dots/module
250*250mm Panel
500*500mm
Indoor & Outdoor Display
P4.81
52*52 dots/module
250*250mm Panel
500*500mm
Indoor & Outdoor Display
