HD LED Display 480×480 Small cabinet size with 480*480mm, ultra-lightweight and space saving, adopting high quality high refresh rate LED display panel with 240mm*240mm. dual service from frontal side or rear
Leeman LED MA480 series Fine Pixel Pitch LED display with Ultra-thin cabinet design, 480*480mm small size cabinet,
dual Service Panel, High refresh rate SMD LED to to deliver high definition visual experience.
Small size cabinet with 480*480mm, ultra Thin & Light weight design for easy-taking and portable, assemble and disassemble.
Not only save space, but also save labor cost.

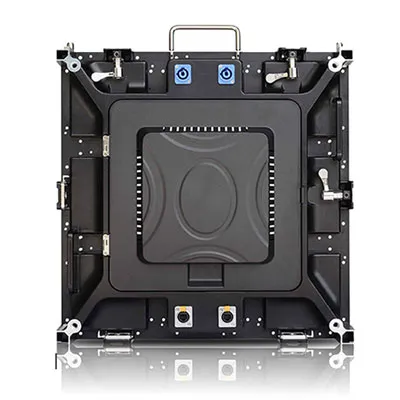

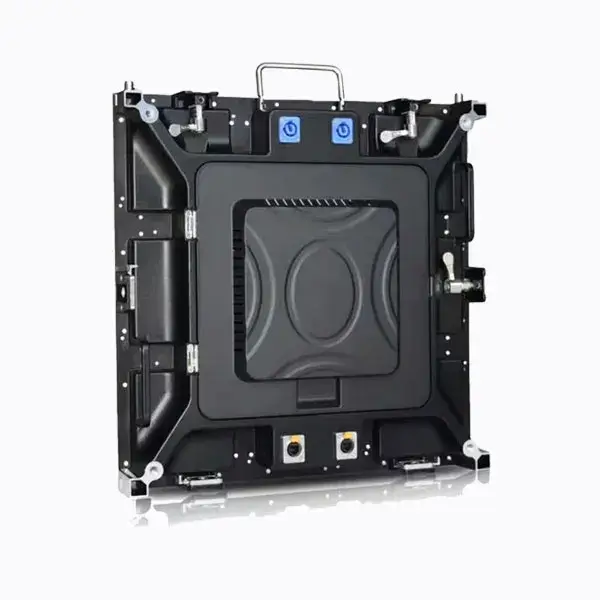

LEEMAN HD LED Display 480×480 fine pitch LED display is designed with perfect cabinet design, top and side fast lock for fast connecting , Top & side Handle for easy carry and operate, stable Power& signal connector and more.x
LEEMAN 480*480mm LED display use high quality LED screen panels with 240mm×240mm size, high refresh rate, High contrast and high grey scale, pure black mask design, dual service for easy operation, .P1.5mm, P1.66mm, P1.875mm, P2mm, P2.5mm, P3mm is available
LEEMAN MA480 Series HD LED screen is designed with front and rear service. Magnet LED screen panel is used to make the LED display
is fast accessed from frontal side. easily operated and install.

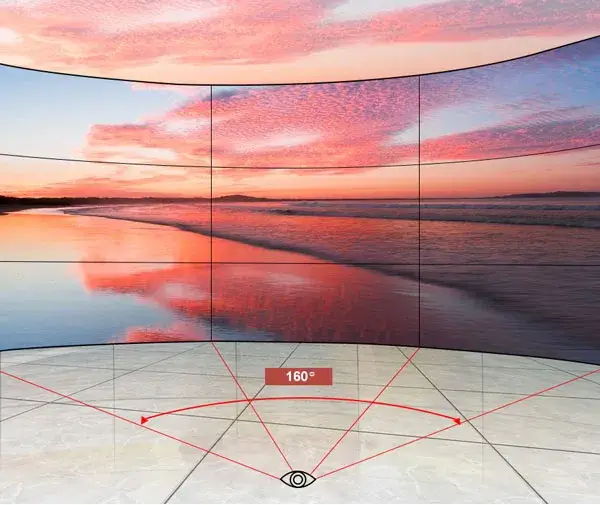

new extension technology so that the image is not distorted. Viewing angle is up to 160° vertical and horizontal, providing a wide viewing angle to achive more target audience
LEEMAN MAX 500 Series LED Display can be installed with Ground Stack Installation, Hanging Installation, Special shape / Panel Dislocation Installation, Concave & convex installation Easy, fast, quickly and save time.
Pixel pitch | 1.875mm | 2mm | 2.5mm | 3mm |
---|---|---|---|---|
Pixels per cabinet | 256×256 (HxV) | 240×240 (HxV) | 192×192 (HxV) | 160×160 (HxV) |
LED lifetime | 100,000h (video – 50% brightness) | |||
Brightness | 1000 – 1500 nits; | |||
Module size | 250*250mm | |||
Module resolution | 128*128dots | 120*120dots | 96*96dots | 80*80dots |
Refresh rate | 3,840Hz-7,680Hz | |||
Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
Vert. viewing angle | 140° +/-5° (@50% brightness) | |||
Brightness uniformity | >98% | |||
Dimming | 0-100% | |||
Grey Level | 16 bits - 24 bits | |||
Avg Power consumption | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² |
Max Power consumption | 680 W/m² | 640 W/m² | 620 W/m² | 600 W/m² |
Operation power voltage | 100-240V / 50-60Hz | |||
Operational temperature | -10°C to +40°C / 14°F to 104°F | |||
Operational humidity | 10-80% | |||
IP rating | IP54 for Indoor, IP65 for Outdoor | |||
Dimensions | 480 x 480 x 80 mm (WxHxD) | |||
Weight | 5.5 kg | |||
Serviceability | Front and back service | |||
Certifications | CE, UL, FCC class A, RoHS, WEE, REACH | |||
Warranty | 2 years standard product warranty |
160*160 dots/module
240*240mm Panel
480*480mm Cabinet
96*96 dots/module
240*240mm Panel
480*480mm Cabinet
144*144 dots/module
240*240mm Panel
480*480mm Cabinet
80*80 dots/module
240*240mm Panel
480*480mm Cabinet
128*128 dots/module
240*240mm Panel
480*480mm Cabinet
120*120 dots/module
240*240mm Panel
480*480mm Cabinet
