Indoor LED Panel for Rental-P2.6, P2.9, P3.9
Excellent Protection Gadgets
Great Gray Scale
Strong Back Handle
Excellent Refresh Rate

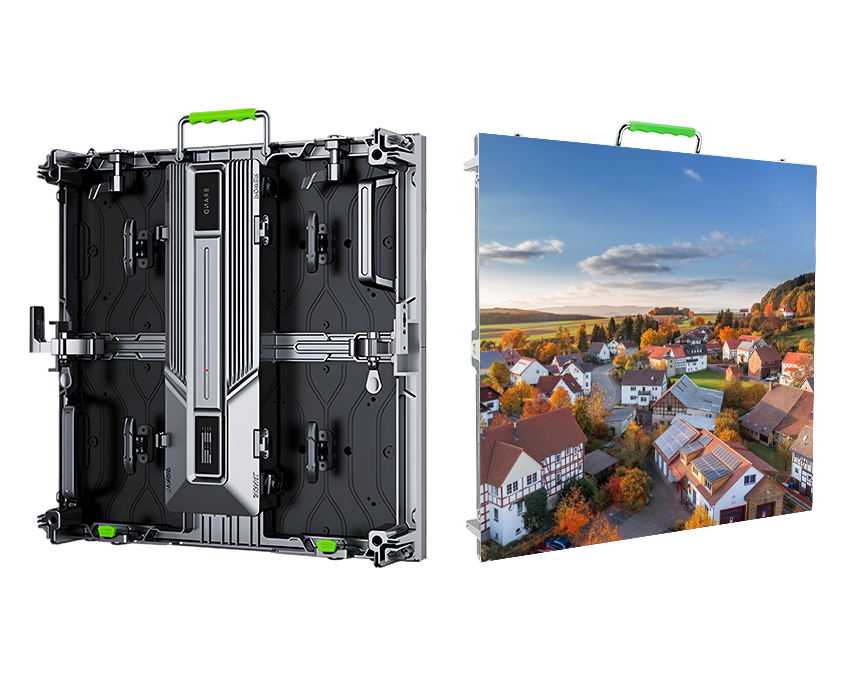

As the cabinet uses aluminum material, the weight of the panel is only 7.5 kgs, and it has great heat dissipation.
Handle on the top brings convenience. A safety device on the lock in case the locks slide off by itself.
Module attached by a string in case it falls off. Strong back handle. Strong double locks on the side.
The panel has bottom module protection design. Two options: 500*500mm, 500*1,000mm.
The panel has bottom module protection design. There are two anti-collision pins at the bottom of the panel to raise the bottom module up by 3mm and prevent it from crashing if the panel hits the floor. Meanwhile, it also has strong and safe locking system.We use the innovative “AOB” technology to reinforce the soldering connection between LED and PCB board. So the LED won’t be broken easily.
Front access design is used in this panel. The module’s slim shape makes it even much easier to maintain. The receiving card, power supply, and hub card are built in a control box in the back of the cabinet. If there is any problem with the LED panel, you can check the whole control box in a short time.
IR2 LED wall captures the audience’s attention and creates unforgettable experience using its excellent video performance. Meanwhile, black LED is adopted as well, and the color contrast of the screen is amazing. Ultimate Refresh Rate：Refresh rate of this kind of LED billboard can be up to 3,840Hz；Great Gray Scale：Gray scale of this kind of LED signage can be (13bits-24bits).
The lock is very secure and strong. It can be designed to be curved to form a curved screen from -15°(convex) to +15°(concave).
Leeman Curved LED display with high reliability. Thanks to the high-tech module design, the LED is well connected with the PCB, so it is very reliable in any curved shape.The screen is able to be assembled to form the following shapes: curved wall, curved design, round shape, irregular design.
Leeman Rental LED Display 1000 Sqm In Stock Fast Delivery. To fit every different scene, our products utilize superior materials with the concise and strong structure. This product is usually used in:
Staing Events; XR Studio; Concerts.
|Module Resolution||96dots × 96dots||84dots × 84dots||64dots × 64dots|
|Module Size||250mm × 250mm||250mm × 250mm||250mm × 250mm|
|Cabinet Size||500mm × 500mm or 500mm × 1,000mm||500mm × 500mm or 500mm × 1,000mm||500mm × 500mm or 500mm × 1,000mm|
|Cabinet Resolution||192dots × 192dots or 192dots × 384dots||168dots × 168dots or 168dots × 336dots||128dots × 128dots or 128dots × 256dots|
|Minimum Viewing Distance||≥2.6 m||≥2.9 m||≥3.9m|
|Viewing Angle||H:160° / V:160°||H:160° / V:160°||H:160° / V:160°|
|Maximum Power Consumption||560W/㎡||560W/㎡||560W/㎡|
|Average Power Consumption||160W/㎡||160W/㎡||160W/㎡|
|Input Voltage||AC110V～AC220V @ 50Hz / 60Hz||AC110V～AC220V @ 50Hz / 60Hz||AC110V～AC220V @ 50Hz / 60Hz|
|Cabinet Weight||7.5kg/panel or 12.5kg/panel||7.5kg/panel or 12.5kg/panel||7.5kg/panel or 12.5kg/panel|
|Operating System||Windows (Win7, Win8, etc.)||Windows (Win7, Win8, etc.)||Windows (Win7, Win8, etc.)|
|Signal Source Compatibility||DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.||DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.||DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.|
