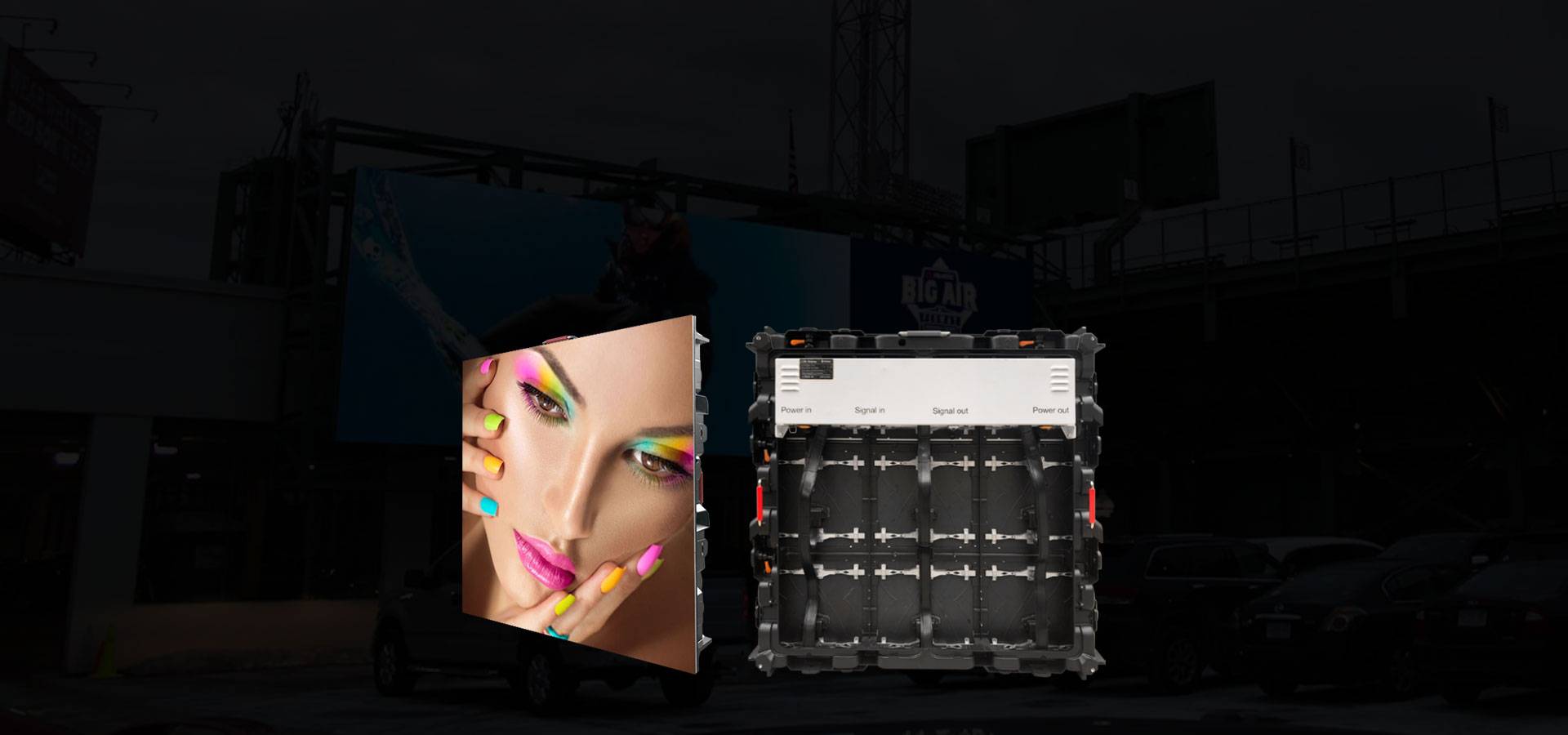

IP68 Front Service LED Display Outdoor P3.8 P5.3 P6.6 P8 P10 Series

HD Front & Rear Access IP68 Energy Saving Outdoor LED Display



VIDEO

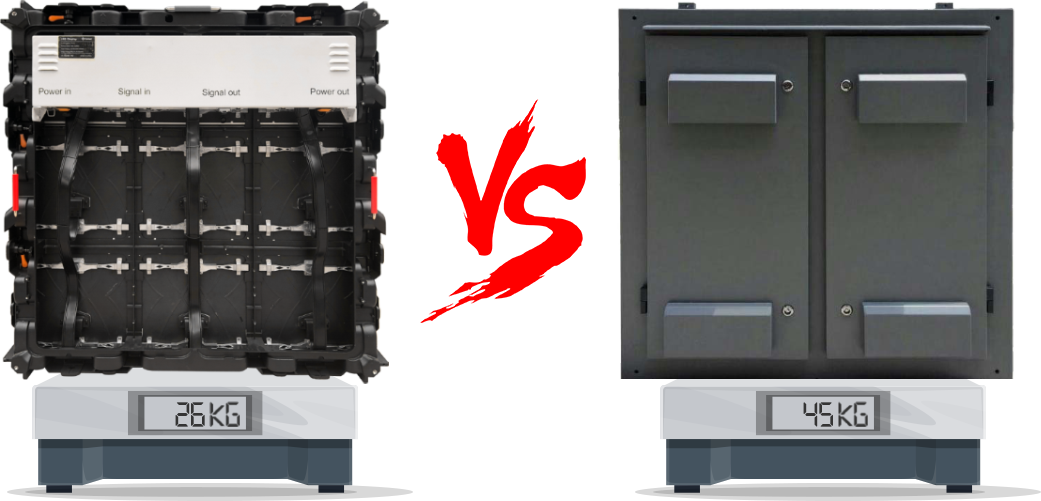

Outdoor IP68 Front Service LED Display Super light design

Die Casting cabinet, 40% lighter than iron cabinet, saving structure cost and transportation cost

20210121085745315

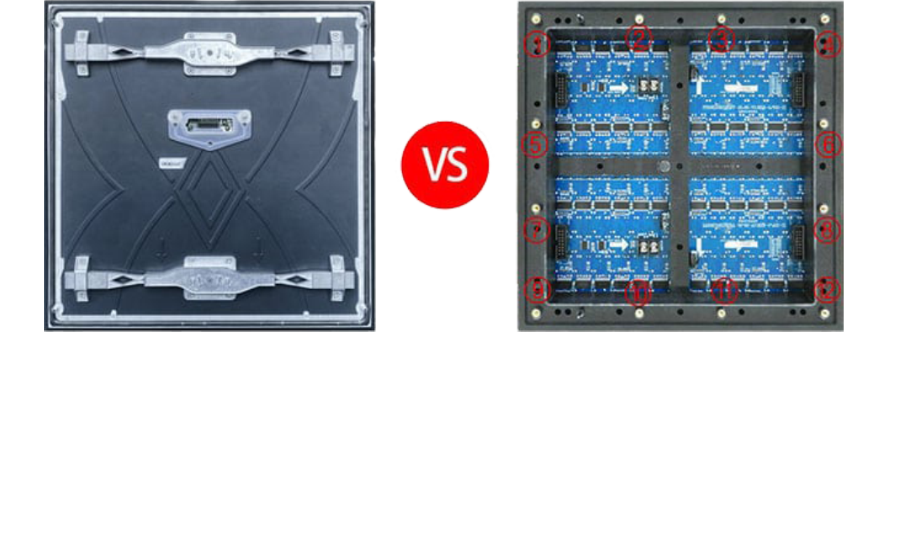

Aluminum Module Design, High weather resistance
20210121090936767

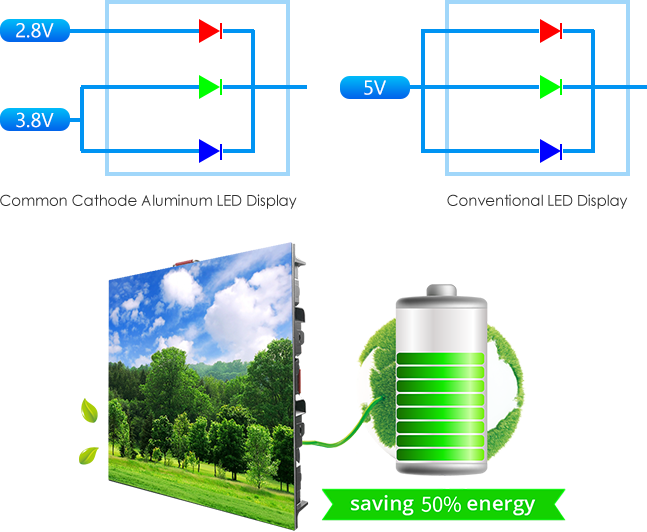

Energy Saving IP68 Waterproof Front Service LED Module 320×320

Advanced common cathode technology with highly efficient ICs can reduce 50% power consumption than conventional panels

20210121090040253

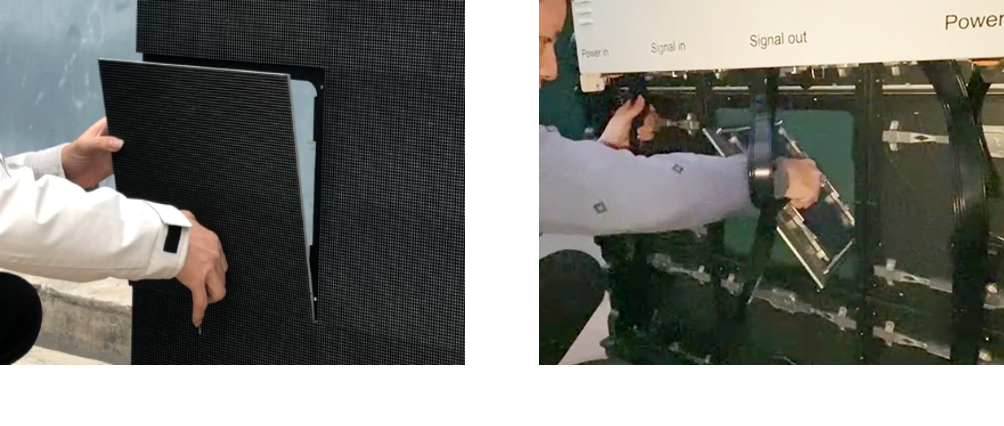

Fast assembly and easy operation

Saving maintenance cost by labors

20210121090912548

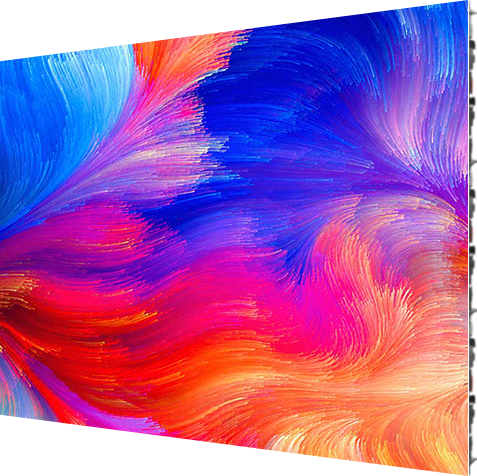

Outdoor Frontal Service LED Module Panel Flatness & Seamless

Advanced Die-casting technology, higher flatness and seamless

20210121090222732
Outstanding Performance

Outstanding performance that can work well from -40 ℃ to 60 ℃ ;

20210121090327811

SPECIFICATIONS
Model    LM-F3 ( P3.81) LM-F5  ( P5.33 )
Pixel Pitch (mm) 3.81mm 5.33mm
Brightness(nits) ≥6000 ≥6500
Refresh Rate(hz) ≥3840 ≥3840
Cabinet Size(mm) 960*960 960*960
Cabinet weight(kg) 26 per panel 26 per panel
Cabinet Material Die Cast Magnesium Die Cast Magnesium
Power Consumption(Max/Aver.)w/㎡ 600/175 600/175
Cabinet Resolution Pixels 252*252 180*180
Pixel Density Pixels(㎡) 68889 35200
Maintenance Type Front & Rear
Note: For more product materials, please contact us directly.
