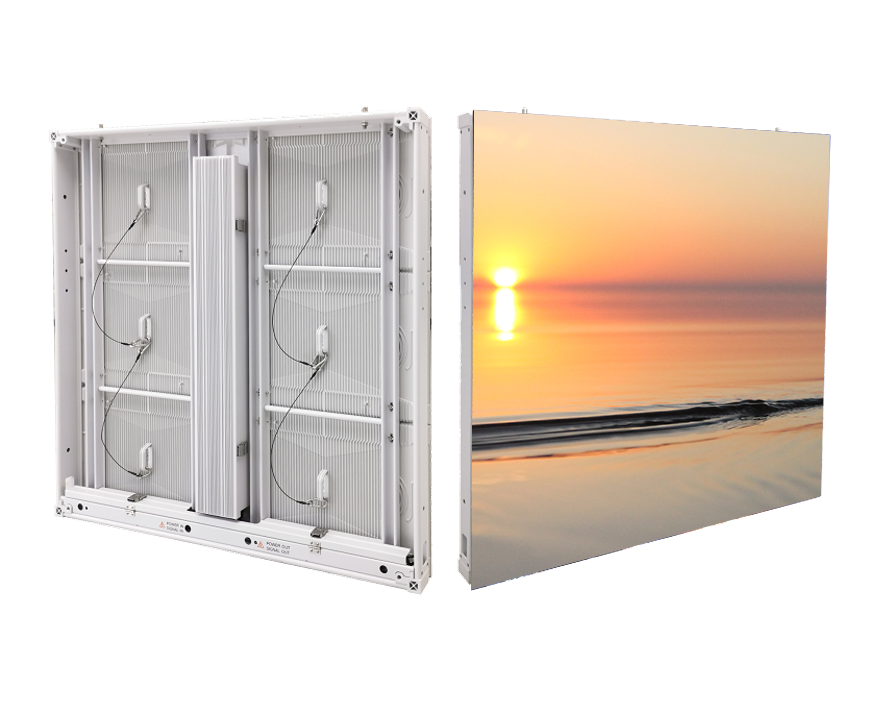

Outdoor IP68 Waterproof Front Service LED Display Module 480×320 Dual Service LED Screen Panel 960mmx960mm
50% Energy Saved
Aluminium Module Case
All cables are hidden at the bottom of the cabinet and there are no flat cables in the modules. This design makes the appearance and feeling clean, and also avoids the bad contact caused by accidents. The pixel pitch P2.9, P3.9, P4.8, P6.67, P8 and P10 are available.
The concise structure and light weight are designed to reduce the pressure of constructions and transportation. The modules, power supply, receiving card, and other components can be removed in the front, which is convenient for the maintainer to maintain the LED screen. Single cabinet is: 28kgs Weight 110mm Thickness
Aluminium module casing accelerates heat dissipation, and light gray color can reflect the sunlight to reduce heat generation. Therefore, the LED screen can work properly without air conditioner even when the weather temperature is as high as 55 degrees. Meanwhile, fanless design enable the screen to work more reliable in dusty environment such as roadside and high humidity places such as seashore.
To display clearly what is on the screen in outdoor scenes, we adopt the new methods of superior PCB design and LED chip to make brightness reach more than 10000nits. With the ultra-high brightness, refresh rate and gray scale, the visual performance of the screen is unexceptionable.
The LED screen in outdoor scenes will face more challenges than the indoor ones such as the damage of dust and water. To make the LED screen function safely and stably in outdoor scenes, we adopt the advanced protective methods to withstand heavy rain and strong winds. We also utilize the excellent physical design to reduce the energy cost. IP68 50% Energy Saved
With 45° cutting angle design, the LeemanDisplay Pro LED display cabinets can be assembled at seamless 90˚ angles, so in addition to passive visualizations, the screen also can be used for 3D visual effect or a rectangle wall. With friendly design of the shell structure, it brings a strong three-dimensional visual impact.
To fit every different scene, our products utilize superior materials with the concise and strong structure, and various installation methods make it flexible and easy to apply. This product is usually used in.
Truck Trailers; Scoreboards; Digital Out Of Home(DOOH).
|Module Resolution||84dots x 84dots||128dots x 64dots||108dots x 52dots||72dots x 48dots|
|Driving Mode||1/14scan||1/8scan or 1/14scan||1/7scan||1/6scan or 1/4scan|
|Module Size||250mm x 250mm||500mm x 250mm||500mm x 250mm||480mm x 320mm|
|Cabinet Size||500mm x500mm||500mm x1000mm||500mm x1000mm||960mm x 960mm|
|Cabinet Resolution||168dots x 168dots||128dots x 256dots||108dots x 208dots||144dots x 144dots|
|Minimum Viewing Distance||≥2.9 m||≥3.9 m||≥4.8 m||≥6.7 m|
|Brightness||4300nits ~ 4500nits||6500nits ~ 7500nits||6500nits ~ 7000nits||6,000nits ~ 9000nits|
|Viewing Angle||H:160° / V:100°||H:160° / V:90°||H:160° / V:100°||H:180° / V:80°|
|Maximum Power Consumption||700W/m²||600W/m²||650W/m²||580W/m²|
|Average Power Consumption||230W/m²||230W/m²||230W/m²||150W/m²|
|Input Voltage||AC110V-220V@ 50Hz/60Hz||AC110V-220V@ 50Hz/60Hz||AC110V-220V@ 50Hz/60Hz||AC110V – AC220V @ 50Hz/60Hz|
|Operating System||Windows (Win7, Win8, etc.)||Windows (Win7, Win8, etc.)||Windows (Win7, Win8, etc.)||Windows (Win7, Win8, etc.)|
|Signal Source Compatibility||DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.||DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.||DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.||DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.|
