Excellent Indoor LED Display P1.5, P1.9, P2.5, P2.6, P2.9, P3.9, P4.8
Die-casting Aluminum
Cost-Effective
Front Access
Quick Installation
Thin Screen
3840Hz ~ 7680Hz
Easy Maintenance
14bits～24bits

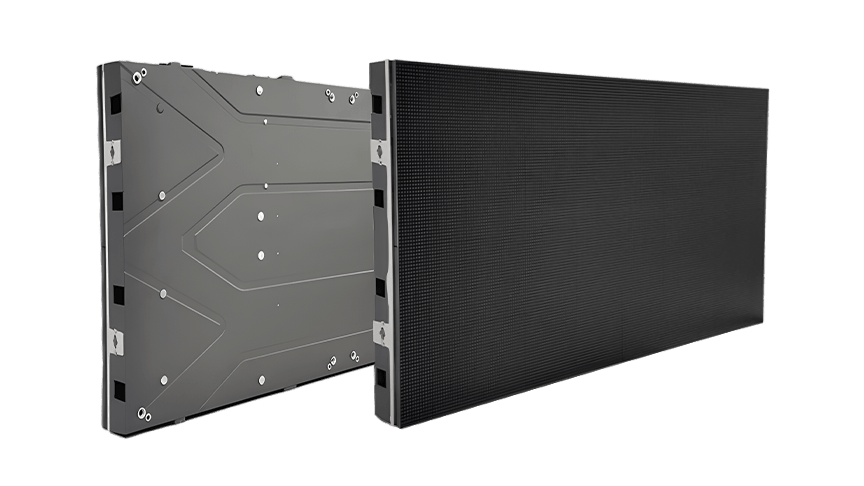

As customers have higher requirements for LED displays, more and more cabinets have been developed to meet market demands. Compared with the traditional bulky cabinet, the die-casting aluminum cabinet with humanized design is stronger, more light-weight and precise. This LED panel is highly praised for better user experience. The pixel pitches of this LED screen are SMD P1.9, P2.5, P2.6, P2.9, P3.9 and P4.8.

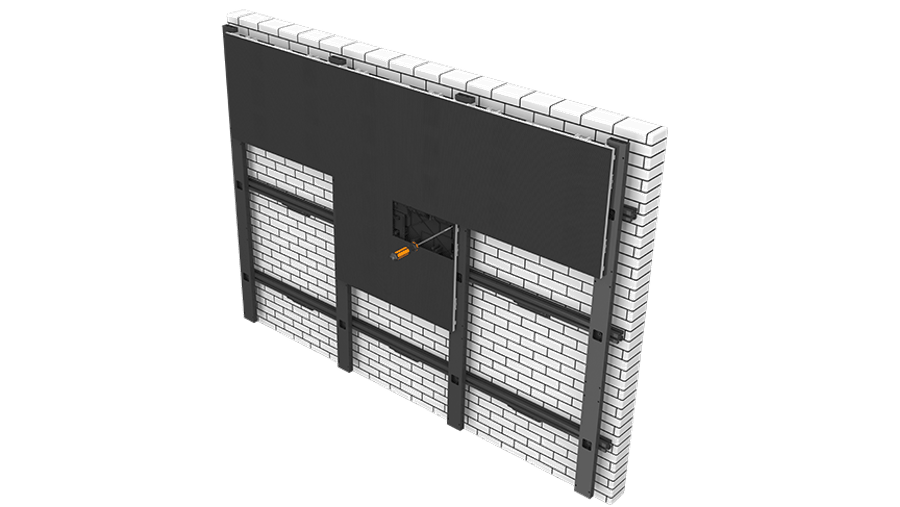

The cabinet, module, power supply and other components are with fully front access service, therefore super easy disassembly of the fine pitch LED screen is allowed.The cabinet can be accessed from front side for maintenance and installation.

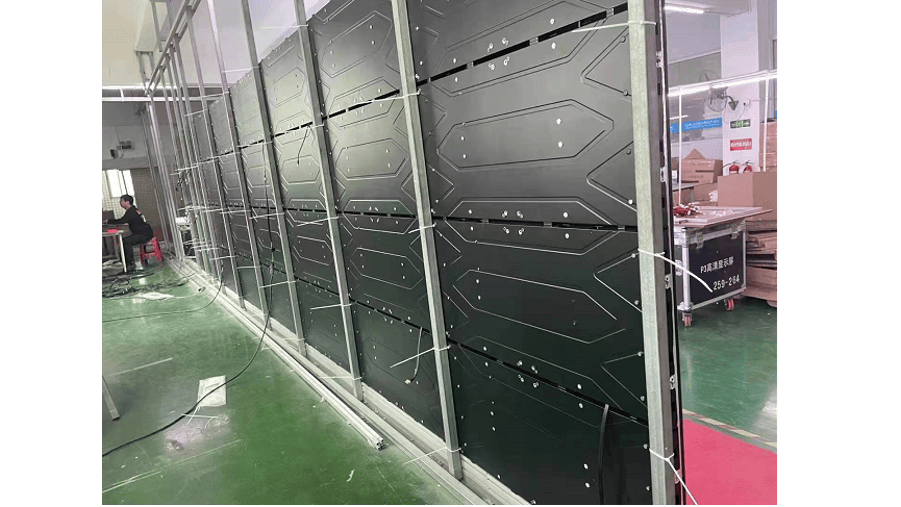

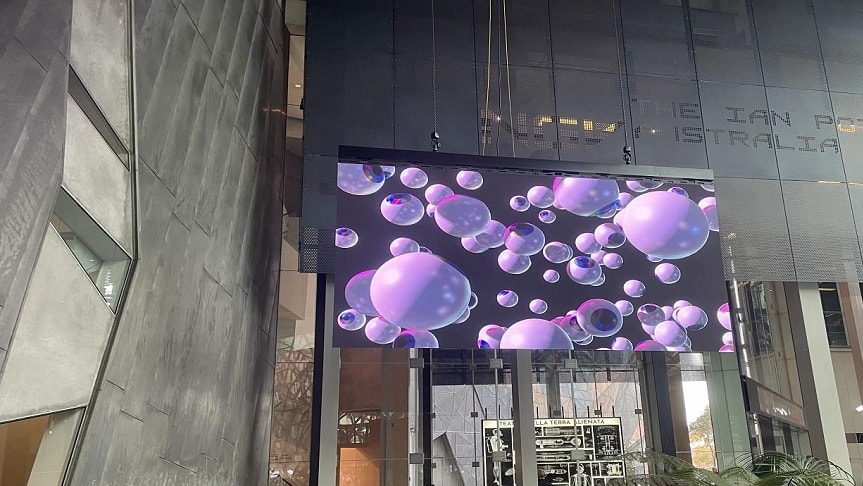

Our Mini LED Display is light and thin. It can not only be fixed on the wall but also can realize hoisting with the hanging bar. Thanks to the excellent cabinet structure design, the installation method is flexible, and the screen can fit well into different projects.
The high refresh rate ensures the smoothness of every frame of the images, thus the LED display won’t appear flicking on the highspeed camera.
High precision CNC fabrication and the cabinet precision within 0.05mm bring seamless assembly. Besides,signal cables and power cables are inside of the cabinets and the LED screen without external cables brings more stability.

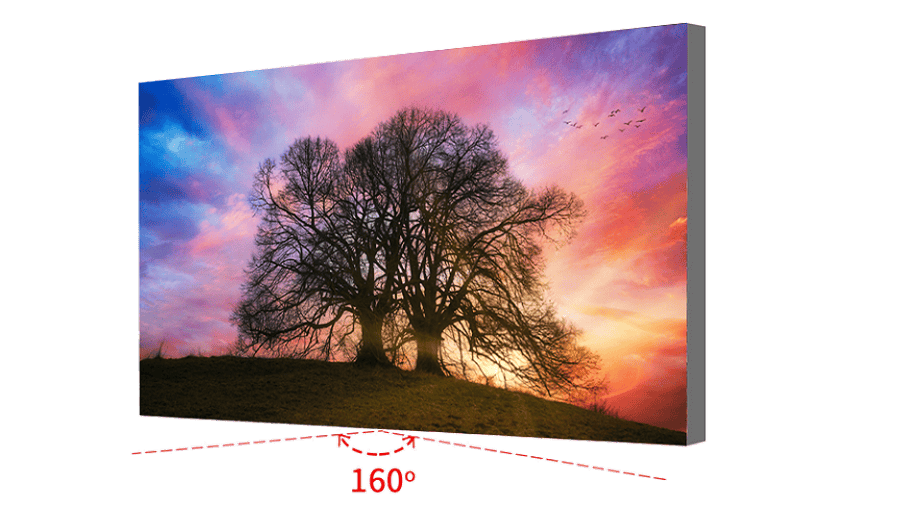

The surface of the small LED screen looks very flat and neat.160° wide horizontal and vertical viewing support maximum audience engagement in short viewing distance.

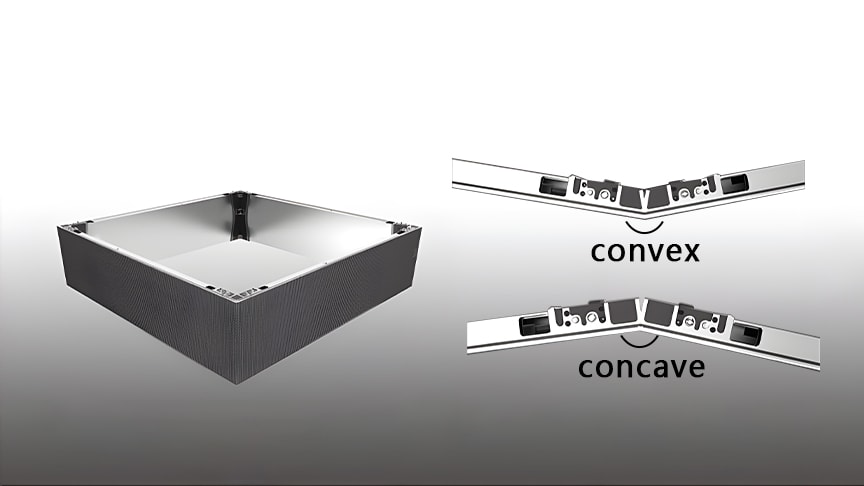

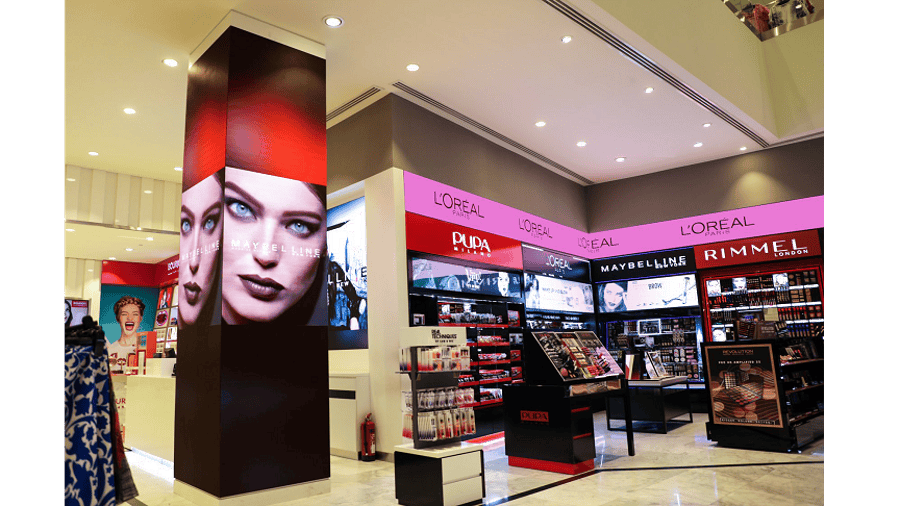

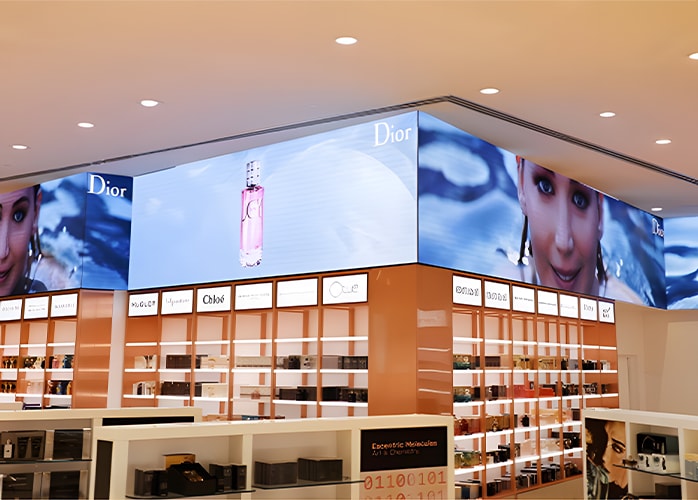

Flexible in different shapes installation: 90 degree installation with cutted panel Concave and Convex installation possible

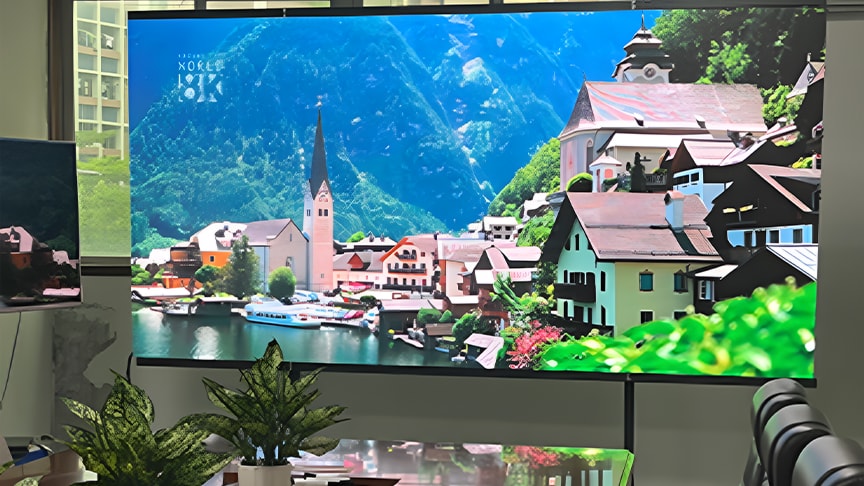

The images and video visual effects are amazing. Our 4K UHD LED Display series has an excellent visual performance because we adopt high-quality black LED. The color contrast ratio is even better than 10000:1. Armed with HDR technology and color enhancement technology, the white balance of the screen reaches a 100% sRGB and stunning visual performance. Even in high light environments the screen also looks very clear, and the visual effect looks perfect.
This indoor LED panel is usually be used for:

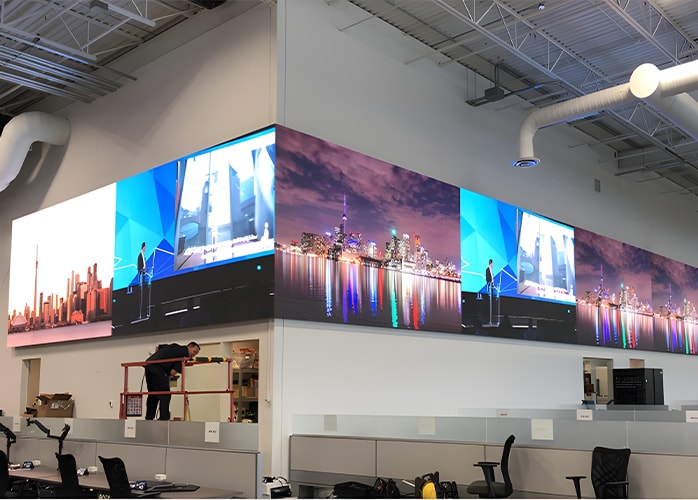

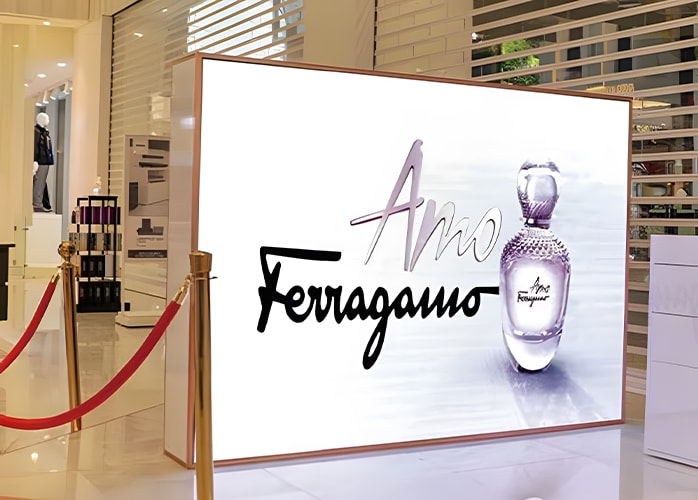

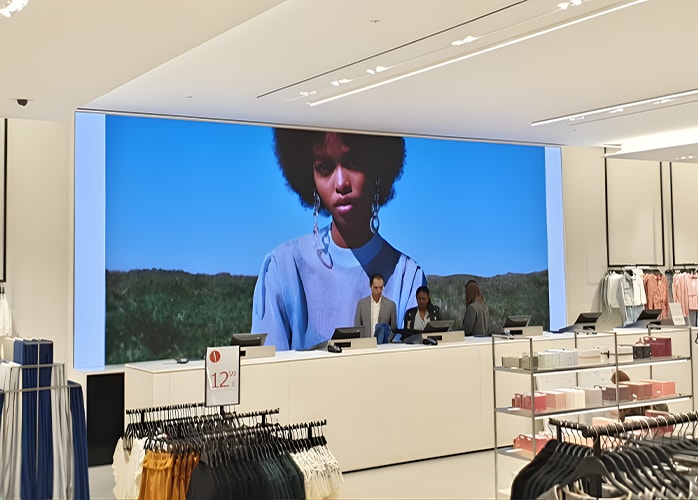

Fashion shop; Meeting room video wall; Church digital screen; Indoor advertising; Airport, etc.
| Item | P1.9 | P2.5 | P2.6 |
|---|---|---|---|
| Pixel Pitch | 1.953mm | 2.500mm | 2.604mm |
| LED Type | SMD1010 | SMD2121 | SMD2121 |
| Module Resolution | 128dots x128dots | 100dots x 100dots | 96dots x 96dots |
| Driving Mode | 1/32scan | 1/25scan | 1/32scan |
| Module Pixels | 1,6384dots | 10,000dots | 9,216dots |
| Module Size | 250mm x 250mm | 250mm x 250mm | 250mm x 250mm |
| Cabinet Size | 500mm x500mm | 500mm x 500mm | 500mm x 500mm |
| Cabinet Resolution | 256dots x 256dots | 200dots x 200dots | 192dots x 192dots |
| Pixel Density | 262,144dots/㎡ | 160,000dots/㎡ | 147,456dots/㎡ |
| Minimum Viewing Distance | ≥1.95 m | ≥2.5 m | ≥2.6 m |
| Brightness | 800nits | 800nits | 800nits |
| IP Grade | IP43 | IP43 | IP43 |
| Refresh Rate | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz |
| Gray Scale | 16bits～24bits | 16bits～24bits | 16bits～24bits |
| Viewing Angle | H:140° / V:160° | H:140° / V:160° | H:140° / V:160° |
| Maximum Power Consumption | 100W/ ㎡ | 100W/ ㎡ | 100W/ ㎡ |
| Average Power Consumption | 65W/ ㎡ | 65W/ ㎡ | 65W/ ㎡ |
| Screen Lifespan | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours |
| Input Voltage | AC110V – AC220V @ 50Hz/60Hz | AC110V – AC220V @ 50Hz/60Hz | AC110V – AC220V @ 50Hz/60Hz |
| Operating Temperature | ﹣20℃～50℃ | ﹣20℃～50℃ | ﹣20℃～50℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 24kg/m² | 24kg/m² | 24kg/m² |
| Operating System | Windows (Win11, Win12, etc.) | Windows (Win12, Win11, etc.) | Windows (Win12, Win10, etc.) |
| Signal Source Compatibility | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. |
