Home » products » LED Screen » Magnesium Alloy 500×500 Rental LED Display Screen P1.5 P1.9 P2.6 P2.9 P3.9 P4.8
Leeman 500×500 Rental LED Display Screen lightweight and space saving, with a number of core technologies. Innovative structural design,avant-garde body lines, Seamless Display and Visual Effects. Point-to-point correcting. High refresh rate, high gray scale level

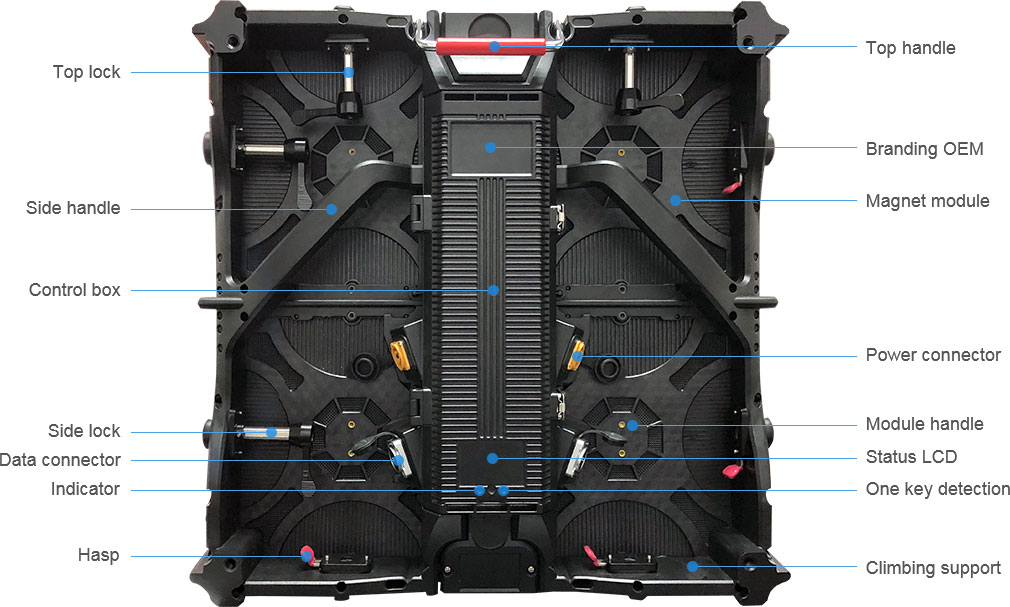

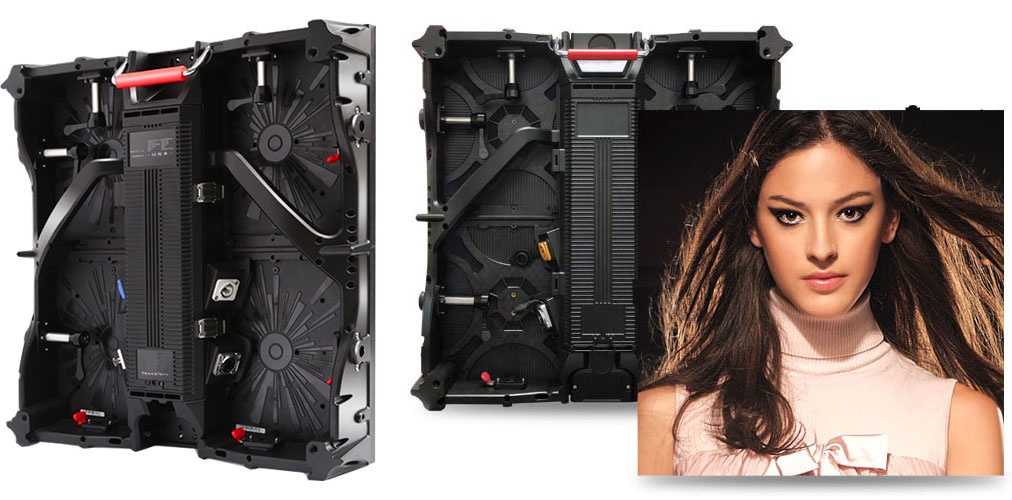

Leeman Magnesium Alloy 500mm Series Rental LED Display New design incorporates many aesthetic elements, adopts magnesium alloy, only 7.85kg per cabinet. Good heat dissipation saves energy and maintains the stability of display.Unlike indoor fixed led display and outdoor fixed led display, Leeman magnesium alloy LED display are machined from top grade, high tensile magnesium alloy.
Viewing angle is up to 160° vertical and horizontal, providing a wide viewing angle. Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display.
Pixel pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
---|---|---|---|---|
Pixels per cabinet | 192×192 (HxV) | 168×168 (HxV) | 128×128 (HxV) | 104×104 (HxV) |
LED lifetime | 100,000h (video – 50% brightness) | |||
Brightness | ≥6000 nits(Outdoor) / ≥1000 nits(Indoor) | |||
Module size | 250*250mm | |||
Module resolution | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
Refresh rate | 3,840Hz - 7,680Hz | |||
Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
Vert. viewing angle | 140° +/-5° (@50% brightness) | |||
Brightness uniformity | >98% | |||
Dimming | 0-100% | |||
Grey Level | 16 bits | |||
Avg Power consumption | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² |
Max Power consumption | 680 W/m² | 640 W/m² | 620 W/m² | 600 W/m² |
Operation power voltage | 100-240V / 50-60Hz | |||
Operational temperature | -10°C to +40°C / 14°F to 104°F | |||
Operational humidity | 10-80% | |||
IP rating | IP54 for Indoor, IP65 for Outdoor | |||
Dimensions | 500 x 500 x 90 mm (WxHxD)/ 19.6 x 19.6 x 3.5 inch (WxHxD) | |||

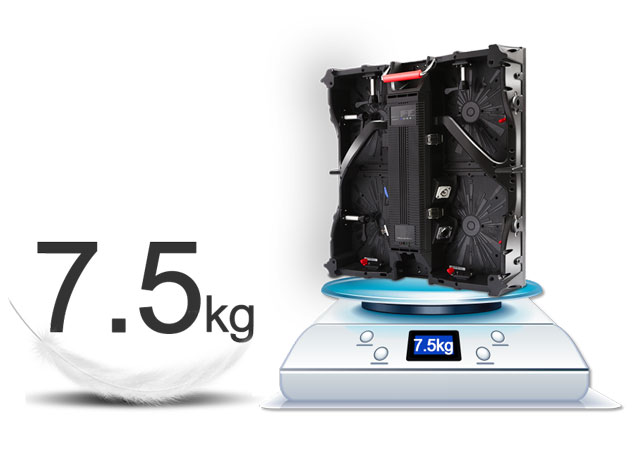

Weight / Tile | 7.5 kg / 16.53 lbs | |||

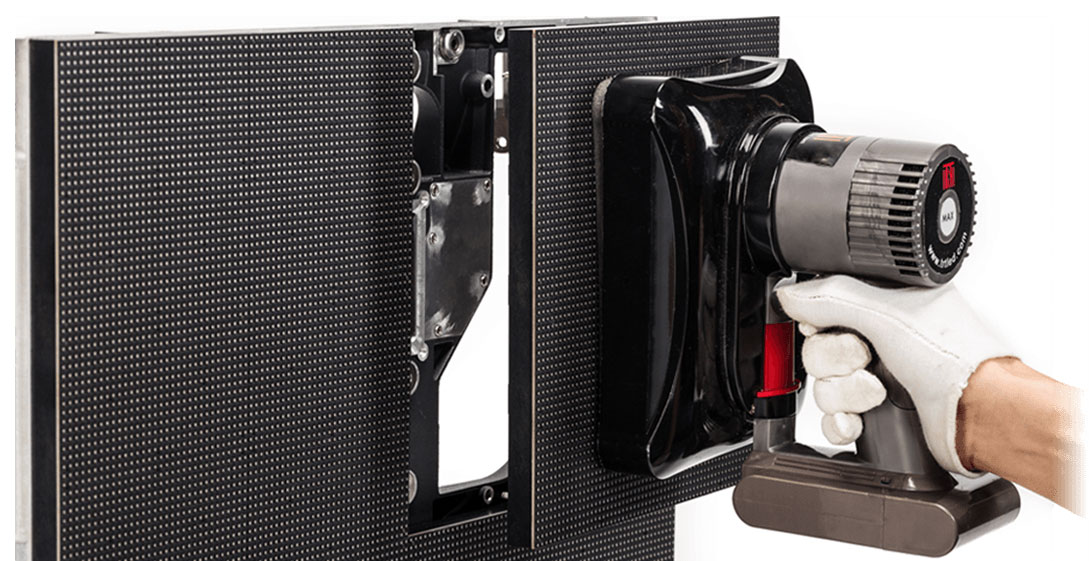

Serviceability | Front and back service | |||
Certifications | CE, UL, FCC class A, RoHS, WEE, REACH, EMC | |||
Warranty | 2 years product warranty |
96*96 dots/module
250*250mm Panel
500*500mm
Indoor & Outdoor Display
84*84 dots/module
250*250mm Panel
500*500mm
Indoor & Outdoor Display
64*64 dots/module
250*250mm Panel
500*500mm
Indoor & Outdoor Display
52*52 dots/module
250*250mm Panel
500*500mm
Indoor & Outdoor Display
