Flexible LED Screen P3.8, P6.6, P8.0, P10.4
Multiple Curves
Smooth Surface
Slim Shape
Intelligent Design
High Resolution
Outdoor IP68 Protection Level

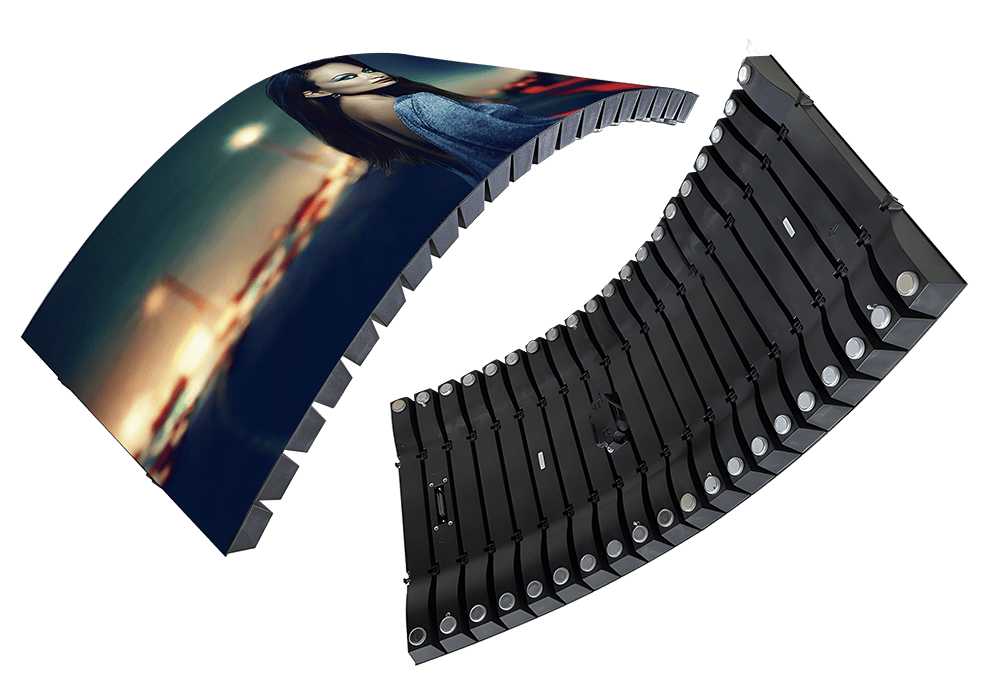

The LED module uses soft type material, which makes it possible to be folded into multiple curves or angles.
The smallest diameter of a round LED display is only 600mm(1.97′). And 8 modules could be made into a mini circle.
Max bending angle is 60°. The PCB and LED will not be damaged with the protect of hard plastic housing. Joint connector design between 2 modules, keeps screen seamless and no displacement.
The smooth surface of the Flexible Series modules allows for: Flat, Concave, Convex, S Shape screen construction.
Slim PCB: PCB thickness is only 0.6mm with 6 layer
Slim Module: Each Module thickness is 30mm including magnet
Slim Structure: One Structure could be a slim pieces of iron plate which enable to make varies kinds of shape to suitble for project
Outdoor flexible LED module is available. With the innovated technology, we launched the first outdoor flexible LED display in 2016. The pixel pitch is P3.8 and it has IP68 level of waterproof and dustproof.
In order to fit each different scene, the flexible LED display is made up of superior quality materials with the concise and strong cabinet. This product is usually used in:
Outdoor Advertising Billboard; Curved Building Surfaces; Shopping Centers.
| Item | P3.8 | P6.6 | P8 | P10 |
|---|---|---|---|---|
| Pixel Pitch | 3.81mm | 6.67mm | 8mm | 10mm |
| LED Type | NationStar SMD1921 | NationStar SMD1921 | NationStar SMD3535 | NationStar SMD3535 |
| Module Resolution | 80dots x 80dots | 48dots × 48dots | 40dots × 40dots | 32dots × 32dots |
| Driving Mode | 1/10scan | 1/6scan | 1/4scan | 1/2scan |
| Module Pixels | 6,400dots | 2,304dots | 1,600dots | 1,024dots |
| Module Size | 304.8mm x 304.8mm(1ft*1ft) | 320mm x 320mm | 320mm x 320mm | 320mm x 320mm |
| Cabinet Size | Customized | Customized | Customized | Customized |
| Cabinet Resolution | Customized | Customized | Customized | Customized |
| Pixel Density | 68,889dots/㎡ | 22,500dots/㎡ | 15,625dots/㎡ | 10,000dots/㎡ |
| Minimum Viewing Distance | ≥ 3.8m | ≥ 6.8 m | ≥ 8m | ≥ 10m |
| Brightness | ≥ 5500nits | ≥ 6000nits | ≥ 6500nits | ≥ 6500nits |
| IP Grade | IP 68 | IP 68 | IP 68 | IP 68 |
| Refresh Rate | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz |
| Gray Scale | 14bits～16bits | 14bits～16bits | 14bits～16bits | 14bits～16bits |
| Viewing Angle | H:140° / V:160° | H:140° / V:160° | H:140° / V:160° | H:140° / V:160° |
| Maximum Power Consumption | 1032W/㎡ | 690W/㎡ | 720W/㎡ | 890W/㎡ |
| Average Power Consumption | 310W/㎡ | 240W/㎡ | 216W/㎡ | 297W/㎡ |
| Input Voltage | AC100V～AC240V 50Hz / 60Hz | AC100V～AC240V 50Hz / 60Hz | AC100V～AC240V 50Hz / 60Hz | AC100V～AC240V 50Hz / 60Hz |
| Operating Temperature | ﹣20℃～50℃ | ﹣20℃～50℃ | ﹣20℃～50℃ | ﹣20℃～50℃ |
| Operating Humidity | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
| Cabinet Material | Iron /Die-casting Aluminum | Iron /Die-casting Aluminum | Iron /Die-casting Aluminum | Iron /Die-casting Aluminum |
| Cabinet Weight | 40kg/㎡ or 25kg/㎡ | 40kg/㎡ or 25kg/㎡ | 40kg/㎡ or 25kg/㎡ | 40kg/㎡ or 25kg/㎡ |
| Operating System | Windows (Win11, Win12, etc.) | Windows (Win12, Win11, etc.) | Windows (Win11, Win10, etc.) | Windows (Win10, Win11, etc.) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
