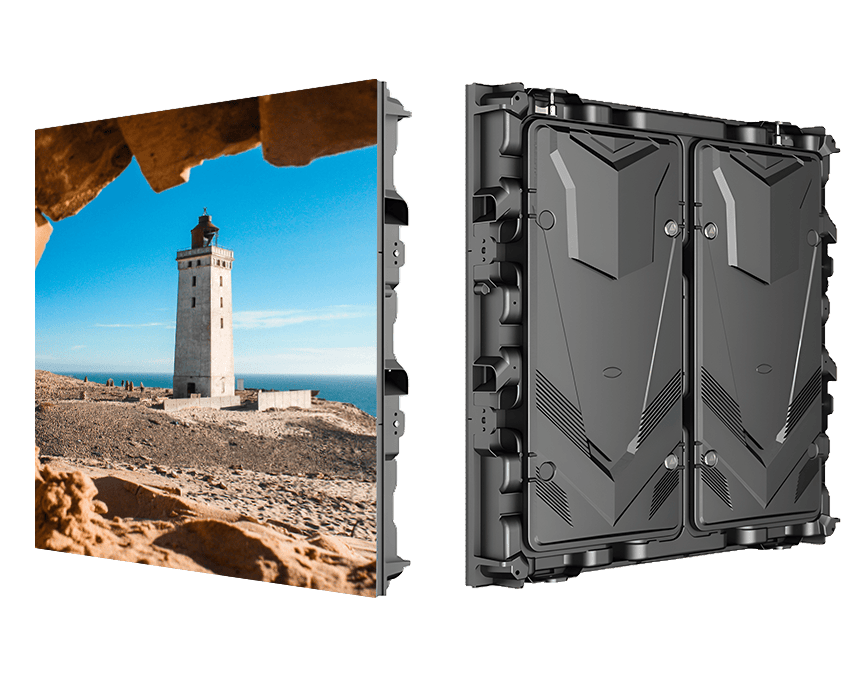

Die-casting Aluminum Cabinet 960×960 Slim Type Outdoor LED Display P2, P2.5 P3.076, P3.33, P4,P5, P6.67, P8, P10, P16
Slim Shape
Fanless Design
5,500 ~ 10,000nits
3,840 ~ 7,680Hz
Light Weight
Die-Casting Aluminum Magnalium
16bits ~ 24bits
High-quality PCB
The Exterior LED display has become popular in the field of outdoor advertising. To make this product stable and reliable, we have carefully selected high-quality materials and built the cabinet with die-casting magnalium. Out of consideration for clients’ requests and different application scenes, the shape and size of our Exterior are slim and concise. It aims at slim type outdoor advertising and outdoor digtial signage. The pixel pitches are P2, P2.5, P3.076, P3.33, P4, P5, P6.6, P8, P10, and P16.
The concise cabinet and light weight are designed to reduce the pressure of constructions and transportation. The cabinet is die-casting magnalium. The screen only weighs 29.5kgs per cabinet. Meanwhile, the die-casting cabinet looks neat and elegant.With front access design, all components, such as power box, receiving card and other accessories, can be removed from the front. You don’t need to leave any space in the back of the LED cabinet.
Thanks to the die-casting magnalium shell of cabinets, the Exterior LED video wall is capable of dissipating heat without fans or air conditioners. This design will also reduce weight and save energy. Meanwhile, the die-casting magnalium shell will segregate heat from outside and protect the inner modules. Thus, the screen will function more stable. There is no fan on the cabinet. That means the outside dust and humidity will not be sucked into the cabinet because of the running fans, which increases the waterproof and dustproof grades. Meanwhile, the heat sink strips are on the cabinet door, which helps to dissipate the heat faster.
We use customized PCB and power supply, so average power consumption is less than 150W/㎡. Compared with the similar products in the market, the display saves 20% energy.
Our outdoor digital signage has high brightness(5,500 ~ 10,000 nits), ultimate refresh rate (3,840Hz-7,680Hz), and high gray scale (16bits-24bits). Wide horizontal and large viewing angles of our LED signage is up to 160°.
Thanks to the adoption of high-quality standard material for the screens, such as superb power supply, driving IC, and LED, the screen is able to work properly for more than 8 years.
This product is usually used in:
Stages; Sports Events; Shopping Center.
| Item | P4 | P5 | P6.6 | P8 |
|---|---|---|---|---|
| Pixel Pitch | 4mm | 5mm | 6.667mm | 8mm |
| LED Type | SMD1921 | SMD1921 | SMD2727 | SMD3535 |
| Module Resolution | 80dots × 40dots | 64dots × 32dots | 48dots × 48dots | 40dots × 40dots |
| Driving Mode | 1/10scan | 1/8scan | 1/6scan | 1/5scan |
| Module Pixels | 3,200dots | 2,048dots | 2,304dots | 1,600dots |
| Module Size | 320mm × 160mm | 320mm × 160mm | 320mm × 320mm | 320mm × 320mm |
| Cabinet Size | 960mm × 960mm × 110mm | 960mm × 960mm × 110mm | 960mm × 960mm × 110mm | 960mm × 960mm × 110mm |
| Cabinet Resolution | 240dots × 240dots | 192dots × 192dots | 144dots × 144dots | 120dots × 120dots |
| Pixel Density | 62,500dots/㎡ | 40,000dots/㎡ | 22,500 dots/㎡ | 15,625dots/㎡ |
| Minimum Viewing Distance | ≥4m | ≥5m | ≥6m | ≥8m |
| Brightness | 6,000nits～7,000nits | 6,000nits～7,500nits | 6,500nits～7,500nits | 6,500nits～7,500nits |
| IP Grade | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz |
| Gray Scale | 16bits～24bits | 16bits～24bits | 16bits～24bits | 16bits～24bits |
| Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° |
| Maximum Power Consumption | 800W/㎡ | 800W/㎡ | 800W/㎡ | 800W/㎡ |
| Average Power Consumption | 280W/㎡ | 280W/㎡ | 280W/㎡ | 230W/㎡ |
| Input Voltage | AC220V～AC110V @ 50Hz / 60Hz | AC220V～AC110V @ 50Hz / 60Hz | AC220V～AC110V @ 50Hz / 60Hz | AC220V～AC110V @ 50Hz / 60Hz |
| Operating Temperature | ﹣30℃～65℃ | ﹣30℃～65℃ | ﹣30℃～65℃ | ﹣30℃～65℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 29.5kg/cabinet | 29.5kg/cabinet | 29.5kg/cabinet | 29.5kg/cabinet |
| Operating System | Windows (Win11, Win12, etc.) | Windows (Win11, Win12, etc.) | Windows (Win12, Win11, etc.) | Windows (Win12, Win11, etc.) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
