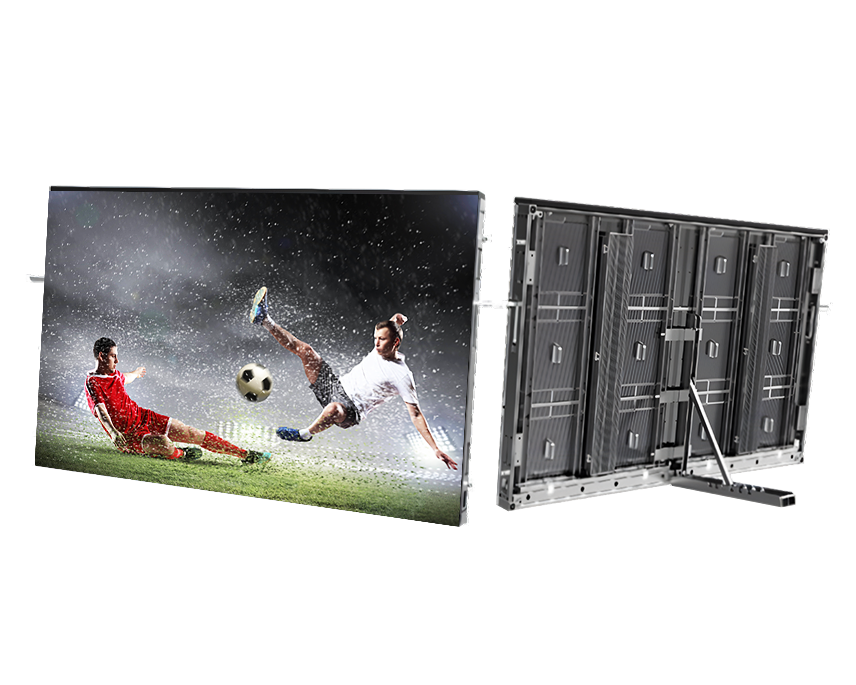

Outdoor Stadium Perimeter LED Display 1600mmx900mm Ultra Thin Aluminum Cabinet Outdoor Stadium Perimeter LED Display 1600mmx900mm Ultra Thin Aluminum Cabinet

Football Outdoor Perimeter LED Screen for Stadium P6.67 P8.33 P10


Soft Plastic Mask


High Quality SMD LED


Big Viewing Angle



6,000nits ~ 10,000nits


Outdoor perimeter led display Emergency Access Design

It is also called safe door design. The LED safety door display cabinet can rotate on the horizontal plane, so as to achieve the switch of the LED stadium safety door opening and closing state. It can respond to the occurrence of emergency.

Sport Perimeter LED Displays and LED Screens Player Protective Design

This product uses Aluminum Alloy, a private mold processing soft mask with special craftsmanship. It has excellent anti-collision capability. Coupled with a top soft pillow to protect the players from injury when they hit the screen in the stadium by accident.

Stadium Football Sport Advertising LED Display Screen Convenient Stadium Screen Carts

The carts are specially designed for the perimeter LED screens, to put the displays into and transport the displays. Putting panels in carts is the easiest method to load and unload. Cart: Pack 4 Panels, the size is 900*1600mm. Cart: Two carts can be stacked.

Stadium perimeter LED screen as banner LED display UEFA/FIFA Standard

1600mmx900mm cabinet size. LeemanLEDscreen Pro series perimeter LED screen meets the UEFA standard, and we have sold many perimeter screens to different European stadiums.

Sports Stadium Perimeter LED Display Billboard 1600X900 Light Weight and Fast Installation

Cabinet weight is only 45kg. The high-precision die-casting aluminum cabinet is adopted. Compared with the traditional one, the perimeter led screen’s cabinet is quicker, and it has better splicing effect.

Outdoor LED Perimeter Advertising Boards High Protective Grade Front IP68/ Rear IP66

LeemanLED Ultra series adopts high quality conformal coating, so the component is effectively moisture-proof and dust-proof. Therefore, the screen can be used in severe indoor and outdoor environments.

Sport Stadium Perimeter LED Screen High Refresh Rate & Wide Viewing Angle

The viewing angle of our sports LED display can be up to 170 degrees. With the high refresh rate of 3840Hz, the visual effect is excellent when we play the videos or images.

Perimeter Video Advertising Led Billboard High Brightness up to 10000nits

Our perimeter LED screen’s brightness is up to 5500nits even higher. Product Passed All CertificationsOur products have been certified by UL, CE (including EMC & LVD), RoHS, ETL, FCC, CB, IECEE,KC,PSE, etc.

World Cup Outdoor Football LED Perimeter Boards for Advertising Application Fields

On the basis of its superior performance, unique design, the perimeter led screen can be used indoors and outdoors. It is always used in the stadium as:

Outdoor Stadium Perimeter LED Display Banner Screen; Score Board; Live Feed Video Screen.


Item P6.6 P8.3 P10
Pixel Pitch 6.67mm 8.33mm 10mm
LED Type SMD 2727 SMD 3535 SMD 3535
Module Resolution 60dots × 45dots 48dots × 36dots 40dots × 30dots
Driving Mode Constant Current Constant Current Constant Current
Module Pixels 2,700dots 1,728dots 1200dots
Module Size 400mm × 300mm 400mm × 300mm 400mm × 300mm
Cabinet Size 1,600mm × 900mm x 101mm 1,600mm × 900mm x 101mm 1,600mm × 900mm x 101mm
Cabinet Resolution 240dots × 135dots 192dots × 108dots 160dots × 90dots
Pixel Density 22,500dots/㎡ 14,400dots/㎡ 10,000dots/㎡
Minimum Viewing Distance ≥6m ≥8m ≥10m
Brightness 6,500nits~9,500nits 6,500nits~10,000nits 6,500nits~10,000nits
IP Grade Front IP68 / Rear IP66 Front IP68 / Rear IP66 Front IP68 / Rear IP66
Refresh Rate ≥18000 ≥18000 ≥18000
Gray Scale 14bits~24bits 14bits~24bits 14bits~24bits
Viewing Angle H.170° / V.110° H.170° / V.110° H.170° / V.110°
Contrast Ratio  4000: 1  4000: 1  4000: 1
Maximum Power Consumption 630W/㎡ 550W/㎡ 550W/㎡
Average Power Consumption 250W/㎡ 200W/㎡ 200W/㎡
Input Voltage AC260V~AC90V @ 50Hz / 60Hz AC220V~AC110V @ 50Hz / 60Hz AC220V~AC110V @ 50Hz / 60Hz
Operating Temperature ﹣20℃~60℃ ﹣20℃~60℃ ﹣20℃~60℃
Operating Humidity 10%~90% 10%~90% 10%~90%
Cabinet Material Aluminum alloy Aluminum alloy Aluminum alloy
Cabinet Weight 45kg/panel 45kg/panel 45kg/panel
Operating System Windows (Win7, Win10, etc.) Windows (Win7, Win10, etc.) Windows (Win7, Win10, etc.)
Signal Source Compatibility DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
