Product introduction |

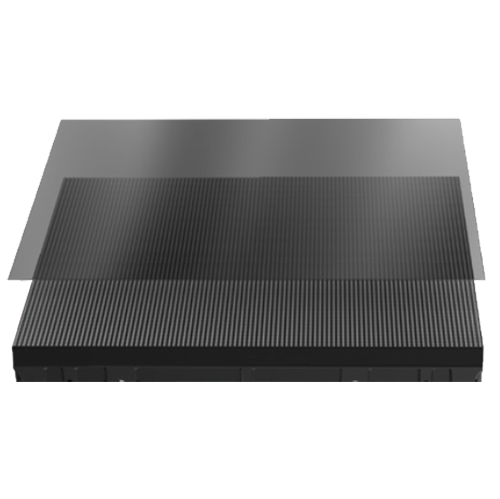

High-precision die casting aluminium material cabinet, extremely light weight, easy to assemble. It is durable and versatile for indoor and semi-outdoor environment. This screen can be used for both rental business and fixed installation on the building wall.

Cabinet Material:Cast Iron & Double Sided Design

Application: High-precision die casting aluminum material cabinet, extremely light weight, easy to assemble.

Easy To Install

High-precision die casting aluminum material cabinet, extremely light weight, easy to assemble.

250x250mm module, compatible with P1.953/P2.604/P2.976/P3.91/P4.81;Cabinet size 500mm W*500mm H*50mm D, one cabinet 7.5KG very thin and light, quick install.

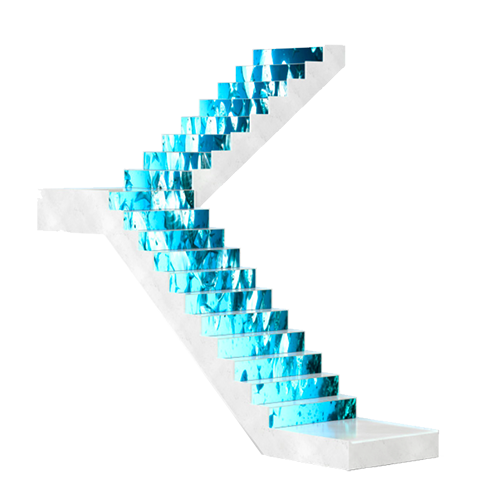

Outdoor Interactive Stairs LED Screen

Perfect Performance

MBI driving IC, refresh ≥3840H, ensures true 16bit gray level. Ensure no deformation of PCB Board, perfect flatness performance. Showing the real and full angle display.

Support Front and Rear Access

LEEMAN LED Cabinet is accessible from the front side of the body. All cables, power supply, control card, Hub card and other electronic components can be removed from the front side and back side. You can easily replace the new parts and save a great of your time.

Applicable in Different Environments

LEEMAN DISPLAY can be made to high brightness over 3,500 nits. It can work properly for all the indoor environment and some of the semi-outdoor places. At the same time, it can also be used for some indoor events because it has a very good brightness and the light weight aluminium cabinet body.

Outdoor Stairs LED Video Screen Display Product Parameters

Item Parameters
Pixel pitch 2.6mm
LED Type SMD1515 1R1G1B Black Lamp
STP Surface Treatment Protection
LED Module Size 250 x 250mm
LED Module Resolution 96×96 dots
LED Cabinet Size 500x500x58mm
Cabinet Resolution 192 x 192 dots
Screen Pixel 147,456 dots
Signal Processing  12 – 16 bit
Grey Level 4096 – 65536
Refresh Rate > 3840Hz
Scan Mode 1/16
Brightness >1,000 nits
Viewing Distance > 2.6m
Viewing Angle 160 degree
Input Voltage 110-240V/50-60Hz
Max Consumption 750W/SQ.M
Ave Consumption 225W/SQ.M
Working Temperature -20 degree to 45 degree
Storage Temperature -40 degree to 60 degree
IP Rate IP43
Working Humidity 10% – 60%
Storage Humidity 10% – 90%
Lifespan 100,000 hours
Service Type Front & Rear Service
LED Lamp NationStar
IC ICN2153
Control Card NovaStar / Colorlight
Operation Approach Windows
