As its name suggests, Indoor poster LED screen is widely used as posters for shopping mall,
fashion store, exhibition show, hotel lobby and bank lobby. With its simple structure and easy operation,
poster LED display are used for advertising, information release and product presentation.
Our company designs this poster screen and publishes new products now and then.

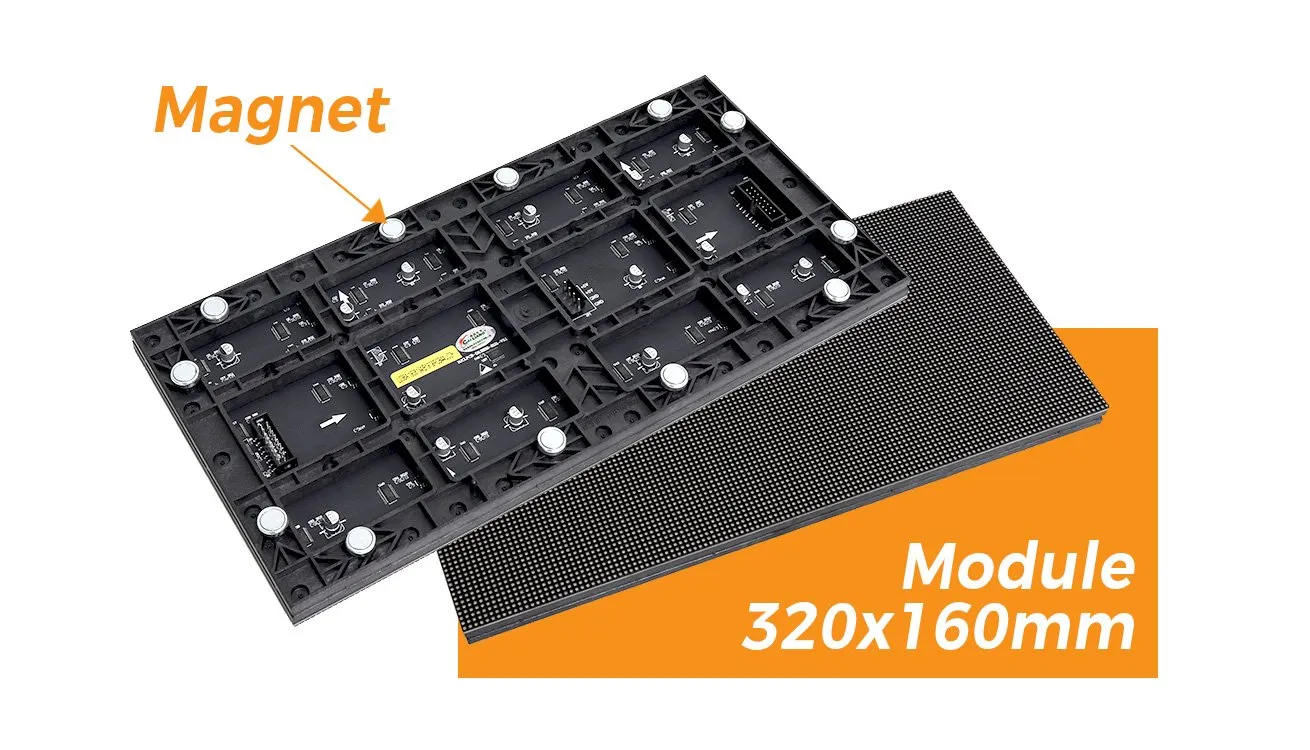

640x1920mm standard size cabinet design.Suitable for all 320x160mm GOB LED display modules
640x1920mm LED display with standard size panel: 320x160mm. Standard led screens are quick to assemble and maintain.
Changing the pixel spacing is also very convenient, just change the modules because they have the same module size and structure.

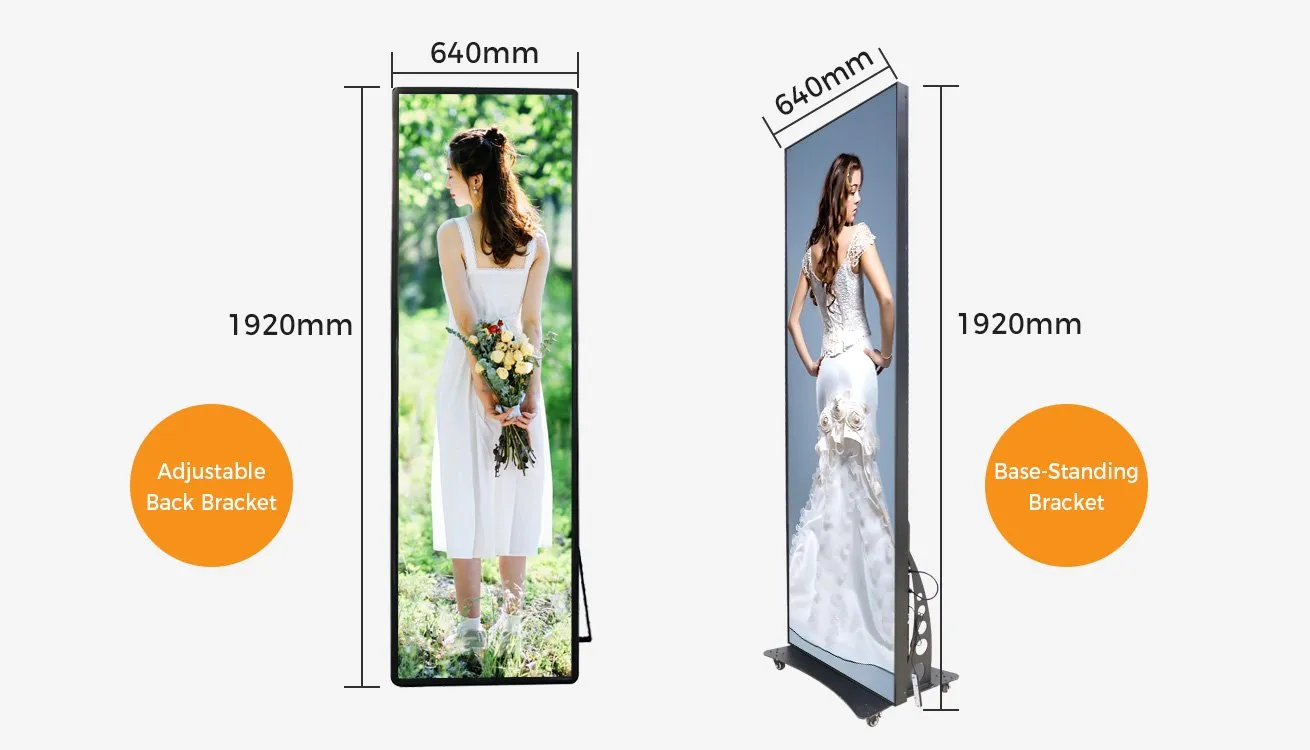

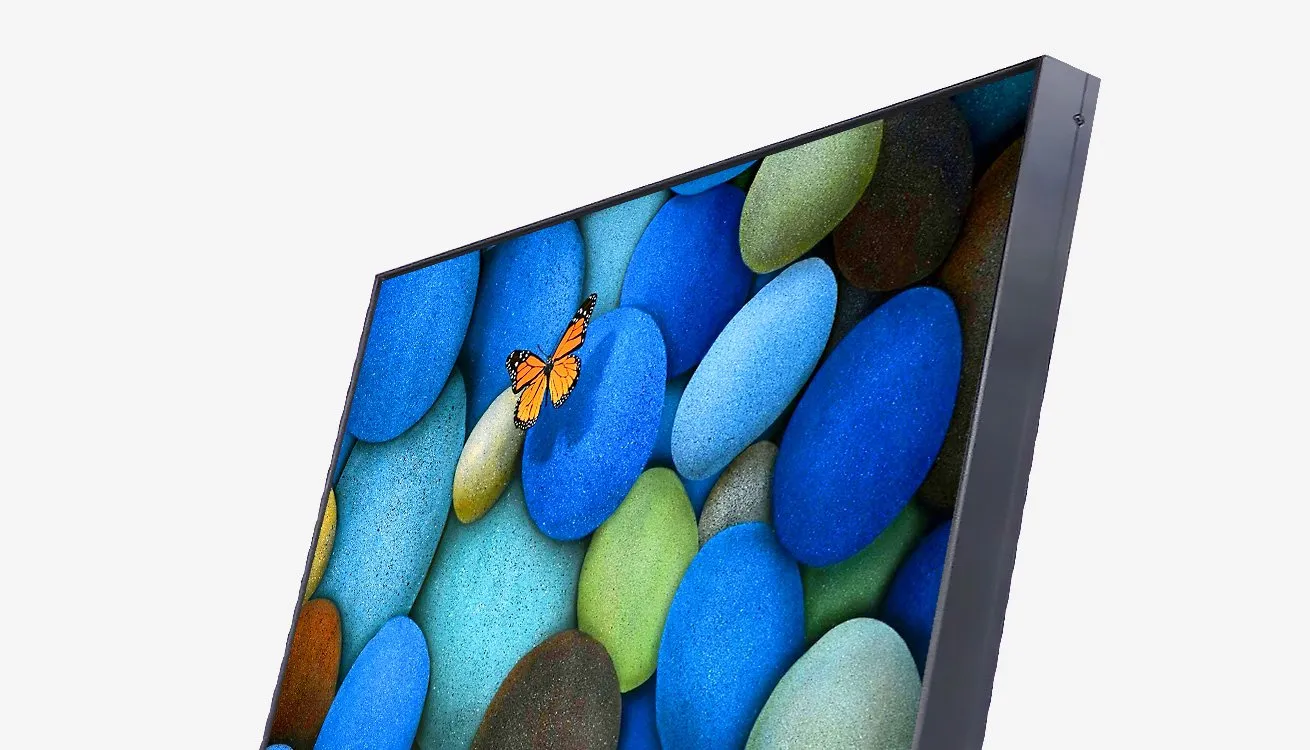

640x1920mm cabinet Standard Size series LED display with ultra thin cabinet design, the thickness is 100mm.
Die-cast aluminum cabinet design light and easy to transport, good flatness and seamless.

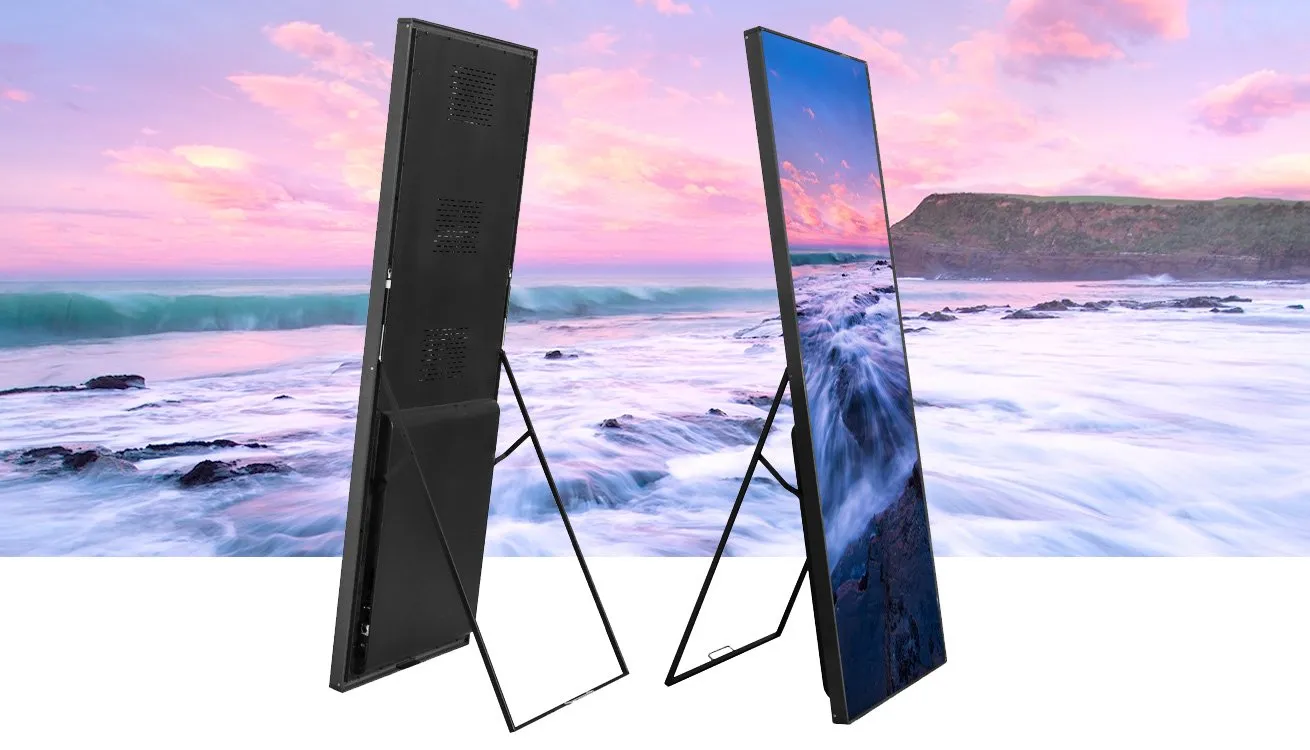

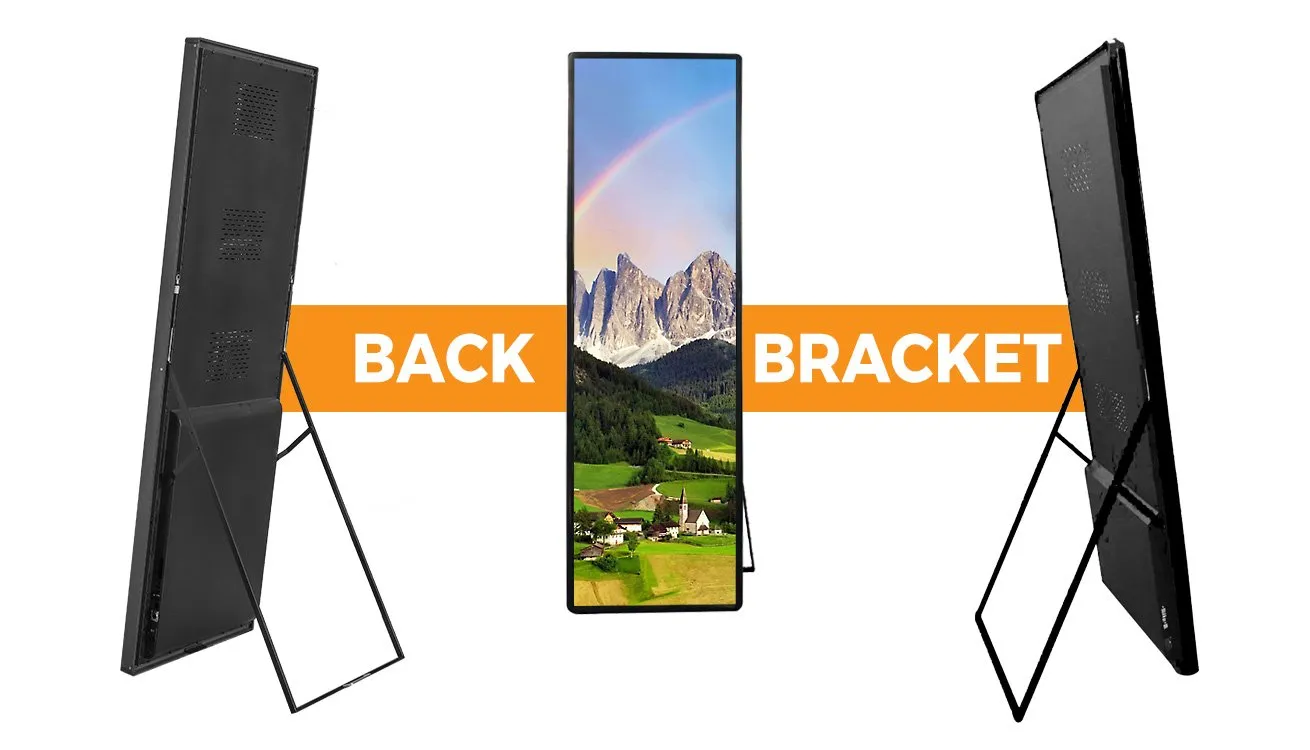

LEEMAN poster series LED Poster Screen equiped with Hydraulic Back Bracket, which make it stably standing on ground.
Also this unique feature to make adjustable viewing angle available, and more and more audience can be reached.
Back Bracket is easily pull out when you want to support the LED poster and put in when you dont need it.

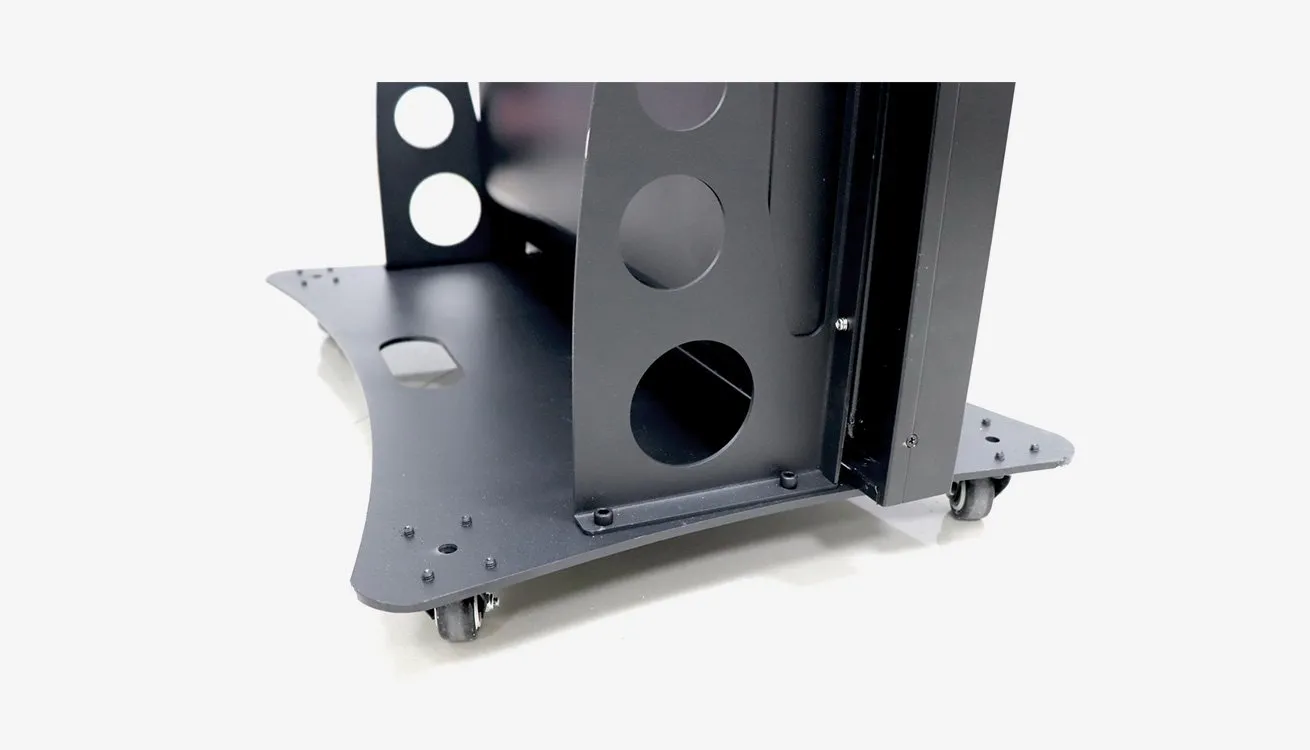

The base stand comes with 4 wheels that make the poster LED screen rotate freely and allow free movement in all directions.

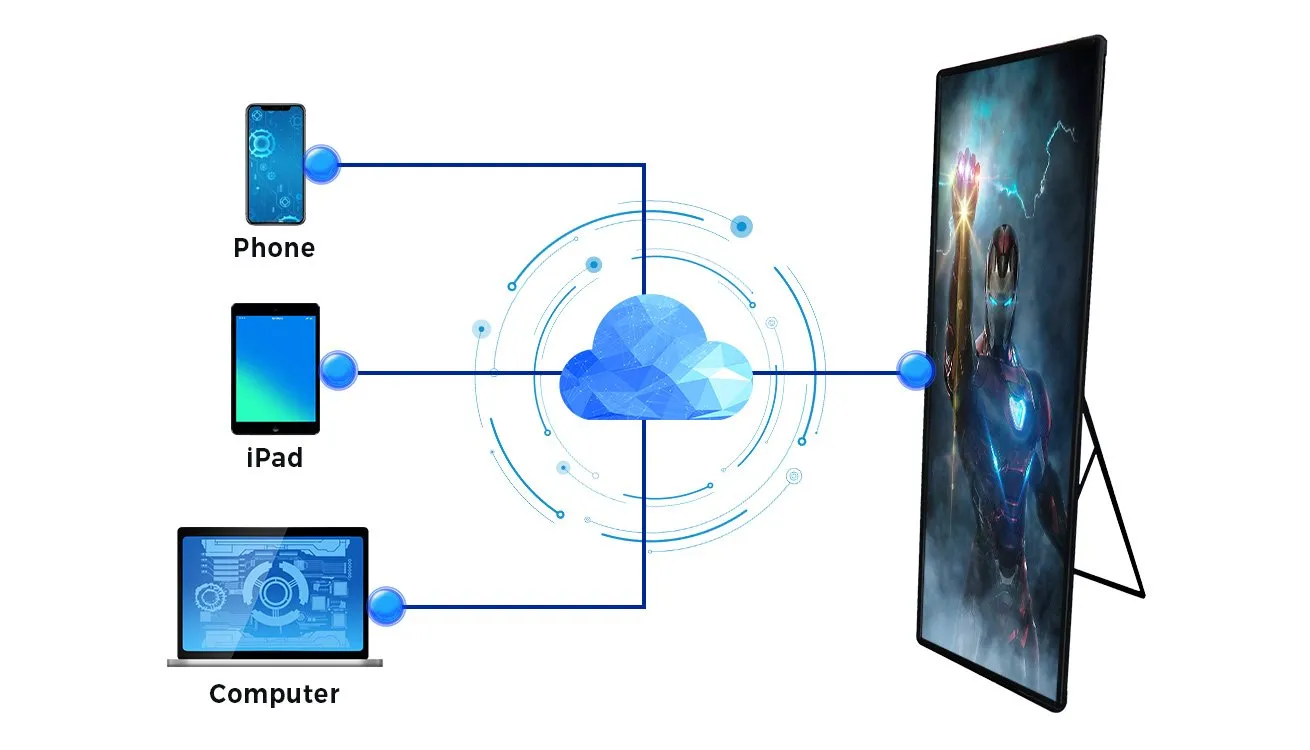

LEEMAN 640×1920 LED Poster Display Screen support Synchronous & asynchronous control system,the COB LED screen content can be
updated via ipad, phone, PC computer, or notebook.Real time play, Cross-platform publish. Support USB or WIFI,
Support operation by IOS or Android devices.Support built-in media player to store and play content.

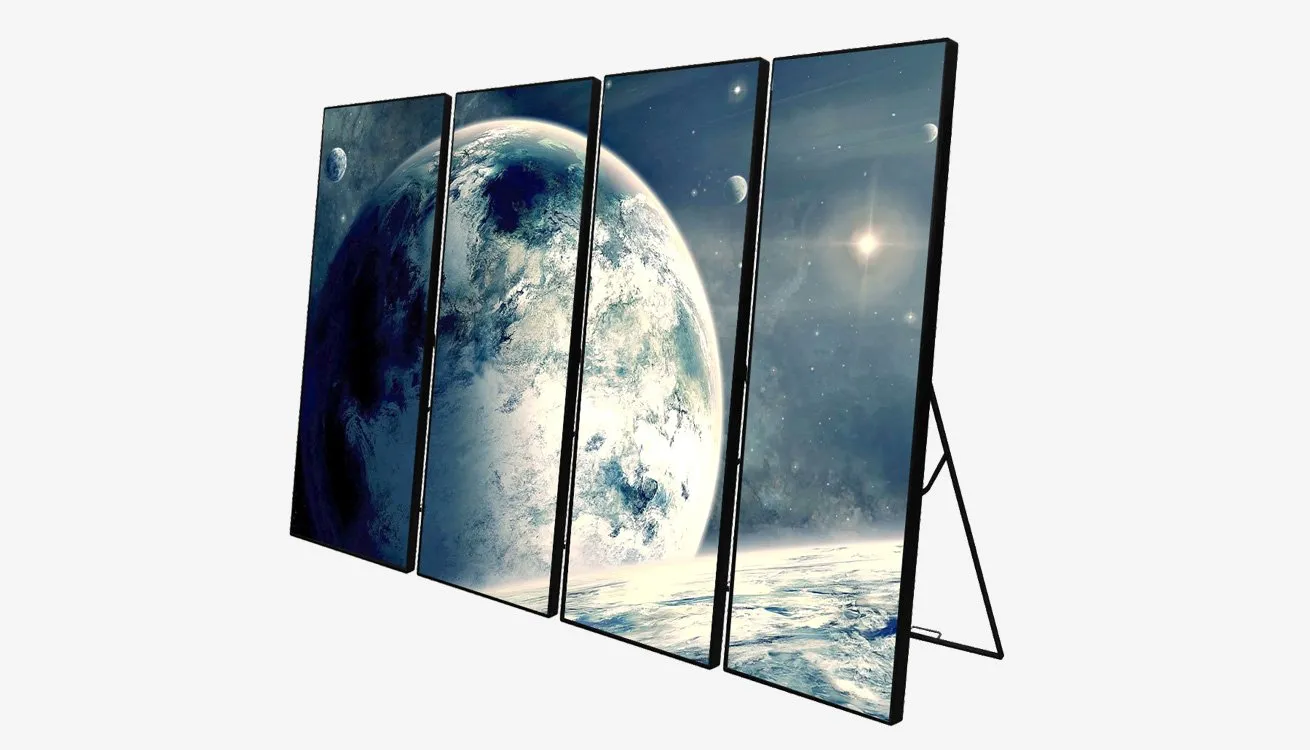

Leeman LED Iposter series LED Poster display can be seamless cascade with multi screen to reach a large one.
LED screen can play as one big screen or separately.

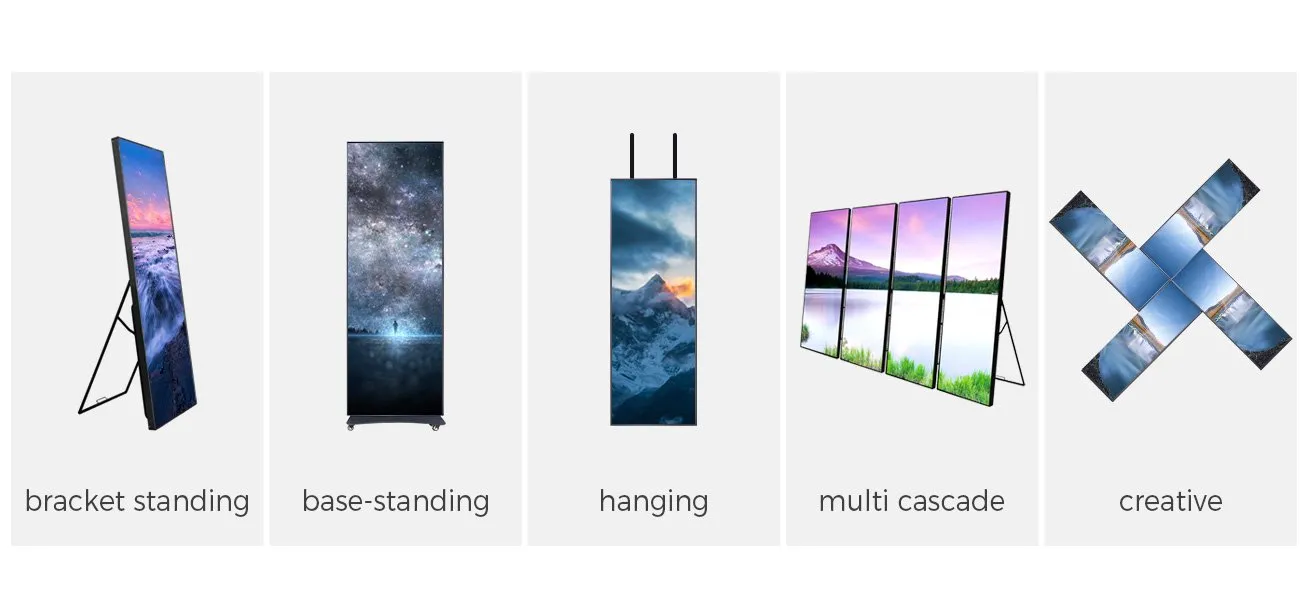

LEEMAN Poster LED display support Multi-installation ways,
The product is suitable for bracket standing installation, base-standing installation, lifting or hanging installation,
multi cascade installation and creative installation. no need steel structure to install, convenient and quickly.
Pixel Pitch (mm) | P2 | P2.5 | P3.076 | P4 | P8 | P10 (2S) | P10 (4S) | P10 (DIP) | P16 (DIP) |
---|---|---|---|---|---|---|---|---|---|
Pixel Configuration | SMD1515 | SMD2121 | SMD2121 | SMD2121 | SMD3535 | SMD3535 | SMD3535 | DIP346 / DIP570 | DIP346 |
Density (Pixels/㎡) | 250,000 | 160,000 | 105,689 | 62,500 | 15,625 | 10,000 | 10,000 | 10,000 | 3,906 |
Module Resolution (Pixel) | 160x80 | 128x64 | 104x52 | 80x40 | 32x16 | 32x16 | 32x16 | 32x16 | 16x16 |
Module Size (mm) | 320x160 | 320x160 | 320x160 | 320x160 | 256x128 | 320x160 | 320x160 | 320x160 | 256x256 |
Driving Mode (Duty) | 1/40 | 1/32 | 1/26 | 1/20 | 1/4 | 1/2 | 1/4 | 1/4 | 1/1 |
Cabinet Size (mm) | 640x1920 | 640x1920 | 640x1920 | 640x1920 | 1024x768 | 960x960 | 960x960 | 960x960 | 1024x1024 |
Cabinet Weight (KG) | 40 | 40 | 40 | 40 | 31.5 | 36 | 36 | 46 | 52 |
Brightness (CD/㎡) | ≥1,000 | ≥1,200 | ≥1,500 | ≥1,500 | ≥6,500 | ≥7,500 | ≥6,000 | ≥9,000 | ≥8,500 |
Viewing Angle (°) | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 120 | 120 |
Gray Grade (Bits) | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
Max. Power Consumption (W/㎡) | 439 | 457 | 413 | 351 | 760 | 850 | 540 | 520 | 540 |
Avg. Power Consumption (W/㎡) | 150 | 153 | 138 | 117 | 260 | 285 | 180 | 175 | 180 |
Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
Working Temperature (ºC) | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 |
Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
Protection Grade | IP45 | IP45 | IP45 | IP45 | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
Pixel Pitch (mm) | P2.97 | P3.91 | P4.81 |
---|---|---|---|
Pixel Configuration | SMD2020 | SMD2020 | SMD2020 |
Density (Pixels/㎡) | 112,896 | 65,536 | 43,264 |
Module Resolution (Pixel) | 84x84 | 64x64 | 52x52 |
Module Size (mm) | 250x250 | 250x250 | 250x250 |
Driving Mode (Duty) | 1/28 | 1/16 | 1/13 |
Cabinet Size (mm) | 500x500 | 500x500 | 500x500 |
Cabinet Weight (KG) | 6.5 | 6.5 | 6.5 |
Brightness (CD/㎡) | ≥1,000 | ≥1,000 | ≥1,000 |
Viewing Angle (°) | 160 | 160 | 160 |
Gray Grade (Bits) | 16 | 16 | 16 |
Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
Max. Power Consumption (W/㎡) | 480 | 576 | 560 |
Avg. Power Consumption (W/㎡) | 160 | 192 | 190 |
Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 |
Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 |
Working Temperature (ºC) | -20~+60 | -20~+60 | -20~+60 |
Lifetime (Hours) | 100,000 | 100,000 | 100,000 |
Protection Grade | IP31 | IP31 | IP31 |
