P1.25 LED Module 320×160 Small Pixel Pitch LED Display

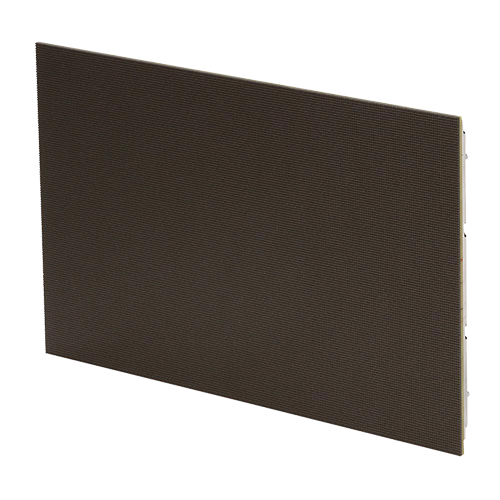

Indoor Full Color P1.25 LED Module

Product introduction |

This is traditional design of indoor LED display module. It has consistently bright and uniform picture quality, and it is reliable indoor LED signage with ongoing performance. This is dramatically cost-efficient design with convenient installation and maintenance.

Cabinet Material:Die-casting Al-cabinet & Single Side Design

Application:The traditional indoor LED screen is a state-of-the-art LED signage that complements any business with vibrant content presentation, along with an enhanced, indoor-friendly design that saves cost and time during installation and operation. It is the ideal display to deliver captivating and meaningful content in any indoor environment.

1629524280168207-1

Durable, Reliable Indoor Alternative

It is subject to environmental tests including exposure to any temperatures, a weather-enacting salt corrosion chamber and package vibration and drop testing. The display also has corrosion-proof painting and anti-UV, deformation-proof housing that extends its shelf life.

1629524329976103-1

Environmental Stable Design

It undergoes strict testing to ensure ongoing performance when exposed to water, dust and indoor elements. Ingress Protection (IP) validation confirms defense for the front IP65 and back (IP67) of the display, ensuring continuous operation regardless of the environment.

1629524469812387

Durable, Reliable Indoor Alternative

It is subject to environmental tests including exposure to any temperatures, a weather-enacting salt corrosion chamber and package vibration and drop testing. The display also has corrosion-proof painting and anti-UV, deformation-proof housing that extends its shelf life.

1629524542162516

Environmental Stable Design

It undergoes strict testing to ensure ongoing performance when exposed to water, dust and indoor elements. Ingress Protection (IP) validation confirms defense for the front IP65 and back (IP67) of the display, ensuring continuous operation regardless of the environment.

P1.25 LED Module 320×160 Product Parameters

Item Parameters
Pixel pitch 1.25mm
LED Type MiniLED 2R2G2B
LED Module Size 300×168.75mm
LED Module Resolution 240x135dots
Density per SQ.M 640,000 dots/SQ.M
Signal Processing  12 – 16 bit
Grey Level 4096 – 65536
Refresh Rate > 3840Hz
Scan Mode 1/60
Brightness > 500 nits
Viewing Distance > 1.25m
Contrast Ratio 5000:1
Viewing Angle 120 degree
Input Voltage 100-240V/50-60Hz
Max Consumption < 400 W/SQ.M
Ave Consumption 100 W/SQ.M
Working Temperature -20 degree to 45 degree
Storage Temperature -40 degree to 60 degree
Input Voltage DC5V
IP Rate IP35
Working Humidity 10% – 60%
Storage Humidity 10% – 90%
Lifespan  > 100,000 hours
MTBF > 10,000 hours
Service Type Front Service
LED Lamp Nationalstar
IC ICN2153
Control Card NovaStar / Colorlight / LINSN / Huidu
