Home » products » Curved LED Display 500x500 » P1.9 P2.6 P2.9 Curved LED Screen 500×500 PLUS SERIES With 90 Degree Right Angle

VIDEO

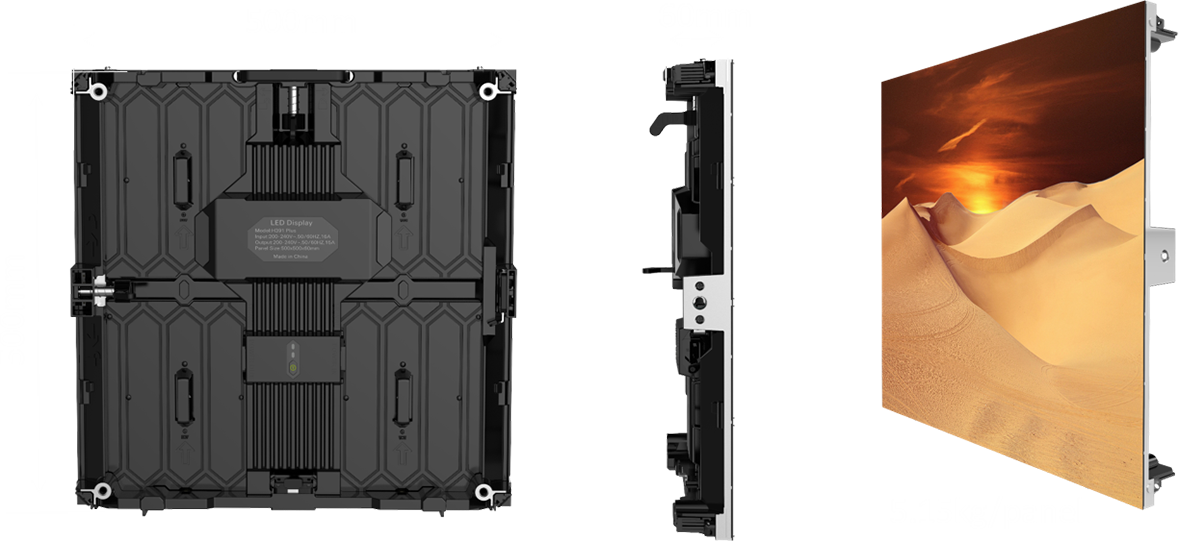

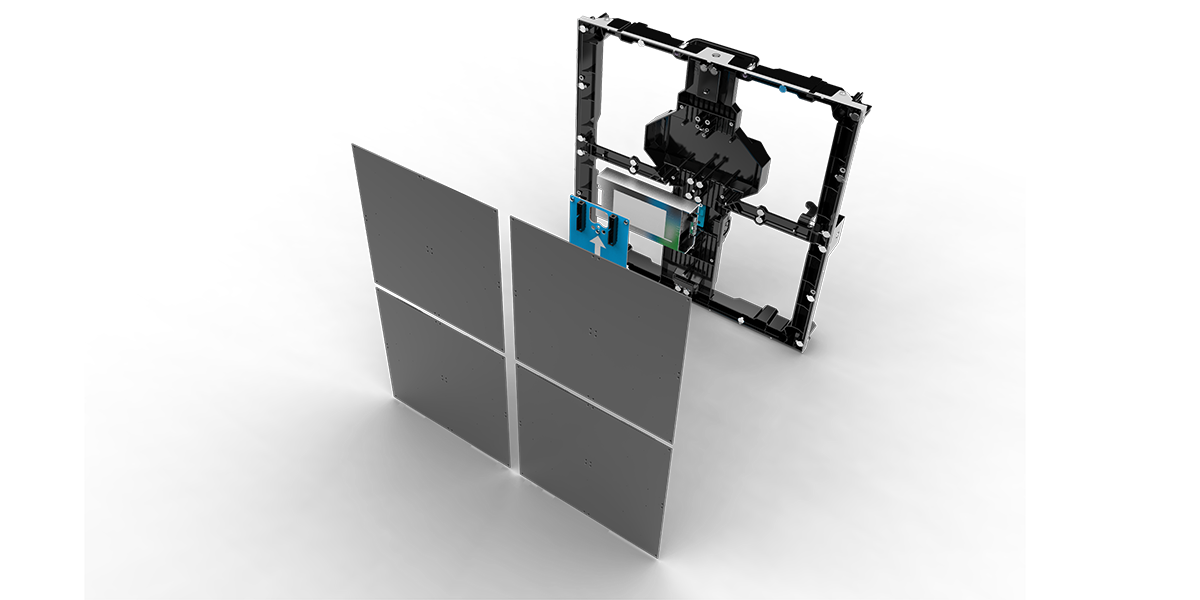

Module, HUB board and power can be taken out from the front Reduce the numbers of the screws, simplified the procedure

Weight: 5.15kg/panel, save time and lobor cost to carry and build Thickness: 60mm, small footprint

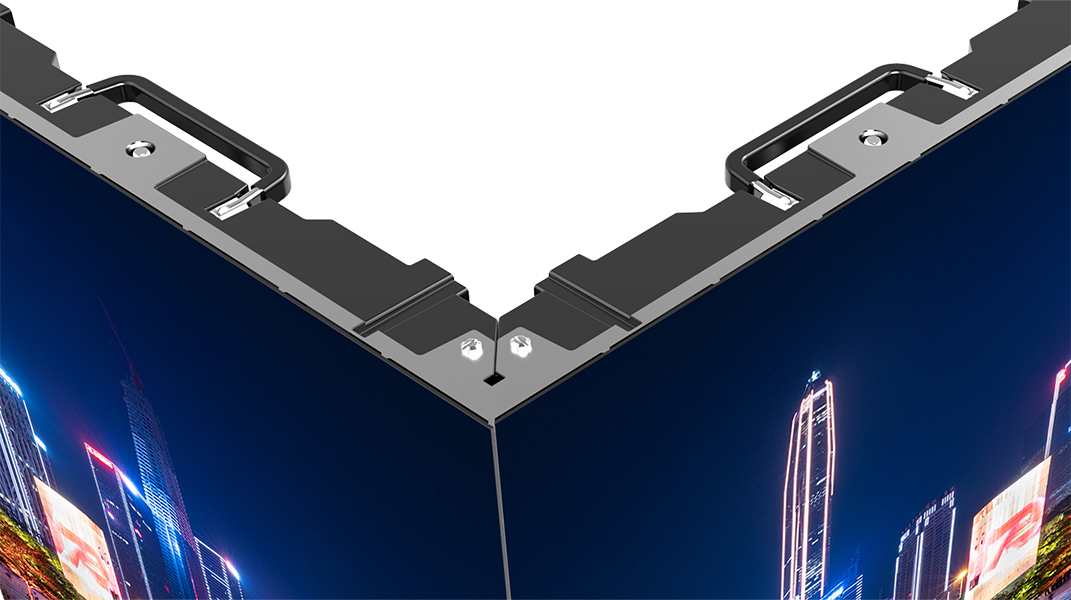

Four panel structures,For more right-angle splicing projects.

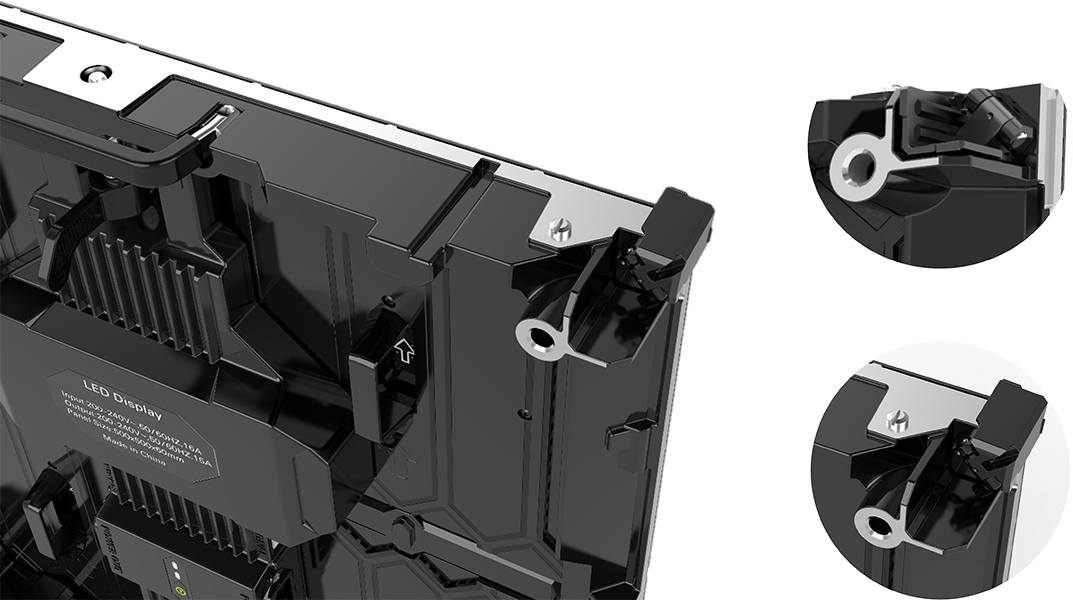

Safe and Reliable,Easy to open

Model	Leeman Plus ( P1.9 )	Leeman Plus (P2.6)	Leeman Plus ( P3.9)
Pixel Pitch (mm)	1.953mm	2.604mm	3.91mm
Brightness（nits）	1000	1000	1000
Refresh Rate（hz）	≥3840	≥3840	≥3840
Cabinet Size(mm)	500*500	500*500	500*500
Cabinet weight(kg)	5.15 per panel	5.15 per panel	5.15 per panel
Cabinet Material	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum
Power Consumption(Max/Aver.)w/㎡	470/160	620/220	620/220
Cabinet Resolution Pixels	256*256	192*192	128*128
Pixel Density Pixels(㎡)	262177	147928	65746
Maintenance Type	Front & Rear
Note: For more product materials, please contact us directly.
