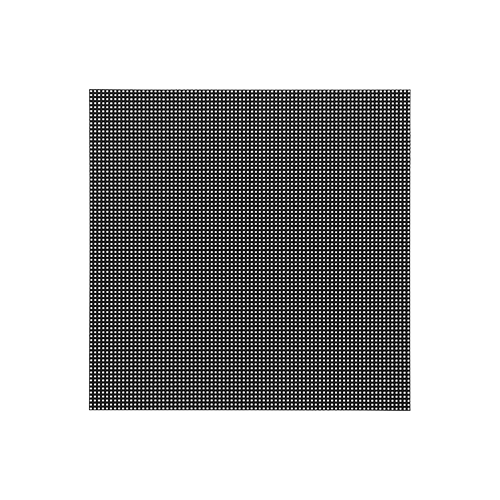

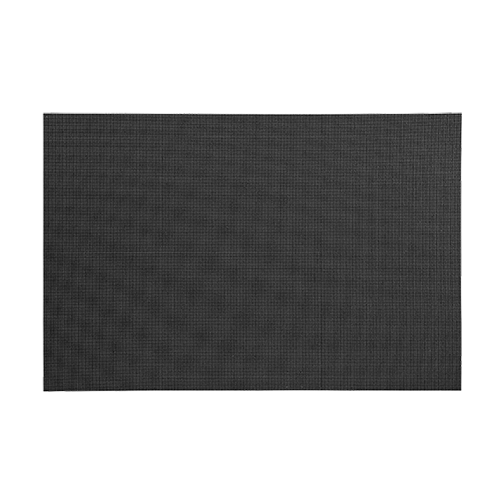

P2.5 Fine Pitch Outdoor LED Display Module

P2.5 Outdoor LED Display Module 320mmx160mm

Product introduction |

Suitable for all kinds of scenarios,can be customized Suitable for all Suitable for all kinds of scenarios.

Cabinet Material: This type of outdoor fine pitch LED display is made by Nationalstar high quality LED lamp.

Application:Those LED products were widely used in both indoor and outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.


Outdoor IP67 Rated

This type of outdoor flexible LED module can be put inside of the water, and its waterproof rate is IP67.

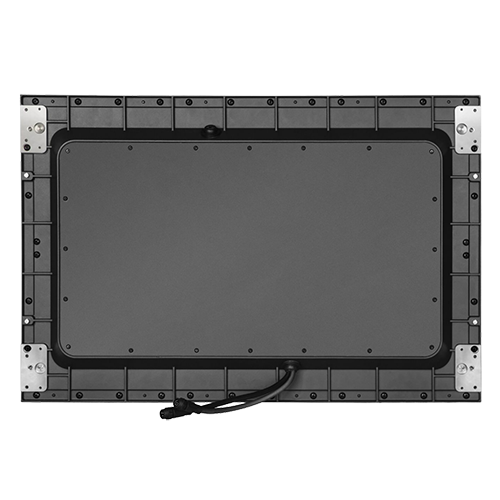

Ultra-thin LED Cabinet

This type of outdoor fine pitch LED display is very thin and the material is die-casting aluminum cabinet. It is pretty easy to install and maitain.


Ultra-high Refresh Rate > 3840Hz

It can support extremely high level of refresh rate over 3840Hz with high contrast ratio.


Ultra-high brightness >7,000 nits

The brightness is ultra-high over 7,000 nits with high protection and high stability. It is suitable for installation and use in a variety of environments.

P2.5 Fine Pitch Outdoor LED Display Product Parameters

Item Parameters
Pixel pitch 2.5mm
LED Type SMD1415
Pixel Density 160,000 dots
LED Module Size 200 x 200mm
LED Module Resolution 80 x 80 dots
LED Cabinet Size 600x400x50mm
Cabinet Resolution 240×160 dots
Signal Processing  12 – 16 bit
Grey Level 4096 – 65536
Refresh Rate > 3840Hz
Scan Mode 1/20
Brightness >6,500 nits
Viewing Distance > 3.8m
Viewing Angle 120 degree
Input Voltage 100-240V/50-60Hz
Max Consumption 750W/SQ.M
Ave Consumption 225W/SQ.M
Working Temperature -20 degree to 45 degree
Storage Temperature -40 degree to 60 degree
IP Rate IP65
Working Humidity 10% – 60%
Storage Humidity 10% – 90%
Lifespan 100,000 hours
Service Type Front & Rear Service
LED Lamp Nationalstar
IC ICN2153
Control Card Nova / Colorlight
Stock Availability YES
Cabinet Size Option 200x200mm, 400x400mm, 600x600mm, 800x800m
