P2.8 P3.9 P7.8 P10 High Transparency Glass Window Transparent LED Screen Film
P2 P2.5 P3 P3.076 P4 P5 P6 P10 Indoor Fixed Installation LED Display Screen 960×960 and 640×640

It looks like a set of linear LED small lights composed of louvers, in the design of structural components to greatly reduce the obstruction of the line of sight, improve the

P2.8 P3.9 P7.8 P10 High Transparency Glass Window Transparent LED Screen Film

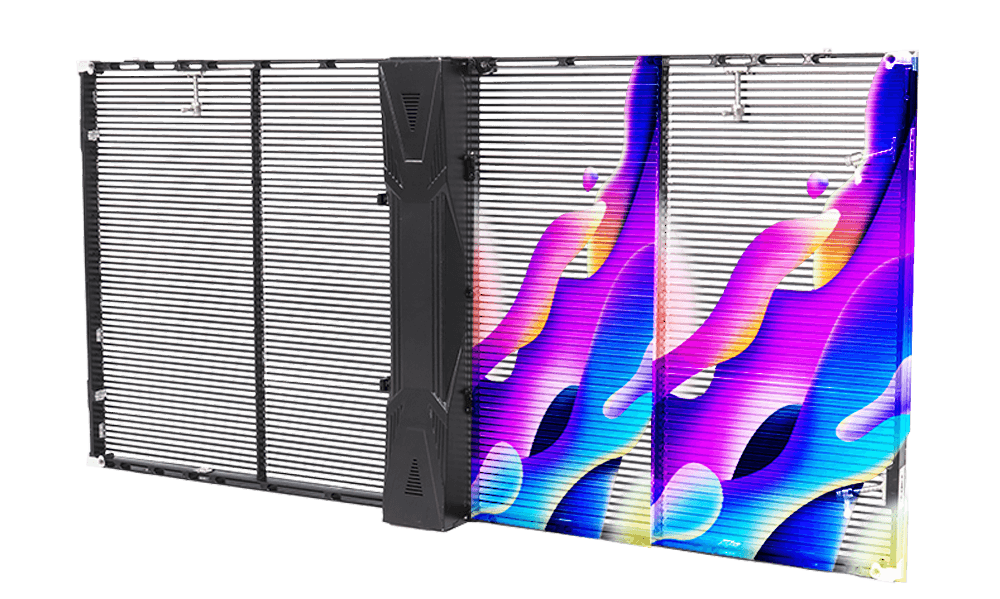

High transparency
The minimum pixel pitch is 3.91mm which can reach 68% transparency.
Products with  pixel pitch more than 10mm can reach 80%.
P2.8 P3.9 P7.8 P10 High Transparency Glass Window Transparent LED Screen Film
Simplified appearance, crystal clear

The interspace between lamp strip gives us transparent visual effect.
The surface is smooth, beautiful and fashionable.

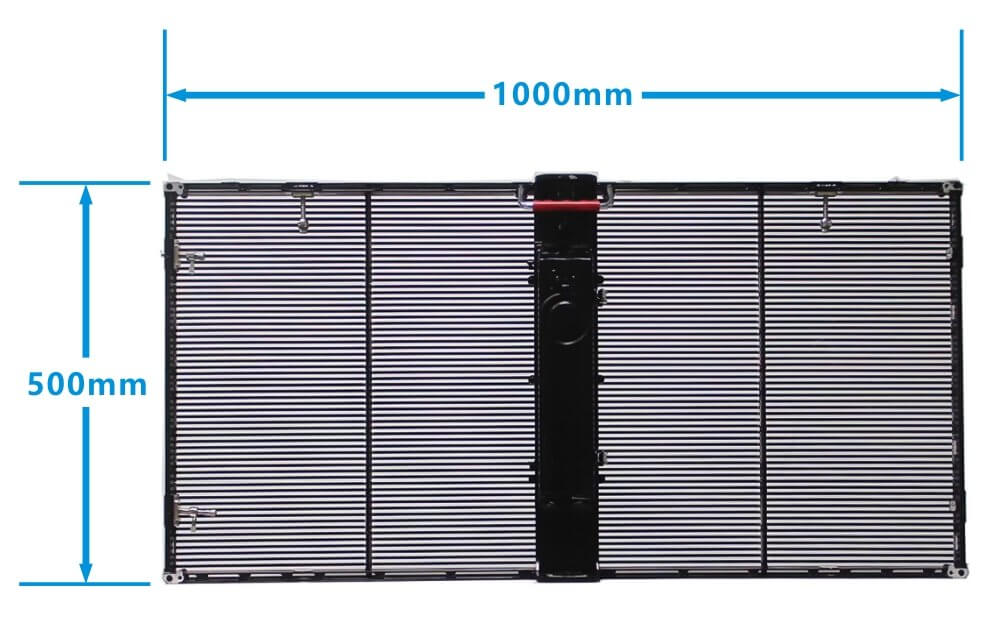

Cabinet size:1000 x500mm 500×1000

P2.8 P3.9 P7.8 P10 High Transparency Glass Window Transparent LED Screen Film

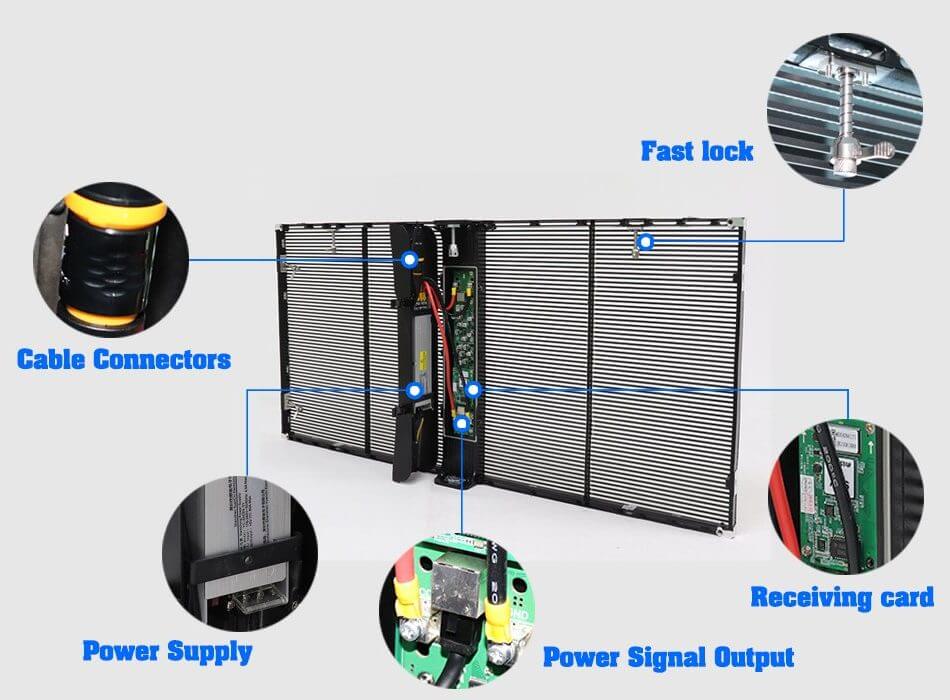

PERFECT STRUCTURE

While adhering to the spirit of innovation, the Leeman transparent LED screen film details structural design and rigorous quality testing.
This product enhances the quality of the design and reflects the people-oriented principle.

P2.8 P3.9 P7.8 P10 High Transparency Glass Window Transparent LED Screen Film
CLEAN AND BEAUTIFUL INTERIOR

System connection adopts dark wire structure, hidden transmission cables, the whole screen backside is clean and tidy

P2.8 P3.9 P7.8 P10 High Transparency Glass Window Transparent LED Screen Film

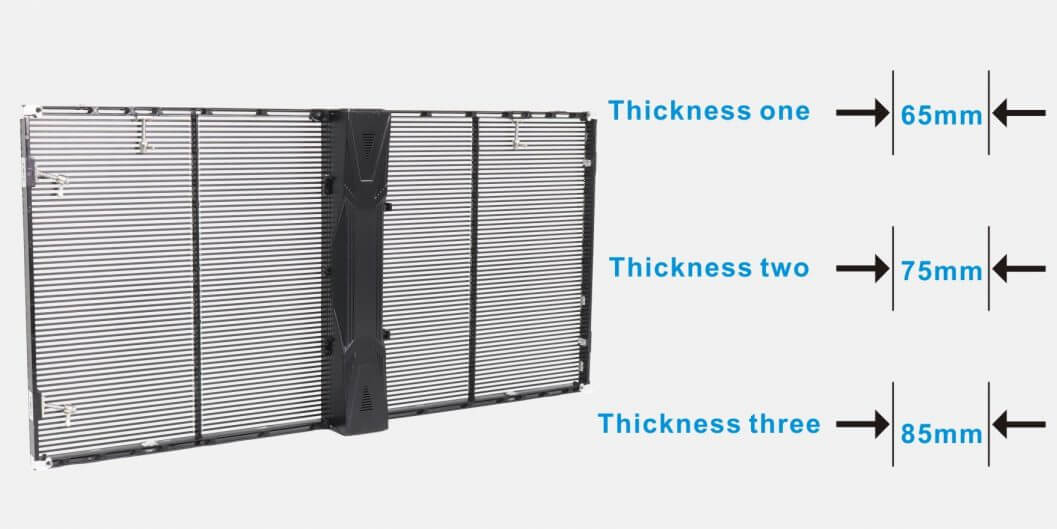

ULTRA THIN

LEEMAN transparent LED display adopts ultra-thin box design, and the thickness is only 65MM, 75MM, 85MM.
The cabinet design is lightweight, easy to transport, excellent flatness and seamless visual sense.

P2.8 P3.9 P7.8 P10 High Transparency Glass Window Transparent LED Screen Film

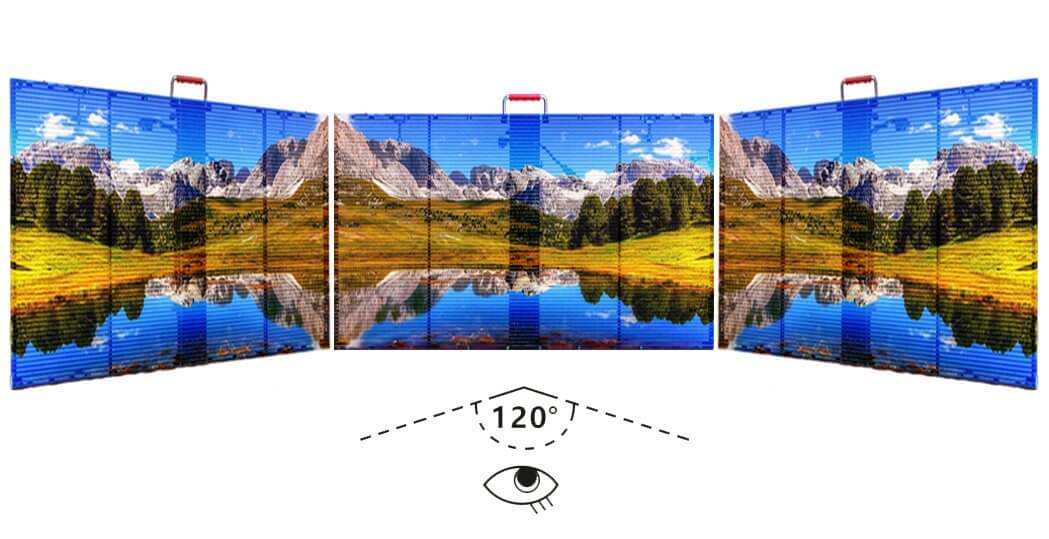

SUPER WIDE VIEWING ANGLE
120° horizontal degree , 120° vertical
degree. No bright and dark lines, perfect visual reproduction.
Reach 90% of the advertising audience.
P2.8 P3.9 P7.8 P10 High Transparency Glass Window Transparent LED Screen Film

Transparent LED Screen

Pixel Pitch (mm)P3.91P7.81P3.91 High BrightnessP3.91 Universal indoor&outdoor
Pixel ConfigurationSMD1921SMD3535SMD1921SMD1921
Density (Pixels/㎡)32,7688,19232,76832,768
Module Resolution (Pixel)64x3232x16128x16128x8
Module Size (mm)250x250250x250500x125500x62.5
Driving Mode (Duty)1/161/41/81/16
Cabinet Size (mm)500x1000500x10001000x5001000x500
Cabinet Weight (KG)7.57.568.5
Brightness (CD/㎡)≥3,500≥6,200≥5,500≥4,800
Transparency70707070
Viewing Angle (°)160160160160
Gray Grade (Bits)16161616
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)400400800560
Avg. Power Consumption (W/㎡)135135220185
Frame Frequency (Hz)≥60≥60≥60≥60
Refresh Frequency (Hz)≥3,840≥3,840≥3,840≥3,840
Working Temperature (ºC)-20~+60-20~+60-20~+60-20~+60
Lifetime (Hours)100,000100,000100,000100,000
Protecting GradeIP45IP54IP65IP65

Indoor 500x500mm Rental LED Display 500C2 Series Parameter

Pixel Pitch (mm)P2.97P3.91P4.81
Pixel ConfigurationSMD2020SMD2020SMD2020
Density (Pixels/㎡)112,89665,53643,264
Module Resolution (Pixel)84x8464x6452x52
Module Size (mm)250x250250x250250x250
Driving Mode (Duty)1/28 1/161/13
Cabinet Size (mm)500x500500x500500x500
Cabinet Weight (KG)6.56.56.5
Brightness (CD/㎡)≥1,000≥1,000≥1,000
Viewing Angle (°)160160160
Gray Grade (Bits)161616
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)480576560
Avg. Power Consumption (W/㎡)160192190
Frame Frequency (Hz)≥60≥60≥60
Refresh Frequency (Hz)≥3,840≥3,840≥3,840
Working Temperature (ºC)-20~+60-20~+60-20~+60
Lifetime (Hours)100,000100,000100,000
Protection GradeIP31IP31IP31
P2.8 P3.9 P7.8 P10 High Transparency Glass Window Transparent LED Screen Film
P2.8 P3.9 P7.8 P10 High Transparency Glass Window Transparent LED Screen Film
