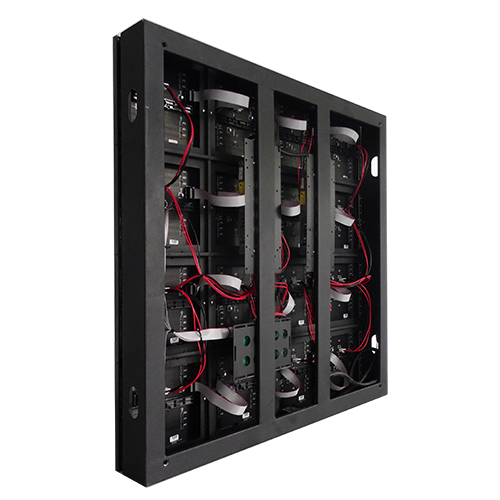

P2 P2.5 Indoor LED Display Module 960×960 with Simple Cabinet

Indoor Full Color LED Video Wall Screen Simple Cabinet Without Back Door

Product introduction |

Ultra thin, ultra light weight with 960x960mm and 17kg weight , small cabinet to handle easily, portable and convenient to installation, assembly and disassembly.

Cabinet Material:Cast Iron&Single Side Design

Application:Die-cast aluminum material made with the features of high precise, high hardness and high strength.


Product Information

LED display module panel dimension is 320X160mm, the module use unique design with Black SMD 2121 LED lamp Encapsulation, High quality with stable performance.

high refresh rate up to 7680hz to realize high contrast, high definition with uniformity color effect. the display is perfect with clear image and visual present.


Strong Visual Impact

Pure black module mask and SMD2121 LED to make the LED display with higher contrast rate. 16 bit color depth to make the LED display with nature color and visual impact, giving viewer immersive feeling.high flatness, seamless connection using fast lock design, no gaps.

P2 P2.5 Indoor LED Display Module 320×160 Product Parameters

Item Parameters
Pixel pitch 2.5mm
LED Type SMD2121 1R1G1B
LED Module Size 320 x 160mm
LED Module Resolution 128 x 64 dots
LED Cabinet Size 960x960x68mm
Cabinet Resolution 384 x 384 dots
Screen Pixel 147,456 dots
Signal Processing  14 – 16 bit
Grey Level 4096 – 65536
Refresh Rate > 3840Hz
Scan Mode 1/16
Brightness >1,000 nits
Viewing Distance > 3.9m
Viewing Angle 160 degree
Input Voltage 110-240V/50-60Hz
Max Consumption 750W/SQ.M
Ave Consumption 225W/SQ.M
Working Temperature -20 degree to 45 degree
Storage Temperature -40 degree to 60 degree
IP Rate IP43
Working Humidity 10% – 60%
Storage Humidity 10% – 90%
Lifespan 100,000 hours
Service Type Front & Rear Service
LED Lamp NationStar
IC ICN2153
Control Card NovaStar / Colorlight
Operation Approach Windows
