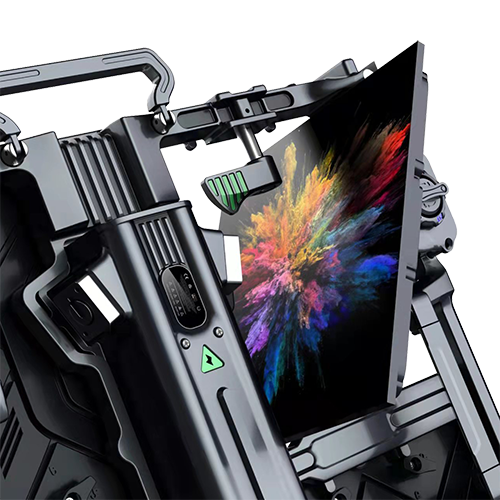

P2.9 Indoor 500X500 Curved LED Cabinet Front Service Rental Led Display Screen

P2.9 Curved 500*500mm Indoor Rental LED Display Cabinet

Product introduction |

Suitable for all kinds of scenarios, can be customized Suitable for all Suitable for all kinds of scenarios.

Cabinet Material:Die-casting Aluminium LED Cabinet.

Application:Those LED products were widely used in both indoor and outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.


250x250mm LED Module

This module is left side and right side compatible and its size is 250mm W x 250mm H. The weight is very light below 560g each.

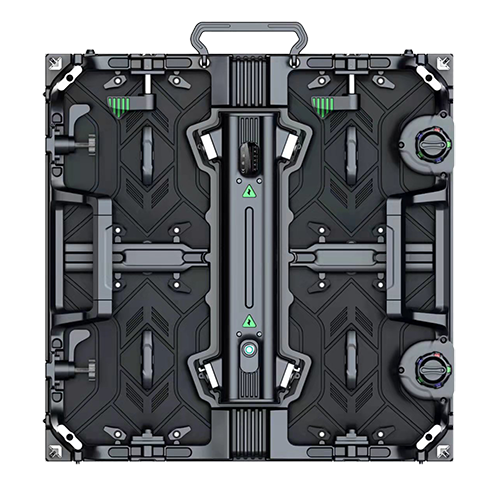

500x500mm LED Cabinet

This cabinet is compatible with P1.953mm, P2.6mm, P2.97mm and P3.91mm three different pixel pitches. 4 x LED modules will be fixed to one 500×500 cabinet, but we also have 500×1000 cabinet to suit some special projects


Reliable LED Solution

This cabinet has a small power supply box, which can be taken off from the main body quickly from the back side. It also has a security locker on each side of the main box. This can save greatly of the lobour for customers.

P2.9 Indoor 500X500 Curved LED Cabinet Product Parameters

Item Parameters
Pixel Pitch 2.97
Pixel Structure 1R1G1B
LED Lamp SMD1515
Resolution 112,896 dots
Module Size 250x250mm
Module Resolution 84×84
Cabinet Size 1 500x500x58mm
Cabinet Size 2 500x1000x58mm
Material Die-casting Aluminium
Scan Mode 1/28
Formality <0.10
Grey Scale 14Bit
IP rate IP45
Service Type Front and rear service
Brightness >1,000 nits
Colour Temperature 3200 – 12000 adjustable
Viewing Angle H140/V120
Contrast Ratio >5,000:1
Drive Mode Constant Drive
Refresh Rate > 3,840Hz
Input Voltage 110-240V
Max Power Consumption <650W
Ave Power Consumption <200W
Working Temperature -20 degree to +80 degree
Working Humidity 10%~95%
Suitable Receiveing Card A5s Plus-N or others
