P3.91 Outdoor 500×1000 Rental LED Display Video Wall

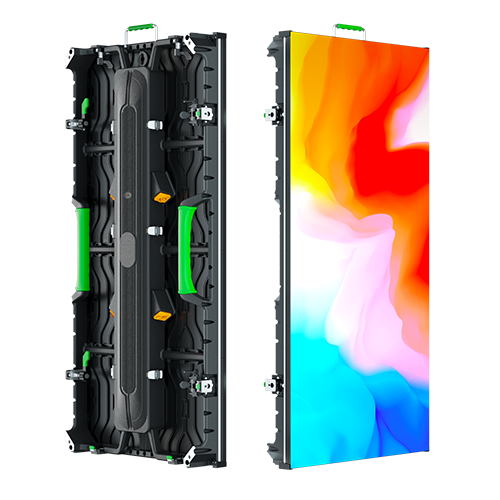

P3.91 Outdoor Rental LED Cabinet 500X500 and 500×1000
Product introduction |
High-precision die casting aluminum material cabinet, extremely light weight, easy to assemble.
Cabinet Material：Cast Iron & Double Sided Design
Application： High-precision die casting aluminum material cabinet, extremely light weight, easy to assemble.

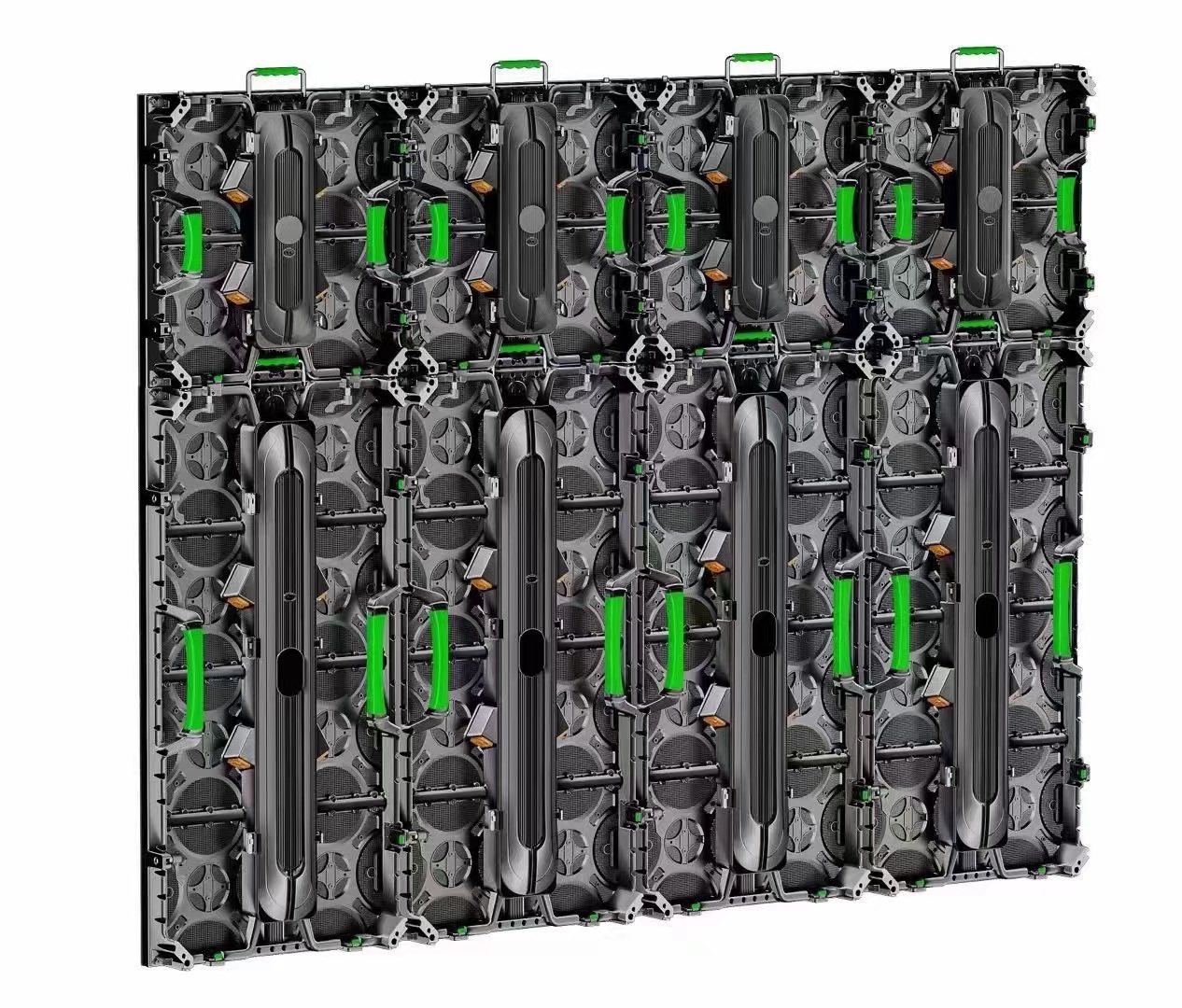

Easy To Install
High-precision die casting aluminum material cabinet, extremely light weight, easy to assemble.
250x250mm module, compatible with P1.5/P1.9/P2.6/P2.98/P3.91/P4.81；Cabinet size 500mm W*500mm H*50mm D, one cabinet 7.5KG very thin and light, quick install.
Perfect Performance
MBI driving IC, refresh ≥3840H, ensures true 16bit gray level. Ensure no deformation of PCB Board, perfect flatness performance. Showing the real and full angle display.
Easy To Install
High-precision die casting aluminum material cabinet, extremely light weight, easy to assemble.
250x250mm module, compatible with P1.56/P2.604/P2.976/P3.9/P4.8 Cabinet size 500mm W*500mm H*50mm D, one cabinet 7.5KG very thin and light, quick install.
Perfect Performance
MBI driving IC, refresh ≥3840H, ensures true 16bit gray level. Ensure no deformation of PCB Board, perfect flatness performance. Showing the real and full angle display.
P3.91 Outdoor 500×1000 Rental LED Display Video Wall Product Parameters
| Item | Parameters |
|---|---|
| Pixel pitch | 3.91mm |
| LED Type | SMD2020 1R1G1B |
| LED Module Size | 250 x 250mm |
| LED Module Resolution | 64 x 64 dots |
| LED Cabinet Size | 500x500x58mm |
| Cabinet Resolution | 128 x 128 dots |
| Screen Pixel | 65,536 dots |
| Signal Processing | 12 – 16 bit |
| Grey Level | 4096 – 65536 |
| Refresh Rate | > 3840Hz |
| Scan Mode | 1/16 |
| Brightness | >5,500 nits |
| Viewing Distance | > 3.9m |
| Viewing Angle | 160 degree |
| Input Voltage | 110-240V/50-60Hz |
| Max Consumption | 750W/SQ.M |
| Ave Consumption | 225W/SQ.M |
| Working Temperature | -20 degree to 45 degree |
| Storage Temperature | -40 degree to 60 degree |
| IP Rate | IP65 |
| Working Humidity | 10% – 60% |
| Storage Humidity | 10% – 90% |
| Lifespan | 100,000 hours |
| Service Type | Front & Rear Service |
| LED Lamp | NationStar |
| IC | ICN2153 |
| Control Card | NovaStar / Colorlight |
| Operation Approach | Windows |
