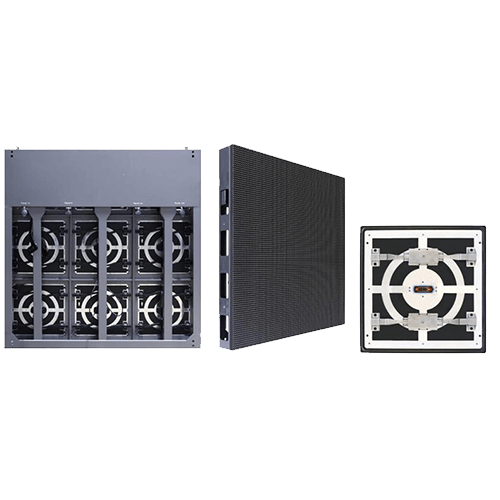

P6.67 Aluminium Outdoor LED Module 320×320 Waterproof IP68
P6.67 Full Front Service IP68 Waterproof Aluminum LED Module
Product introduction |
This is new design of full front service LED modules for outdoor application. It is popular these two years worldwidely.

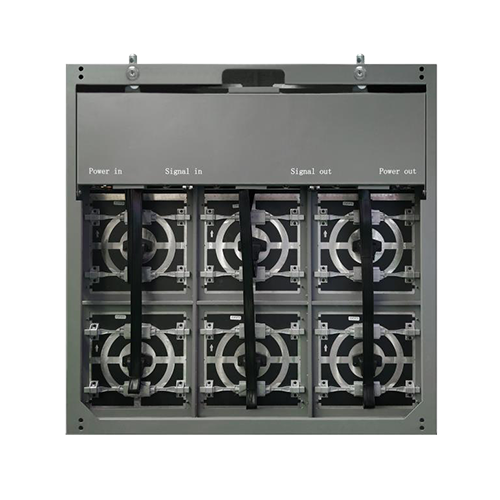

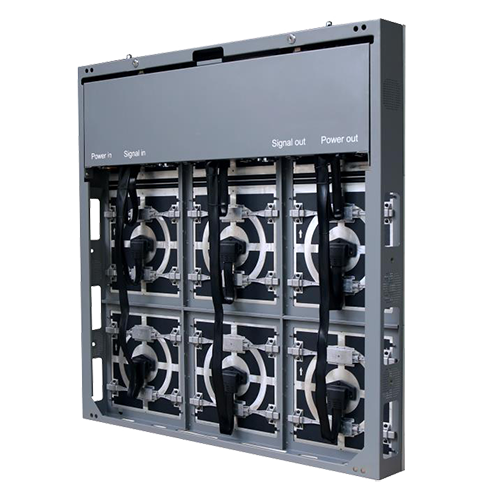

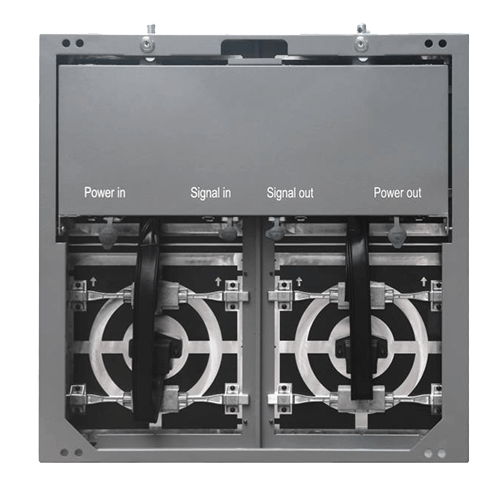

Cabinet Material：Cast Iron & Single Side Design
Application：It is applicable for commercial center, airport, big conference, city’s landmark plaza, exhibition center and other outdoor advertising walls..
Strong Adaptability
This LED display adopts full sealed cast iron cabinet to protect its inner componets and make the display body to withstand extremely high and low temperature. It can work whole day in outdoor environment.
Light weight & Energy-saving

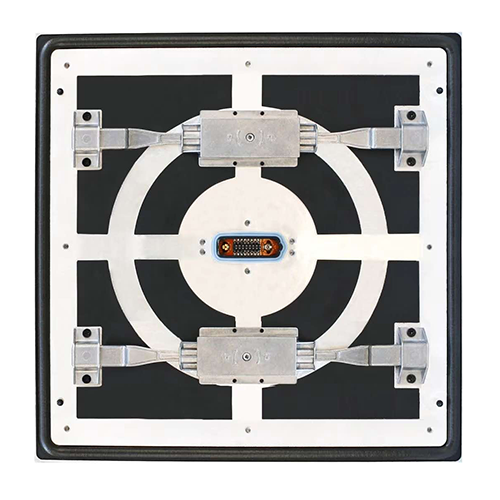

This cabinet is designed to be slim and light weight, which is only 28.5kgs per cabinet 960x960mm. The common cathode aluminum LED module is designed to meet the requirement of outdoor big wall for full front service purpose.
Waterproof IP68 P6.67 Aluminium Outdoor LED Module 320×320 Product Parameters
| Value | P6.67 |
| Pixel Pitch(mm) | 6.67 |
| Pixel Matrix Per Sq.m | 22477 |
| Pixel Configuration | SMD2727 |
| Brightness (nits) | 5500 |
| Scan | 1/6 |
| Module Dimension | 320x320mm / 1.05×1.05ft |
| Cabinet Dimension | 960x960mm / 3.15×3.15ft |
| Cabinet Resolution | 144×144 |
| Cabinet Weight | 37kg / 81Ib ( Iron) |
| Power Con. (Max / Avg) | 800 / 170 w/sq.m |
| Service Access | Front |
| Refresh Rate (HZ) | ≥3840 |
| Grey Scale (bit) | 16 |
| Viewing Angle (H/V) | 140 / 140 |
| IP Rate | IP68 |
| Input Voltage (AC) | 110V / 240V |
