Outdoor LED Advertising Screen Display – A perfect exterior interior wall mounting solution.

Great choice for Outdoor commercial applications, More size options available.


Main Features

Explore more about Diamond DOOH panels.

Light Weight

Seamless Screen

Versatile Platform

Creative Application

Dual Side Service

modules diamond

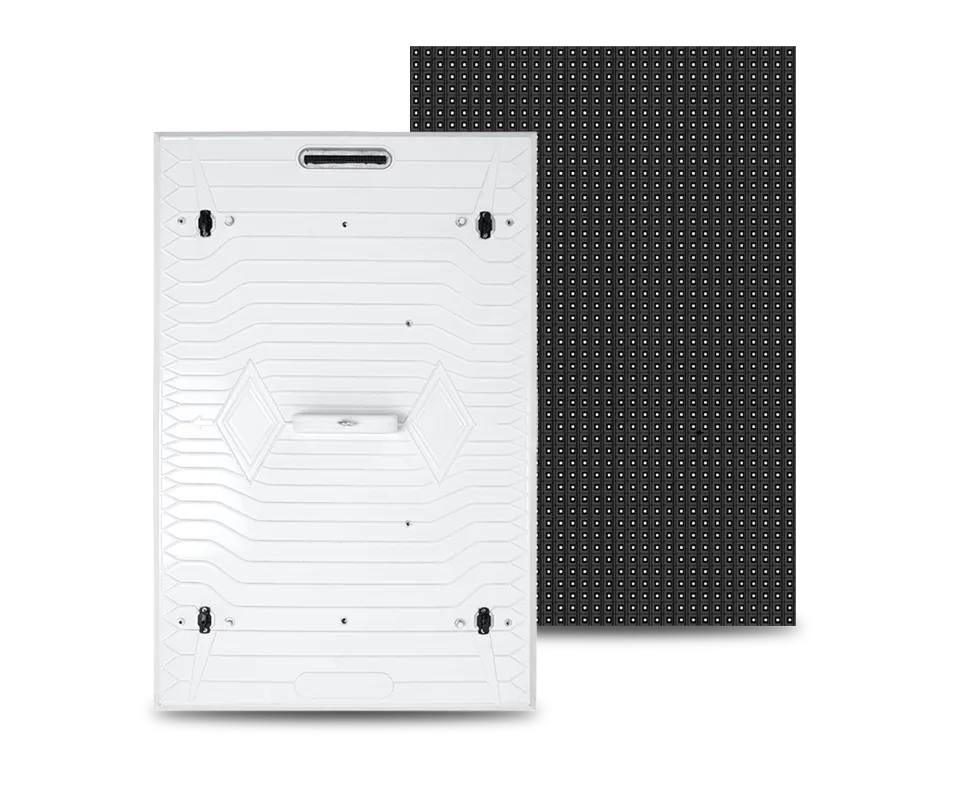

Diecast Aluminum Module Housing - LED Advertising Screen

Moulded diecast aluminum module housing is fire resistance and stronger than regular plastic housing. Aluminum also has better heat conducting rate than other materials, it sufficiently derease heat on the screen and make the screen more stable.

DOOH Diamond series panel size is 960*960mm which can be as a perfect replacement of your existing iron sheet LED screens.

diamond dual service

Diamond DOOH series support both front and rear service which makes it more flexible for different outdoor applications.

Right Angle Options Supported

Diamond LED panels support right angle installation, makes it possible to form outdoor 3D LED wall screens.

ee min min
curved cornerd diamond

Curve Corner Supported - Creative and Customized LED Display

With special curve modules, users can make huge outdoor 3D screens with curved corners.

Invisible Cabling Design

The invisible cable design makes the screen looks simple from rear side, the cable slot design help prevent the cables from sun exposure, anti-insect and rodent.

cable slot
light weigh

Light Weight - LED Screen & Digital Signage Display

Diamond DOOH cabinet was made of aluminum profile, and the module housing are all diecast aluminum, this decreases the cabinet weight a lot, thus save structure cost for our partners.

Energy Saving - 3D Outdoor LED Display Boards

Diamond DOOH series is a green energy product that is 30% lower than conventional LED screen products.

energy green

Things you need to know about Diamond DOOH Series.

Standard Panel Size

Diamond DOOH series is a standard panel size product that can be a perfect replacement for conventional iron cabinet.

3 Years Warranty

All LeemanLED product come with 3 year standard warranty and a warranty extension is available. Certification: UL, ROHS, CE, ETL, EMC, ISO, FCC, CCC.

Dual Service Mode

DOOH Diamond Series supports both front and rear service thus our partner can stock them if need.

Extended Options

Diamond DOOH Series can make outdoor 3D screens with right corner or curved corner with special modules.

Product Parameter

Pixel Pitch 5.7mm 6.67mm 8mm 10mm
Pixel Density/㎡ 30625 22500 15625 10000
LED Configuration SMD2727 SMD2727 SMD3535 SMD3535
Brightness 6,500/8,000nits 6,500/8,000nits 7,500/10,000nits 7,500/10,000nits
Power Consumption/㎡ Max/Avg 780w/400w Max/Avg 750w/245w Max/Avg 750w/245w Max/Avg 480w/200w
Module Dimension 480mm x 320mm 480mm x 320mm 480mm x 320mm 480mm x 320mm
Module Resolution 84 x 56 72 x 48 60 x 40 48 x 32
Panel Dimension 960 x 960mm 960 x 960mm 960 x 960mm 960 x 960mm
Panel Resolution 168 x 168 144 x 144 120 x 120 96 x 96
Panel Weight 28kg/62lbs 28kg/62lbs 28kg/62lbs 28kg/62lbs
Refresh Rate 7,680Hz 7,680Hz 7,680Hz 7,680Hz
Viewing Angle 160°/160° 160°/160° 160°/160° 160°/160°
IP Rate IP65 IP65 IP65 IP65
Input Voltage(AC) 110V / 240V, 50/60 HZ 110V / 240V, 50/60 HZ 110V / 240V, 50/60 HZ 110V / 240V, 50/60 HZ
Operating Temperature -20° ~ 60 ° -20° ~ 60 ° -20° ~ 60 ° -20° ~ 60 °
Grayscale(bit) 14-16 14-16 14-16 14-16
Lifespan(hrs) >100,000(hrs) >100,000(hrs) >100,000(hrs) >100,000(hrs)
Service Access Front/Rear Front/Rear Front/Rear Front/Rear
Data Sheet(pdf)
