Sphere LED Screen for Indoor and Outdoor Advertising
Seamless Connections
Easy Maintenance
Great Gray Scale
Energy Saving
Better Heat Dissipation
Refresh Rate
Innovative Design
Flexible Control
First of all, we applied the latest trapezoidal circuit design that can realize seamless splicing. All the products will be examined by professional QC team before they are delivered.In addition, we have a variety of customized products to satisfy different requests.Furthermore, it is worth pointing out what makes creative LED screen special is its wide viewing angle.
The module and PCB board are made by high precision CNC machine. Our module adopts the circuit design which serves to dissipate heat. And especially thanks to the great design of PCB board, its heat dissipation will be better than that of other products. Therefore, LED Sphere Display can be fully used to replace traditional advertising media tools, for example, TV sets.

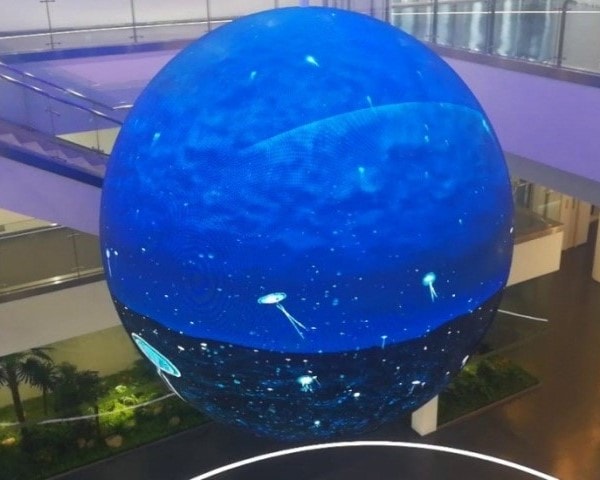

The display supports front access maintenance, effectively reducing down-time. As a complete system, Sphere LED display supports landing installation, lifting installation, embedded installation and so on.Applications: planetarium, exhibition, museum, airport, railway station, shopping mall, bar, etc.
Spherical LED Display can play all-around videos and pictures. It always shows amazing video and picture display effects to our customers. Special PCB design can ensure less distortion of showing picture.
Spherical LED screen can play all-around videos and pictures. It always shows amazing video and picture display effects to our customers. Special PCB design can ensure less distortion of showing picture:
Shopping Mall; Museum; Showroom.
| Item | P2.5 | P3 | P4 |
|---|---|---|---|
| Pixel Pitch | 2.5mm | 3mm | 4mm |
| LED Type | NationStar SMD1515 | NationStar SMD2020 | NationStar SMD2020 |
| Screen Size | customized | customized | customized |
| Pixel Density | 160,000dots/㎡ | 111,111dots/㎡ | 62,500dots/㎡ |
| Driving Mode | 1/24scan | 1/22scan | 1/16scan |
| Minimum Viewing Distance | ≥2.5m | ≥3m | ≥4m |
| Brightness | 800nits – 1,200nits | 800nits – 1,200nits | 800nits – 1,200nits |
| IP Grade | IP43 | IP43 | IP43 |
| Refresh Rate | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz |
| Gray Scale | 16bits～24bits | 16bits～24bits | 16bits～24bits |
| Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° |
| Maximum Power Consumption | 800W/㎡ | 800W/㎡ | 800W/㎡ |
| Average Power Consumption | 230W/㎡ | 230W/㎡ | 230W/㎡ |
| Input Voltage | AC220V～AC110V @ 50Hz / 60Hz | AC220V～AC110V @ 50Hz / 60Hz | AC220V～AC110V @ 50Hz / 60Hz |
| Operating Temperature | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Material | Iron | Iron | Iron |
| Cabinet Weight | 35kg/㎡ | 35kg/㎡ | 35kg/㎡ |
| Operating System | Windows (Win12, Win11, etc.) | Windows (Win11, Win10, etc.) | Windows (Win12, Win11, etc.) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
