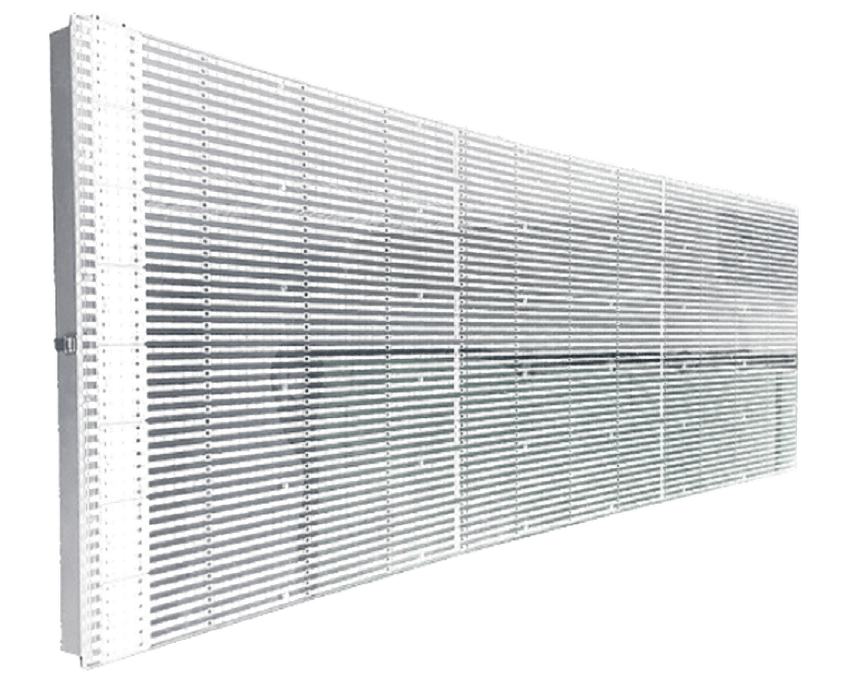

Innovative LED Transparent Glass Display Screen P3.9,P7.8,P10.4,P15.6,20.8
High Transparency
Economical and Eco-friendly
Good Heat Dissipation
Fast and Easy Installation
High Brightness
Light and Slim
Arbitrary cutting
Various Application
Transparency of our Adhesive series transparent LED display is up to 82%, which offers a range of creative applications for the live event and installation market.
66mm cabinet thickness and 7-8kgs weight make adhesive lighter and thinner than most of other transparent LED displays in the market. The modules is covered by PC, which has good heat resistance, high transparency, dustproof and certain waterproof function.
Maximum length of cabinet is up to 2.5m. Maximum length with totally pure transparency is up to 5m. This gives viewers a strong feeling of broader and more transparent vision.
Our Adhesive serie supports arbitrary cutting in cabinet length according to clients’ different needs.
No need structure, fast and easy installation, environment-friendly and energy-saving.
Fully back access is available. There is no need to tear the whole cabinet off the screen when maintaining. Components like modules, power supply, receiving card can be removed from the back separately since they are screwed. It makes the maintenance more convenient and practical.
| Item | P3.9 | P7.8 | P10.4 |
|---|---|---|---|
| Pixel Pitch | 3.9mm (W) / 7.8mm (H) | 7.8mm (W) / 7.8mm (H) | 10.4mm (W) / 10.4mm (H) |
| LED Type | SMD1921 | SMD1921 | SMD1921 |
| Driving Mode | 1/7scan | 1/4scan | 1/2scan |
| Module Size | 1500mm × 62.5mm | 1687.5mm × 62.5mm | 1500mm × 62.5mm |
| Module Resolution | 378dots × 8dots | 216dots × 8dots | 144dots × 6dots |
| Cabinet Size | 1500mm × 500mm x 66mm | 1687.5mm × 500mm x 66mm | 1500mm × 500mm x 66mm |
| Cabinet Resolution | 378dots × 64dots | 216dots × 64dots | 144dots× 48dots |
| Maximum Panel Length | 2.5m | 2.5m | 2.5m |
| Pixel Density | 32,256dots/㎡ | 16,384dots/㎡ | 9,216dots/㎡ |
| Minimum Viewing Distance | ≥3.9 m | ≥7.8 m | ≥10.4 m |
| Transparency | 56% | 48% | 60% |
| Brightness | 3,500-6,000nits | 3,500-6,000nits | 3,500-6,000nits |
| IP Grade | IP30 | IP30 | IP30 |
| Refresh Rate | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz | 3,840Hz～7,680Hz |
| Gray Scale | 13bits～24bits | 13bits～24bits | 13bits～24bits |
| Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° |
| Maximum Power Consumption | 600W/㎡ | 600W/㎡ | 600W/㎡ |
| Average Power Consumption | 200W/㎡ | 200W/㎡ | 200W/㎡ |
| Input Voltage | AC110V～AC220V @ 50Hz / 60Hz | AC110V～AC220V @ 50Hz / 60Hz | AC110V～AC220V @ 50Hz / 60Hz |
| Operating Temperature | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Material | Aluminum +PC | Aluminum +PC | Aluminum +PC |
| Cabinet Weight | 8.75kg/panel | 8kg/panel | 7.25kg/panel |
| Operating System | Windows (Win10, Win12, etc.) | Windows (Win10, Win12, etc.) | Windows (Win11, Win12, etc.) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
