Outdoor LED Screen Advertising UL Certified

UL Recognized Large LED Display Screen for Outdoor Application




High stability


Cable Free






50% Energy Saved


Aluminium Module Case



UL Listed Product Description

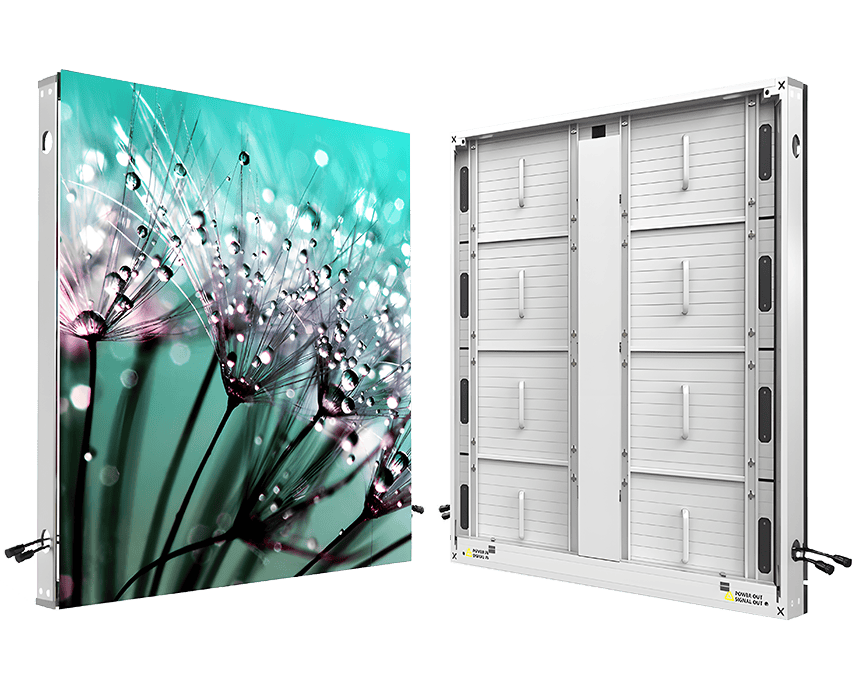

Slim and lightweight design – Outdoor LED Video Panels Manufacturer

The aluminum cabinet is designed to be 28kgs lighter than conventional cabinets in the market. Lighter cabinets provide more convenience for installation. 1m by 1m panel size can be easily assembled into big screen of different dimensions. In order to fit some special screen areas, we can also make other panel sizes. 1m(w) x 1m(h), 1.5m(w) x 1m(h), 1m(w) x 0.5m(h),1.5m(w) x 0.5m(h), 90mm thickness 28.5kgs weight The pixel pitch P2.6, P2.9, P3.9, P4.8, P6.2, P7.8 and P10.4 are available.


Better heat dissipation – Large Outdoor LED Display Signs Factory

All aluminum material is more durable and highly stable than traditional steel one. Meanwhile, heat dissipation of aluminum is much better than others in the market. As the electronic components can be cooled down quickly, their lifespan will be longer.


Cable free with dual sockets – Outdoor Commercial LED Display Signage

This design doesn’t require the ribbon cable, so the signal connection of the modules is much better than common designs in the market. What’s more, we use signal pin dual sockets which is easy to replace modules. There is no need to confuse about the direction.


Extremely Protective Method: IP68 LED Screen Solutions Outdoor

The LED screen in outdoor scenes will face more challenges than the indoor ones such as the damage of dust and water. To make the LED screen function safely and stably in outdoor scenes, we adopt advanced protective methods to withstand heavy rain and strong winds for a long time. The IP68 design can isolate electronic parts from humidity and dust, so the screen is more reliable.


Fast front access Outdoor LED Digital Display Panels

Front access design which is more convenient for installation. The concise structure and light weight are designed to reduce the pressure of construction and transportation. The modules, power supply, receiving card, and other components can be disassembled from the front, which is convenient for the maintainer to maintain the LED screen. At the same time, traditional rear maintenance is also supported. You could choose anyone according to the actual situation.


Energy conservation – Outdoor LED Video Displays

1) Maximum power consumption: 550W/sqm. The maximum power consumption of other products in the market is 800 w/sam, while that of our products is only 550 w/sqm. The dual power supply design saves half power consumption, which is superior to the traditional use.

2) Two brightness options: 6500nits and 10000nits. 6500nits brightness: the product can work properly for more than 5 years with a 3-year warranty 10000nits brightness:the screen can work properly for more than 8 years with a 5-year warranty.


Application Fields – Certification: UL, CE, EMC, ROHS, ETL, FCC, ISO.

To fit every different scene, our products utilize superior materials with the concise and strong structure, and various installation methods make it flexible and easy to apply. This product is usually used in.

Truck Trailers; Scoreboards; Digital Out Of Home(DOOH).



Item P2.9 P3.91 P4.8
Pixel Pitch  2.9761mm 3.906mm 4.807mm
LED Type  NationStar Gold Wire SMD1415 NationStar Gold Wire SMD1921 NationStar Gold Wire SMD1921
Module Resolution  168dots × 84dots 128dots × 64dots    104dots × 52dots
Driving Mode  1/14scan 1/16scan or 1/8scan 1/7scan
Module Pixels  14,112dots 8192dots 5408dots
Module Size  500mm x 250mm 500mm x 250mm 500mm x 250mm
Cabinet Size  1000mm x 1000mm  1000mm x 1000mm  1000mm x 1000mm
Cabinet Resolution  336dots x 336dots 256dots x 256dots 208dots x 208dots
Pixel Density  112,896dots/m² 65,536dots/m² 43,264dots/m²
Minimum Viewing Distance  ≥2.9 m ≥3.9 m ≥4.8 m
Brightness  5,500nits~10,000nits 6,500nits~10,000nits 6,500nits~10,000nits
IP Grade  IP68 IP68 IP68
Refresh Rate  3,840Hz~7,680Hz 3,840Hz~7,680Hz 3,840Hz~7,680Hz
Gray Scale  16bits~24bits 16bits~24bits 16bits~24bits
Viewing Angle  H:160° / V:160° H:160° / V:160° H:160° / V:160°
Maximum Power Consumption   550W/m² 800W/m² 800W/m²
Average Power Consumption 150W/m² 265W/m² 265W/m²
Input Voltage  AC110V – AC220V @ 50Hz/60Hz AC110V – AC220V @ 50Hz/60Hz AC110V – AC220V @ 50Hz/60Hz
Operating Temperature  ﹣20℃~65℃ ﹣20℃~50℃ ﹣20℃~50℃
Operating Humidity 10%~90% 10%~90% 10%~90%
Cabinet Material Aluminum Aluminum profile Aluminum profile
Cabinet Weight  28kg/sqm 30kg/sqm 30kg/sqm
Operating System  Windows (Win10, Win12, etc.) Windows (Win10, Win12, etc.) Windows (Win10, Win12, etc.)
Signal Source Compatibility  DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
