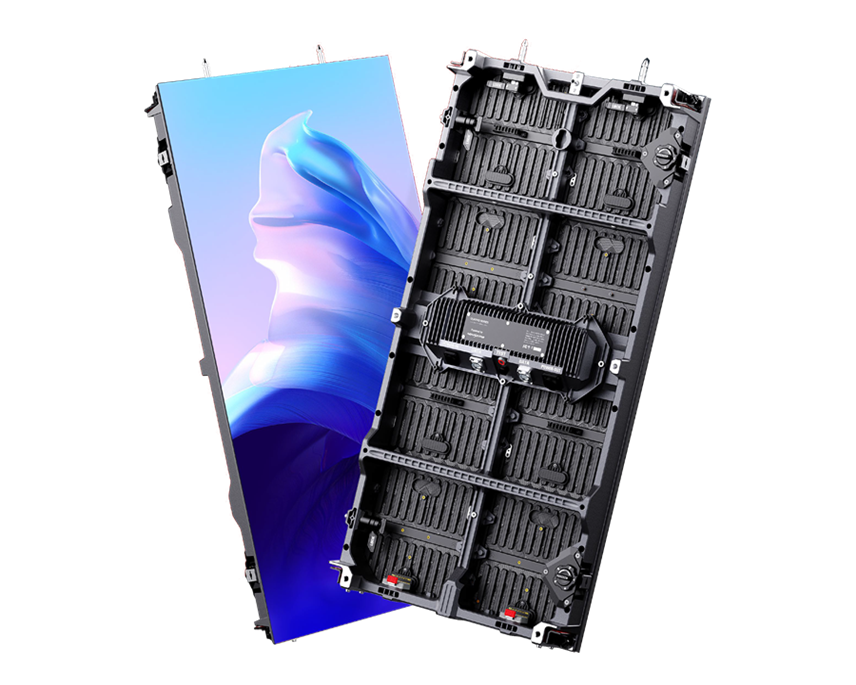

High-quality XR LED Display TV P1.9, P2.6, P2.9

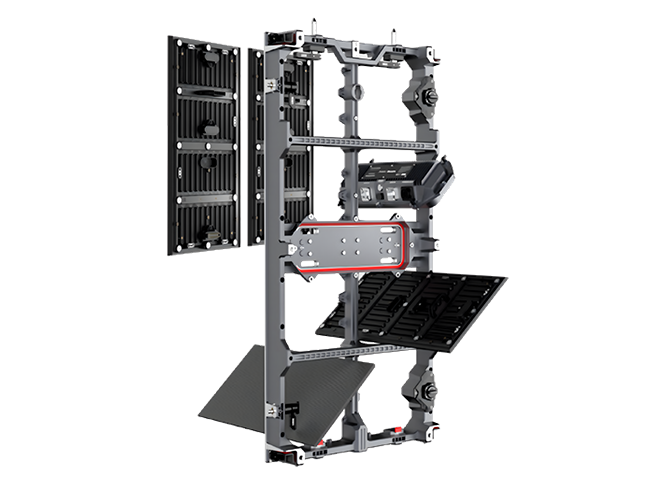

To meet different needs of live events projects, our XR Max series use front and rear module maintenance design. If there is any problem with the LED panel, you can replace the module in a few seconds. That greatly reduces the “downtime” during the event.
The pixel pitch P1.953, P2.604, and P2.976 are available.

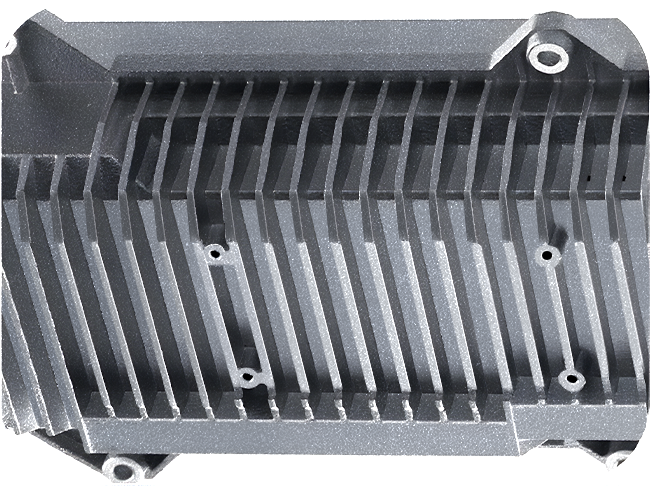

The thermal properties of the PSU (the house is comprised of a big cool plate & a whole chassis) rapidly dissipate heat, reducing power consumption and improving component operations.
Smart latch for tighter assemble with no gap. Curveable latch for multi-shaped design. Anti-collision protectors of the cabinet protect the modules and the LED lamp. Captive and toolless design for tightening the thermal properties & easier installation and replacement.
The high refresh rate ensures the smoothness of every frame of the images, thus the LED display won’t appear flicking on the highspeed camera.

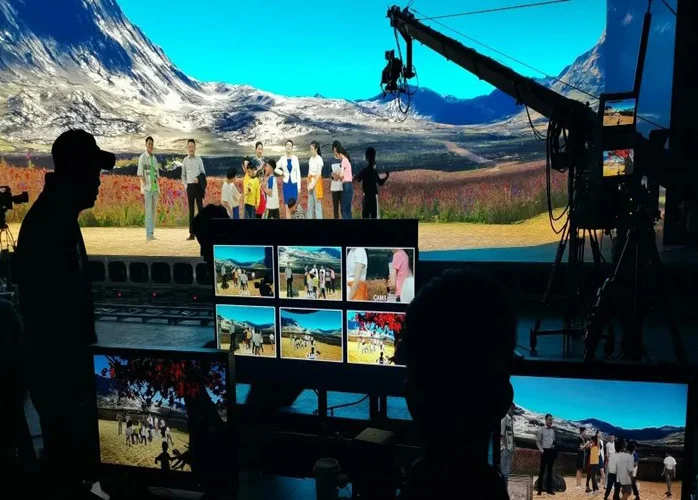

Our XR Max series have been specifically developed for used in film & TV industries as well as extended reality applications. Premteco’s intelligent electronnic design capabilities performed acritical role in the XR’s high-performance abilities, creating a display that is meticulously close to real-life imagery.

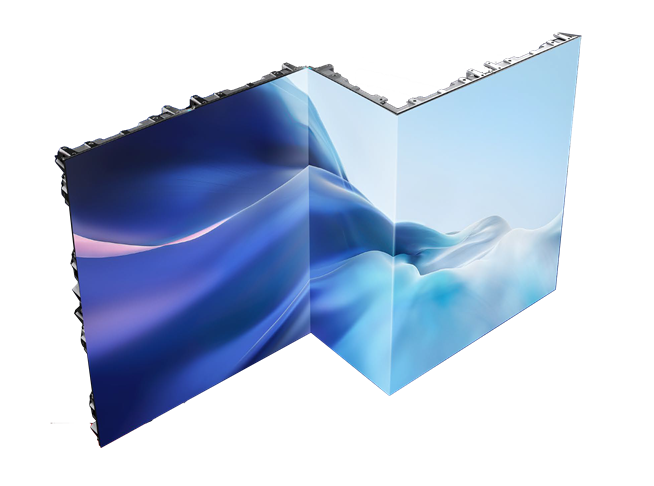

Our XR Max series allow you to realize many creative solutions. In addition to standard designs, panels of VR Max series can curve, be ceiling mounted, at right angles, let your imagination be the solution.

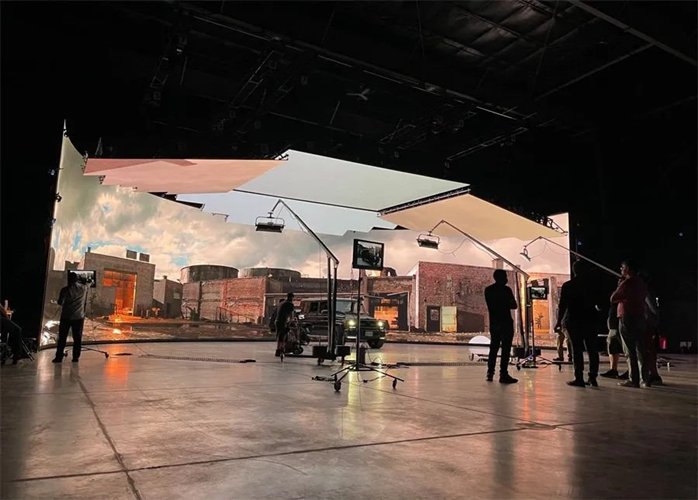

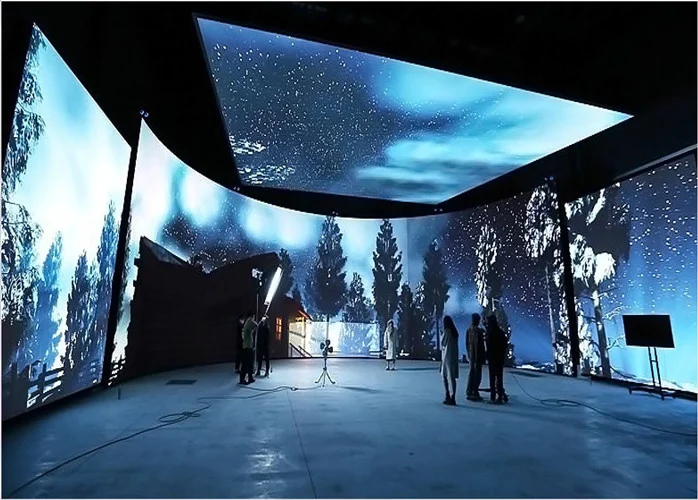

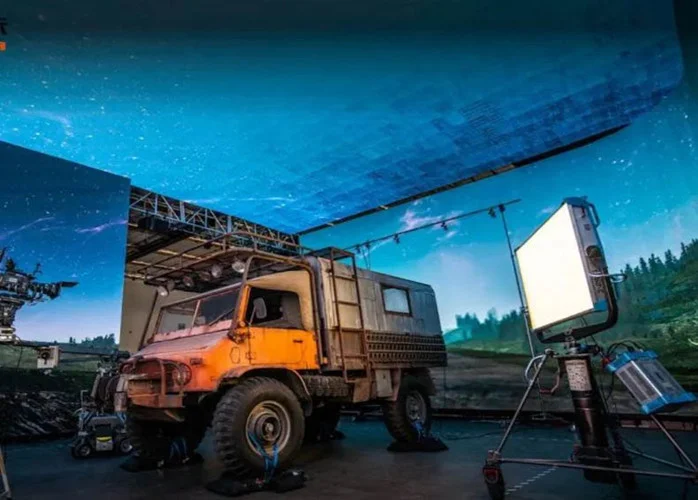

Virtual Production Led Wall Film Studio Filming Green screen video display visual effects led panel for virtual production To fit every different scene, the outdoor full color LED display is made up of superior quality materials with the concise and strong cabinet. This product is usually used in:

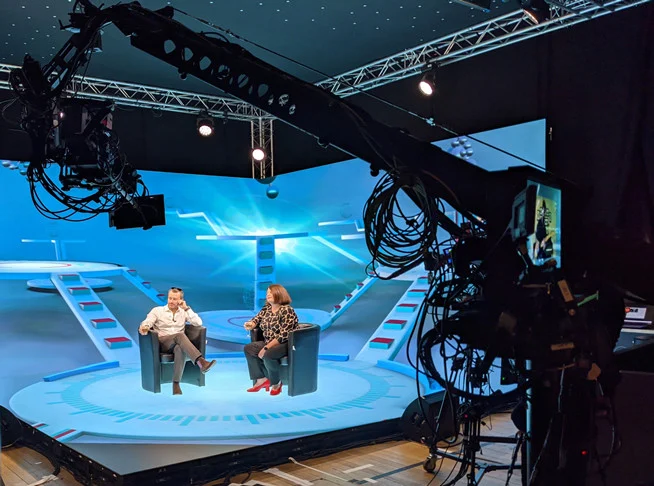

Program; Show; Film Studio.
Item | P2.6 | P2.9 |
---|---|---|
Pixel Pitch | 2.604mm | 2.976mm |
NationStar LED | SMD1515 | SMD2020 |
Module Resolution | 96dots x 192dots | 84dots x 168dots |
Driving Mode | 1/16scan | 1/14scan |
Module Pixels | 18,432dots | 14,112dots |
Module Size | 250mm x 500mm | 250mm x 500mm |
Cabinet Size | 500mm x 1,000mm | 500mm x 1,000mm |
Cabinet Resolution | 192dots x 384dots | 168dots x 336dots |
Pixel Density | 147,456dots/㎡ | 112,896dots/㎡ |
Minimum Viewing Distance? | ≥2.6 m | ≥2.9 m |
Brightness | ≥1200nits | ≥1500nits |
IP Grade | IP30 | IP30 |
Refresh Rate | 7,680Hz | 7,680Hz |
Gray Scale | ≤18bits | ≤18bits |
Frame Frequency | 256Hz | 256Hz |
Viewing Angle | H:160° / V:160° | H:160° / V:160° |
Maximum Power Consumption | 420W/㎡ | 420W/㎡ |
Average Power Consumption | 140W/㎡ | 140W/㎡ |
Input Voltage | AC110V~AC220V @ 50Hz / 60Hz | AC110V~AC220V @ 50Hz / 60Hz |
Operating Temperature | ﹣20℃~65℃ | ﹣20℃~65℃ |
Operating Humidity | 10% - 90% | 10% - 90% |
Cabinet Material | Die-casting Magnesium | Die-casting Magnesium |
Cabinet Weight? | 12kg/panel | 12kg/panel |
Operating System? | Windows (Win10, Win12, etc.) | Windows (Win10, Win12, etc.) |
Signal Source Compatibility? | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
96*96 dots/module
250*250mm Panel
500*500mm
Indoor Display
84*84 dots/module
250*250mm Panel
500*500mm
Indoor Display
64*64 dots/module
250*250mm Panel
500*500mm
Indoor & Outdoor Display
52*52 dots/module
250*250mm Panel
500*500mm
Indoor & Outdoor Display
