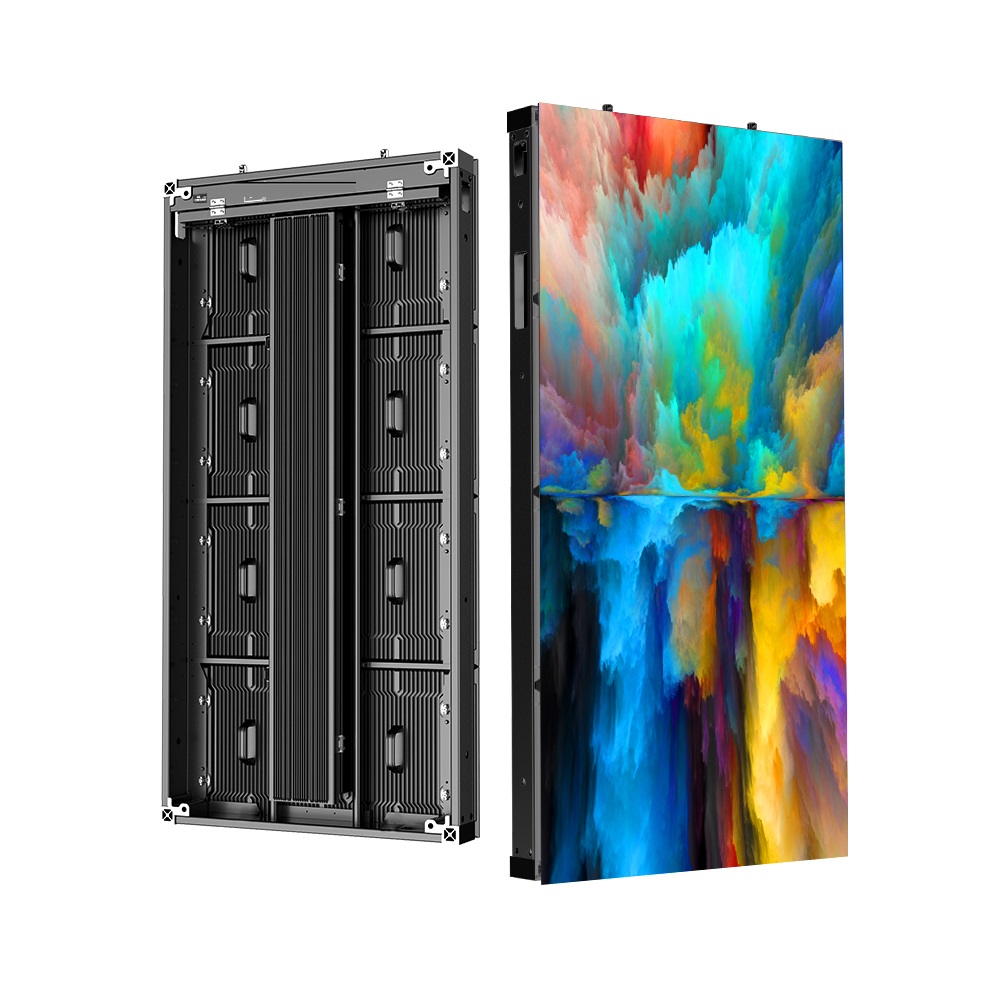

500×1000 Platinum P2.6 P2.9 P3.9 P4.8 Outdoor Fixed LED Display Screen PRO Series

OUTDOOR HD Curved Corner LED Screen



VIDEO

20220531084538765
Customized Design

Support customized 90 degree right angle LED screen or Curved LED screen,make whole screen seamless splicing

20220531084441740-1

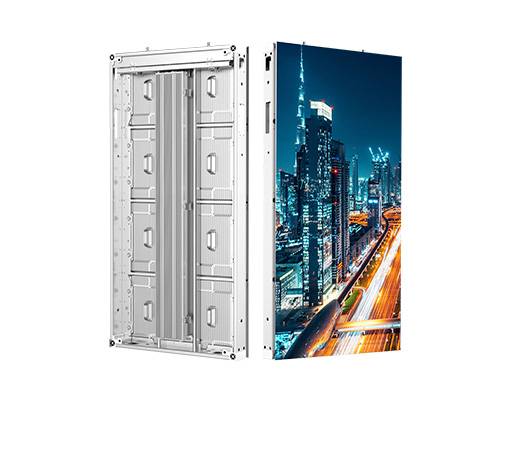

Saving Transportation Costs & Supporting Structure Costs

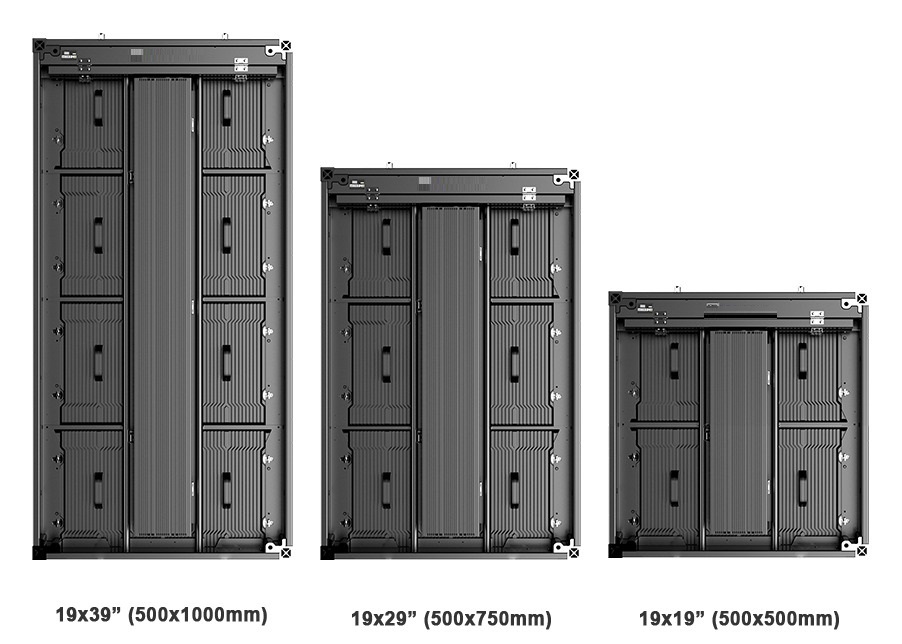

Platinum Series Outdoor Fixed DOOH LED Display Flexible Size 500mm*1000mm 500mm*750mm 500mm*500mm Light Weight Weight: 24KG/㎡ Thickness: 80mm

Platform Design

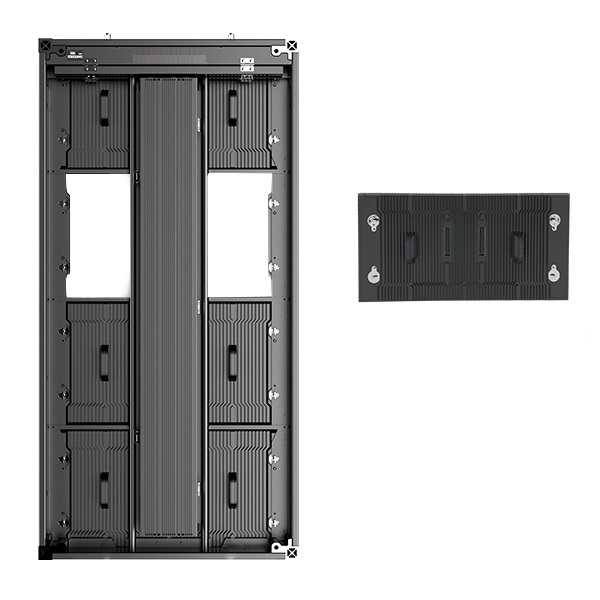

Shareable Components HUB and Power supply Same Panel Design Easy to make the stock and renew the screen Various Pitches 1.9mm 2.6mm 2.9mm 3.9mm 4.8mm

500×1000 Platinum P2.6 P2.9 P3.9 P4.8 Outdoor Fixed LED Display Screen Solution Fast cooling technology

Best Platinum Series Outdoor LED Module and Power supply increase heat loss area with heatsink, so as to achieve the best cooling effect. Metal material up to 90%. Don’t contains Any Plastic.

Energy Saving

Thanks to the updated PCB, ICs and power supply design, energy-saving than traditional outdoor screens;

SPECIFICATIONS
Model    LM-Pro ( P3.91)    LM-Pro  ( P4.81 )
Pixel Pitch (mm) 3.91 4.81
Brightness(nits) 5000~6500 5000~6500
Refresh Rate(hz) ≥3840 ≥3840
Cabinet Size(mm) 500*500 | 500*750 | 500*1000 500*500 | 500*750 | 500*1000
Cabinet Material Aluminum Aluminum
Power Consumption(Max/Aver.)w/㎡ 650/195 650/195
Cabinet Resolution Pixels 128*256 104*208
Pixel Density Pixels(㎡) 65410 43222
Maintenance Type Front & Rear
Note: For more product materials, please contact us directly.
