ES960-B Outdoor Energy Saving LED Commercial Advertising Display Screen 960×960
ES960 (320*320mm Module)

960X960 Outdoor Energy Saving LED Display Magnesium alloy cabinet design, naked eye 3D Energy Saving LED Screen, Standard size cabinet with 960*960mm dimension, 320mm*320mm module size. high flatness, easy to install and disassemble

Platinum Series Energy Saving NationStar Gold Wire LED Display 960X960 High Brightness 10000nits
MAGIC500 Front Service Outdoor Rental LED Display 500mmx500mm
MAGIC500 Front Service Outdoor Rental LED Display 500mmx500mm
MAGIC500 Front Service Outdoor Rental LED Display 500mmx500mm
ES960 Series Energy Saving Commercial LED Advertising Screen 960×960
Platinum Series Energy Saving NationStar Gold Wire LED Display 960X960 High Brightness 10000nits
MAGIC500 Front Service Outdoor Rental LED Display 500mmx500mm
MAGIC500 Front Service Outdoor Rental LED Display 500mmx500mm
ES960 Series Energy Saving Commercial LED Advertising Screen 960×960
Energy Saving LED Screen

ES960-B Series Energy Saving LED Display is LEEMAN Display latest outdoor energy saving LED screen, the displaty cabinet size is 960*960mm dimension,
the led display module size is 320*160mm. ultra low heat and has excellent performance in improving energy efficiency and environment protection.

PRODCUT FEATURES

1. Using R / GB to separate power supply, current is accurately distributed to the lamp beads, reducing power consumption.
2. Reduce the temperature, no need for air conditioning, save cost.
3. Reduce power consumption, save electricity and energy, reduce costs greatly.
4. Uniform heat distribution, constant color temperature, no color deviation, no color block, good consistency.
5. The screen cabinet has low heat, which is about 16 ℃ lower than the common LED display product

Common Cathode LED display

LEEMANDISPLAY ES960 series 960X960 Outdoor Energy Saving LED Display is power supplied separately with R and GB, which means that the voltage and current are accurately distributed to the red, green and blue lamp beads. The current passes through the lamp beads and then to the negative electrode of the IC. The separate power supply scheme effectively reduces the power consumption and greatly reduces the heat generated during the operation of the display screen.

Perfect Structure

LEEMANLED ES960 Series energy saving LED display is made by hard magnesium alloy cabinet, fashion design and top class product structure for better heat dissipation and low heat. The heat of the display is uniform, the color temperature is constant, and no color block in the display at all, and the picture display effect is excellent. energy consumption is maximized without reducing LED display brightness and contrast .

ES960-B Outdoor Energy Saving LED Commercial Advertising Display Screen 960×960

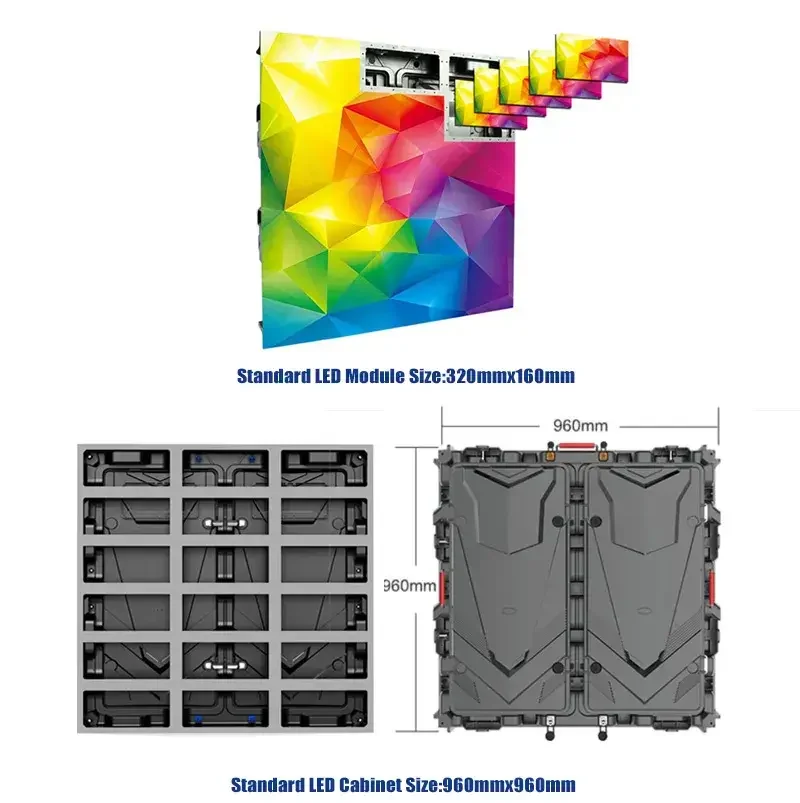

Standard Size Cabinet

960*960mm standard cabinet design with 320*320mm LED module panel. the led module features frontal service

ES960-B Outdoor Energy Saving LED Commercial Advertising Display Screen 960×960
Accurate cabinet alignment, high precise assembly

LEEMAN LED Equipped with Leeman’s unique lock, the position of each cabinet can be precisely adjusted from Six directions, left or right, up or down, front or back,
every cabinet can be positioned to the exact place with accuracy to millimeter, presenting a ultraflat and seamless cabinet alignment.

Pixel PitchP4mmP5mmP5.926mmP8mmP10mm
NationStar LEDSMD1921SMD2727SMD2727SMD3535SMD3535
Module size320*160mm
Module resolution (dot)80*4064*3254*2740*2032*16
Density6250040000284761562510000
LED Cabinet Size960*960mm (Customized Size Available)
Cabinet Weight26kg/Aluminum LED Cabinet
MaterialAluminum
Brightness>6000 nits>6500 nits>6800 nits>6500 nits>6500 nits
Avg power consumption360W360W280W240W240W
Max power consumption650W650W580W550W550W
Best Viewing Distance4-40m5-55m6-60m8-80m10-100m
Fresh frequency3,840Hz - 7,680Hz
Protective gradeWaterproof IP65 Front and Back
Maintain WayRear Service
Scan Method1/16S1/8S1/7S1/5S1/2S
CertificatesUL,EMC,CE,RoHs,FCC
Warranty3 Years Warranty
ES960-B Outdoor Energy Saving LED Commercial Advertising Display Screen 960×960
Outdoor Energy Saving LED Commercial Advertising Display Screen 960×960
