Front Maintenance Slim Outdoor LED Display P4 P5 P6.67 P8 P10
Front Maintenance Slim Outdoor LED Display P4 P5 P6.67 P8 P10

Slim Shape

Fanless Design

5,000 ~ 10,000nits

1,920 ~ 3,840Hz

Light Weight

Die-Casting Magnalium

13bits ~ 16bits

High-quality PCB

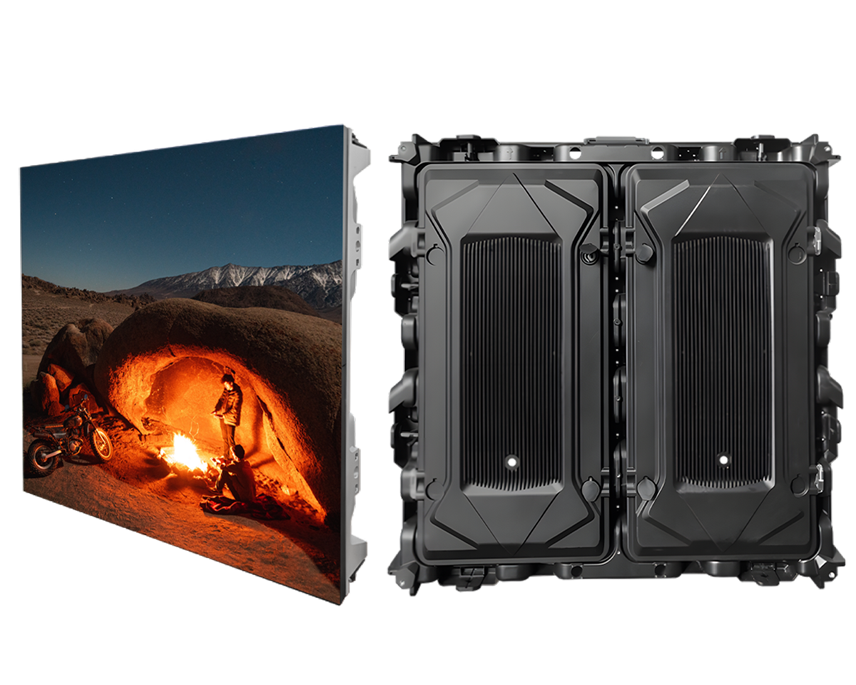

Ultra-Thin and Light Outdoor Fine-pitch LED Display Die-Casting Magnalium Cabinet

The LeemanDisplay LED display has become popular in the field of outdoor advertising. To make this product stable and reliable, we have carefully selected high-quality materials and built the cabinet with die-casting magnalium. Out of consideration for clients’ requests and different application scenes, the shape and size of our LeemanLED are slim and concise. It aims at slim type outdoor advertising and outdoor digtial signage. The pixel pitches are P4, P5, P6.6, P8, P10, and P16.

320X320 Waterproof LED Module P6.67 Outdoor Front Service LED Display Slim Design, Light Weight

The concise cabinet and light weight are designed to reduce the pressure of constructions and transportation. The cabinet is die-casting magnalium. The screen only weighs 29.5kgs per cabinet. Meanwhile, the die-casting cabinet looks neat and elegant.With front access design, all components, such as power box, receiving card and other accessories, can be removed from the front. You don’t need to leave any space in the back of the LED cabinet.

P10 Outdoor SMD Dual Service 320mmx320mm LED Module Fanless Design, Better Heat Dissipation

Thanks to the die-casting magnalium shell of cabinets, the Leeman LED video wall is capable of dissipating heat without fans or air conditioners. This design will also reduce weight and save energy. Meanwhile, the die-casting magnalium shell will segregate heat from outside and protect the inner modules. Thus, the screen will function more stable. There is no fan on the cabinet. That means the outside dust and humidity will not be sucked into the cabinet because of the running fans, which increases the waterproof and dustproof grades. Meanwhile, the heat sink strips are on the cabinet door, which helps to dissipate the heat faster.

Outdoor Front Access Die Cast Aluminum Cabinet LED Screen 960×960 Low Power Consumption

We use customized PCB and power supply, so average power consumption is less than 150W/㎡. Compared with the similar products in the market, the display saves 20% energy.

Outdoor Die-casting Aluminum LED Display 960×960 Superior Visual Effects

Our outdoor digital signage has high brightness(5,000 ~ 10,000 nits), ultimate refresh rate (1,920Hz-3,840Hz), and high gray scale (13bits-24bits). Wide horizontal and large viewing angles of our LED signage is up to 160°.

P4 HD Outdoor IP65 Die-casting Aluminum Led Display Cabinet 960x960mm Stable Performance

Thanks to the adoption of high-quality standard material for the screens, such as superb power supply, driving IC, and LED, the screen is able to work properly for more than 8 years.

This product is usually used in:

Stages; Sports Events; Shopping Center.





Parameter

ItemP4P5P6.6P8
Pixel Pitch4mm5mm6.667mm8mm
LED TypeSMD1921SMD1921SMD2727SMD2727
Module Resolution80dots × 40dots64dots × 32dots48dots × 48dots40dots × 40dots
Driving Mode1/10scan1/8scan1/6scan1/5scan
Module Pixels3,200dots2,048dots2,304dots1,600dots
Module Size320mm × 160mm320mm × 160mm320mm × 320mm320mm × 320mm
Cabinet Size960mm × 960mm × 110mm960mm × 960mm × 110mm960mm × 960mm × 110mm960mm × 960mm × 110mm
Cabinet Resolution240dots × 240dots192dots × 192dots144dots × 144dots120dots × 120dots
Pixel Density62,500dots/㎡40,000dots/㎡22,500 dots/㎡15,625dots/㎡
Minimum Viewing Distance≥4m≥5m≥6m≥8m
Brightness6,000nits~7,000nits6,000nits~6,500nits5,500nits~6,500nits5,000nits~5,500nits
IP GradeIP65IP65IP65IP65
Refresh Rate1,920Hz~3,840Hz1,920Hz~3,840Hz1,920Hz~3,840Hz1,920Hz~3,840Hz
Gray Scale13bits~24bits13bits~24bits13bits~24bits13bits~24bits
Viewing AngleH:160° / V:160°H:160° / V:160°H:160° / V:160°H:160° / V:160°
Maximum Power Consumption800W/㎡800W/㎡800W/㎡800W/㎡
Average Power Consumption280W/㎡280W/㎡280W/㎡230W/㎡
Input VoltageAC220V~AC110V @ 50Hz / 60HzAC220V~AC110V @ 50Hz / 60HzAC220V~AC110V @ 50Hz / 60HzAC220V~AC110V @ 50Hz / 60Hz
Operating Temperature﹣20℃~65℃﹣20℃~65℃﹣20℃~65℃﹣20℃~65℃
Operating Humidity10%~90%10%~90%10%~90%10%~90%
Cabinet MaterialDie-casting MagnesiumDie-casting MagnesiumDie-casting magnaliumDie-casting magnalium
Cabinet Weight29.5kg/㎡29.5kg/㎡29.5kg/㎡29.5kg/cabinet
Operating SystemWindows (Win7, Win8, etc.)Windows (Win7, Win8, etc.)Windows (Win7, Win8, etc.)Windows (Win7, Win8, etc.)
Signal Source CompatibilityDVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
