COB LED Screen Video Wall

Indoor Fine Pitch LED Display P1.2, P1.5, P1.6


Utral-thin cabinet


Seamless connection


More Creativity




High Quality Material


High Quality PCB


Excel flatness


Stunning Vision

Product Description

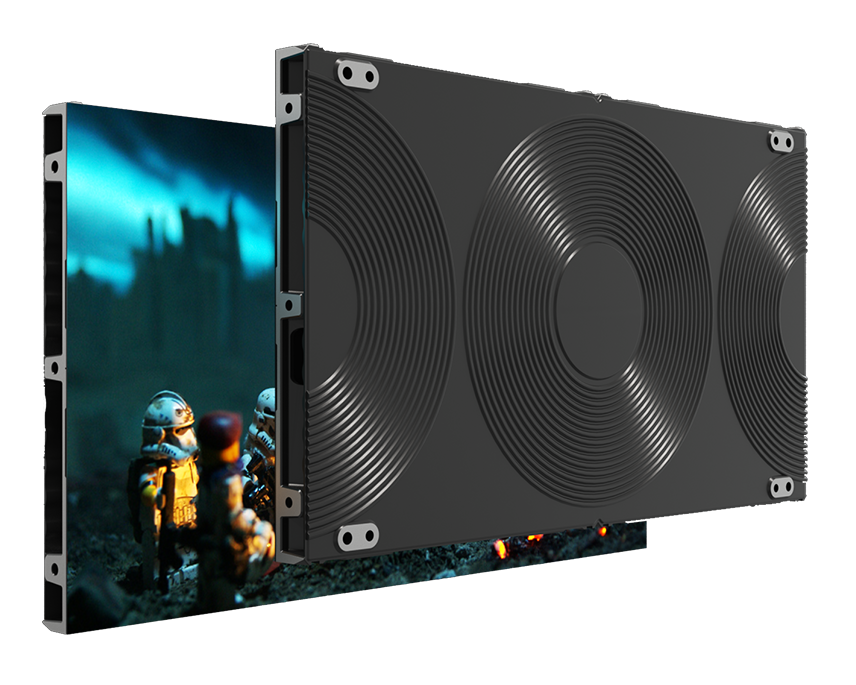

Light and thin Cabinet – Indoor LED Screens


Thickness: 32mm; Weightness: 4.5kg/panel

Compared with the same type of products on the market, the box is 40% lighter in weight, easy to install, saving transportation and installation costs.


Freewill splicing – LED Video Wall Panels


600×337.5mm cabinet; 300×337.5mm cabinet.

Two cabinet sizes can be perfectly matched with each other.


Flexible installation: it can apply to any place

Type 1: wall-mounted screen It supports direct wall-mounted installation and double-side screen


Type 2: Column screen the smallest size is 600x600mm


Type 3: Curved screen the range of curve is 90°-180°


Fully front access Flip-chip COB LED Display

Such maintenance way can better protect the product against dust and lower damage to electronic components and PCB boards;


Power and Signal redundancy

We have reasonale space to support two power supply and two receiving cards.This design ensures the operation of cabinets, since when there is something wrong with one of the power supplies or receiving cards, the other one will take charge in the operation.


Fanless design – Mini LED Display and Micro LED Screen

The aluminum back shell dissipates heat better, no-fan design can reduce resonant noise caused by the fan and the air conditioner. It also reduce electricity consumption caused by the extra fan.


“Invisitable” cable – Flip chip COB technology of Leeman LED Display

The power and signal cables are hidden inside the cabinet to avoid accidental damage to the cable and keep the whole screen tidy. Integration of connector, data and power supply , it only needs one step to conect the power supply and signal


16 bits grayscale, 7680Hz refresh rate

16-bit grayscale, it brings excel visual effect to the whole screen, every detail can be displayed clearly. 7680Hz refresh rate, ensuring each clip is clear and smooth, and restore the best visual experience.


Tighter connection between cabinets

The cabinets are held together by position pins and two screws with coaxial function for a tighter connection.


All in one conference screen can be realized – COB LED DISPLAY VS SMD LED DISPLAY

Full-process solution: Our SP1 PRO supports LED all-in-one machine, making it not only a screen, but also the center of the conference. Taking into account all aspects of pre-meeting reservations, in-meeting collaboration, and post-meeting settlement in medium and large meetings, this provides a smooth and efficient meeting experience


Application Files


Conference room; Exhibition; Control room; Airport. Certification: UL, CUL, ETL, FCC, CE, ENEC, ROHS, LVD, EMC, VDE, E/e, Mark SAA, EK, PSE, CSA, ISO, cTUVuS, CB, KC, CCC, RHS, REACH



Item P1.25 P1.56 P1.875
Pixel Pitch 1.25mm 1.56mm 1.875mm
LED Type SMD1010 SMD1010/SMD1212 SMD1515
Module Resolution 240dotsx135dots 192dotsx 108dots 160dotsx 90dots
Driving Mode 1/60scan 1/64scan 1/54scan
Module Pixels 32,400dots 20,736dots 14,400dots
Module Size 300mm × 168.75mm 300mm × 168.75mm 300mm × 168.75mm
Cabinet Size 600mm × 337.5mm 600mm × 337.5mm 600mm × 337.5mm
Cabinet Resolution 480dots x 270dots 384dots x 216dots 320dots x 180dots
Pixel Density 640000dots/㎡ 409600dots/㎡ 284444dots/㎡
Minimum Viewing Distance ≥1.25m ≥1.56m ≥1.875m
Brightness 500-900nits 500-900nits 500-900nits
IP Grade IP43 IP43 IP43
Refresh Rate 3,840Hz~7,680Hz 3,840Hz~7,680Hz 3,840Hz~7,680Hz
Gray Scale 16bits~24bits 16bits~24bits 16bits~24bits
Viewing Angle H:165°-170° / V:165°-170° H:165°-170° / V:165°-170° H:165°-170° / V:165°-170°
Maximum Power Consumption 590W/㎡ 450W/㎡ 450W/㎡
Average Power Consumption 177W/㎡ 135W/㎡ 135W/㎡
Input Voltage AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz
Operating Temperature ﹣20℃~60℃ ﹣20℃~60℃ ﹣20℃~60℃
Operating Humidity 10%~90% 10%~90% 10%~90%
Cabinet Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Cabinet Weight 4.5kg/panel 4.5kg/panel 4.5kg/panel
Operating System Windows (Win10, Win12, etc.) Windows (Win10, Win12, etc.) Windows (Win10, Win12, etc.)
Signal Source Compatibility DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
