Fine Pitch LED Screen series

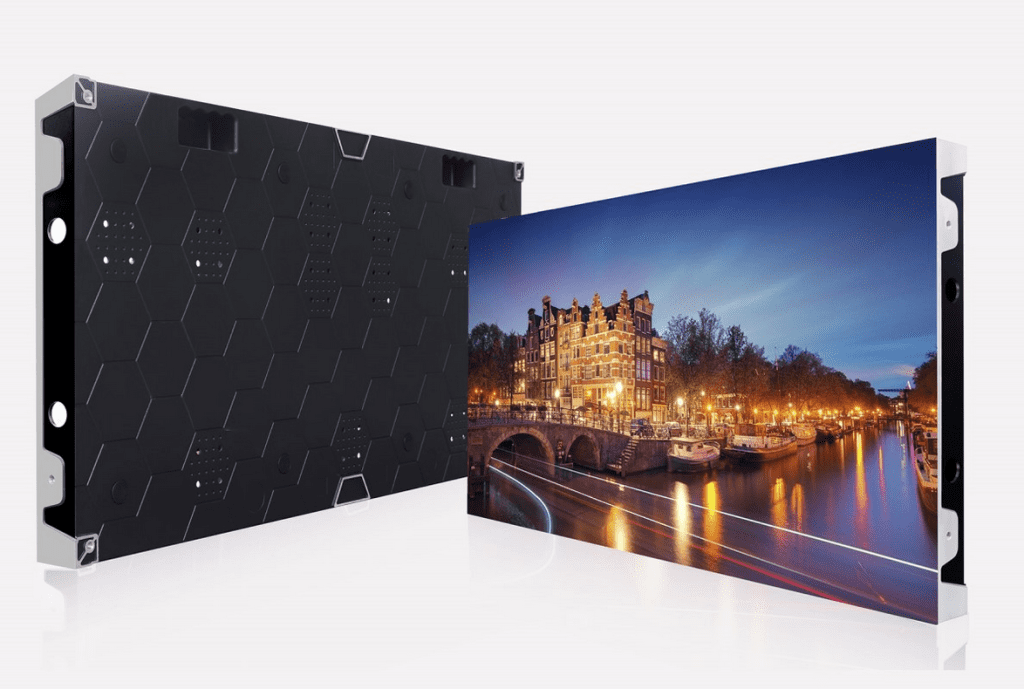

LED Cabinet design

Fine Pitch LED Screen Light and slim depth,depth 58mm

Dia-casting aluminum whole panel with CNC machine

Slot design make fast installation

Modular design, seamless, efficient

Front maintance

Support mixed assembly of large and small size

cabinet to meet the various LED screen size 480mmx480mm

Can be widely use in Meeting Room, Live Studio, Security, TV studio.

Pixel pitch (mm)	1.29	1.579	1.875	2.5
Model	(LM1.2-480480/LM1.2-960480)	(LM1.5-480480/LM1.5-960480)	(LM1.8-480480/LM1.8-960480)	(LM2.5-480480/LM2.5-960480)
NationStar LED	SMD1010	SMD1212	SMD1515	SMD2121
Density (dots/sqm)	600925	401084	284444	160000
Module resolution (dots)	34613	23102	16384	9216
Module width (mm)	240	240	240	240
Module height (mm)	240	240	240	240
Cabinet width (mm)	(480/960)	(480/960)	(480/960)	(480/960)
Cabinet height (mm)	480	480	480	480
Cabinet depth	40	40	40	40
Resolution (dots)	(138453/276906)	(92410/184820)	(65536/131072)	(36864/73728)
Weight (kg)	(7/14)	(7/14)	(7/14)	(7/14)
Material	aluminium	aluminium	aluminium	aluminium
Maintain	Front	Front	Front	Front
IPX	IP43	IP43	IP43	IP43
Max brightness (cd/sqm)	1000	1000	1000	1000
Color temperature (k)	6500	6500	6500	6500
Angle	160/140	160/140	160/140	160/140
Contrast ratio	5000:01:00	5000:01:00	5000:01:00	5000:01:00
Max power (w)	(80/100)	(80/110)	(80/90)	(80/120)
Average power (w)	(40/56)	(45/54)	(45/50)	(45/65)
Voltage type	AC	AC	AC	AC
Voltage (v)	110-220	110-220	110-220	110-220
Driving method	1/62	1/52	1/32	1/32
Screen FPS (hz)	3,840Hz - 7,680Hz	3,840Hz - 7,680Hz	3,840Hz - 7,680Hz	3,840Hz - 7,680Hz
