Product Description

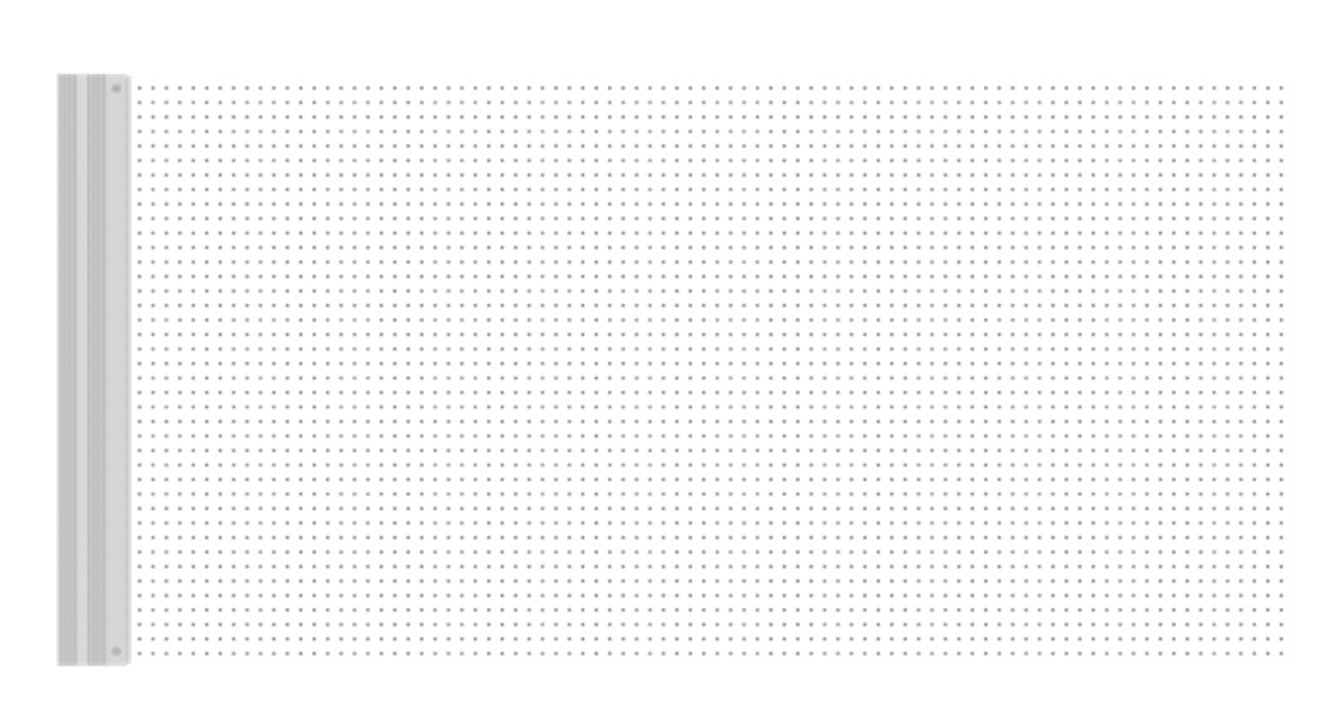

Light-Weighted and Thin Transparent LED Film Display Screen

Single module size: 1000mm*400mm; Thickness: 58.8mm, save space; Light weight: 1.3kg/panel; The substrate for these displays is usually a flexible polymer material, like polyimide or transparent conductive polyester film. The LEDs are mounted on this substrate using techniques that make them durable against bending and flexing.

Outstanding display quality – Led transparent ultra-soft and light adhesive film display

Breakpoint continuation:The combination of light and drive, independent research and development, high reliability, industry leading.High gray scale display (true 16bit):RGB channel adopts 32-level current linear regulation, and maintains true 16-bit grayscale display under any current, which is applicable to the consistency of indoor, semi-outdoor and outdoor current requirements.

Extreme Flexibility – Transparent LED Display Film Screen

It can be applied to any type of surface.Soft flexible screen technology, can be suitable for curved, curved, cylindrical shaped scene applications

High transmittance – Transparent Flexible LED Film Display Screen for Glass

The implementation of integrated MiniLED lamp beads and an invisible grid circuit enhances its permeability. The transmittance exceeds 90%, allowing ample daylight through the glass without significantly impacting visibility.

Excellent material – flexible LED display film clings to glass

It has Grade V1 flame retardant properties, which means it has a high level of resistance to flames. Additionally, it has UL UV resistance that allows it to withstand exposure to sunlight without yellowing for over 8 years. This makes it a durable and long-lasting option.

Easy and Fast Installation – transparent flexible led film display screen for glass windows

No steel structure is required, just stick the thin screen slightly and connect the power signal. Innovative glue-filling process allows for the direct attachment of the screen body to the glass surface. Through strong colloid adsorption, the screen body is able to adhere firmly to the glass. Furthermore, over time, the viscosity of the adhesive increases due to the inherent characteristics of the colloid.

Application Fields – Certification: UL, CUL, ETL, FCC, CE, ENEC, ROHS, LVD, EMC, VDE, E/e, Mark SAA, EK, PSE, CSA, ISO, cTUVuS, CB, KC, CCC, RHS, REACH

Parameter

Item	P6	P6.25	P8
Pixel Pitch	6mm	6.25mm	8mm
LED Type	SMD1515	SMD1515	SMD1515
Driving Mode	static scan	static scan	static scan
Module Size	816mm ×384mm	1000mm × 400mm	1000mm × 400mm
Module Resolution	136dots × 66dots	160dots × 64dots	125dots ×50dots
Cabinet Size	816mm ×384mm ×2.5mm	1000mm × 400mm×2.5mm	1000mm × 400mm x 2.5mm
Cabinet Resolution	136dots × 66dots	160dots × 64dots	125dots× 50dots
Pixel Density	27777dots/㎡	25600dots/㎡	15625dots/㎡
Minimum Viewing Distance	≥6 m	≥6m	≥8m
Transparency	0.9	0.9	0.92
Brightness	2000/4000nits	2000/4000nits	2000/4001nits
IP Grade	IP43	IP43	IP43
Refresh Rate	3,840Hz	3,840Hz	3,841Hz
Gray Scale	16bits	16bits	16bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	600W/㎡	600W/㎡	600W/㎡
Average Power Consumption	200W/㎡	200W/㎡	200W/㎡
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～55℃	﹣20℃～55℃	﹣20℃～55℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Cabinet Weight	1.3kg/panel	1.3kg/panel	1.3kg/panel
Operating System	Windows or Android	Windows or Android	Windows or Android
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Adhesive Transparent LED Film Display Screen
